Obsidian Loft Cabin Plans | 23x30 Scandinavian Barn | PDF Only

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️
This package is designed for inspiration, preliminary planning, and visualizing your dream cabin.
Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your builder? You can find the complete PRO package by selecting that variation in our shop!

PRIME FRAME PLANS presents: The Obsidian Loft Cabin. Meet the ultimate modern retreat. The Obsidian Loft Cabin is a stunning 1.5-story Scandinavian-style home designed for those who demand architectural excellence. Featuring a striking black vertical siding exterior and a massive floor-to-ceiling glass facade, this fully modeled project is perfect for conceptualizing and planning your future build.

*** HOUSE SPECIFICATIONS:
• Dimensions: 22' 11" x 29' 6" (Approx. 700 cm x 900 cm)
• Foundation: Raised Concrete Pier System (Ideal for slopes & flood zones)
• Roof Style: Steep Pitch Modern Gable (Excellent for snow shedding)
• Levels: 2 (Ground Floor + Sleeping Loft)
• Layout: Open-Concept Living, Full Kitchen, Full Bathroom, Master Loft Suite.

*** WHAT IS INCLUDED IN THIS PDF SET?
This download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1).

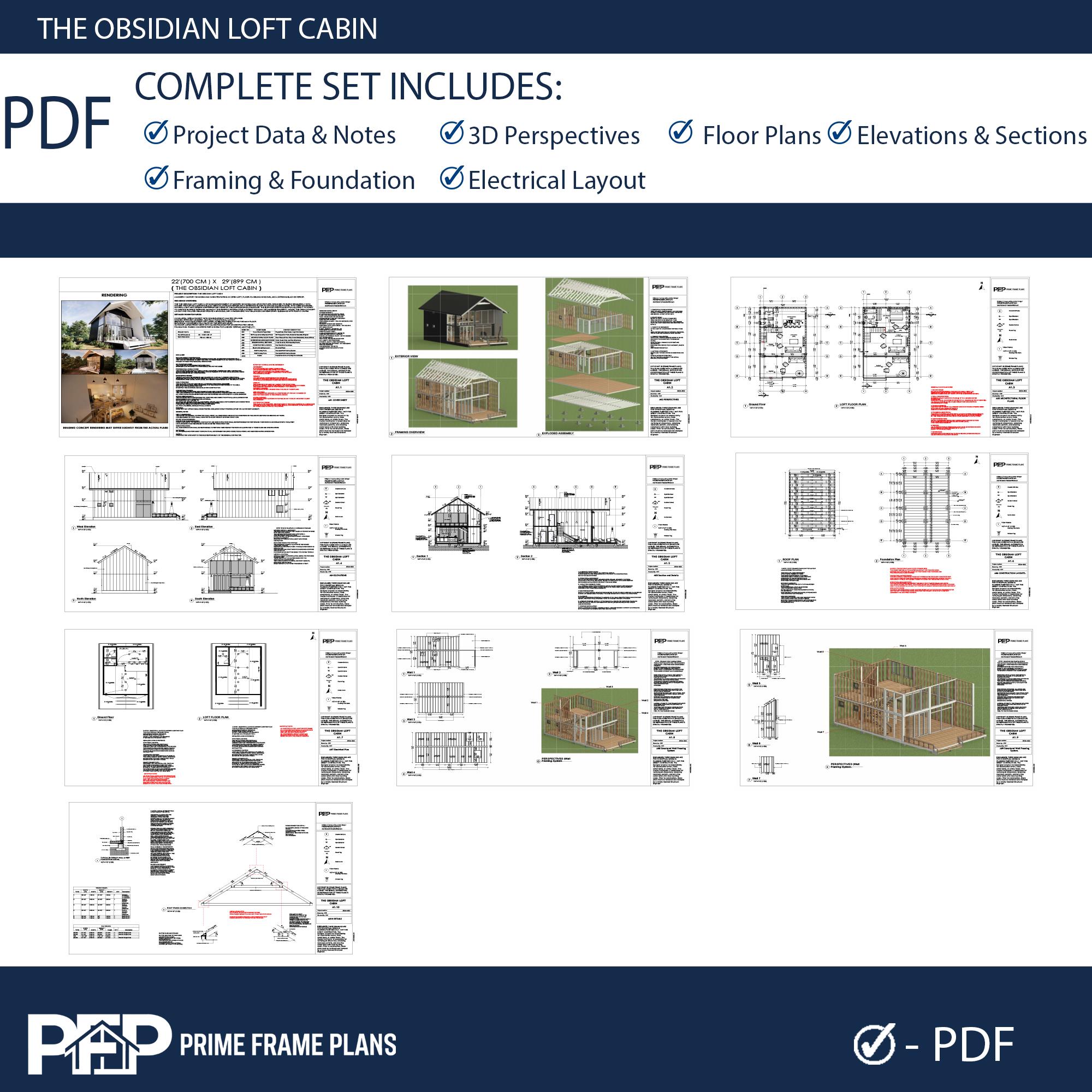

COMPLETE ARCHITECTURAL PDF SET (10 Sheets):
• A01: Cover Sheet, Project Data & 3D Renderings

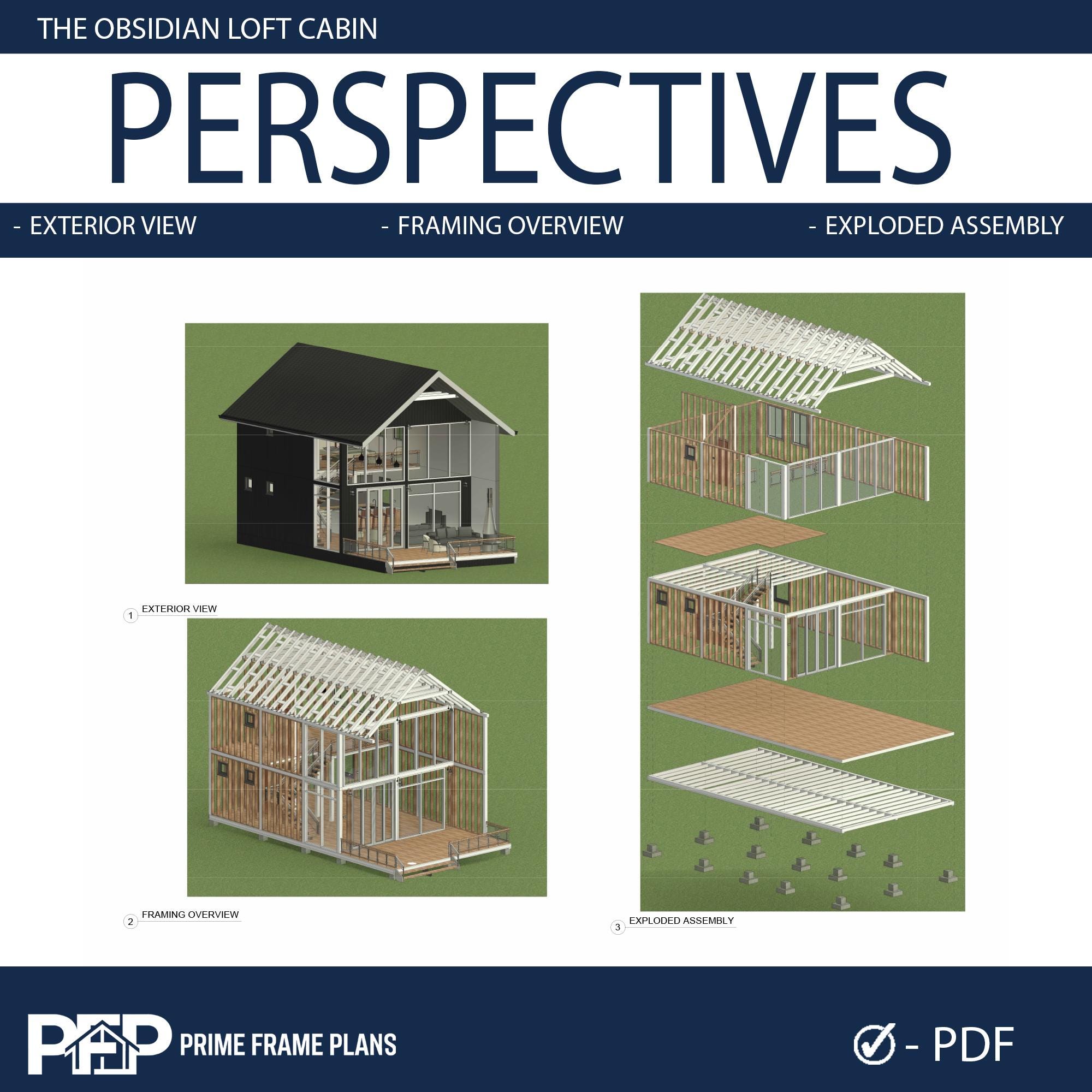

• A02: 3D Exploded Views & Framing Perspectives

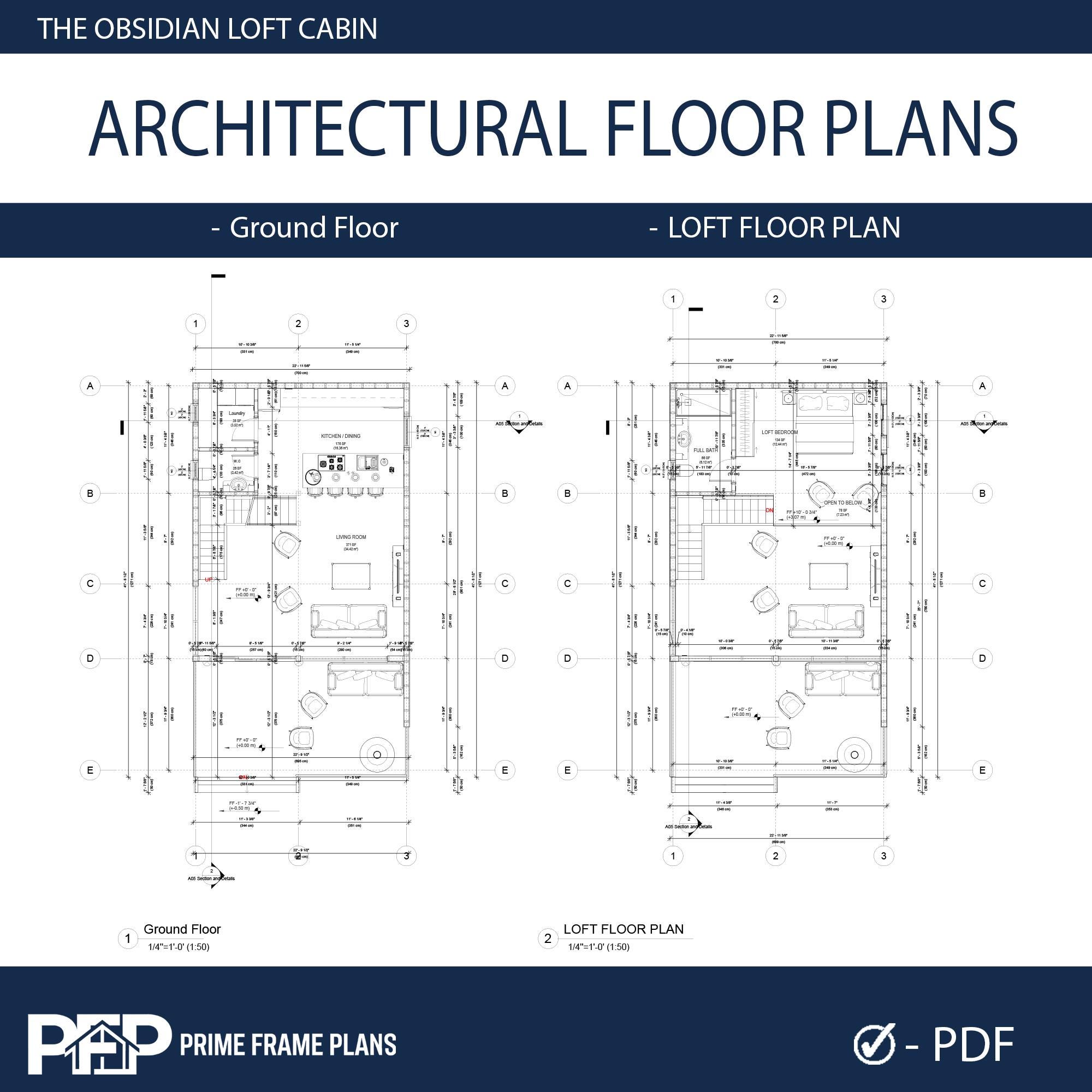

• A03: Detailed Floor Plans (Ground & Loft) with Dimensions

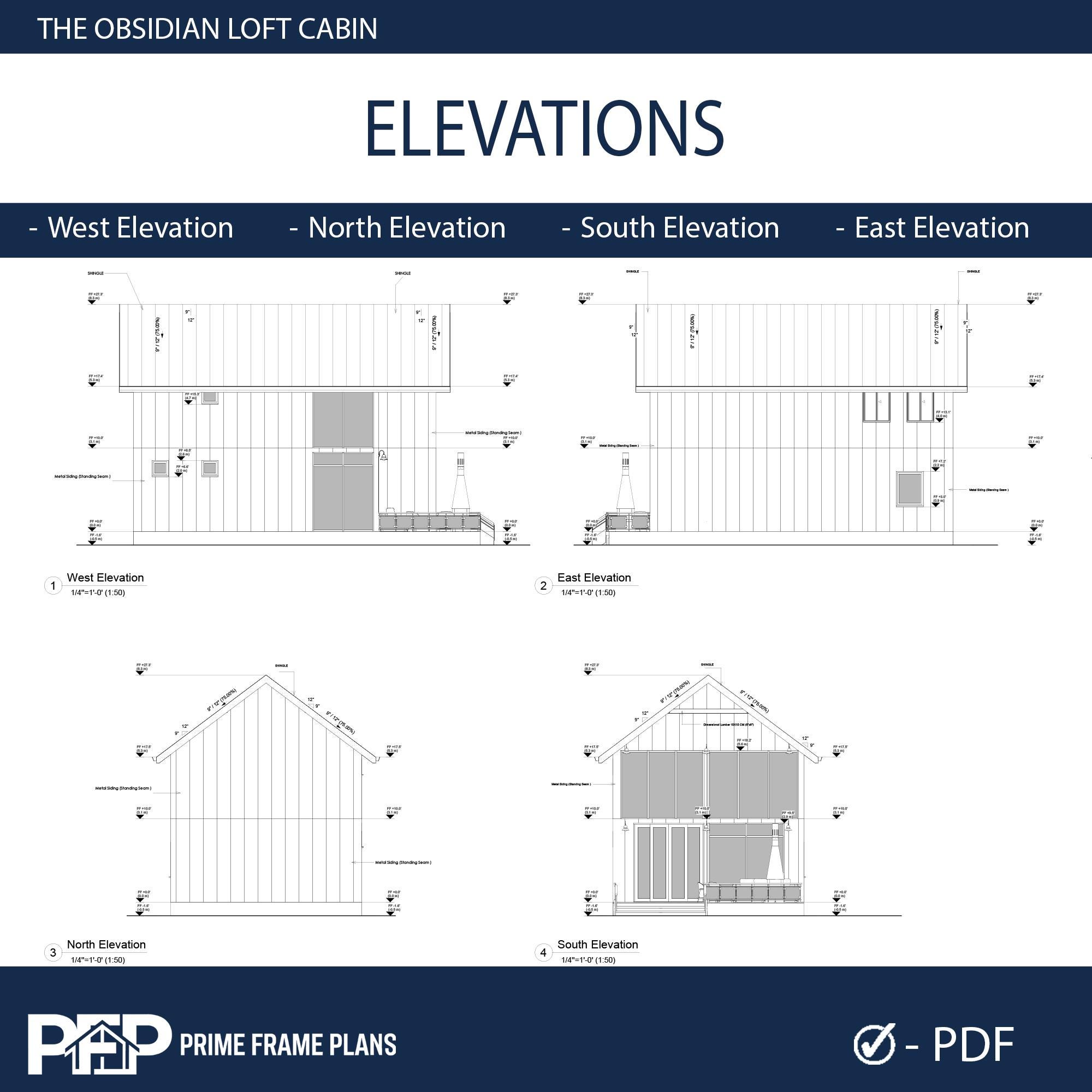

• A04: 4 Exterior Elevations (North, South, East, West)
• A05: Building Sections & Wall Assembly Details

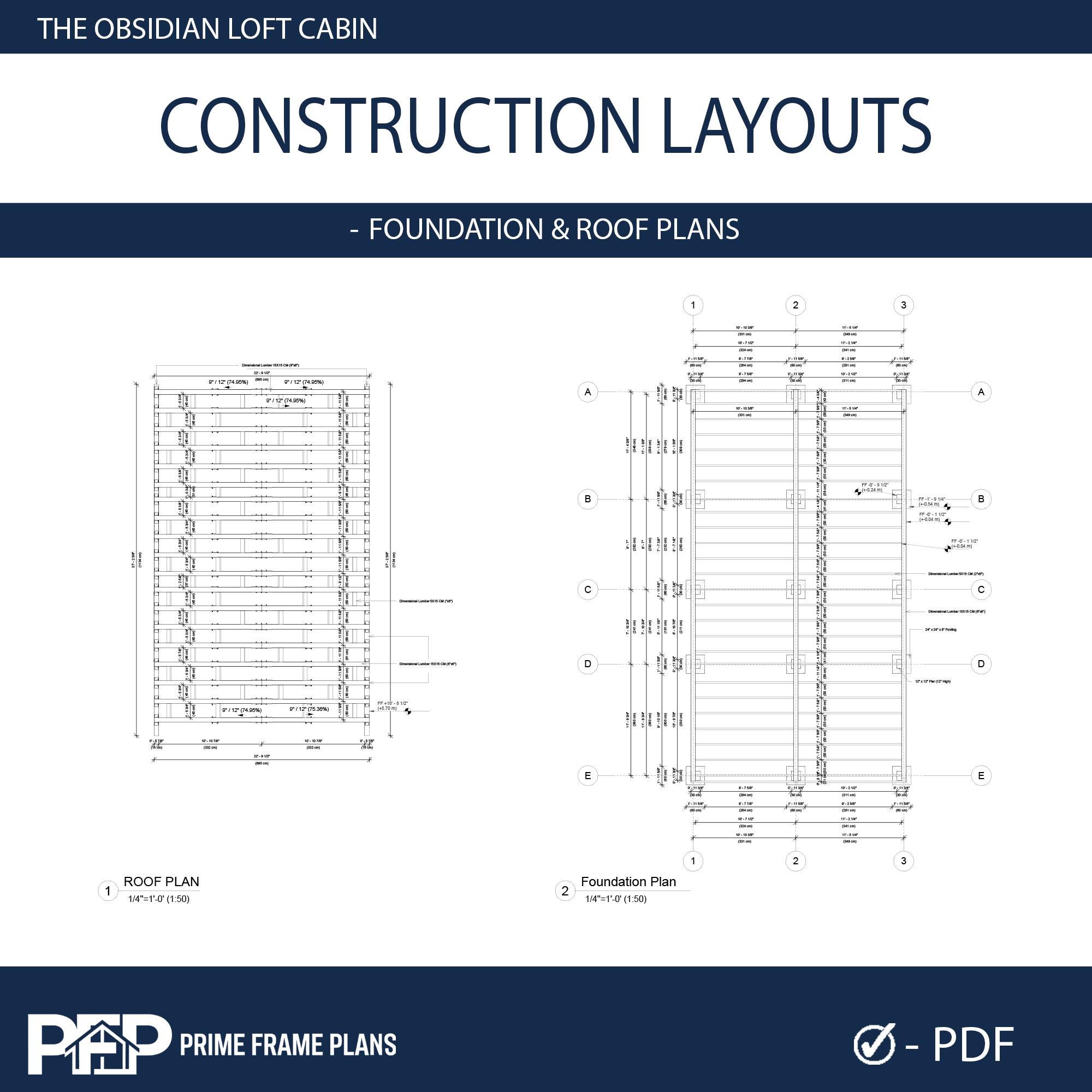

• A06: Foundation Plan (Pier Layout) & Roof Framing Plan

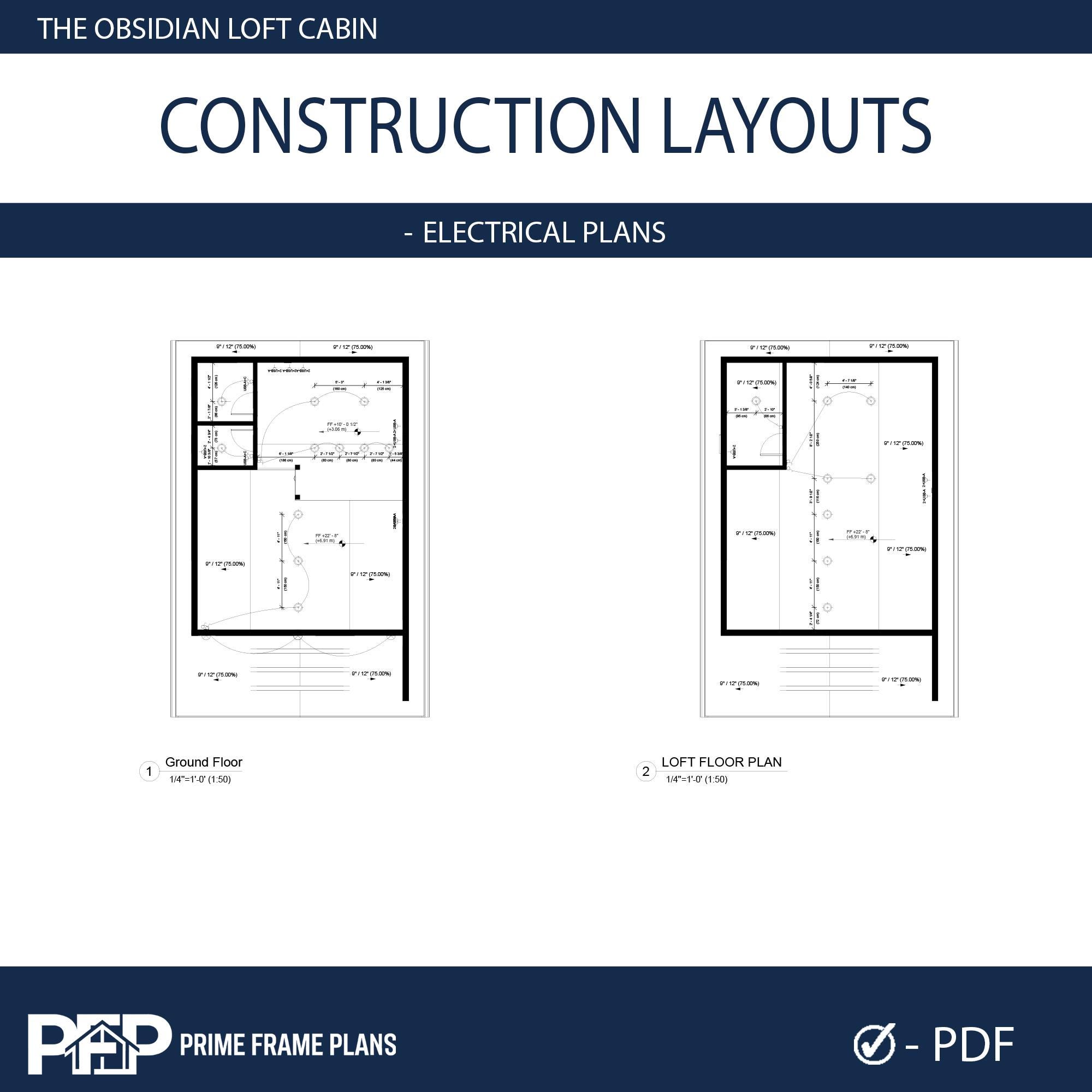

• A07: Electrical & Lighting Plan (Switch & Outlet Layouts)

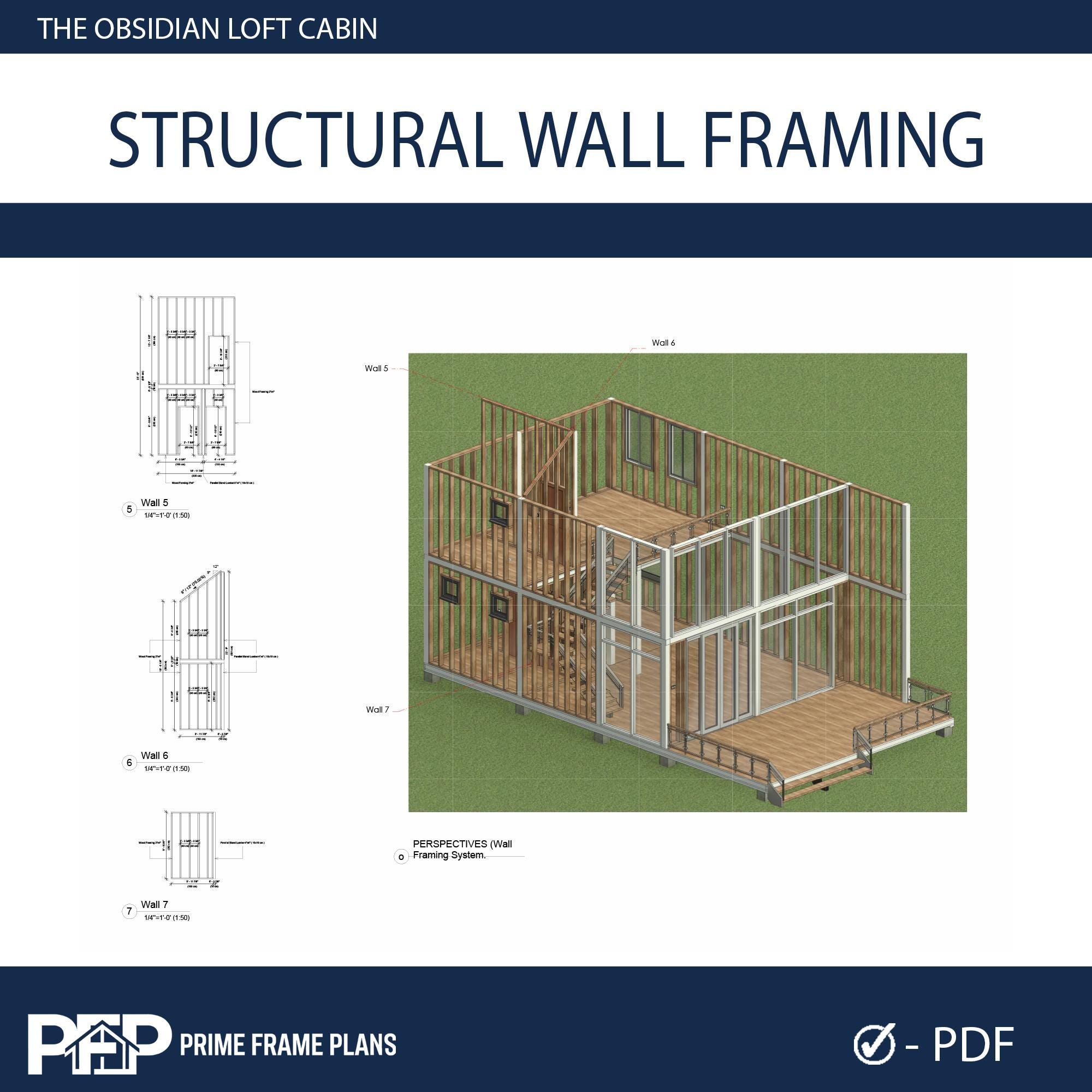

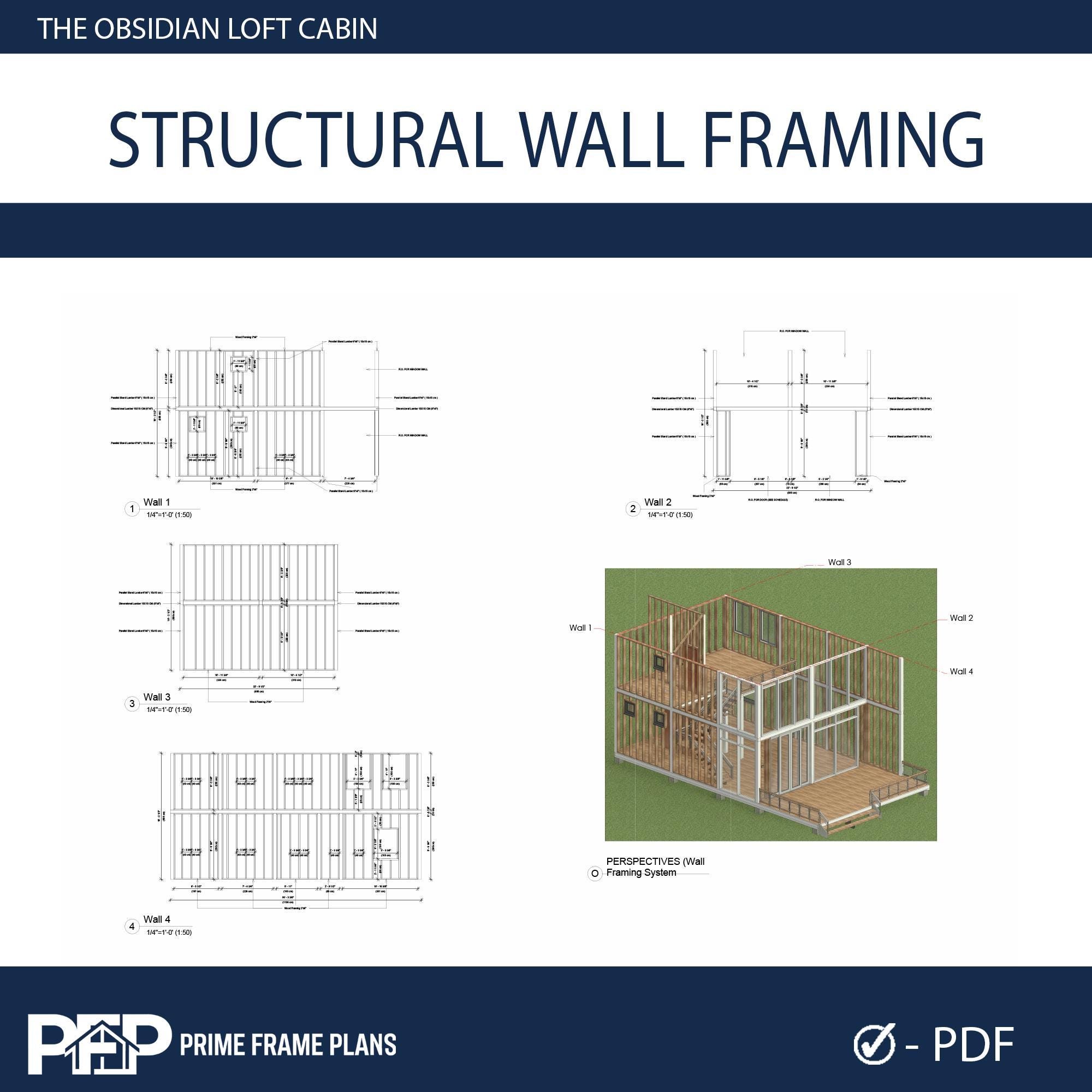

• A08-A09: Structural Wall Framing Schematics (Stud Layouts)

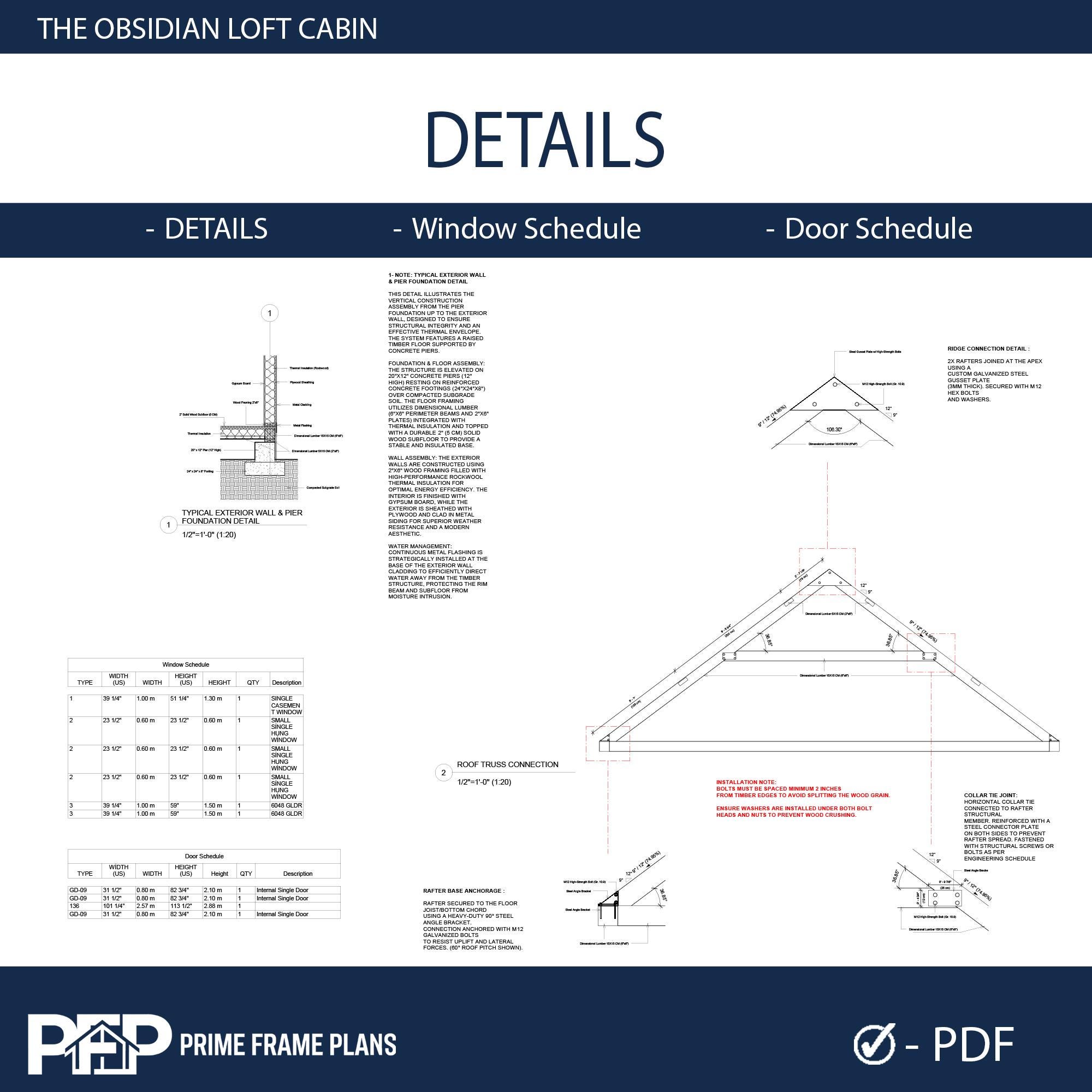

• A10: Critical Construction Details (Truss Connections, Pier Details)

*** DUAL DIMENSIONS INCLUDED (GLOBAL USE):
Every single sheet features Dual Dimensions, showing Feet-Inches and Meters-Centimeters side-by-side. Ready for planning in the US, Canada, Europe, and Australia.

*** IMPORTANT NOTES:
• Format: Digital Download (PDF ONLY). No physical product will be shipped.
• NO CAD / NO MATERIAL LIST: This specific listing does not include editable DWG files or material estimates. (Please select the PRO Full Set variation if your builder requires these).
• Engineering: These plans are for conceptual design and planning. Due to varying local codes, they must be reviewed by a locally licensed engineer before construction.
• License: Purchase grants a Single-Use License to construct one (1) structure. Resale or distribution of these files is strictly prohibited.
• Refunds: Due to the nature of digital products, no refunds are accepted.

PRIME FRAME PLANS - Modern Living, Smart Design.
