3 Bed Black Barndominium Plans | 40x30 Airbnb Barn House | PDF Only

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️

This package is designed for inspiration, preliminary planning, and visualizing your dream home.

Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your builder? You can find the complete PRO package by selecting that option in our shop!

PRIME FRAME PLANS presents: The Onyx Ridge Barndo. This is not just a home; it's a statement. The Onyx Ridge is a high-end modern barndominium defined by its striking exterior, grand truss system, and a magnificent floor-to-ceiling glass façade. Designed for maximum functionality and luxury, this small home plan packs incredible features into a smart footprint, including a Mudroom, an open-to-below Loft Lounge, and a spectacular Great Room in addition to the 3 bedrooms.

*** DUAL DIMENSIONS INCLUDED:

This plan set is designed for global use. All floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements on the same page for easy reference.

IMPORTANT: These plans are for conceptual design purposes. They MUST be reviewed and stamped by a locally licensed structural engineer and your building official before construction to ensure compliance with local codes and site conditions.

******* DESIGN SUMMARY ******* • Overall Dimensions: 40' - 0" x 30' - 0" (1219 cm x 1144 cm)

• Total Area: 1,098 Sq. Ft. (101.97 m²)

• Bedrooms: 3 Bedrooms

• Bathrooms: 2 Baths

• Key Rooms: Great Room, Kitchen, Mudroom, and Loft Lounge

• Foundation: Pier and Footing Foundation (with Wood Floor System)

• Roof Style: Modern Gable Roof with Standing Seam Metal or Asphalt Shingles

******* WHAT IS INCLUDED IN THIS PDF SET? ******* This download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1).

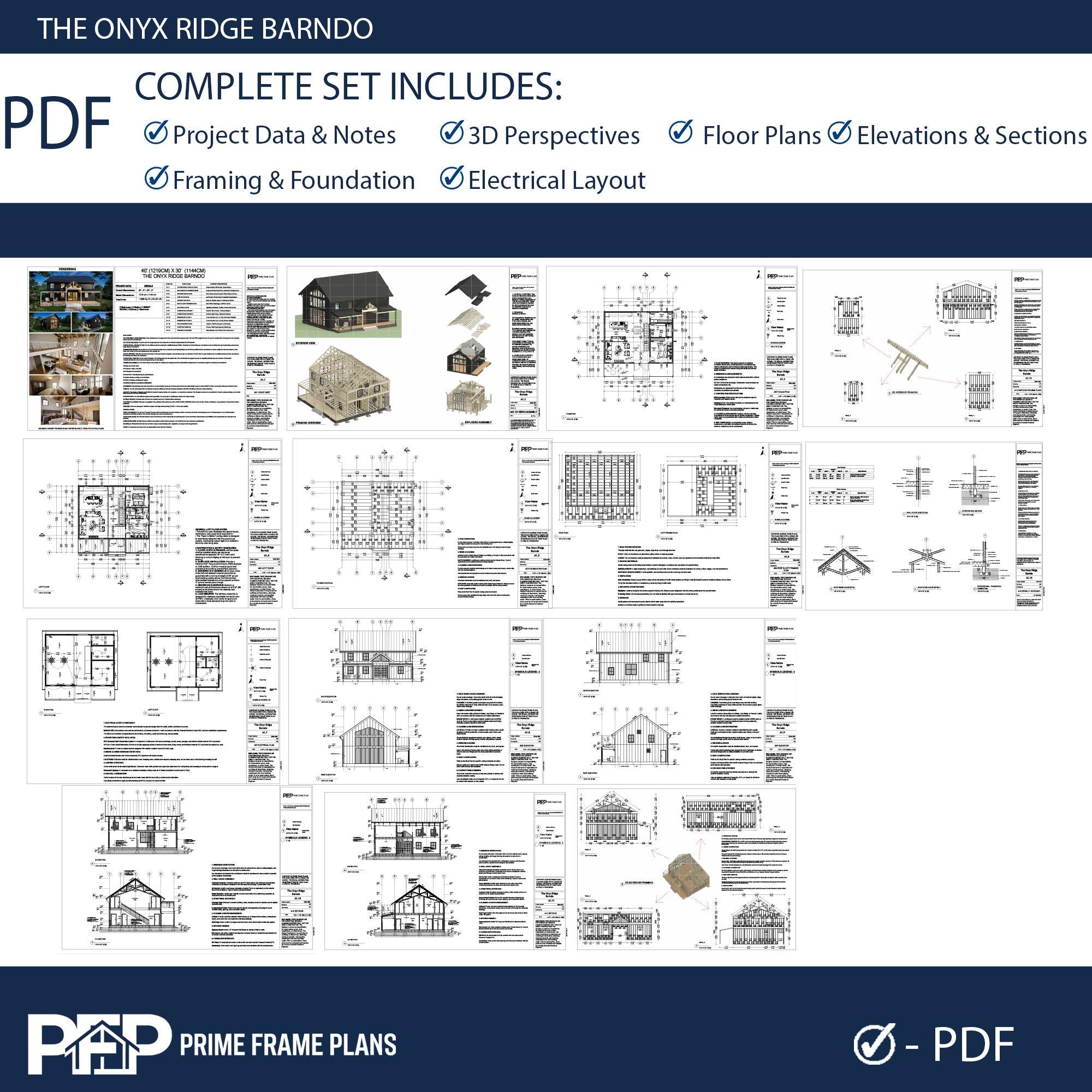

COMPLETE PDF PLAN SET (14 SHEETS): • A1.1 - COVER SHEET & PROJECT DATA: Project Data, 3D Render, Sheet index

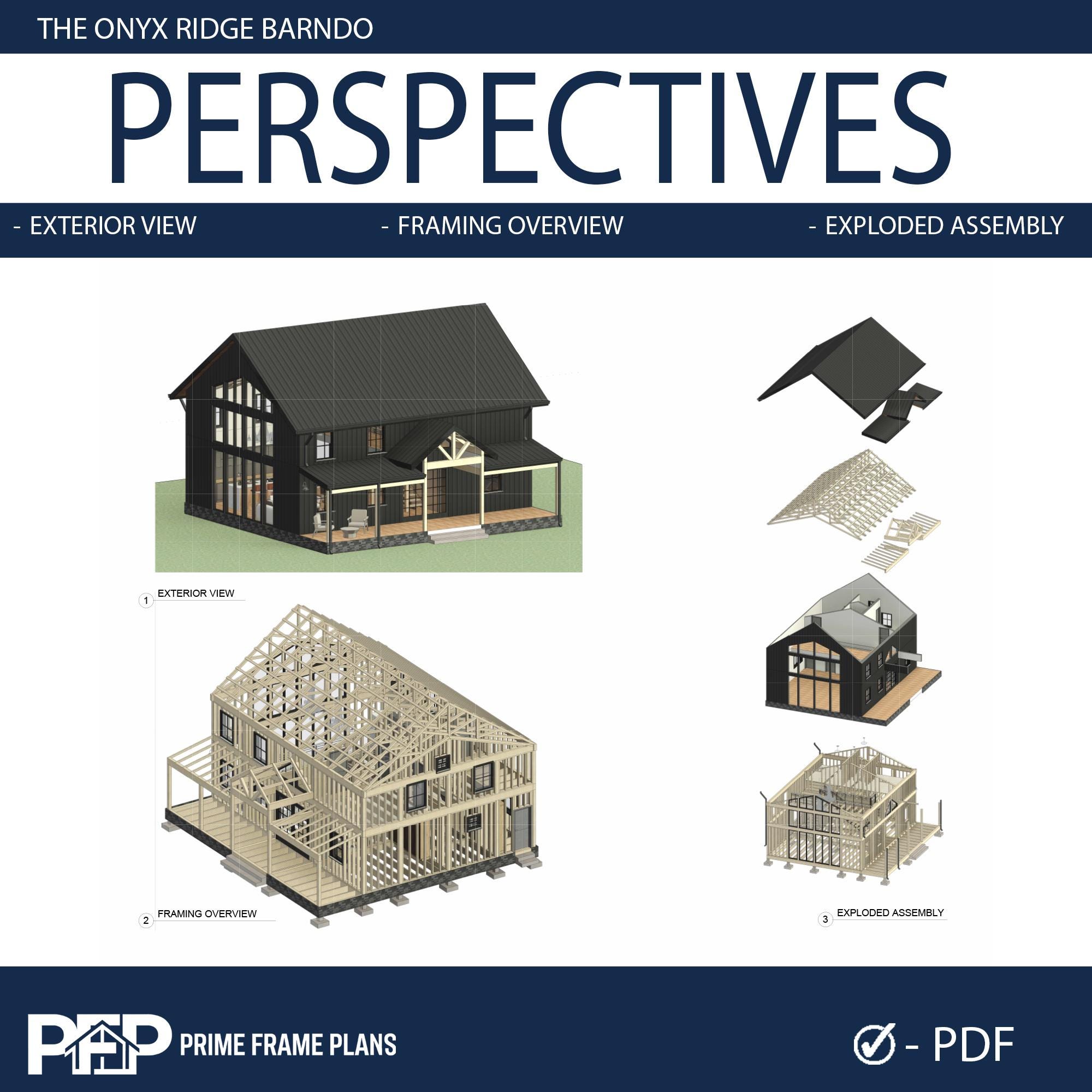

• A1.2 - 3D EXTERIOR & FRAMING VIEWS: Exploded Structural View, Isometric Perspectives

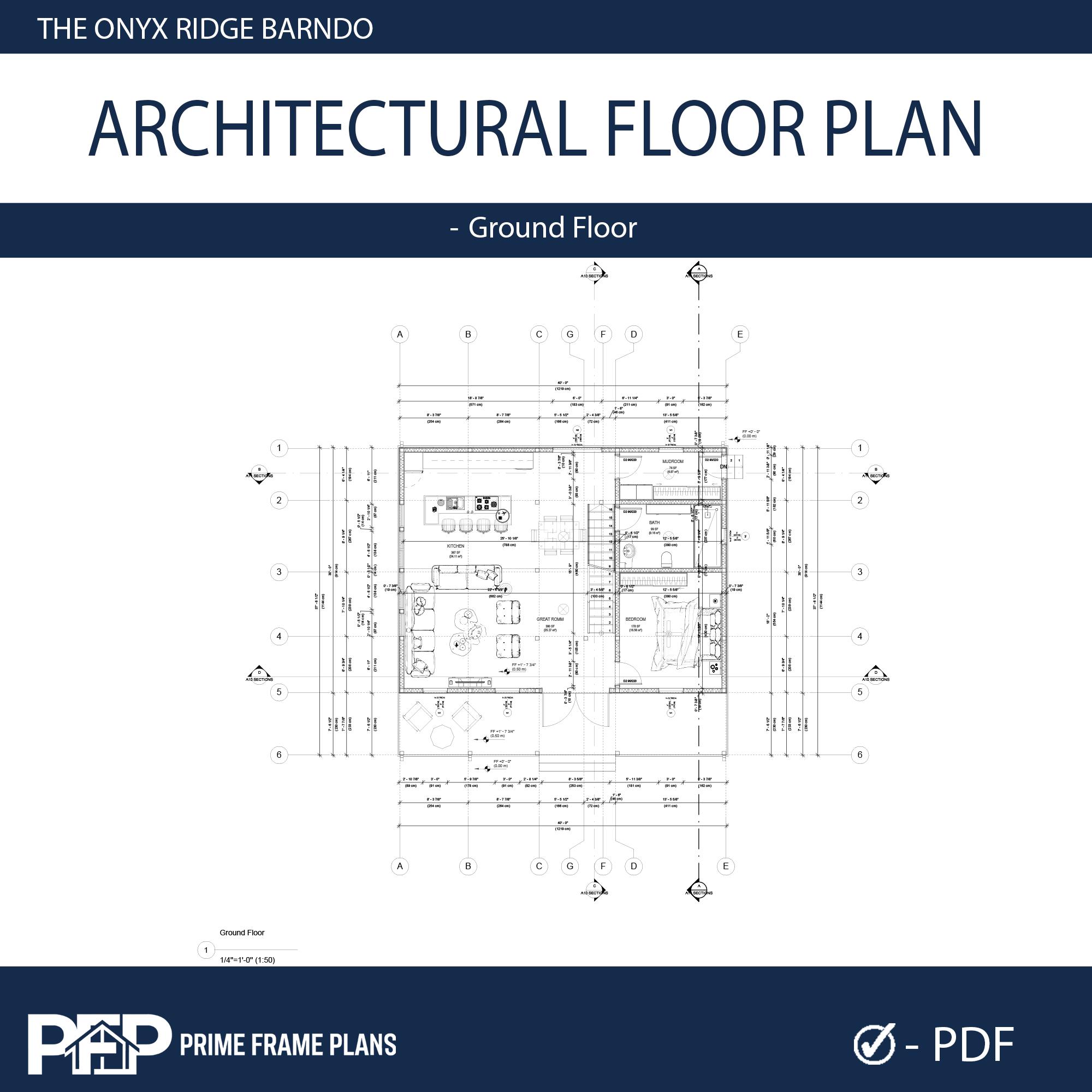

• A1.3 - GROUND FLOOR PLAN: Fully Dimensioned Layout, Room Sizes & Notes

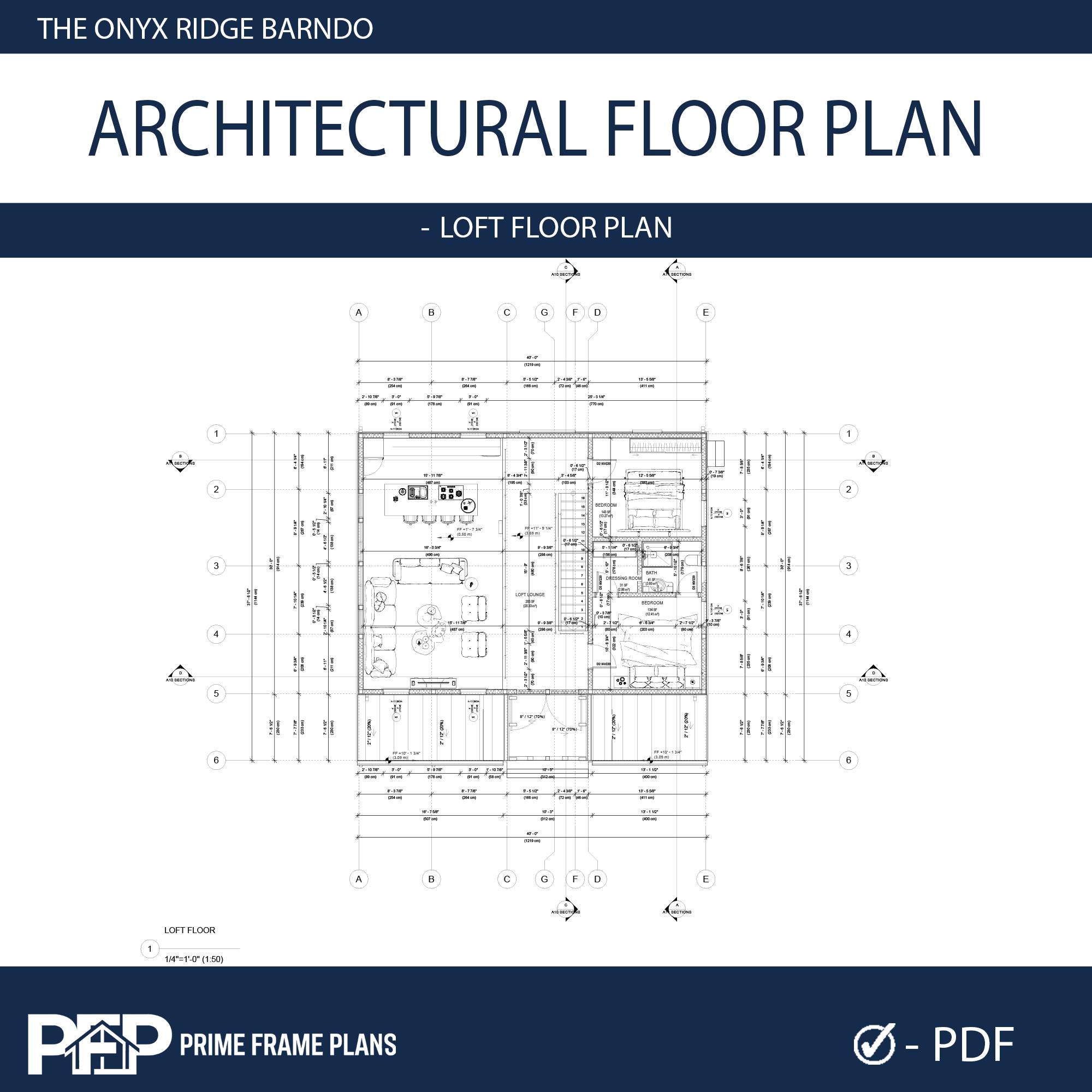

• A1.4 - LOFT FLOOR PLAN: Loft Layout, Dimensions, & Spatial Organization

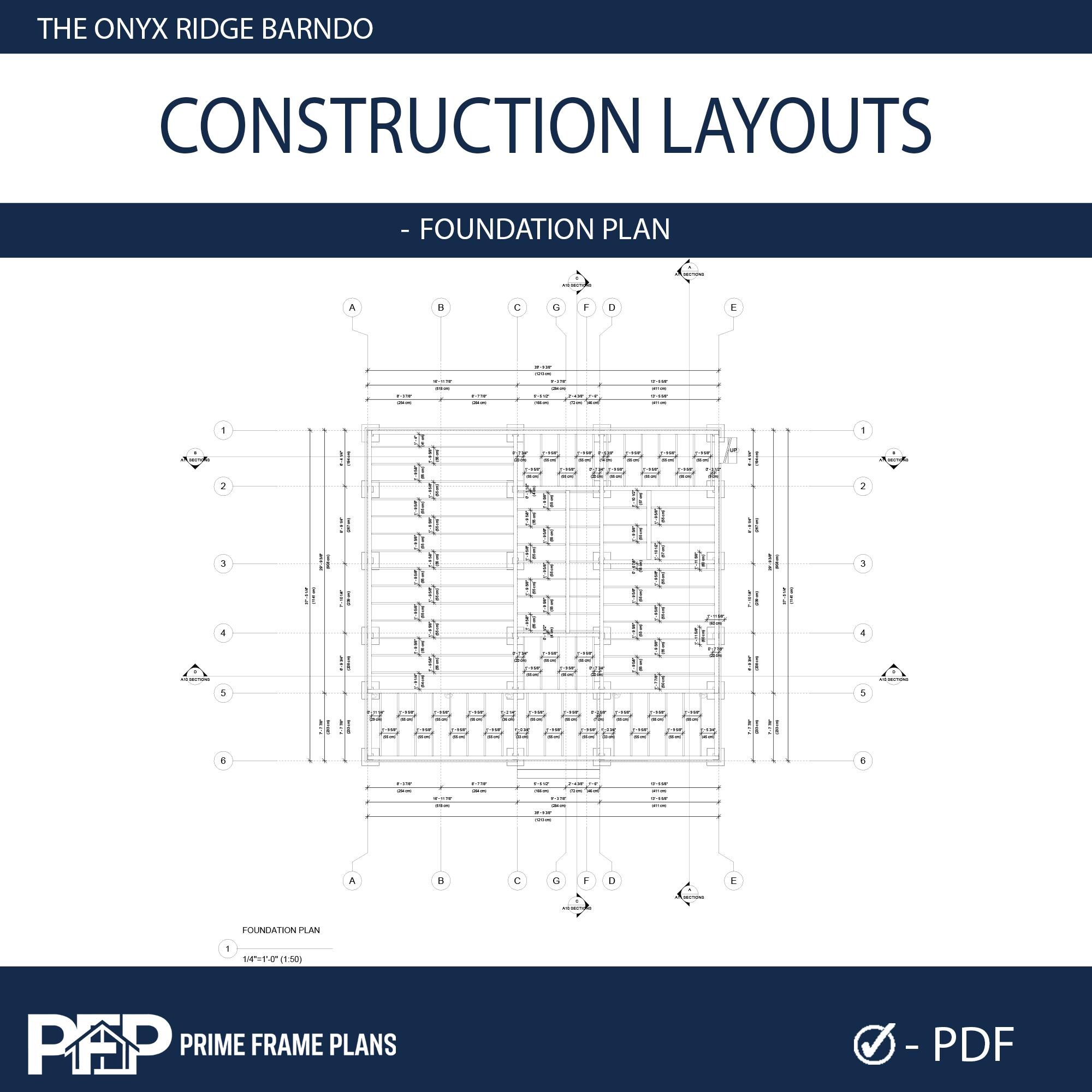

• A1.5 - FOUNDATION PLAN: Pier & Footing Layout, Foundation Details

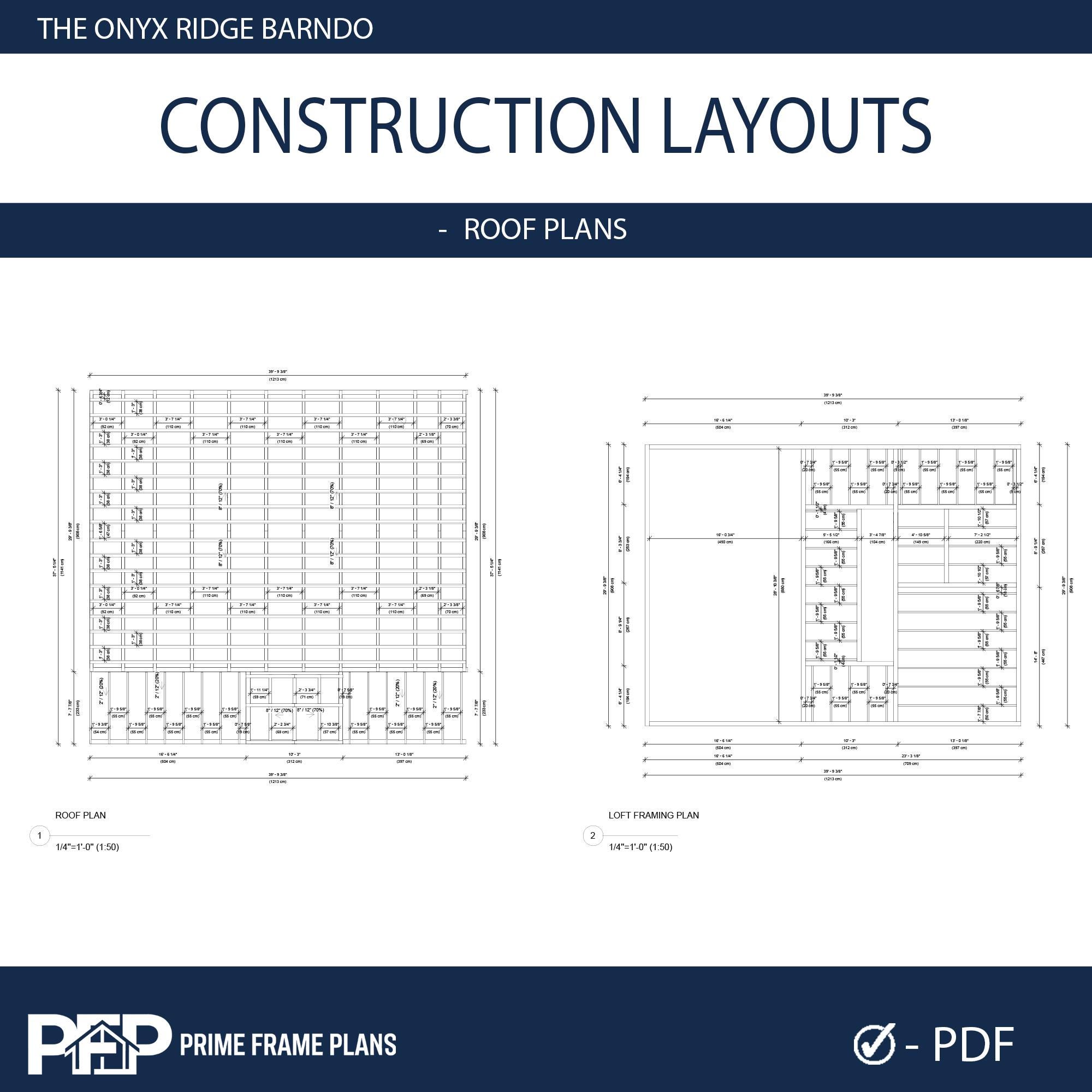

• A1.6 - ROOF & LOFT FRAMING PLAN: Roof Pitch, Drainage, Loft Floor Joists

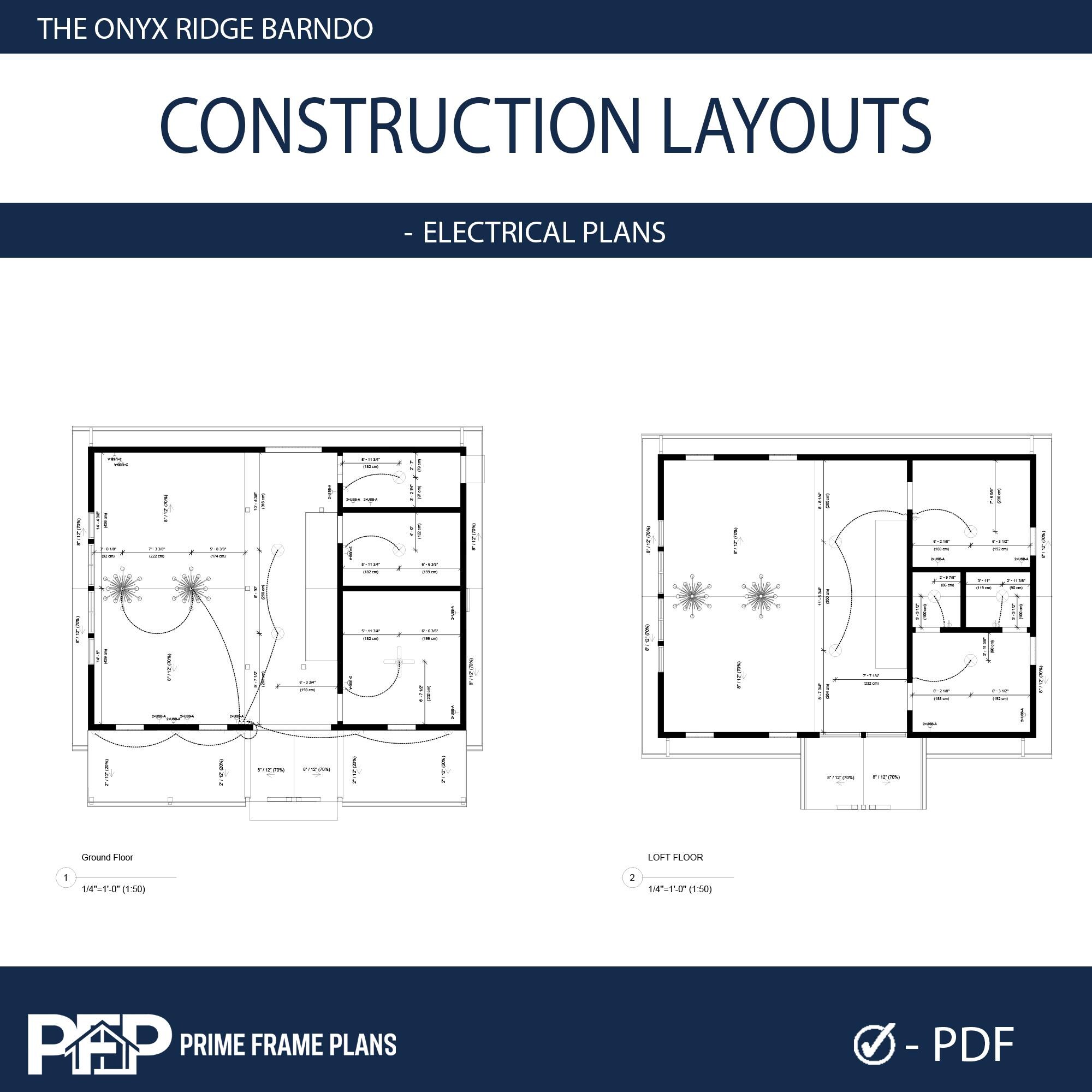

• A1.7 - ELECTRICAL PLAN: Lighting, Switches, Outlets

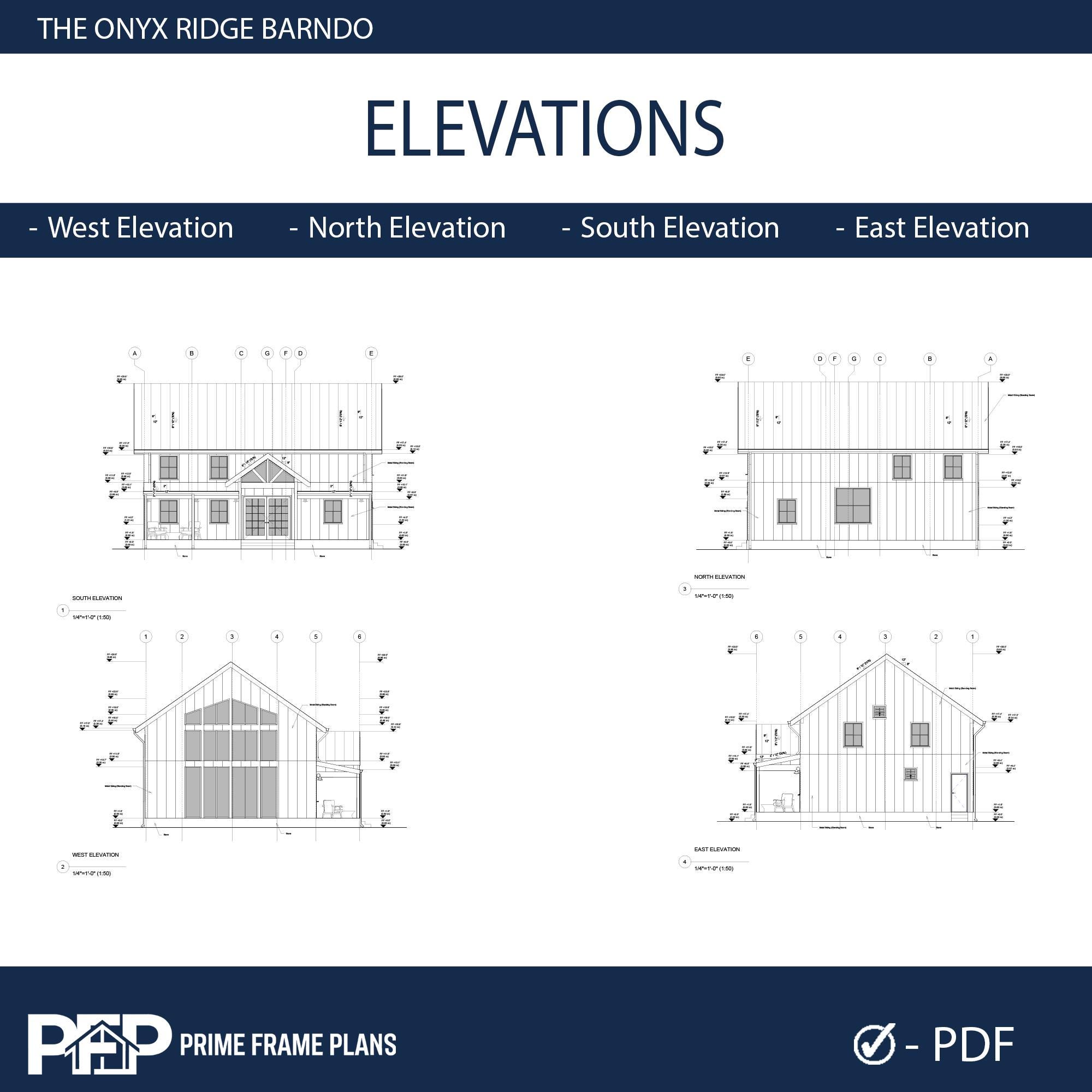

• A1.8 - EXTERIOR ELEVATIONS 1: South & West Views, Vertical Heights

• A1.9 - EXTERIOR ELEVATIONS 2: North & East Views, Material Callouts

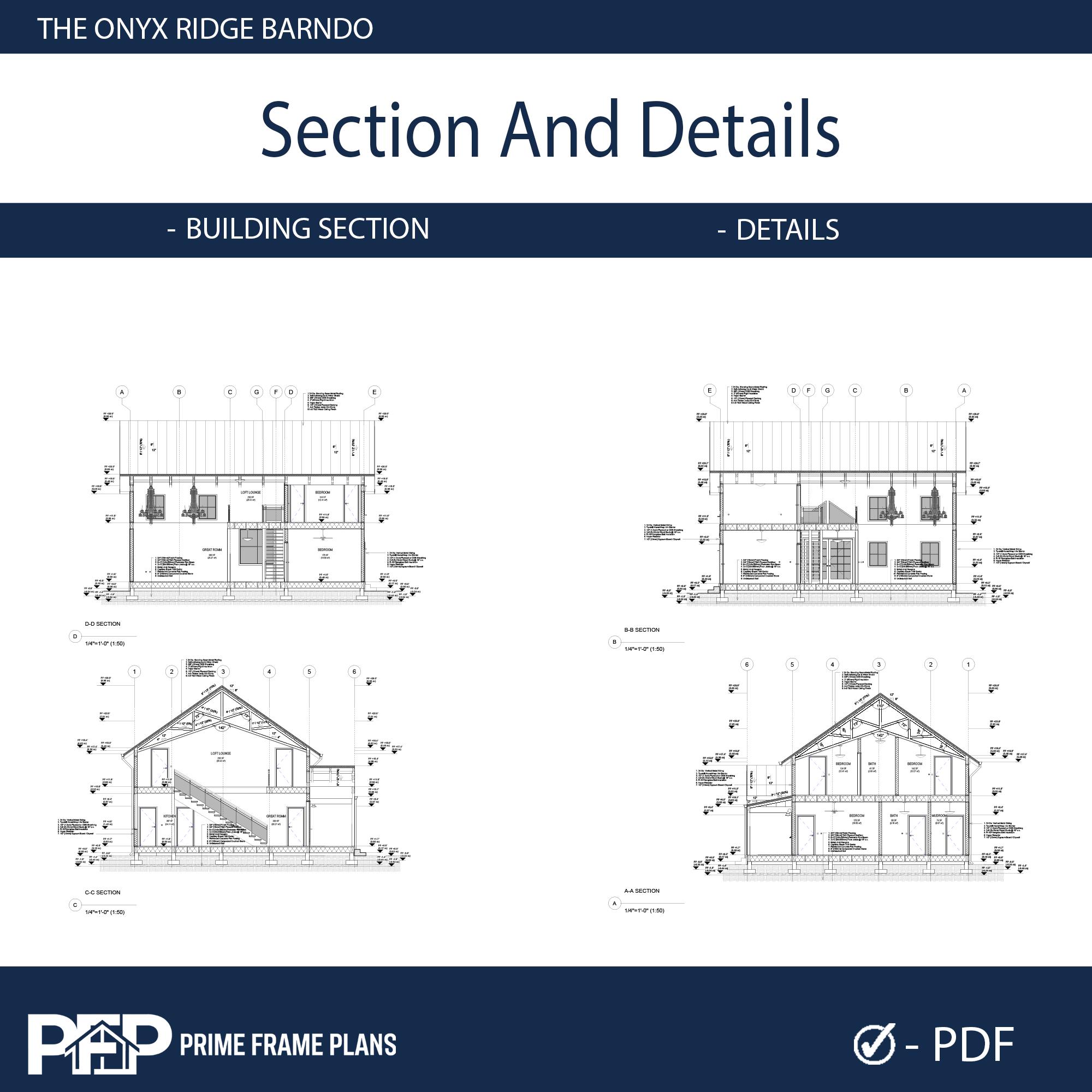

• A1.10 - BUILDING SECTIONS 1: Cross Sections (C-C, D-D), Structural Heights

• A1.11 - BUILDING SECTIONS 2: Cross Sections (A-A, B-B), Interior Details

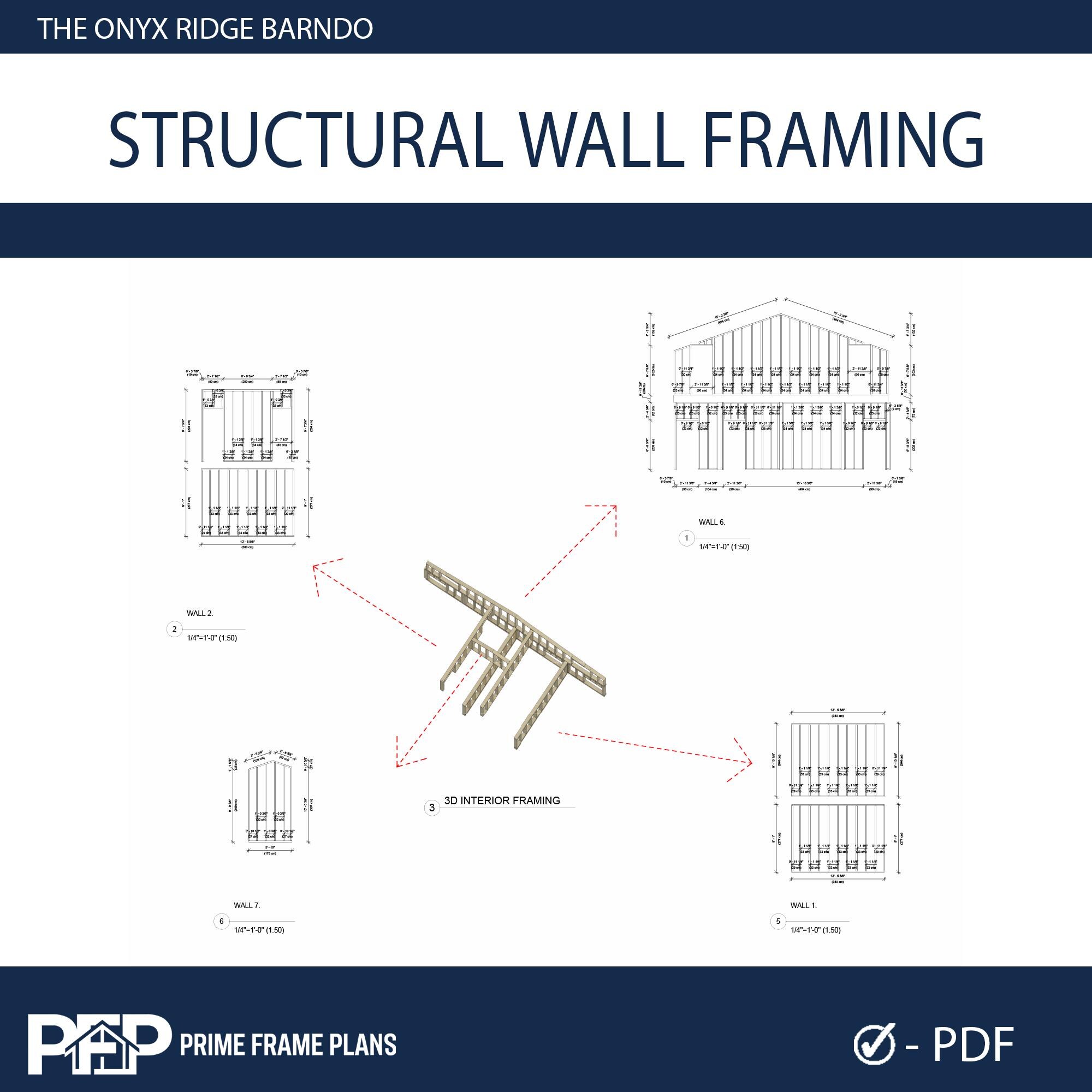

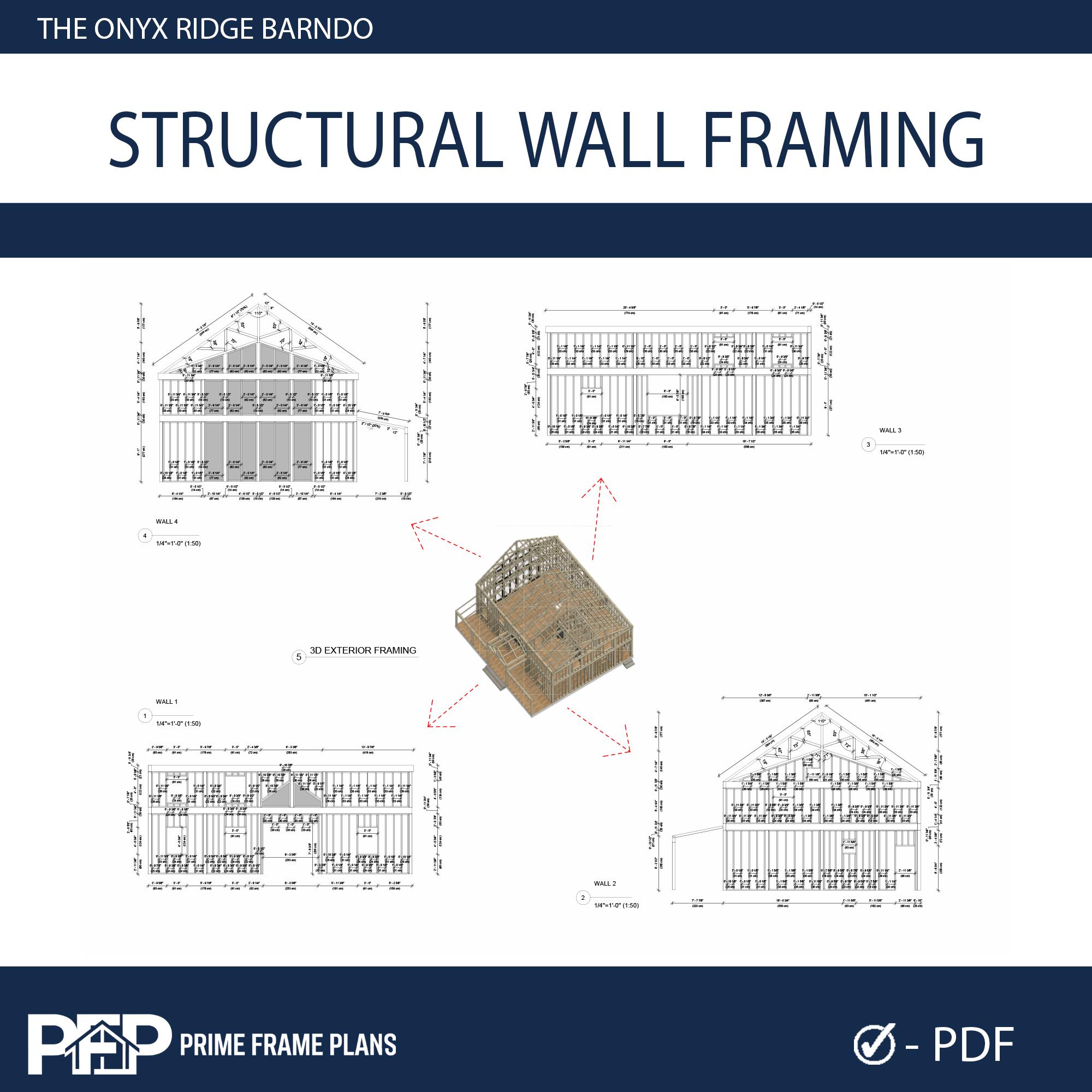

• A1.12 - WALL FRAMING PLANS: Exterior Wall Stud Layouts & Bracing

• A1.13 - PARTITION FRAMING: Interior Wall Stud Layouts & Blocking

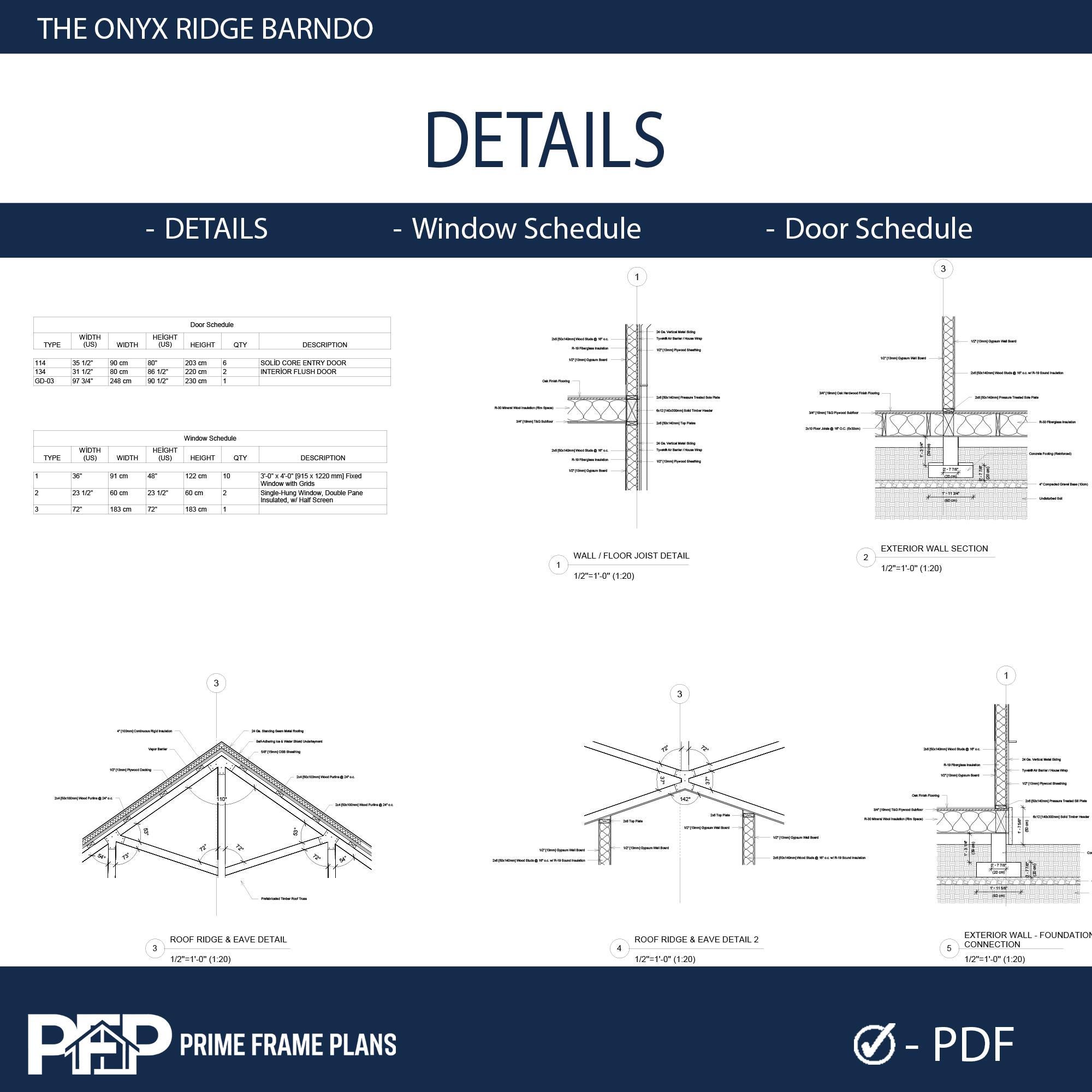

• A1.14 - DETAILS & SCHEDULES: Door/Window List, Structural Connections

******* PLEASE READ BEFORE PURCHASING ******* • Format: Digital Download (PDF ONLY). No physical product is shipped.

• NO CAD / NO MATERIAL LIST: This specific listing does not include editable DWG files or material estimates. (Please select the PRO Full Set variation if your builder requires these).

• License: Purchase grants a Single-Use License to build one (1) structure. Resale is strictly prohibited.

• Refunds: Due to the nature of digital products, no refunds are accepted.

PRIME FRAME PLANS - Modern Living, Smart Design.
