White Metal Barndominium Plans | 3 Bed Modern Farmhouse | PDF Only

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️ This package is designed for inspiration, preliminary planning, and visualizing your dream farmhouse. Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your builder? You can find the complete PRO package by selecting that variation in our shop!
PRIME FRAME PLANS presents: The White Diamond. This is not just a home; it's a statement. The White Diamond is a high-end modern barndominium defined by its striking white metal exterior, massive cathedral ceilings, and a spectacular floor-to-ceiling glass façade. Designed for maximum functionality and luxury, this plan packs incredible features into a smart footprint, including an attached Garage, Mudroom, Walk-in Pantry, Home Office, and a versatile Flex Room.
*** DUAL DIMENSIONS INCLUDED:** This plan set is designed for global use. All floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements on the same page for easy reference.
IMPORTANT: These plans are for conceptual design purposes. They MUST be reviewed and stamped by a locally licensed structural engineer and your building official before construction to ensure compliance with local codes and site conditions.
***** DESIGN SUMMARY ***** * Overall Dimensions: 59' - 0 1/8" x 40' - 2 1/2" (1799 cm x 1226 cm)
Total Living Area: 1,774 Sq. Ft. (165 m²)
Bedrooms: 3 Total
Bathrooms: 3 Full Baths
Key Rooms:
Great Room: Open Concept with Cathedral Ceiling
Kitchen: Gourmet Kitchen with Island & Pantry
Home Office: Dedicated workspace
Flex Room: Versatile room for Gym/Hobby/Extra Bed
Mudroom: Entryway organization space
Loft Lounge: Upper level sitting area overlooking the Great Room
Garage: Attached Garage included in the footprint
Foundation: Slab-on-Grade (Concrete Slab)
Roof Style: Modern Gable Roof with Standing Seam Metal
***** WHAT IS INCLUDED IN THIS PDF SET? ***** This download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1).

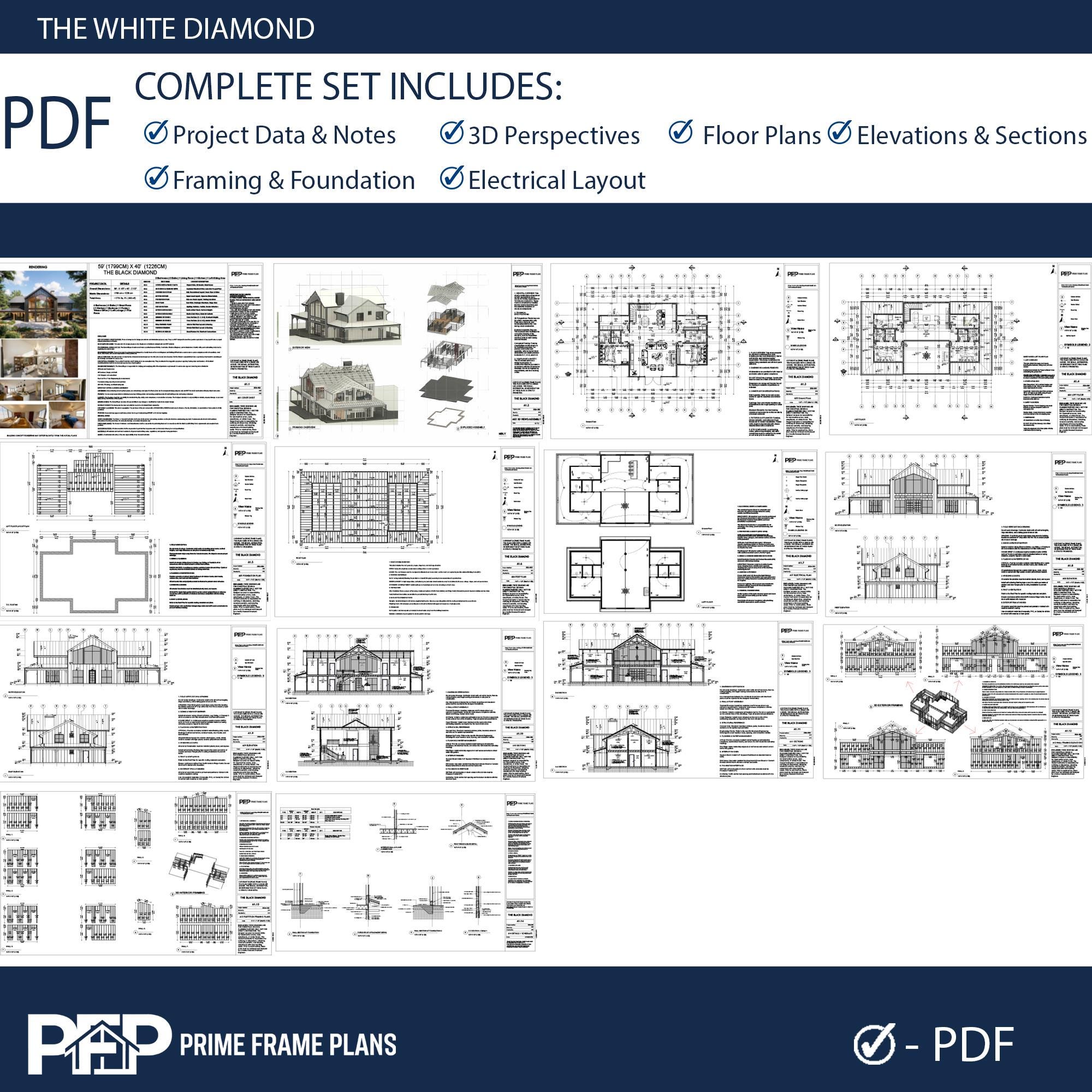

COMPLETE PDF PLAN SET (14 SHEETS):
A1.1 - COVER SHEET & PROJECT DATA: Project Data, 3D Render, Sheet Index.

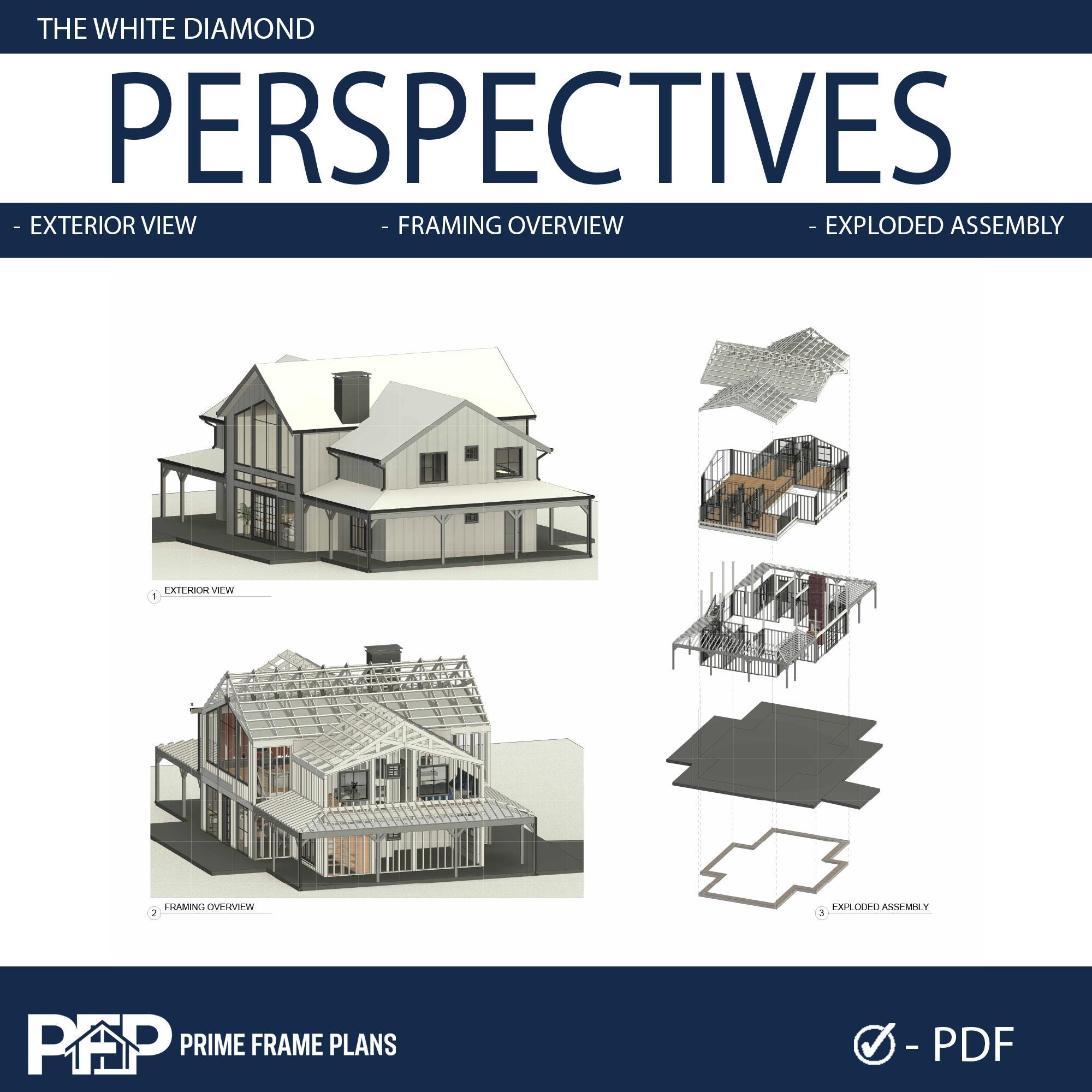

A1.2 - 3D EXTERIOR & FRAMING VIEWS: Exploded Structural View, Isometric Perspectives.

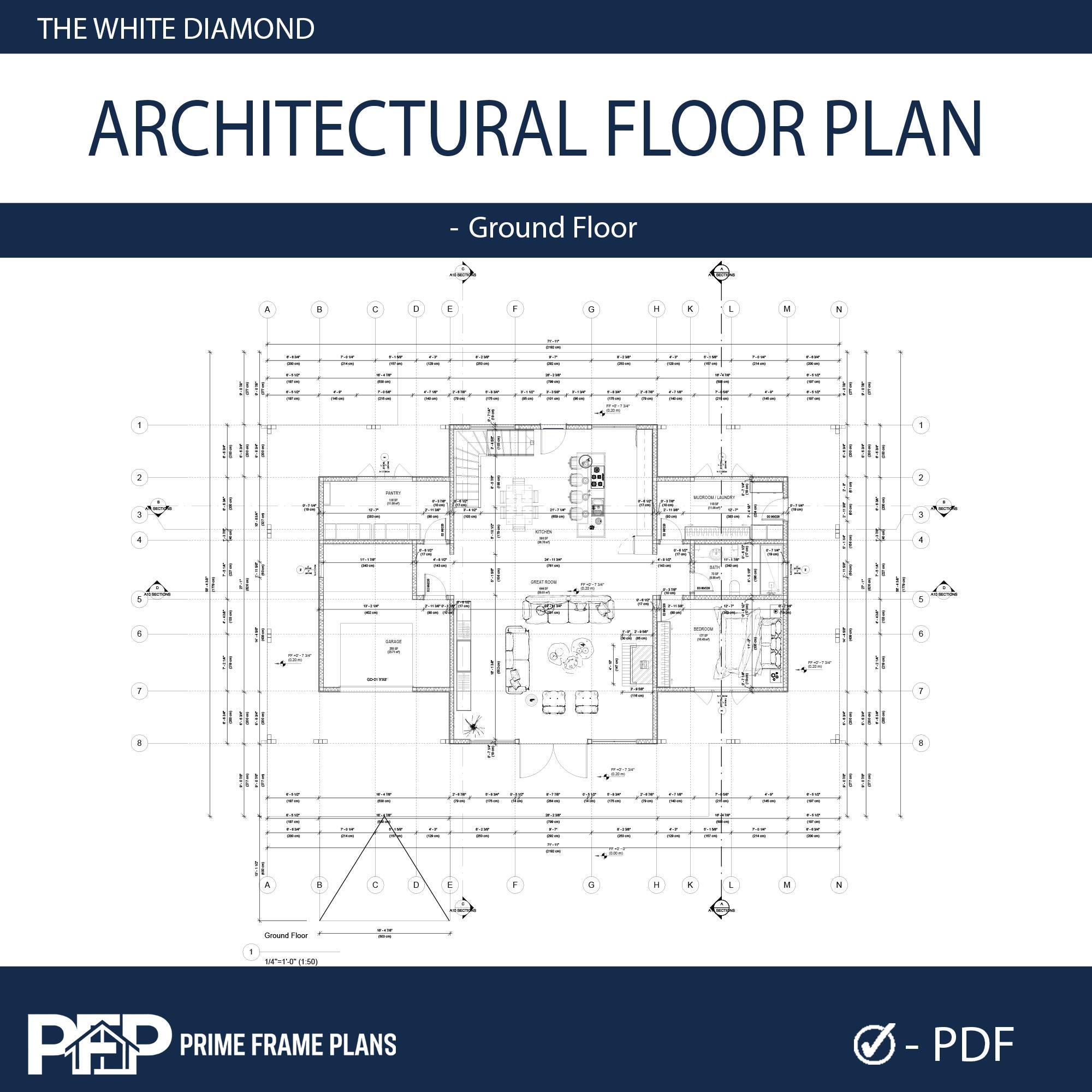

A1.3 - GROUND FLOOR PLAN: Fully Dimensioned Layout, Room Sizes & Notes.

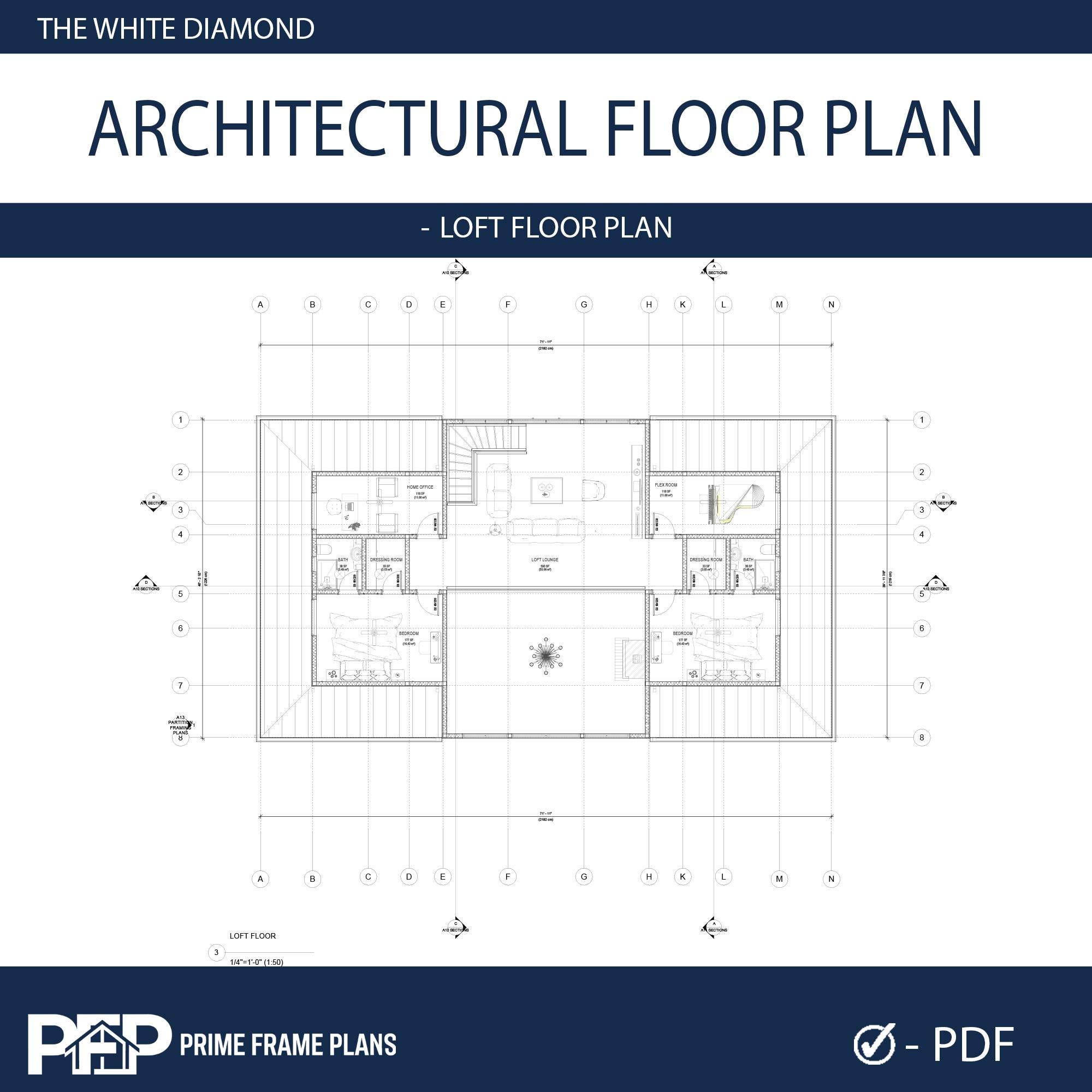

A1.4 - LOFT FLOOR PLAN: Upper Level Layout, Open-to-Below Details.

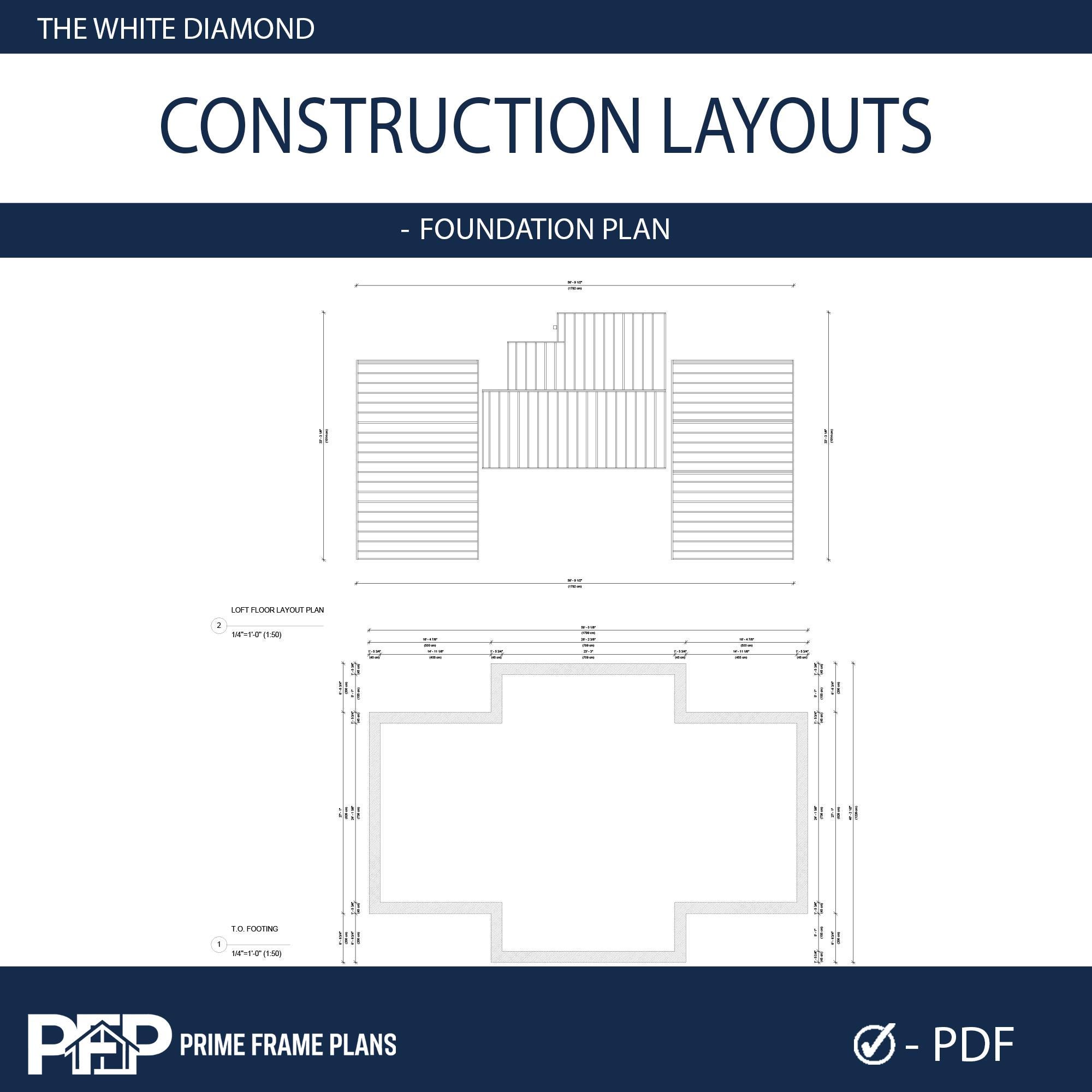

A1.5 - FOUNDATION PLAN: Slab-on-Grade Layout, Footing Locations.

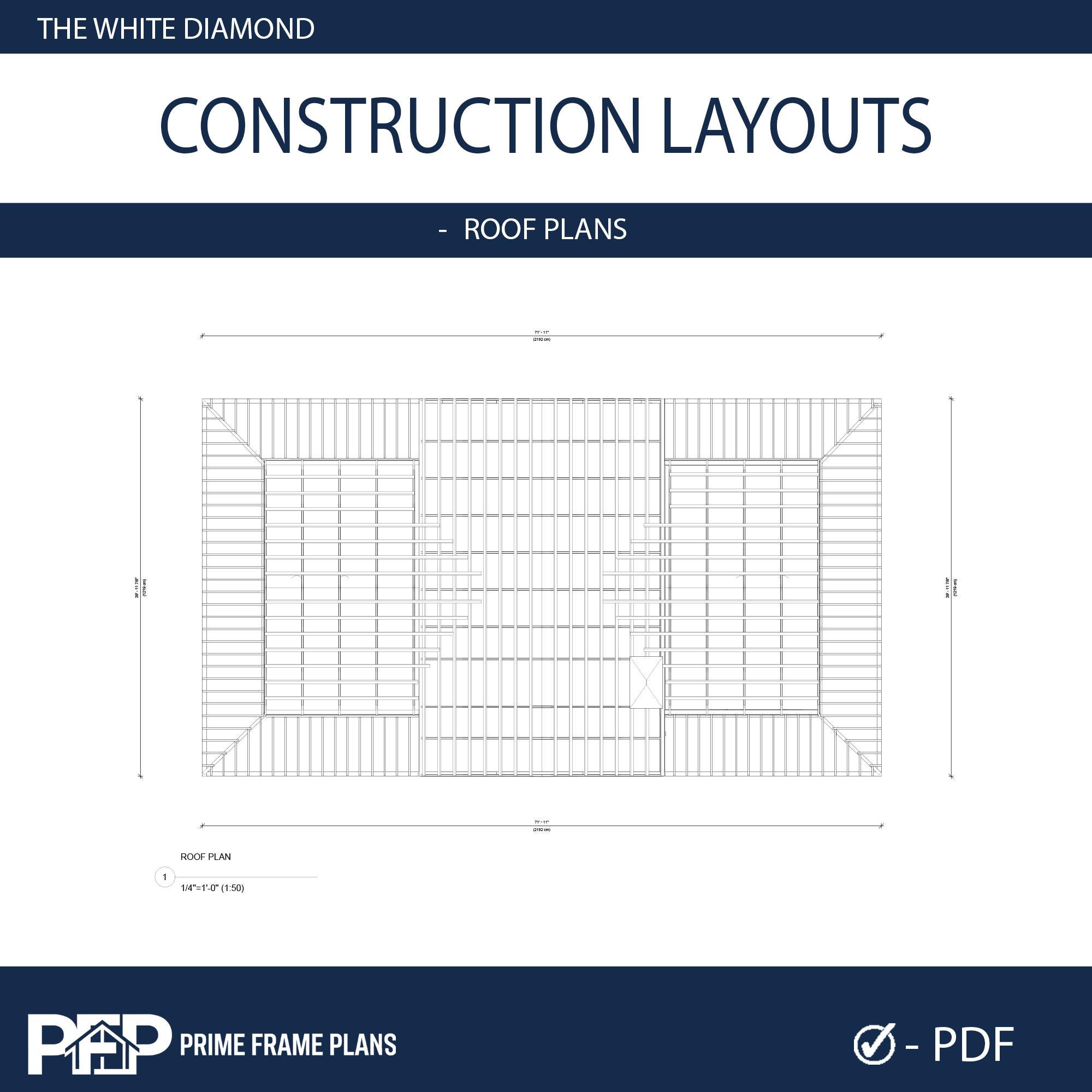

A1.6 - ROOF PLAN: Roof Pitch, Drainage Directions, Ridge Lines.

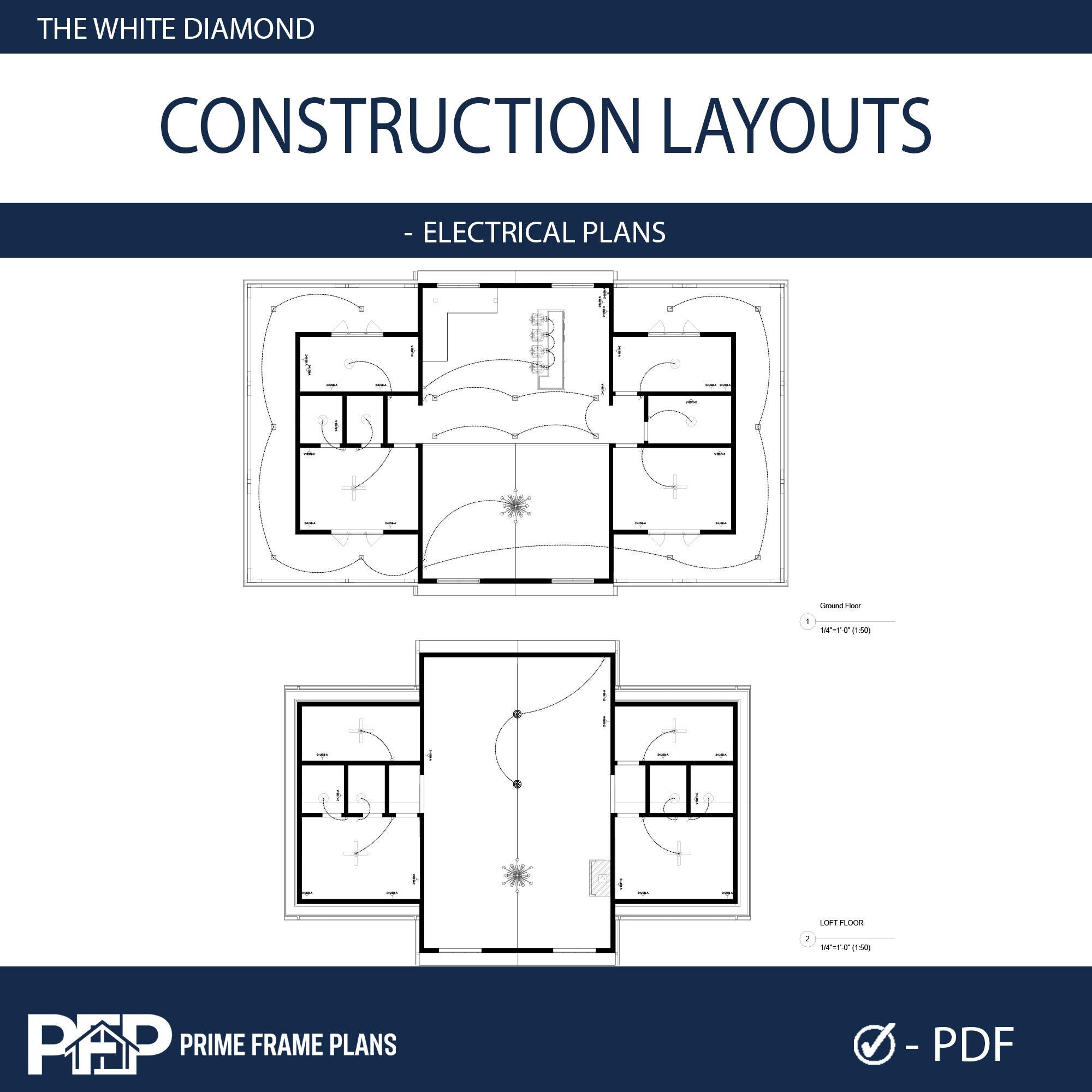

A1.7 - ELECTRICAL PLAN: Lighting, Switches, Outlets, Smoke Detectors.

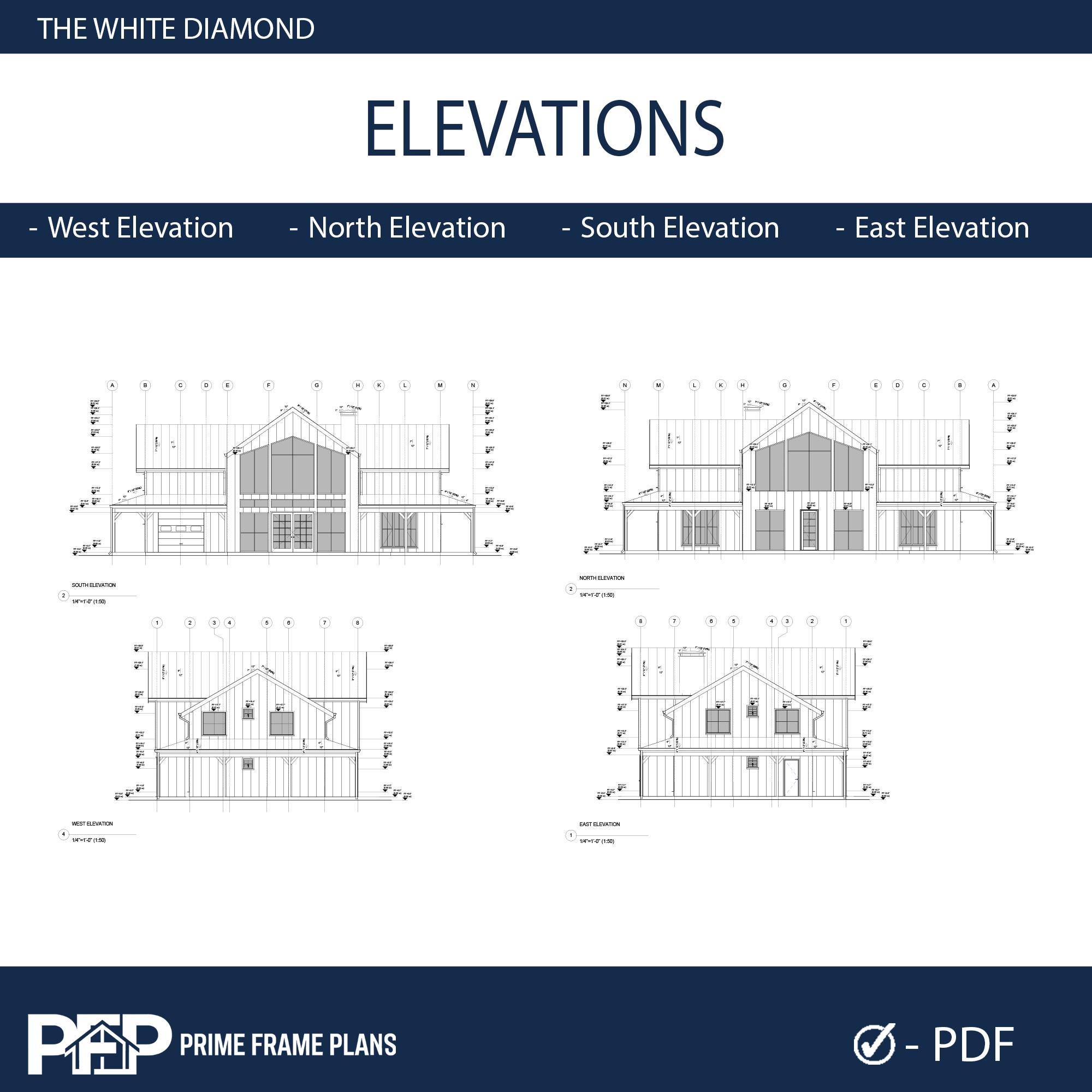

A1.8 - EXTERIOR ELEVATIONS 1: South & West Views, Vertical Heights.
A1.9 - EXTERIOR ELEVATIONS 2: North & East Views, Material Callouts.

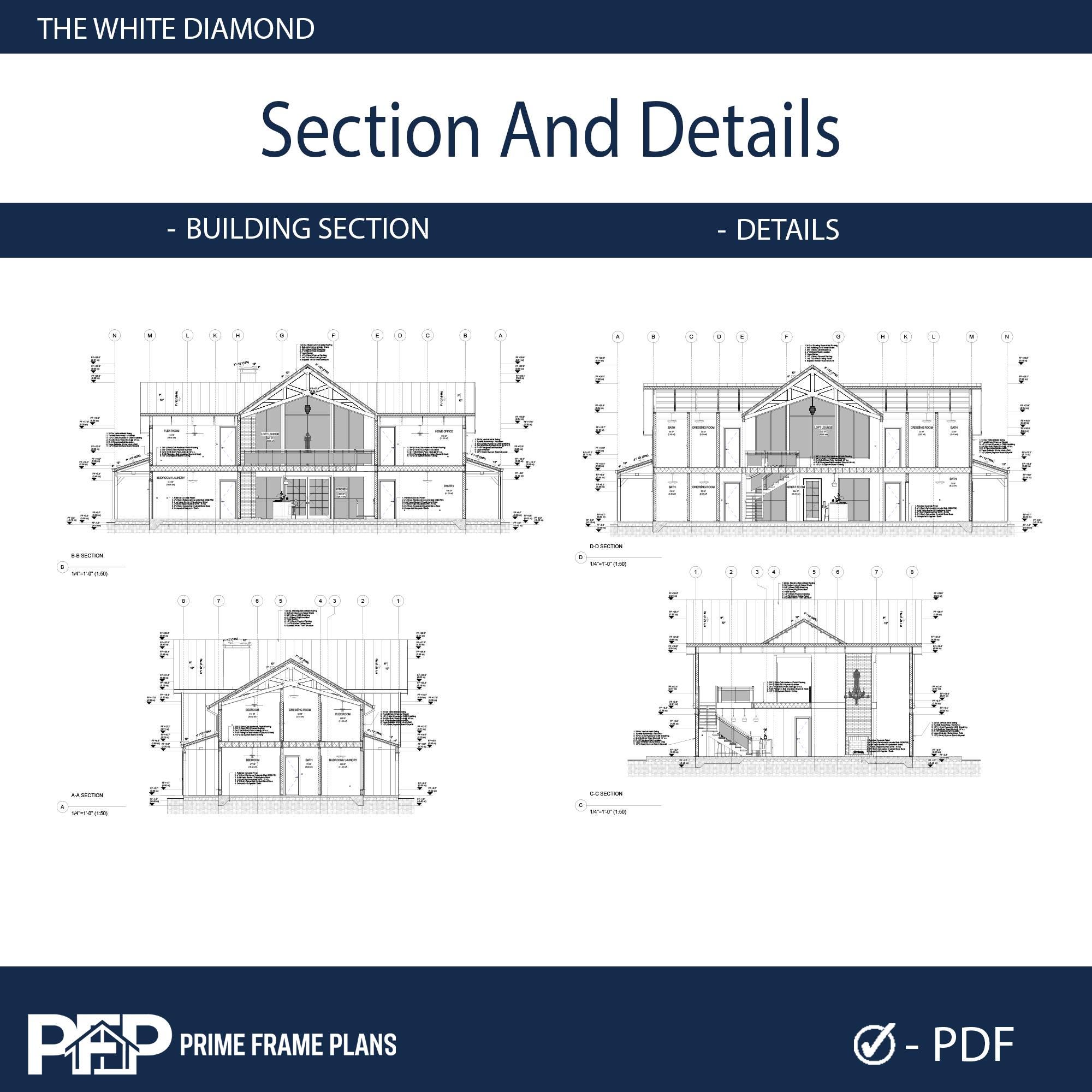

A1.10 - BUILDING SECTIONS 1: Cross Sections (C-C, D-D), Structural Heights.
A1.11 - BUILDING SECTIONS 2: Cross Sections (A-A, B-B), Interior Details.

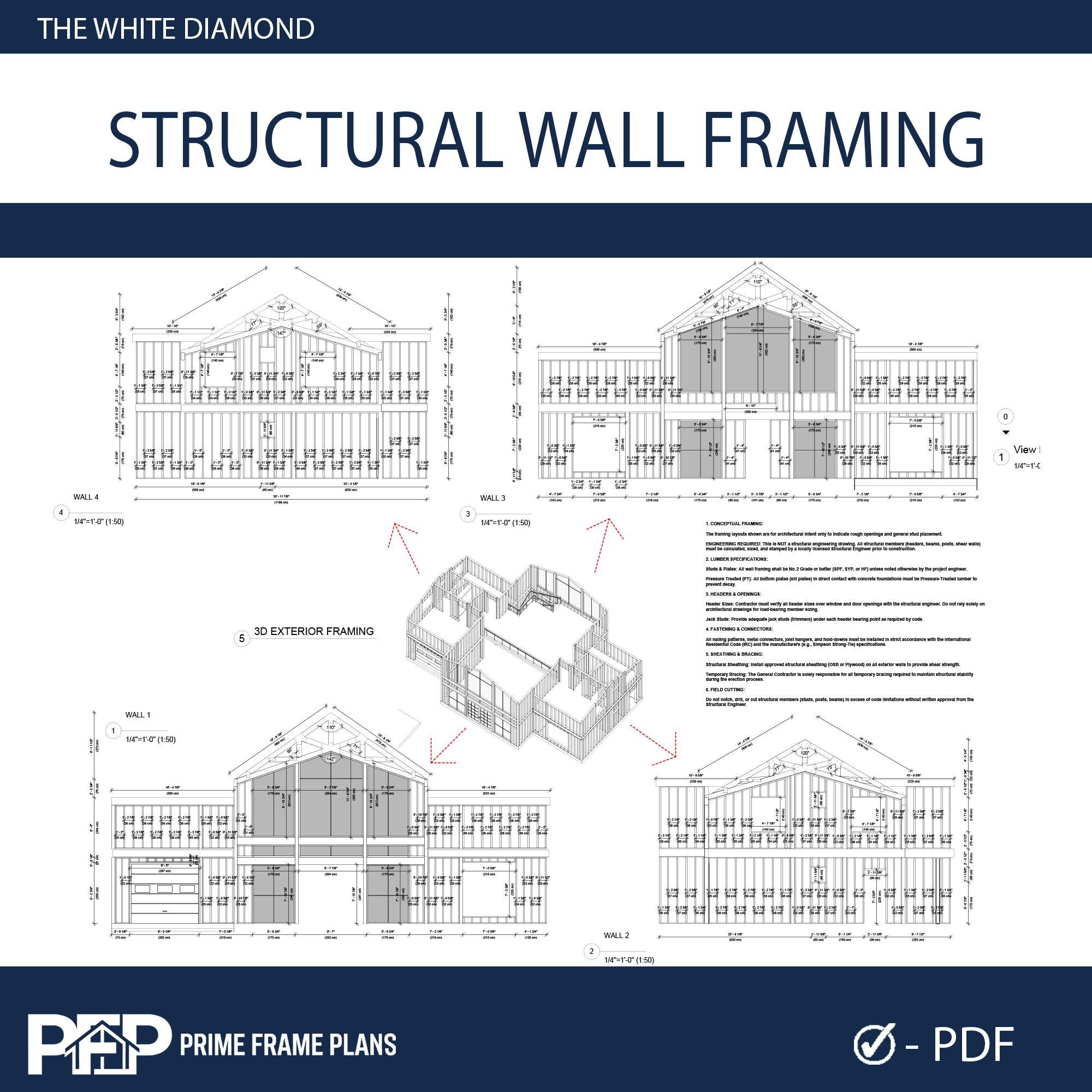

A1.12 - WALL FRAMING PLANS: Exterior Wall Stud Layouts & Bracing.

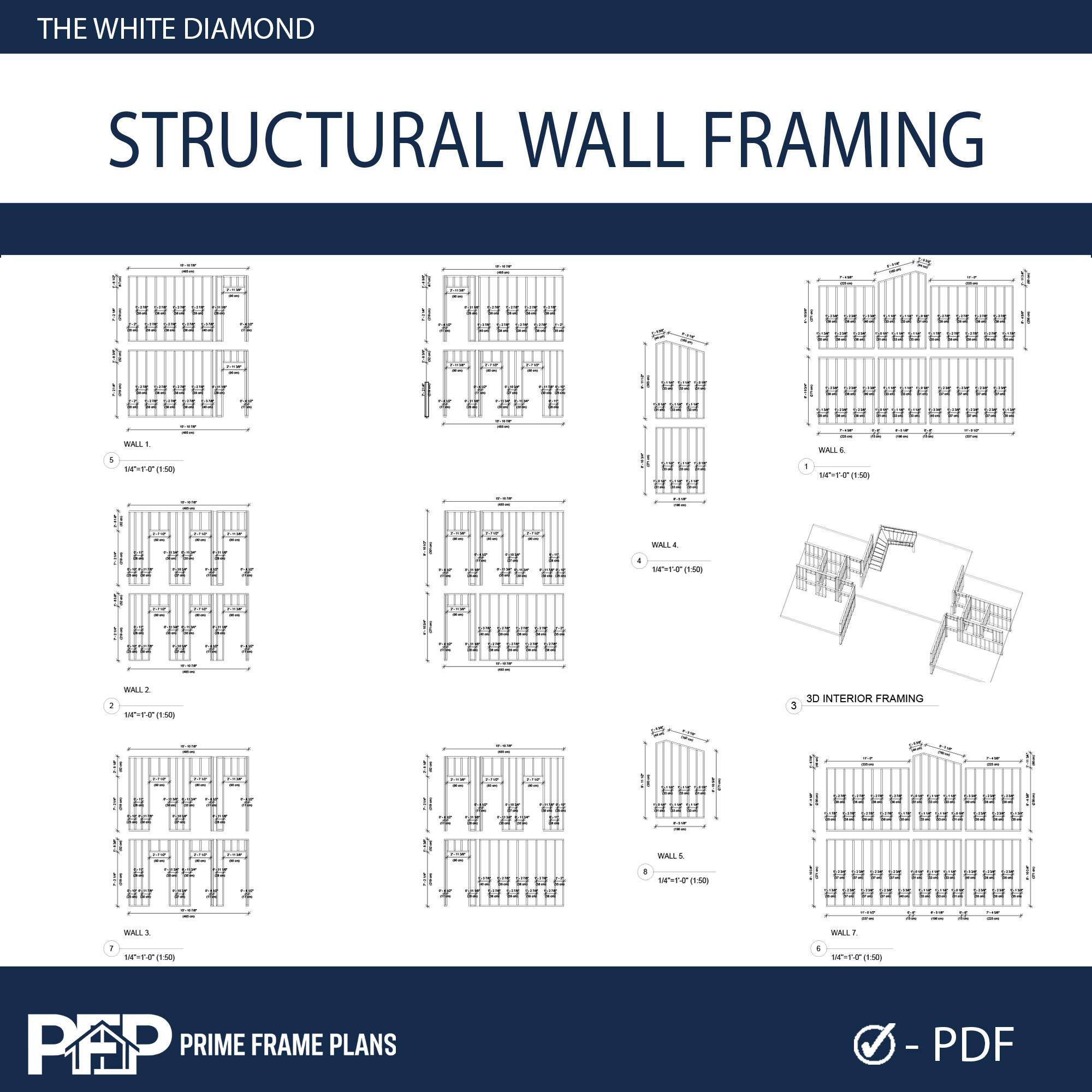

A1.13 - PARTITION FRAMING: Interior Wall Stud Layouts & Blocking.

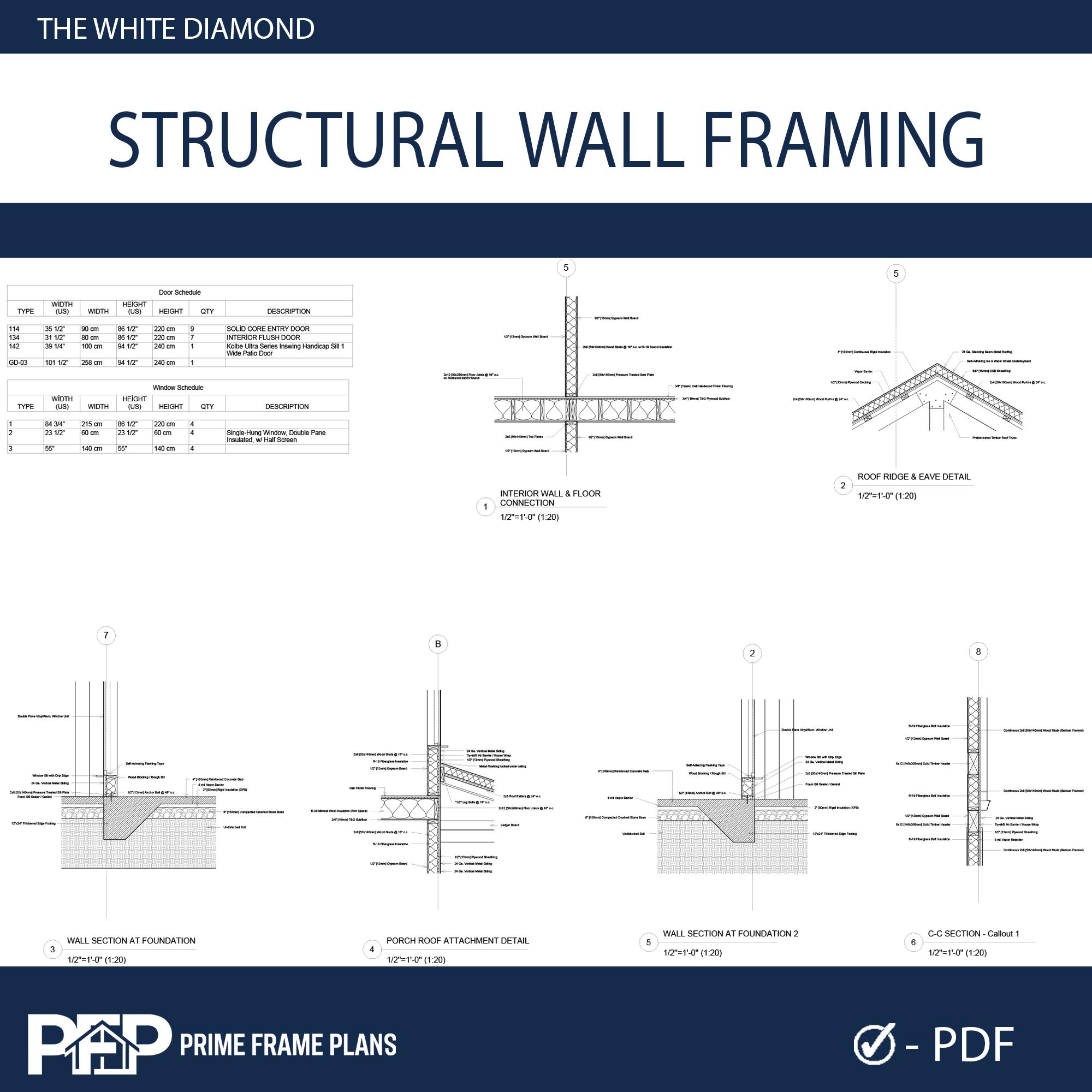

A1.14 - DETAILS & SCHEDULES: Door/Window List, Structural Connections.
***** PLEASE READ BEFORE PURCHASING ***** * Format: Digital Download (PDF ONLY). No physical product will be shipped.
NO CAD / NO MATERIAL LIST: This specific listing does not include editable DWG files or material estimates. (Please select the PRO Full Set variation if your builder requires these).
License: Single-Use License to build one (1) structure. Resale, distribution, or reproduction is strictly prohibited.
Refunds: Due to the nature of digital products, no refunds are accepted.
PRIME FRAME PLANS - Modern Living, Smart Design.
