2 Bed Modern Cabin Plans | 39x44 Airbnb ADU Design | PDF Only

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️
This package is designed for inspiration, preliminary planning, and visualizing your dream cabin or ADU.
Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your builder? You can find the complete PRO package by selecting that variation in our shop!

PRIME FRAME PLANS presents: The Vertica Modern Cabin. A modern, elevated retreat designed for both aesthetics and durability. Featuring a sleek vertical siding exterior and a pier-and-beam foundation, this cabin is engineered to adapt to various terrains while offering a refined living experience. The open-concept floor plan maximizes natural light, creating a seamless connection between the interior and the spacious wrap-around deck. Perfect for a permanent residence or a high-end vacation home.

*** DUAL DIMENSIONS INCLUDED:** This plan set is designed for global use. All floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements on the same page for easy reference.

IMPORTANT: These plans are for conceptual design purposes. They MUST be reviewed and stamped by a locally licensed structural engineer and your building official before construction to ensure compliance with local codes and site conditions.

*** DESIGN SUMMARY ***

Overall Dimensions: 39' - 6 3/4" x 44' - 11 5/8" (1206 cm x 1371 cm)

Total Footprint Area: Approx. 1,780 Sq. Ft. (165 m²)

Stories: 1

Bedrooms: 2 Spacious Bedrooms

Bathrooms: 1 Full Bathroom

Foundation: Elevated Pier & Beam (Crawlspace)

Roof Style: Gable with Asphalt Shingles or Metal Finish

*** WHAT IS INCLUDED IN THIS PDF SET? ***
This download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1). Both Imperial and Metric units are provided.

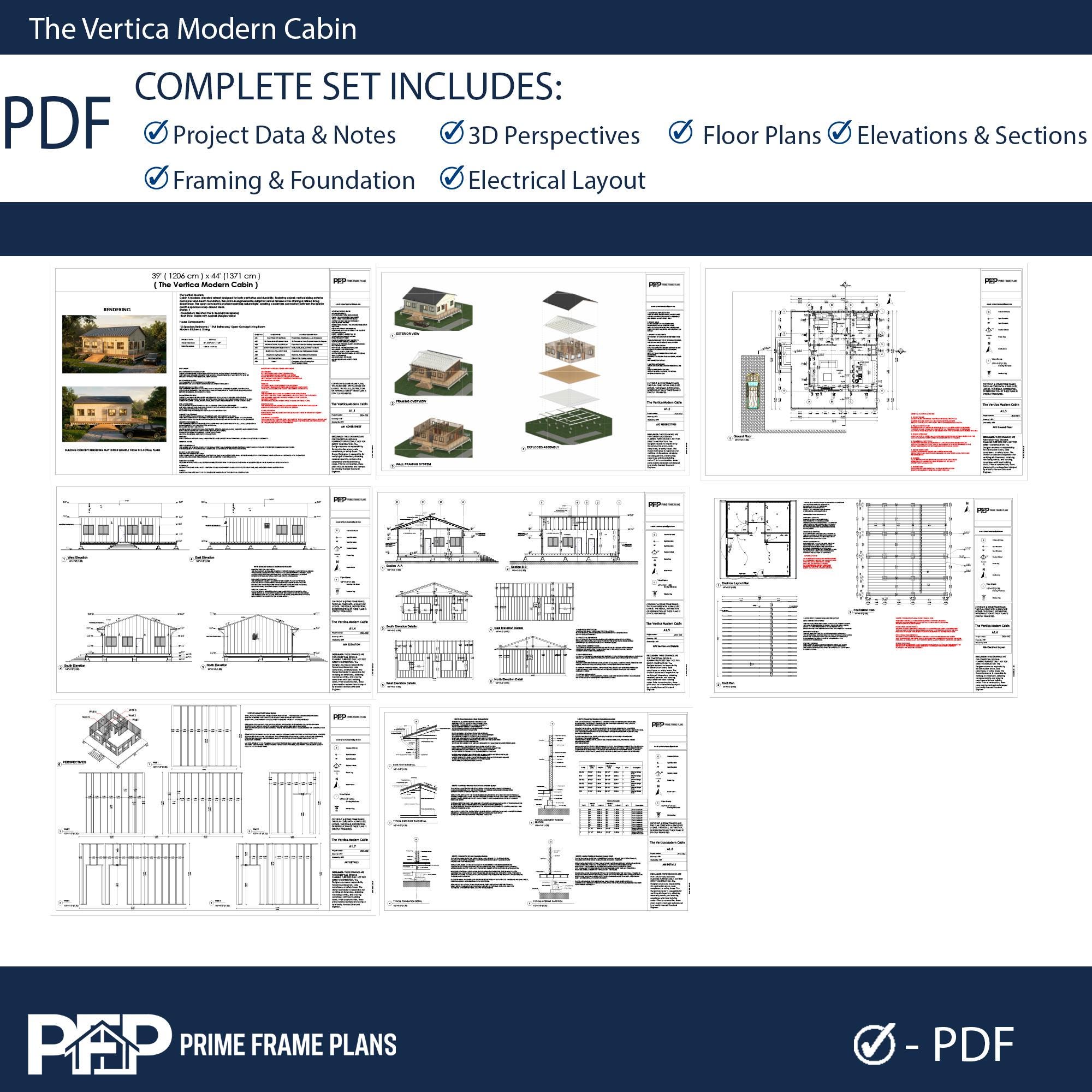

COMPLETE PDF PLAN SET (8 SHEETS):

A01 - Cover Sheet & Project Data: Project Data, Sheet Index, and Legal Disclaimers.

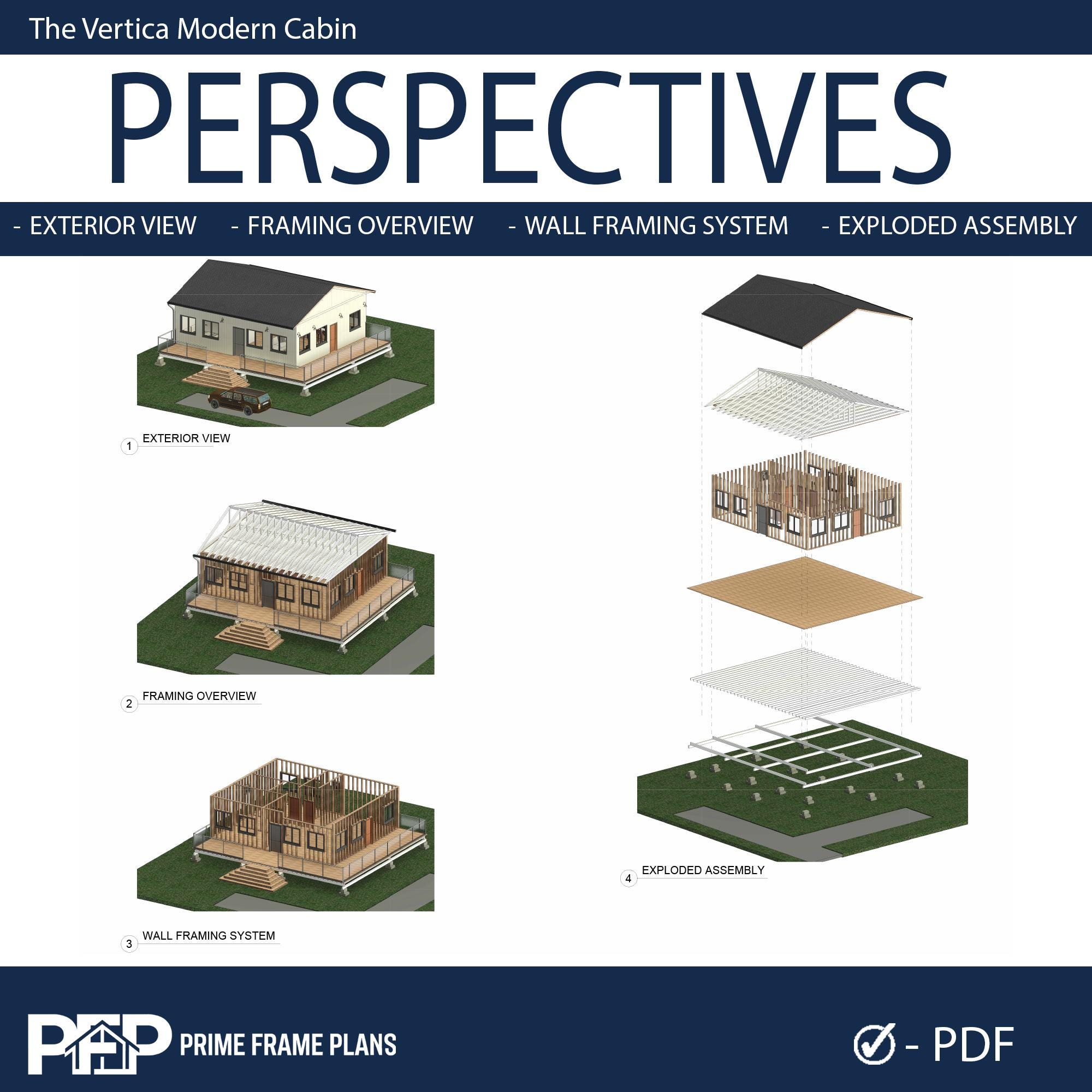

A02 - 3D Perspectives & Exploded Views: 3D Perspective Views and Exploded Assembly Diagram.

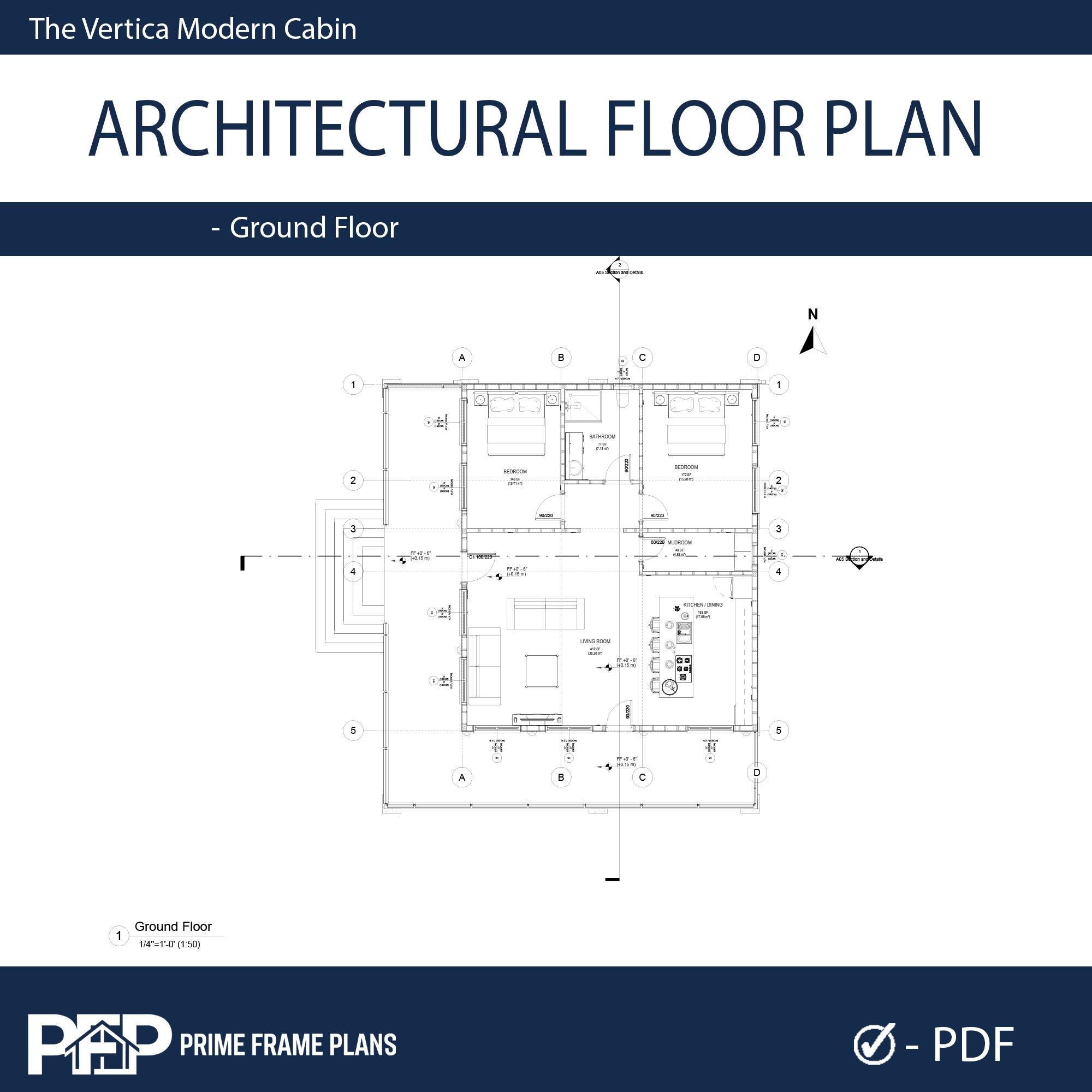

A03 - Architectural Floor Plan: Detailed Floor Plan, Room Dimensions (Feet & Metric), and General Notes.

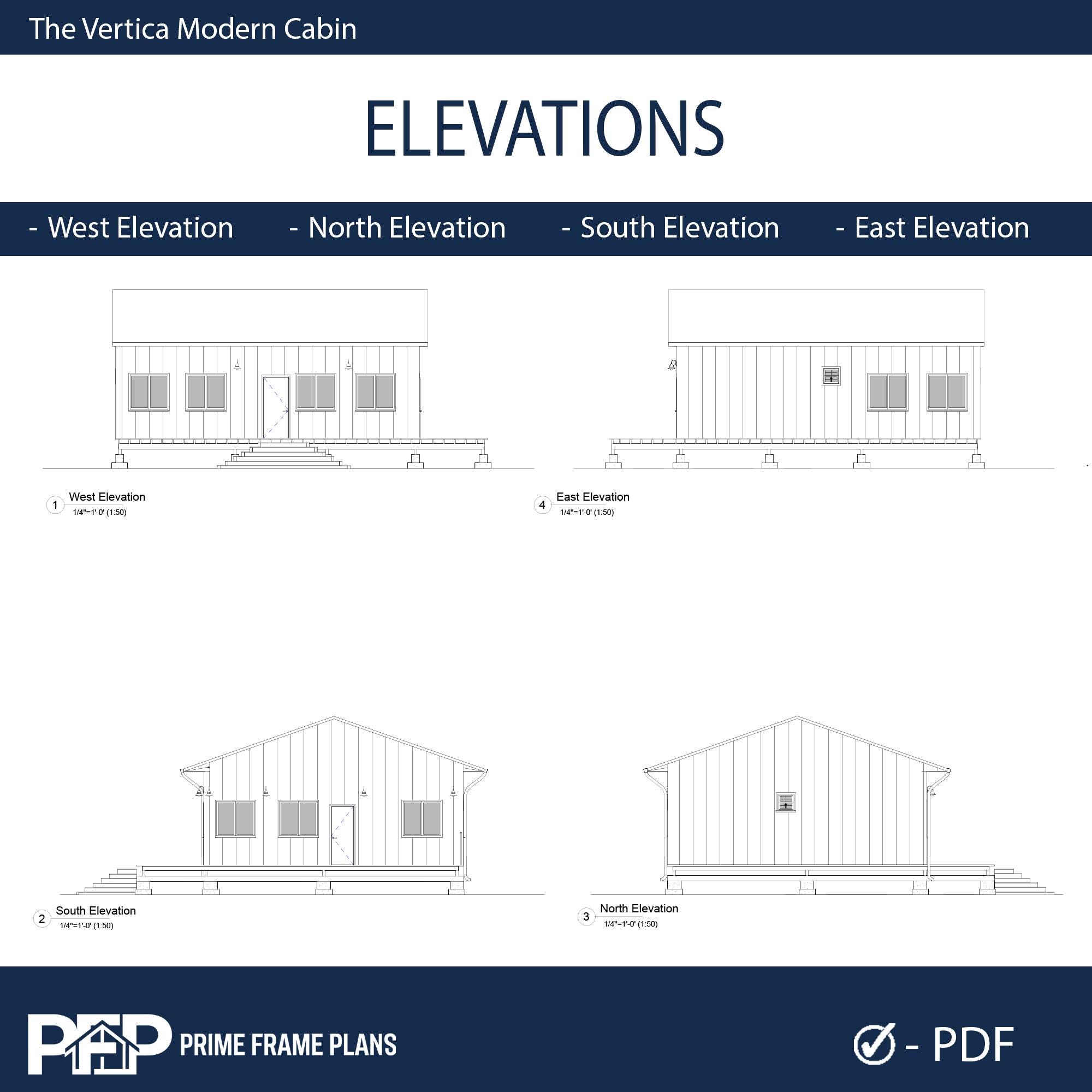

A04 - Exterior Building Elevations: North, South, East, and West Elevations with dual dimensions.

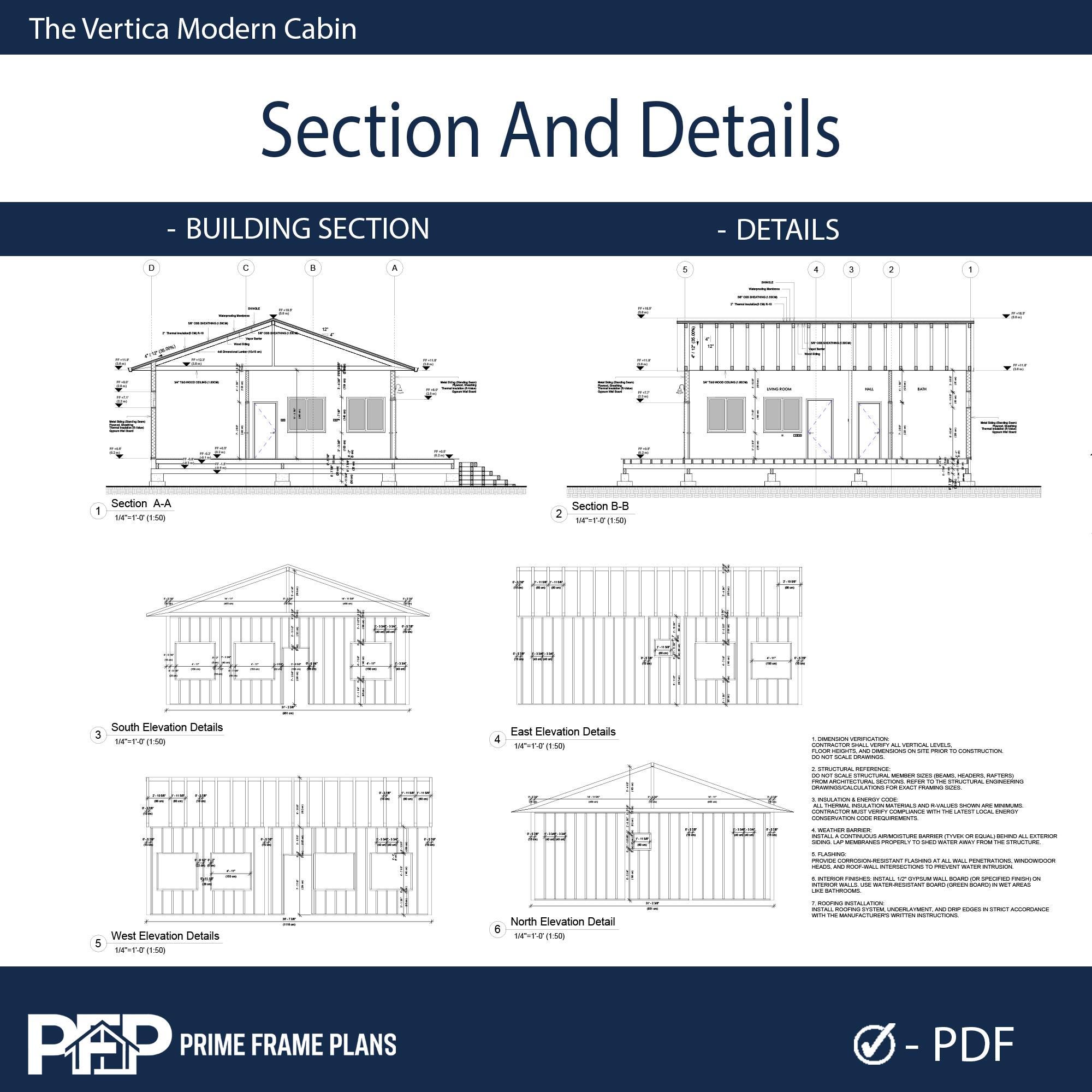

A05 - Building & Wall Sections: Cross Sections and Wall Assembly Details.

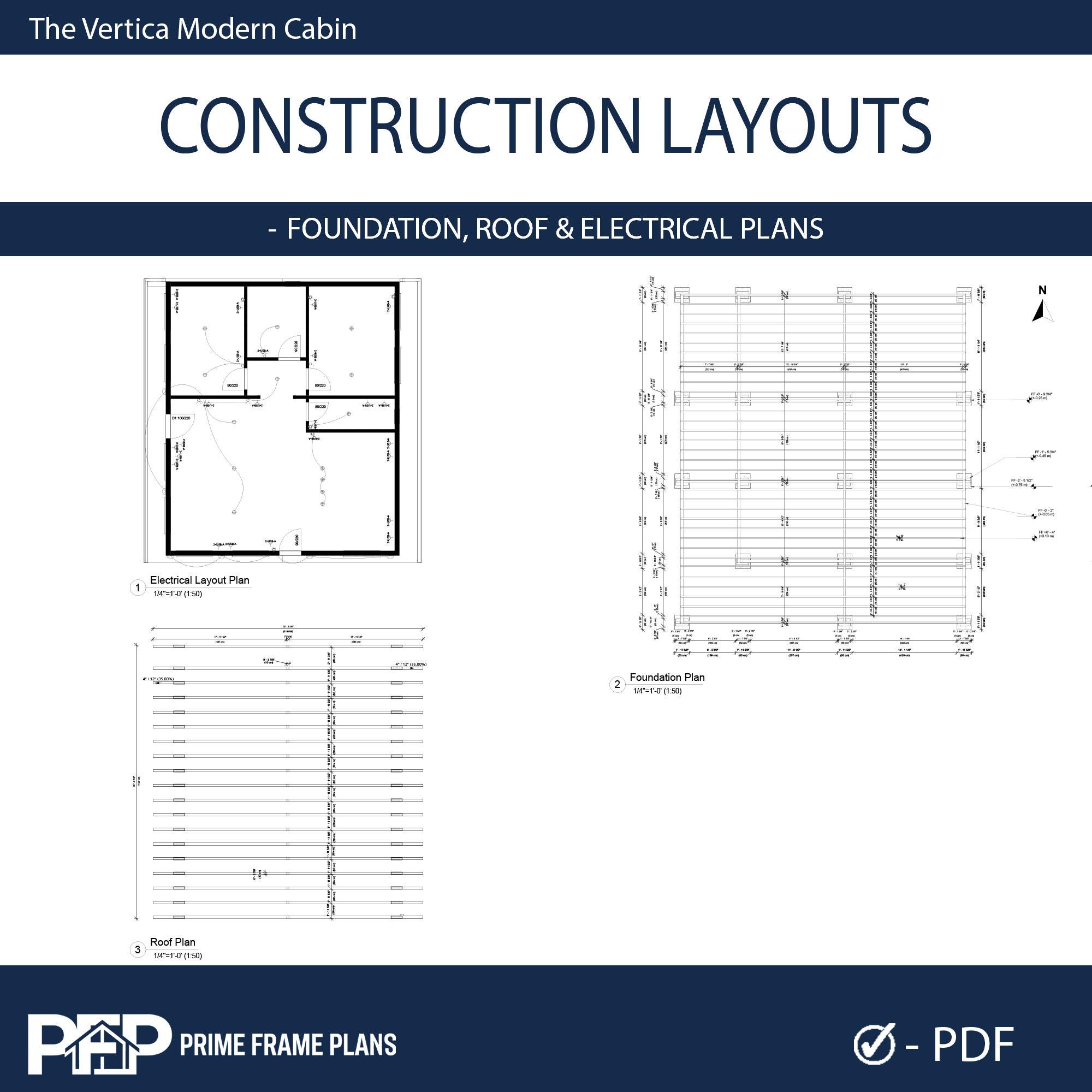

A06 - Electrical & Lighting Layout: Electrical Layout, Foundation Plan, and Roof Plan.

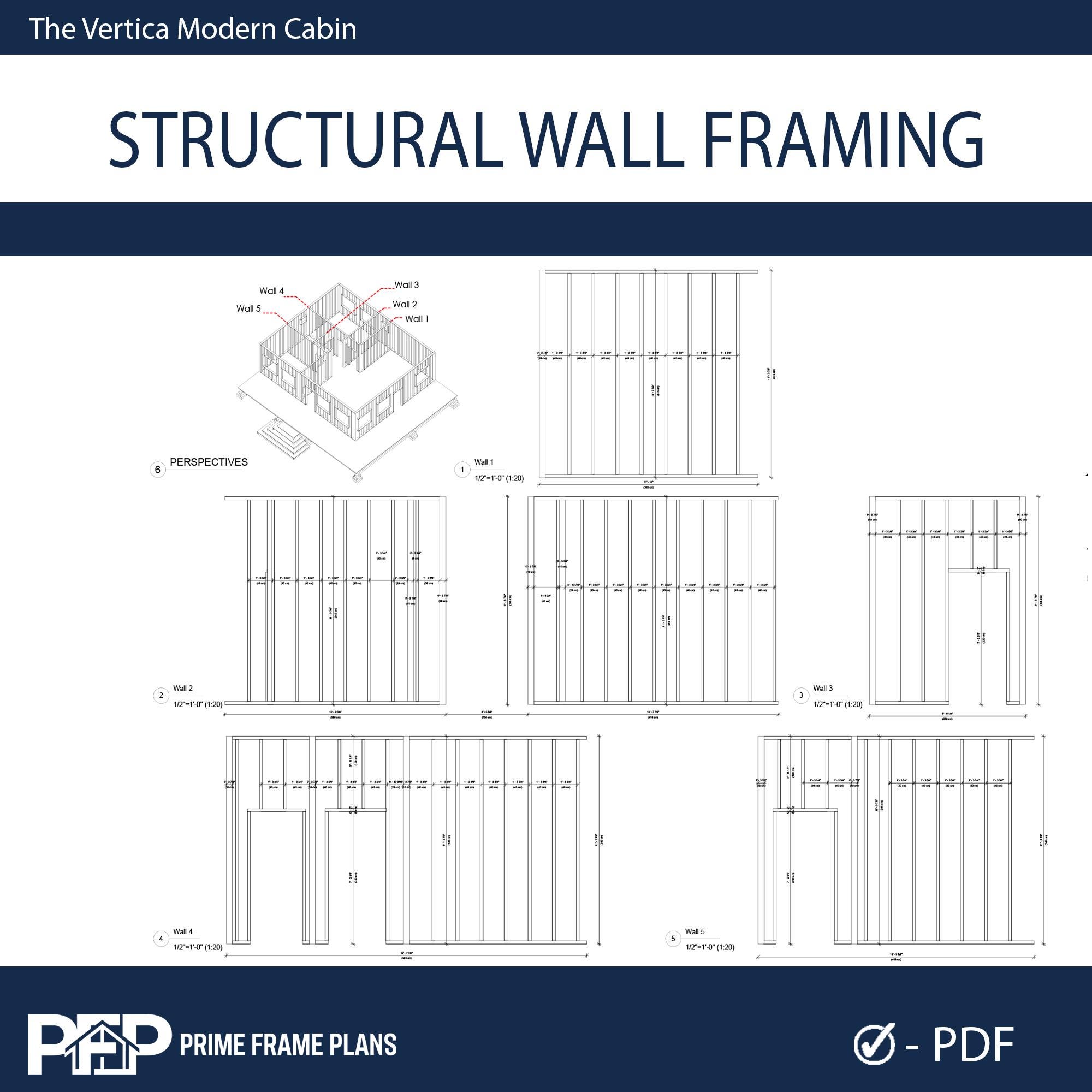

A07 - Wall Framing Plan: Exterior Wall Framing Layouts.

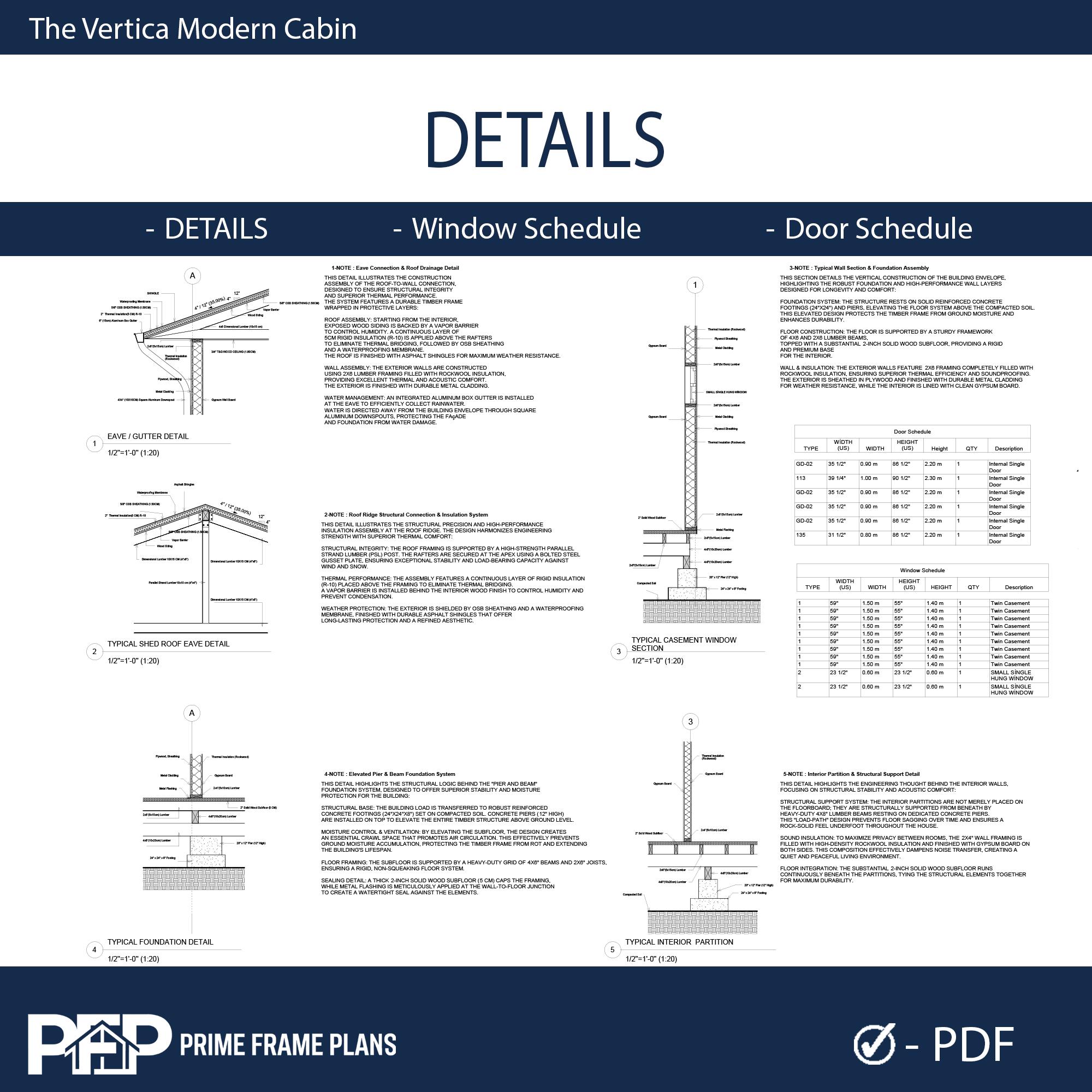

A08 - Details: Foundation & Floor Framing Plan, Roof Framing & Details.

*** PLEASE READ BEFORE PURCHASING ***

Format: Digital Download (PDF ONLY). No physical product will be shipped.

NO CAD / NO MATERIAL LIST: This specific listing does not include editable DWG files or material estimates. (Please select the PRO Full Set variation if your builder requires these).

Units: Imperial (Feet/Inches) & Metric (Meters/CM) included.

Engineering: This plan set does NOT include an architectural or engineering stamp.

License: Single-Use License to build one (1) structure. Resale, distribution, or reproduction is strictly prohibited.

Refunds: Due to the nature of digital products, no refunds are accepted.

PRIME FRAME PLANS - Modern Living, Smart Design.
