2 Bed Modern Cabin Plans | 26x41 Airbnb Tiny House Design | PDF Only

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️ This package is designed for inspiration, preliminary planning, and visualizing your dream cabin. Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your builder? You can find the complete PRO package by selecting that variation in our shop!
PRIME FRAME PLANS presents: The "THE CEDAR RIDGE". Designed for those who appreciate high ceilings and open spaces, this plan blends modern aesthetics with functional living. The design features a stunning Gallery Void above the living room, flooding the space with natural light.
The Ground Floor offers a seamless flow with an American-style open kitchen, a spacious living area, and direct access to a large covered Veranda—perfect for outdoor dining. A private bedroom and a full bathroom are also conveniently located on the main level.
The Upper Loft serves as a private retreat, featuring a second bedroom, a full bathroom, and a cozy Sitting Area overlooking the living space below.
*** DUAL DIMENSIONS INCLUDED: This plan set is designed for global use. All floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements.
IMPORTANT: These plans are for conceptual design purposes. They MUST be reviewed by a locally licensed engineer to ensure compliance with your local building codes and soil conditions.
________________________________________
*** DESIGN SUMMARY • Overall Dimensions: 26' x 41' (7.9m x 12.7m) • Total Area: ~765 Sq. Ft. (100 m²) • Bedrooms: 2 (1 on Ground Floor + 1 on Loft Floor) • Bathrooms: 2 (1 on Ground Floor + 1 on Loft Floor) • Key Features: High Ceiling (Gallery Void), Open Kitchen, Large Front Veranda, Loft Sitting Area. • Foundation: Concrete Foundation (Adaptable to site).
________________________________________
*** WHAT IS INCLUDED IN THIS PDF SET? This download includes High-Resolution PDF sheets (Ready to print on 24"x36" / A1).

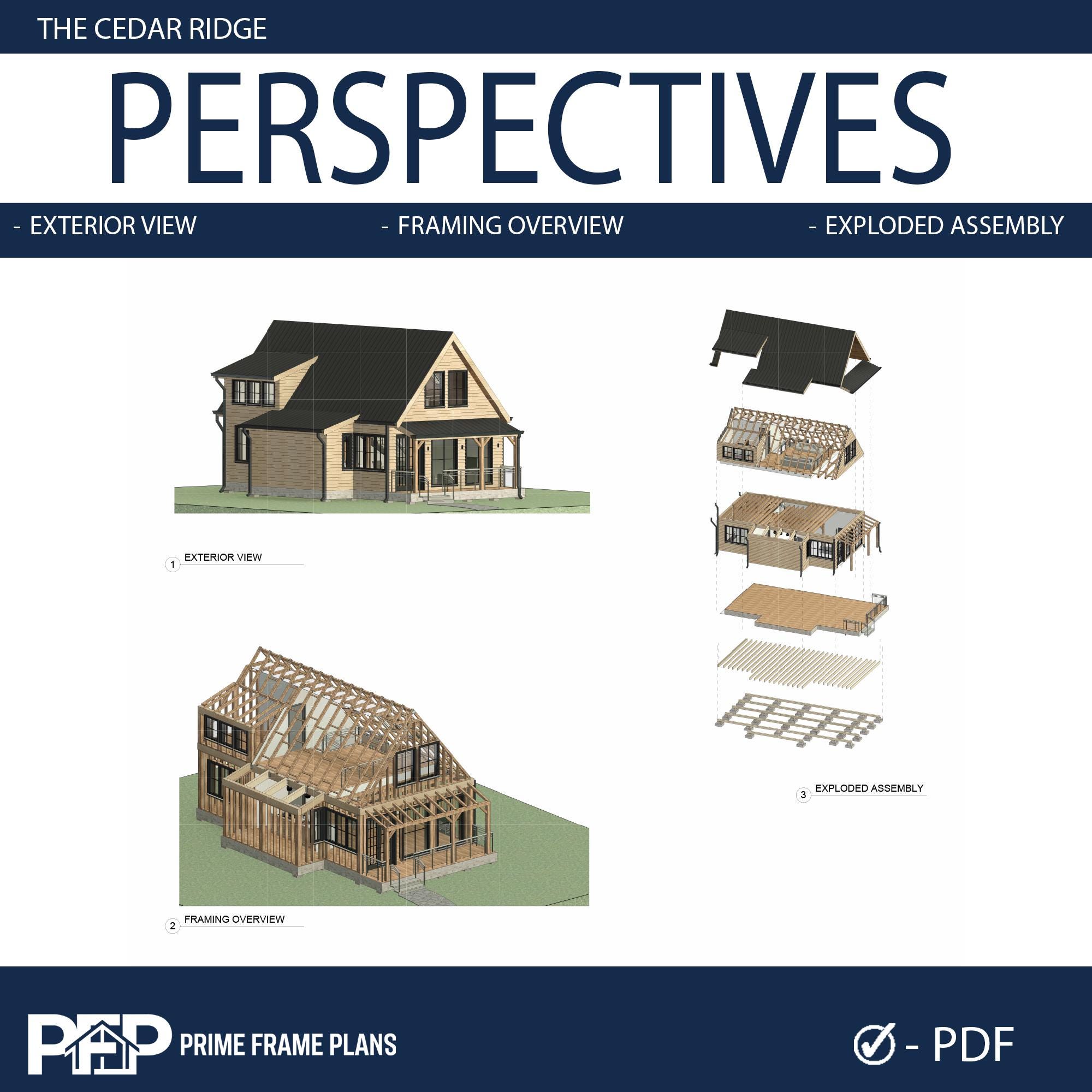

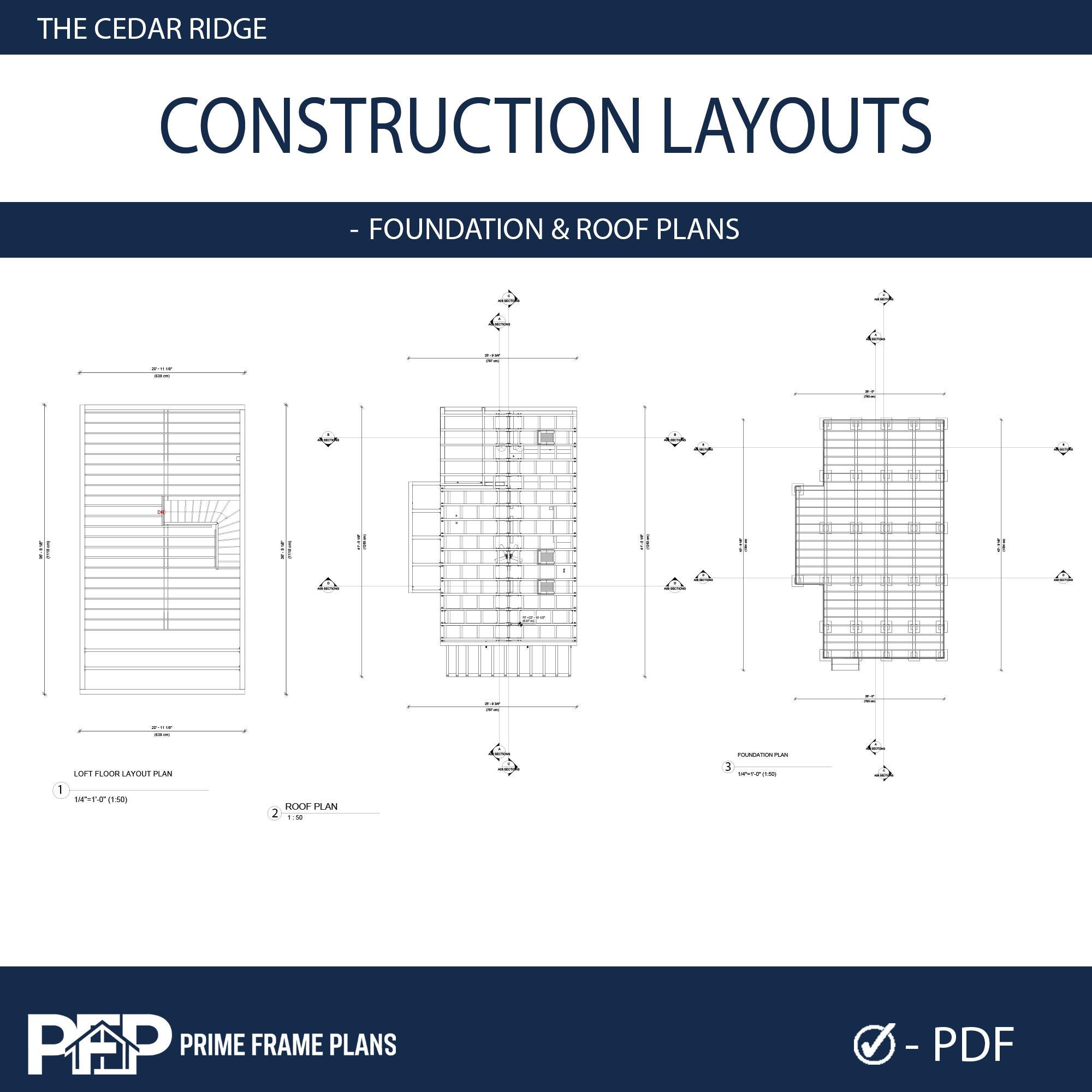

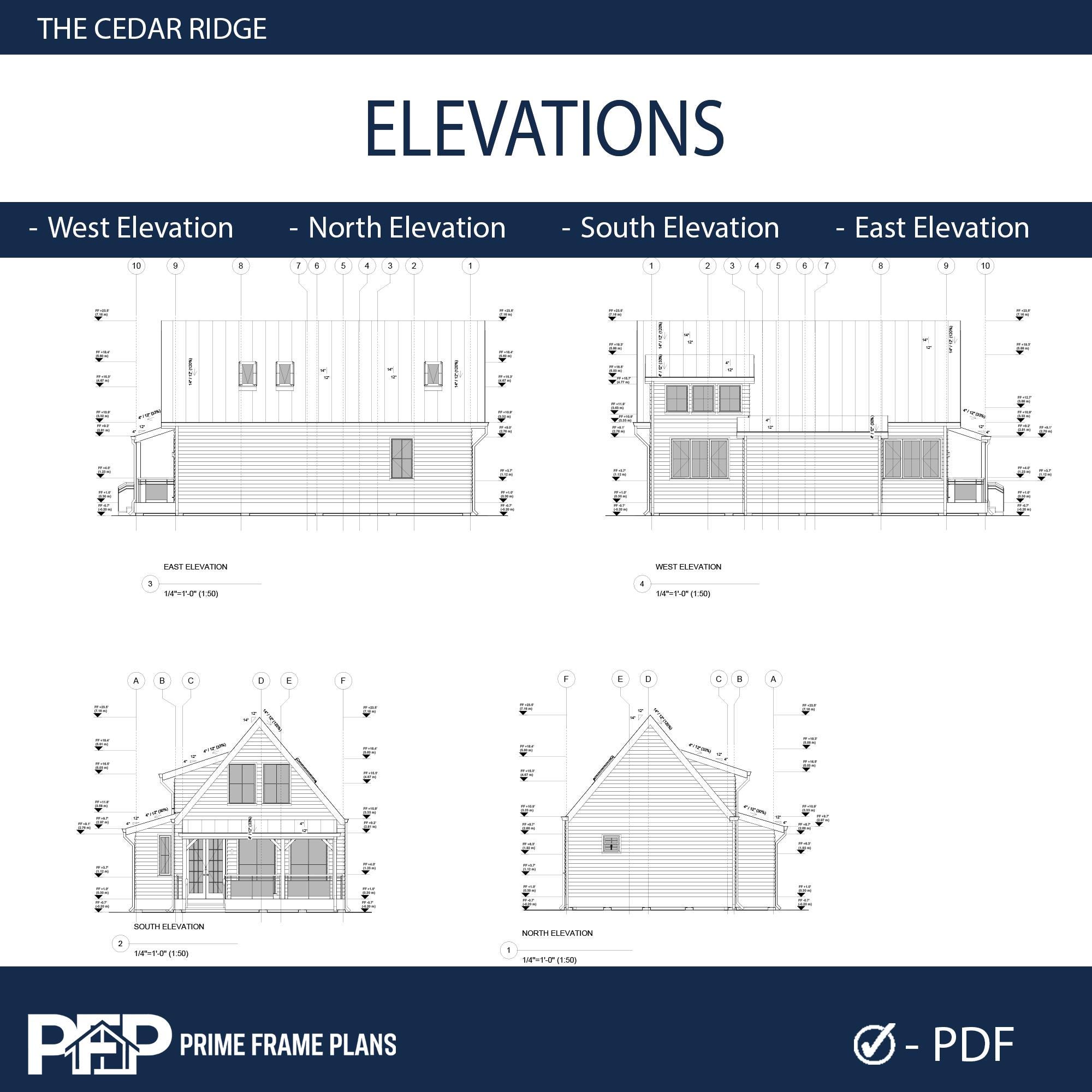

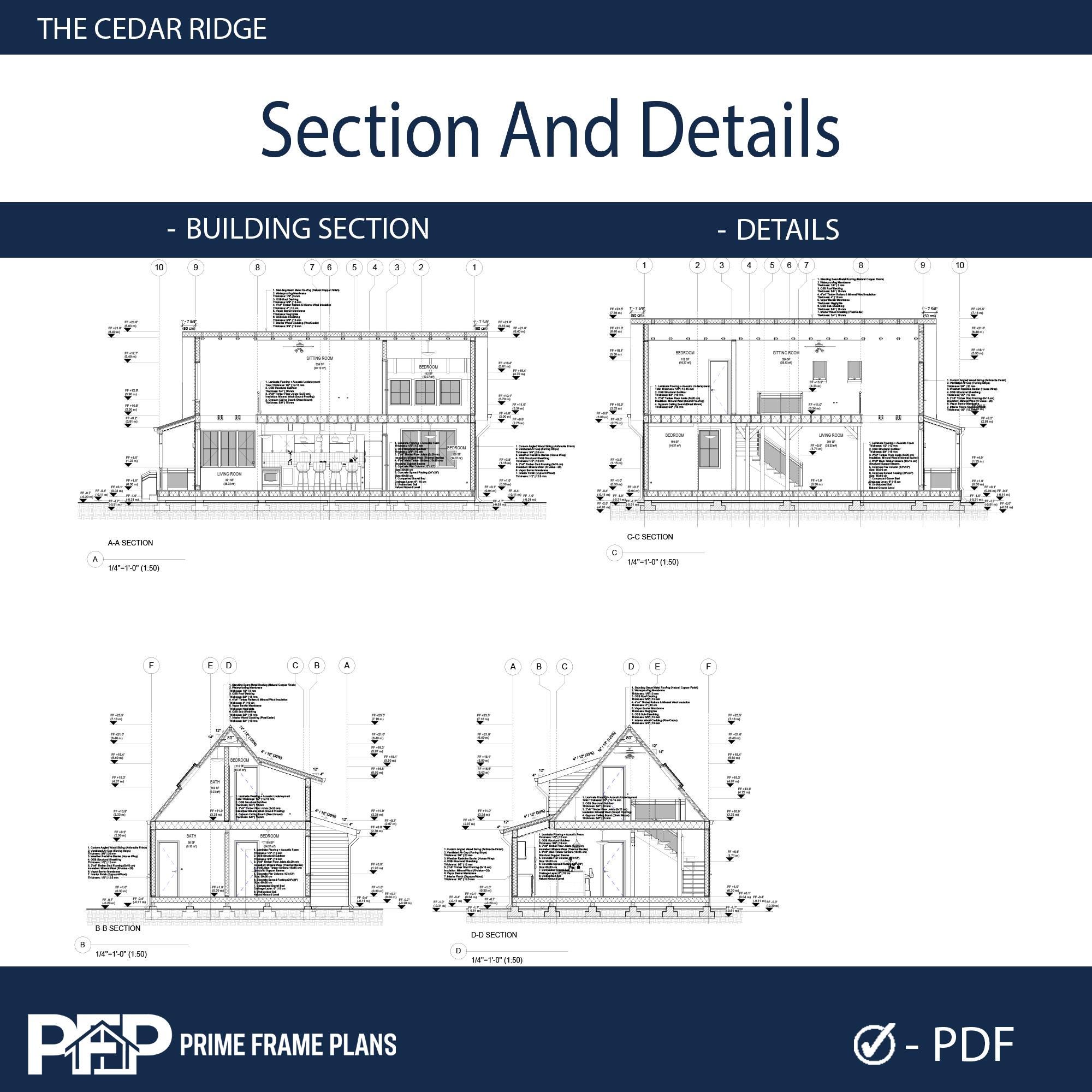

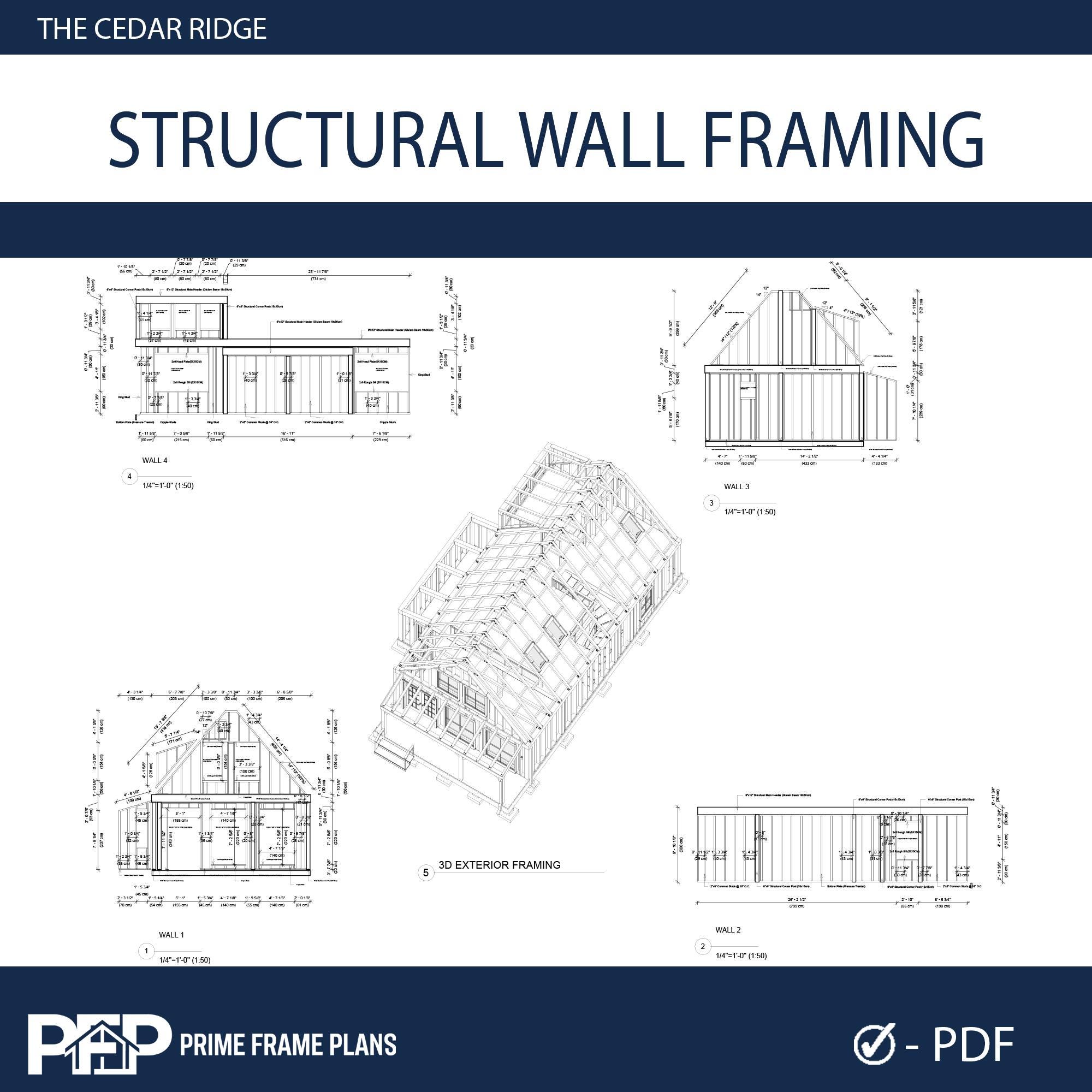

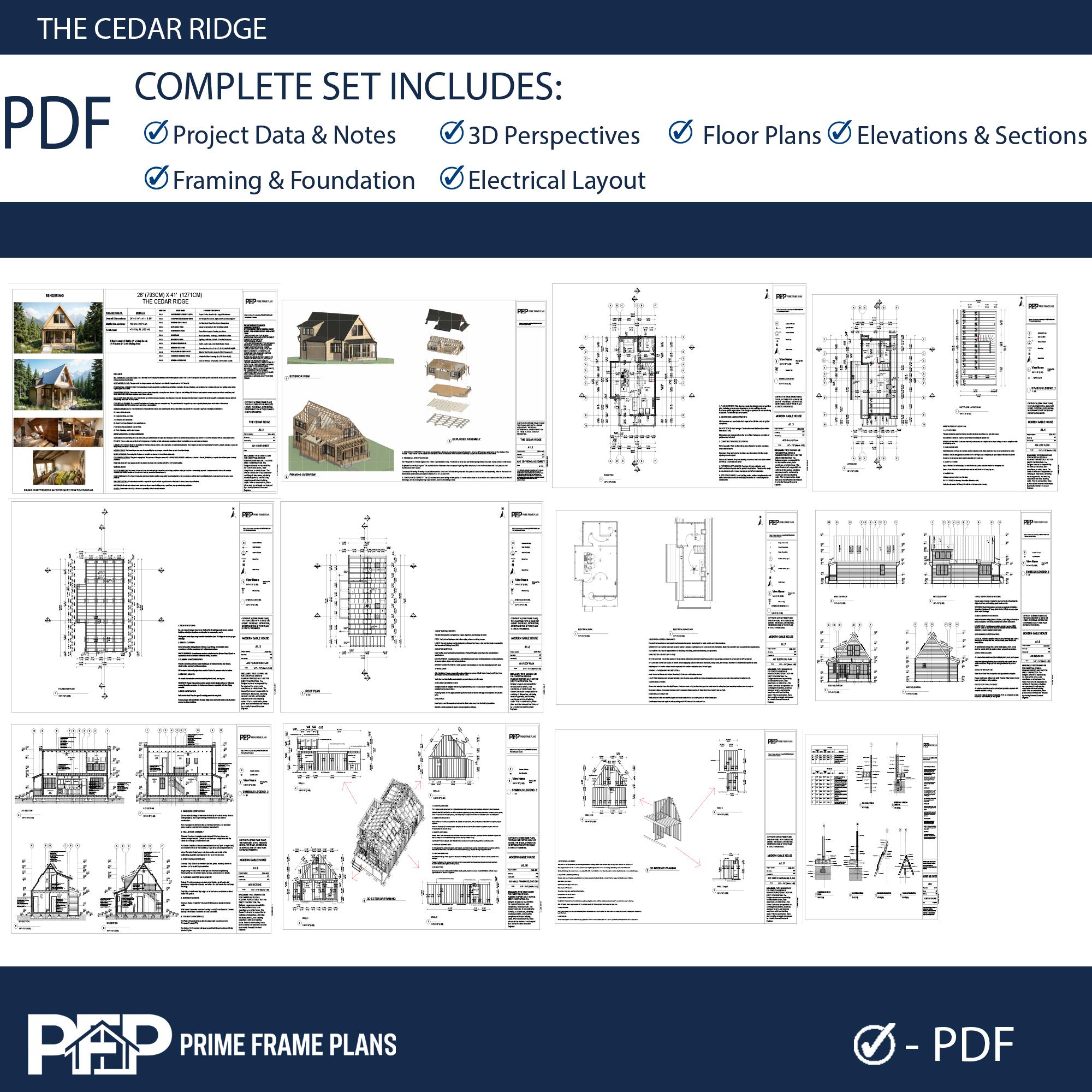

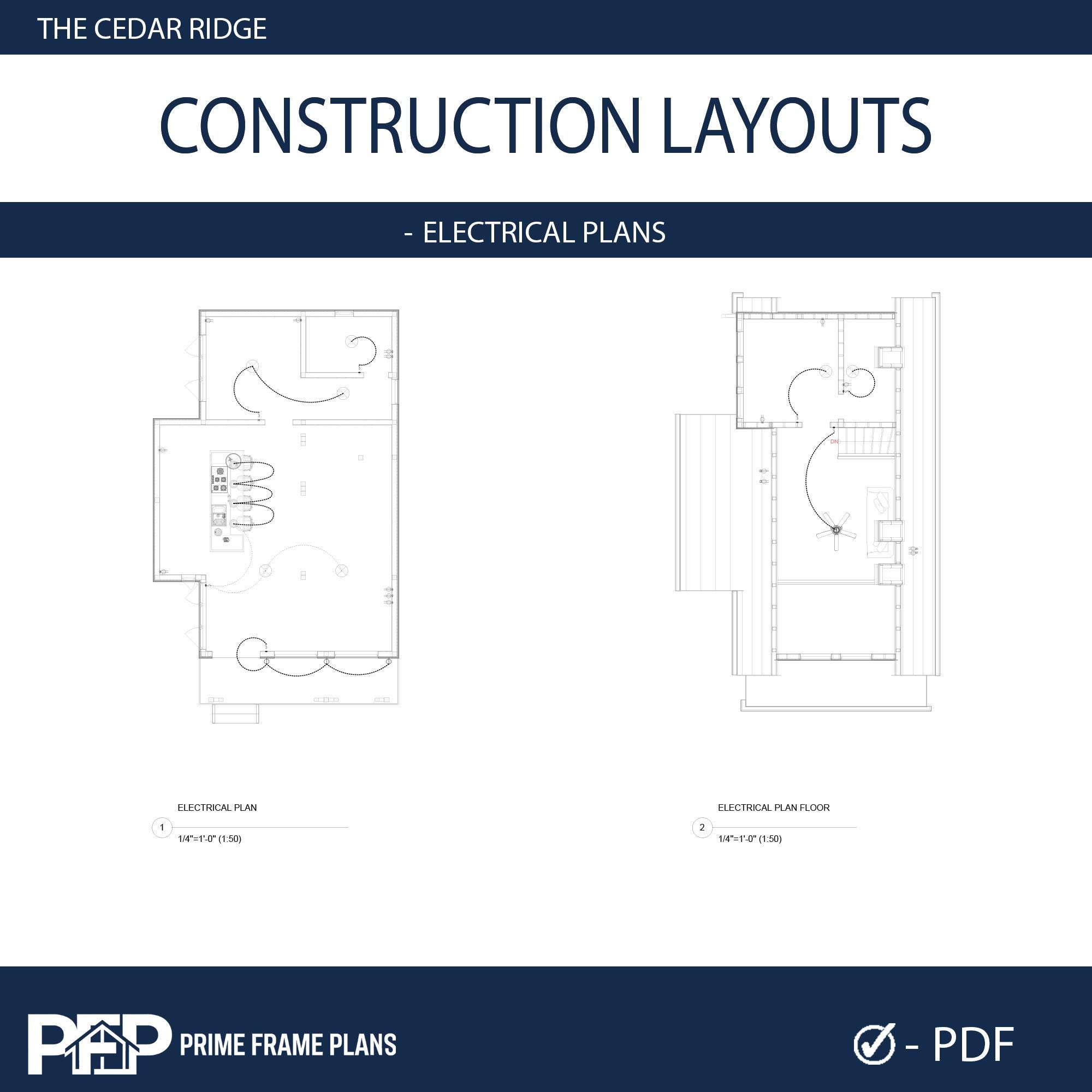

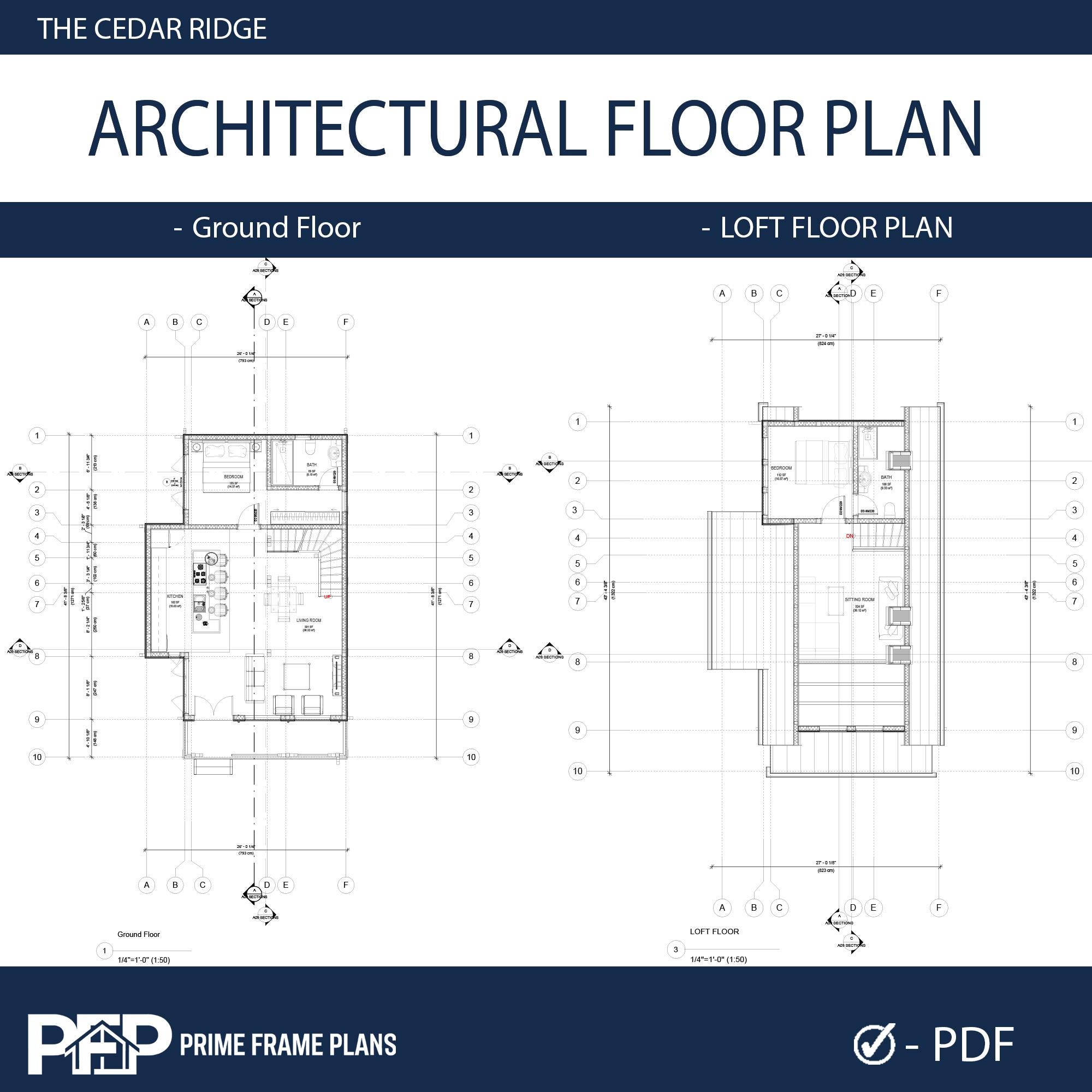

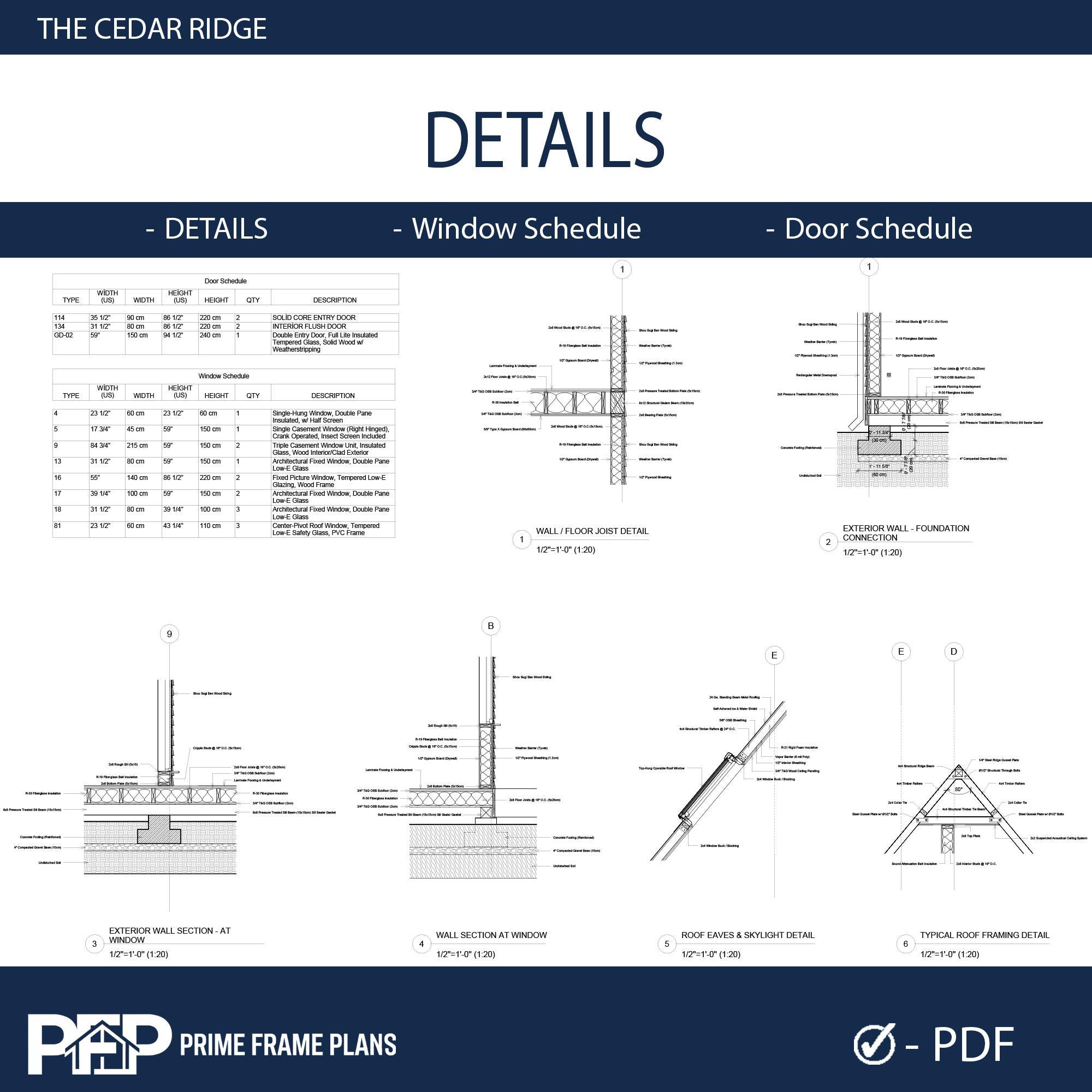

COMPLETE PDF PLAN SET (12 SHEETS): • A1.1: Cover Sheet & Project Data • A1.2: 3D Exterior & Framing Views (Assembly Diagram) • A1.3: Ground Floor Plan (Dimensions & Layout) • A1.4: Loft Floor Plan (Stairs & Railing Details) • A1.5: Foundation Plan • A1.6: Roof Plan (Drainage & Geometry) • A1.7: Electrical Plan (Lights, Switches & Outlets) • A1.8: Exterior Elevations (North, South, East, West) • A1.9: Building Sections (Vertical Heights & Insulation) • A1.10: Wall Framing Elevations • A1.11: Partition Framing Plans • A1.12: Door/Window Schedule & Details
________________________________________
*** PLEASE READ BEFORE PURCHASING • Format: Digital Download (PDF ONLY). No physical product will be shipped. • NO CAD / NO MATERIAL LIST: This specific listing does not include editable DWG files or material estimates. (Please select the PRO Full Set variation if your builder requires these). • License: Single-Use License to build one (1) structure. Resale, distribution, or reproduction is strictly prohibited. • Refunds: Due to the digital nature of the product, no refunds are accepted.
PRIME FRAME PLANS – Modern Living, Smart Design.
