1 Bed Modern ADU Plans with Garage | Airbnb Guest House | PDF Only

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️
This package is designed for inspiration, preliminary planning, and visualizing your dream home or ADU.
Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your builder? You can find the complete PRO package by selecting that variation in our shop!

PRIME FRAME PLANS presents: The Modern House Project. Defined by clean lines and functional elegance, this single-story modern home is designed for contemporary living. Featuring a spacious open-concept living area with floor-to-ceiling windows, a luxurious master suite, and an integrated 1-car garage, this plan offers the perfect balance of style and practicality. Ideal for a primary residence, a sophisticated guest house, or a high-end rental property.

IMPORTANT: THESE PLANS ARE FOR CONCEPTUAL DESIGN PURPOSES. THEY MUST BE REVIEWED AND STAMPED BY A LOCAL STRUCTURAL ENGINEER AND APPROVED BY YOUR LOCAL BUILDING DEPARTMENT BEFORE CONSTRUCTION BEGINS.

*** DESIGN SUMMARY ***
• Building Dimensions: 56'-10 3/4" x 27'-1 7/8" (Approx. 1734 cm x 828 cm)
• Total Area: 1,545 Sq. Ft. (143 m²)
• Stories: 1 Level
• Bed/Bath: 1 Master Suite (with Walk-in Closet) | 1.5 Baths
• Garage: 1-Car Garage Integrated
• Foundation: Concrete Slab on Grade (Conceptual)
• Roof: Modern Shed Roof (Single Pitch) / Standing Seam Metal

*** WHAT IS INCLUDED IN THIS PDF SET? ***
This download includes high-resolution PDF sheets (Print-Ready on 24"x36" / A1).

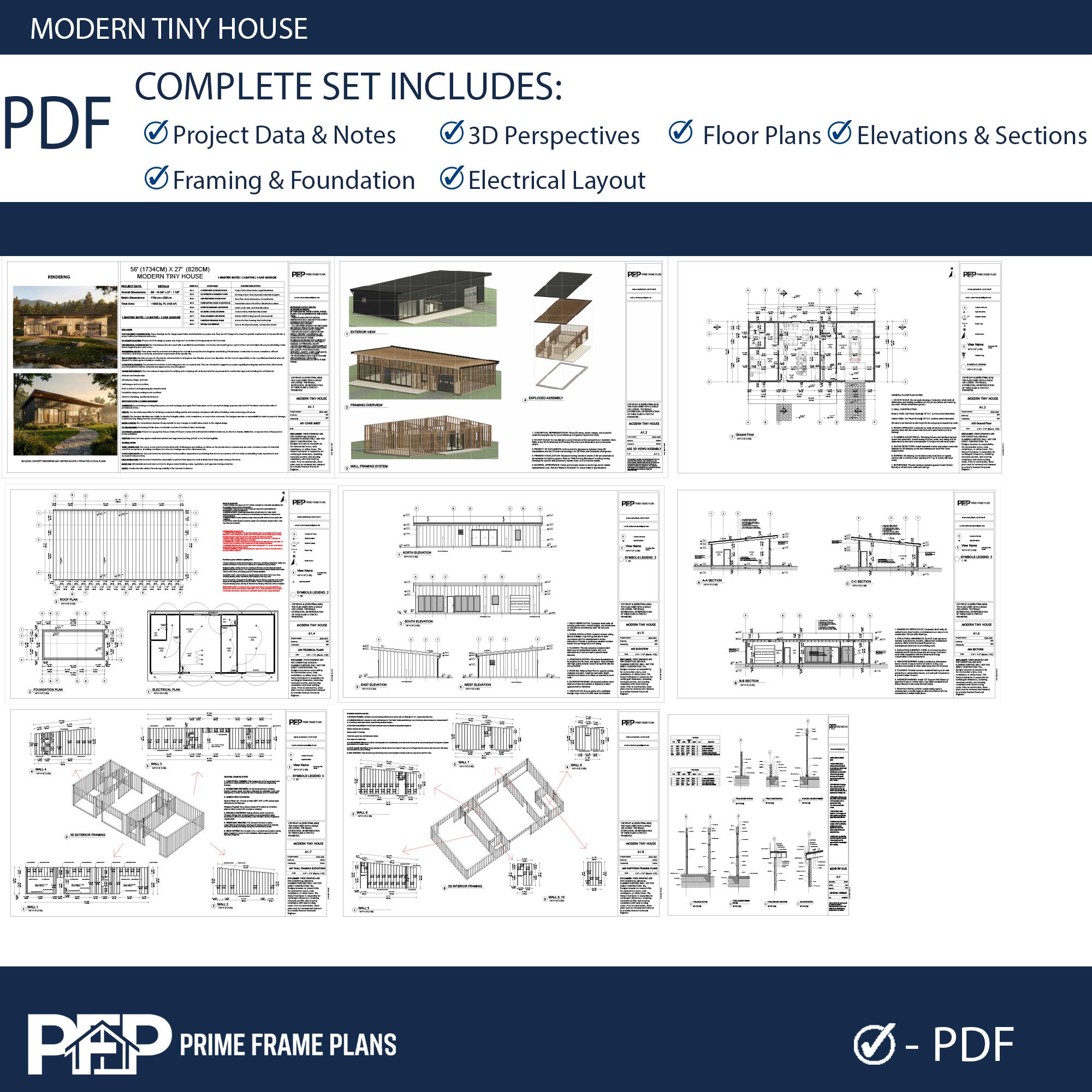

COMPLETE PDF PLAN SET (9 SHEETS):
• Cover Sheet (A1.1): Project data, disclaimer, and sheet index.

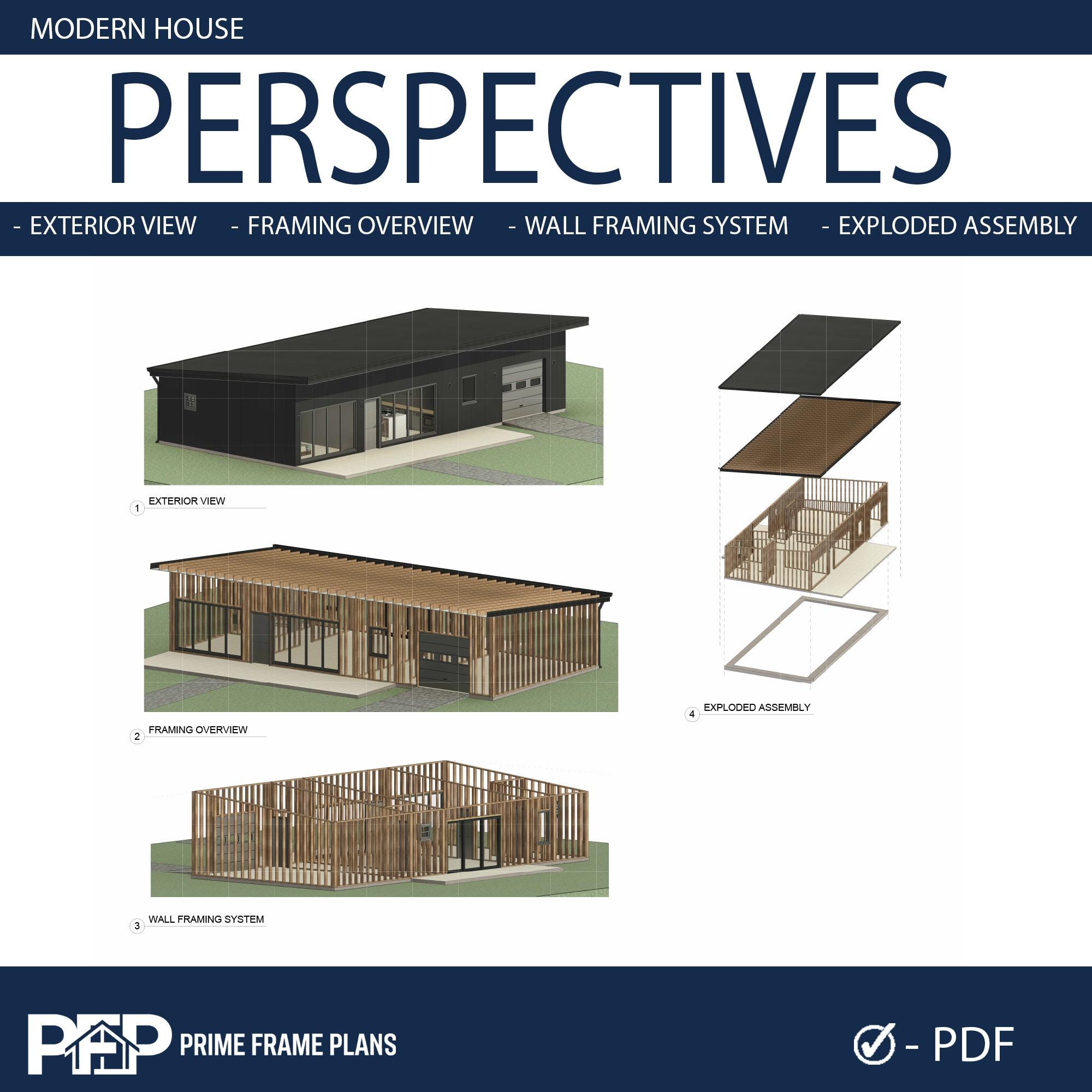

• 3D Views & Diagrams (A1.2): Exterior perspective views and exploded structural assembly diagram.

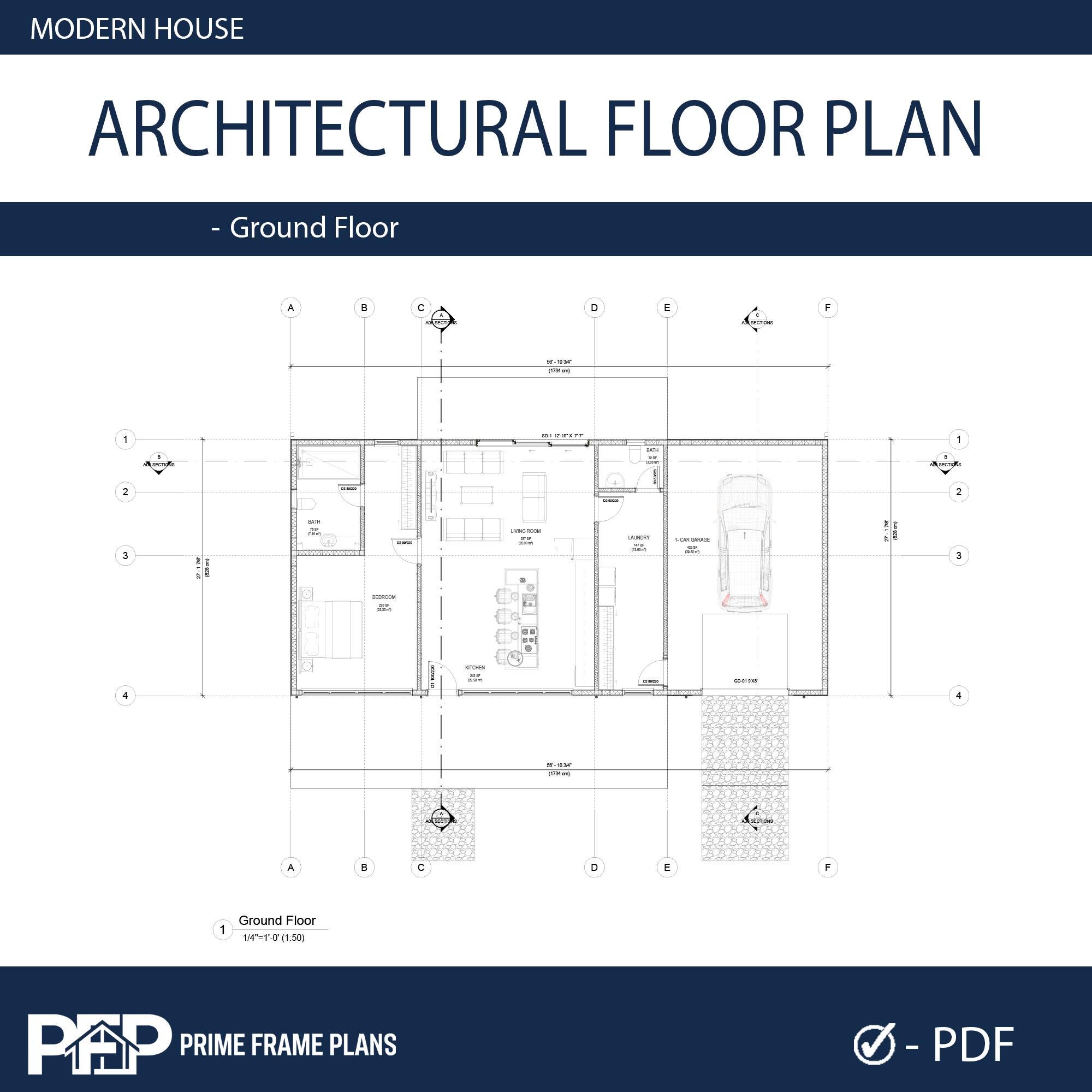

• Architectural Floor Plan (A1.3): Detailed floor layout with room dimensions and general notes.

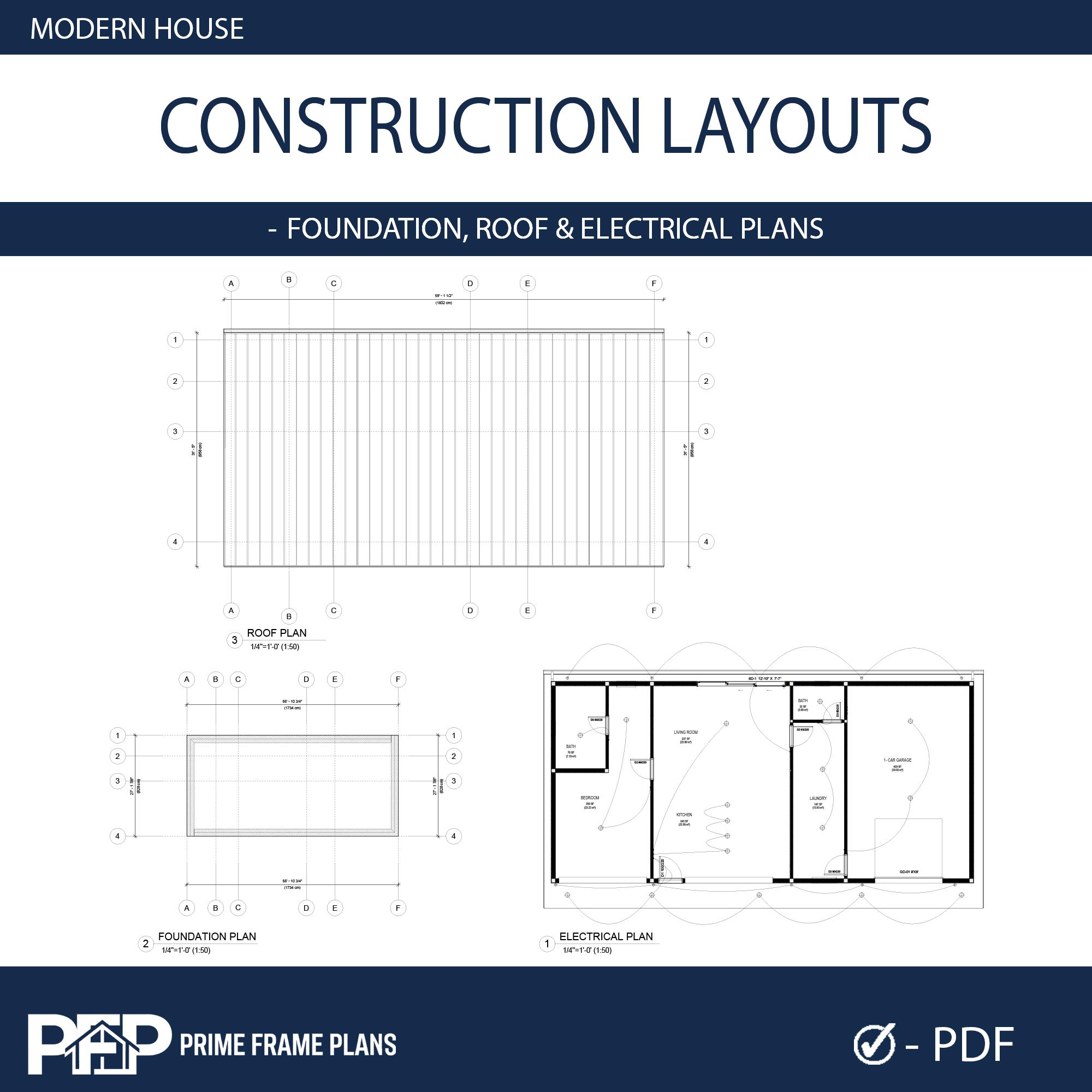

• Technical Plans (A1.4): Conceptual foundation plan, roof plan, and electrical lighting layout.

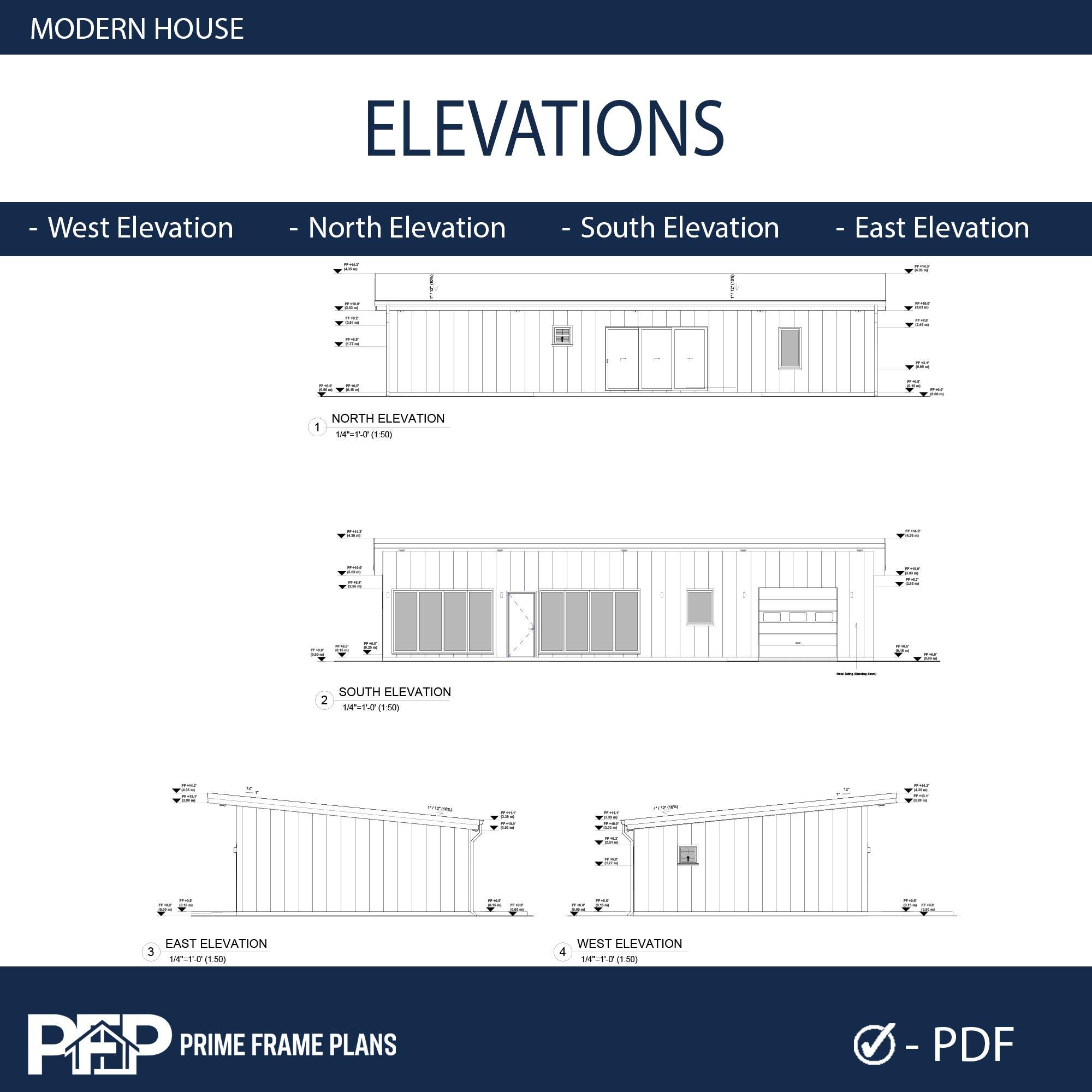

• Exterior Elevations (A1.5): North, South, East, and West views with material finishes.

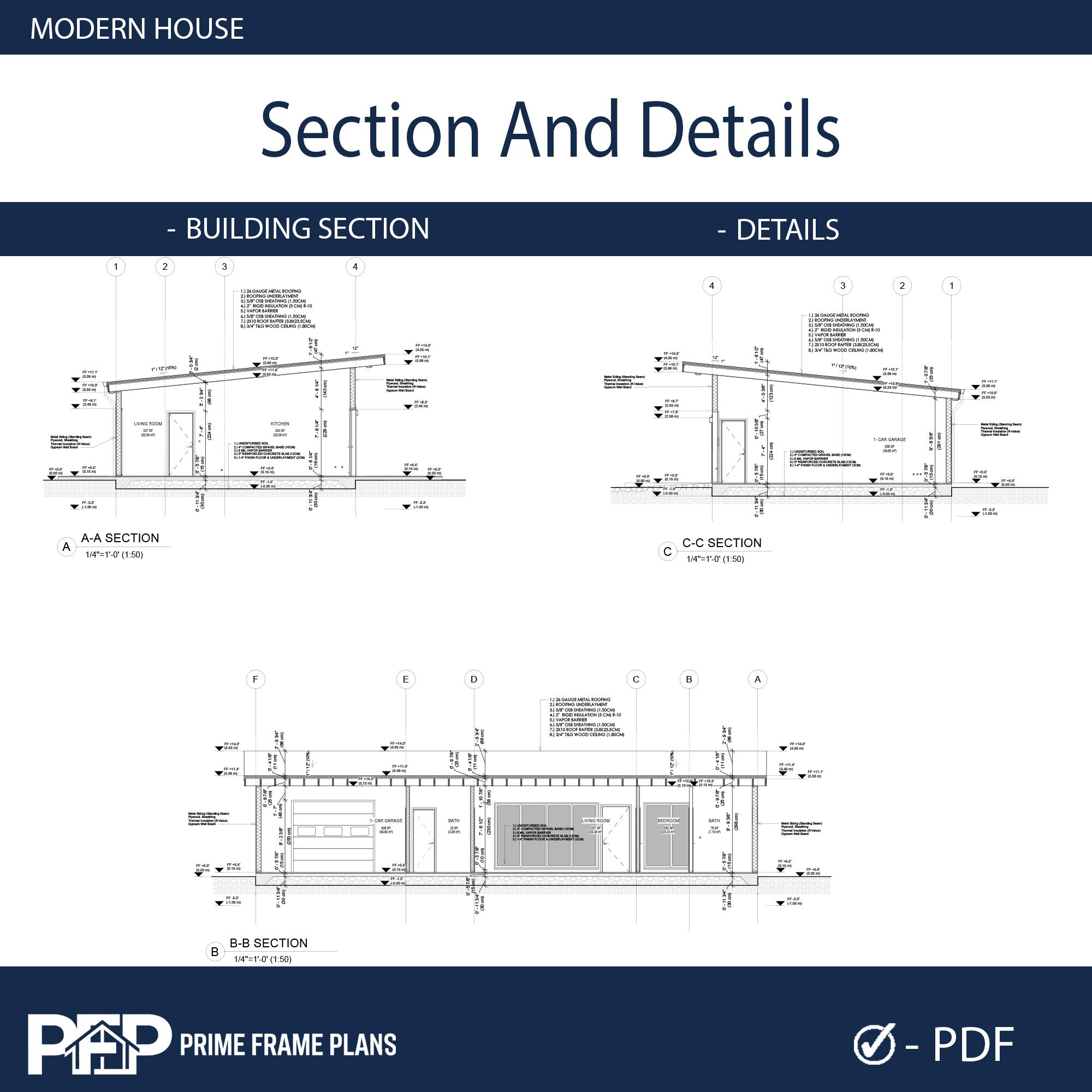

• Building Sections (A1.6): Cross-sections (A-A, B-B, C-C) showing vertical heights and assembly details.

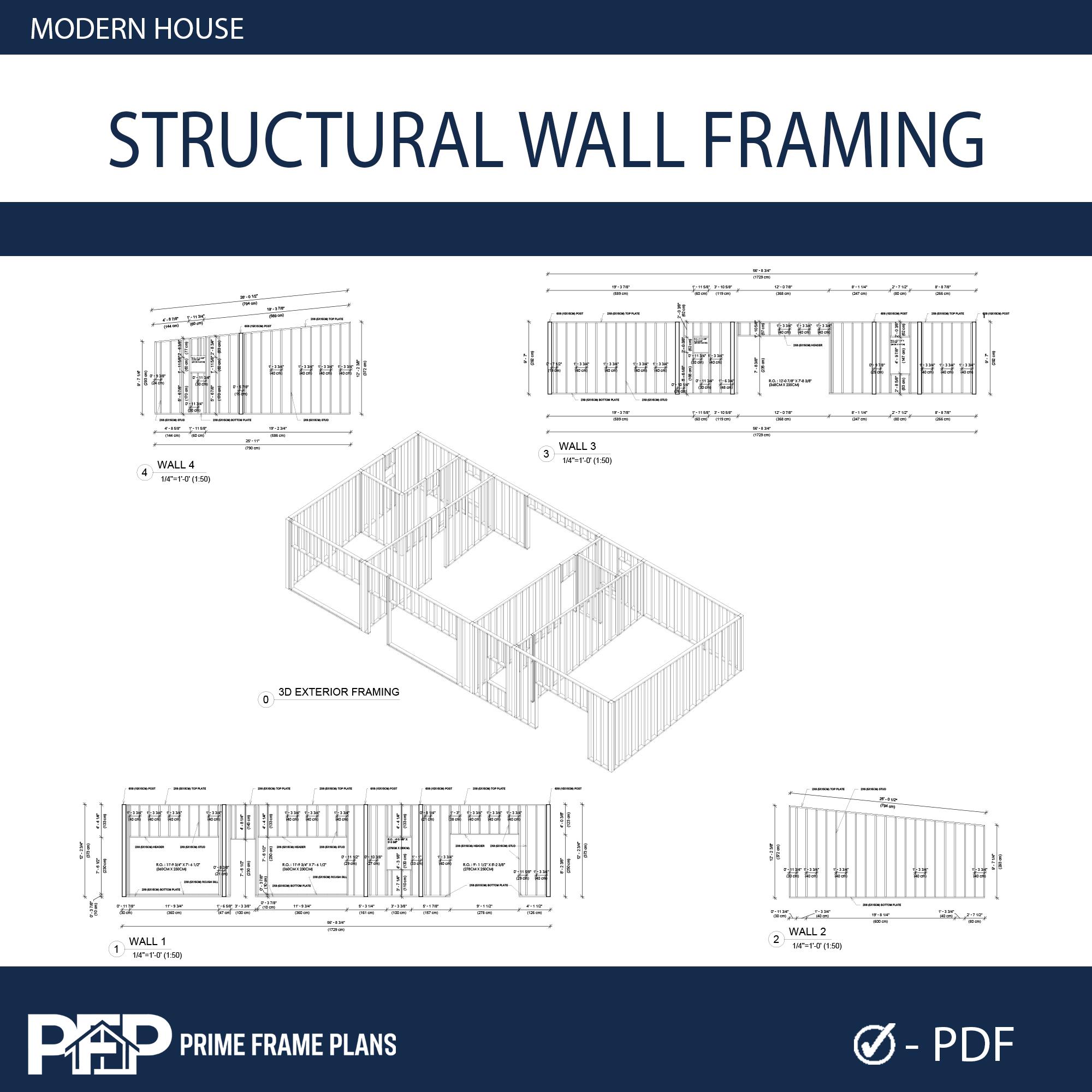

• Wall Framing Elevations (A1.7): Exterior wall stud layouts and 3D framing views.

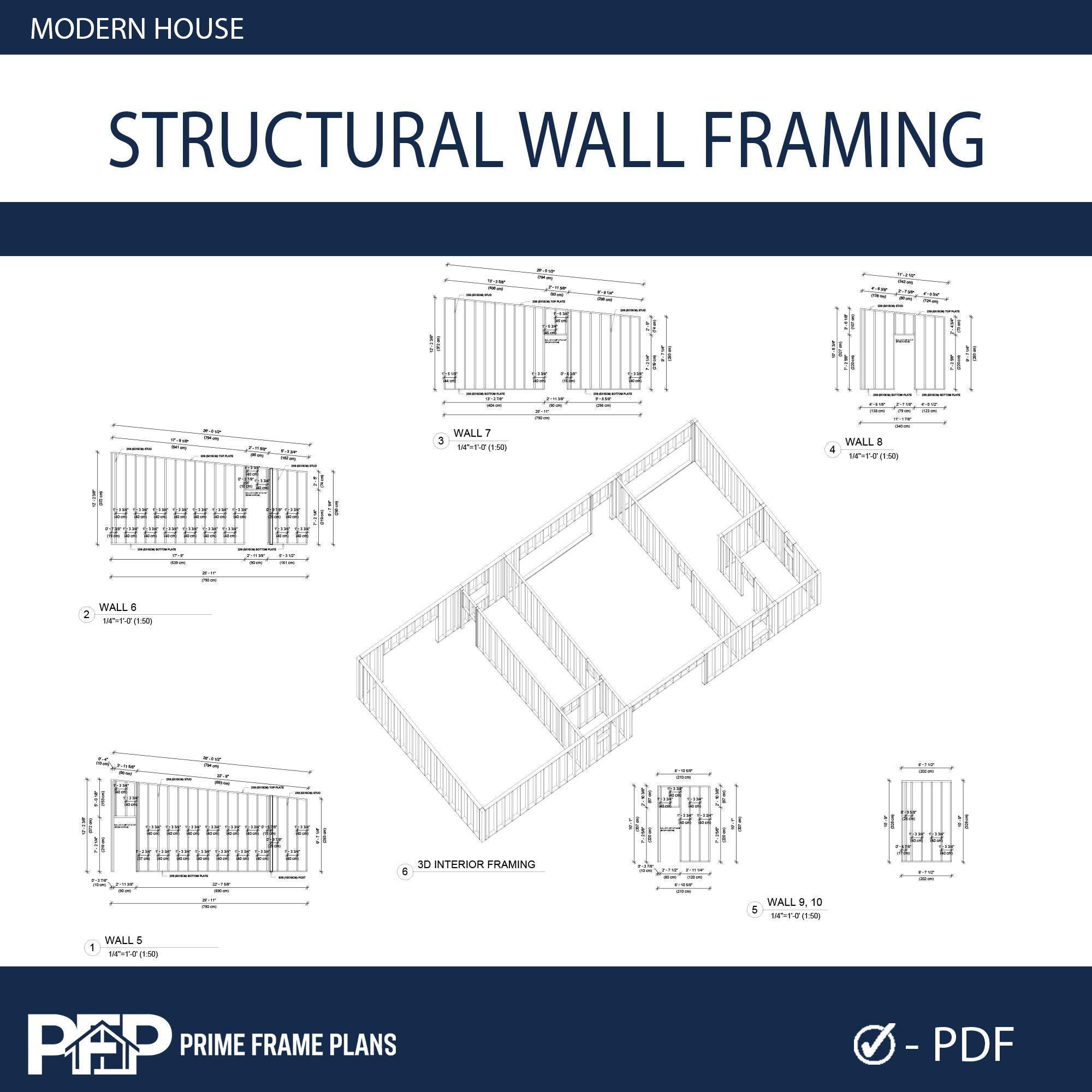

• Partition Framing Plans (A1.8): Interior wall framing details and 3D interior structure view.

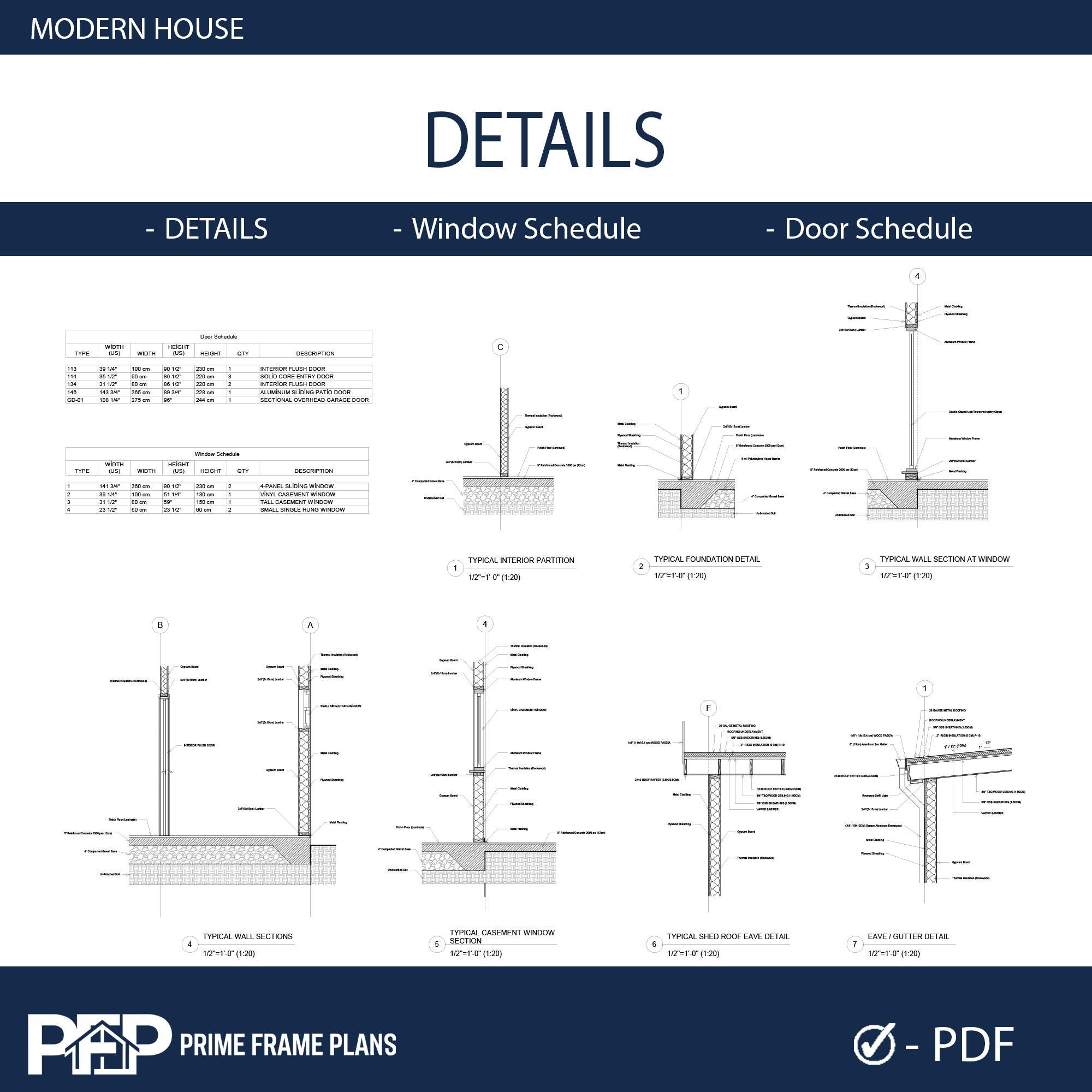

• Details & Schedules (A1.9): Window/Door schedules and specific construction details.

*** PLEASE READ BEFORE PURCHASING ***
• Format: Digital Download (PDF ONLY). No physical product will be shipped.
• NO CAD / NO MATERIAL LIST: This specific listing does not include editable DWG files or material estimates. (Please select the PRO Full Set variation if your builder requires these).
• Engineering: This plan set does NOT include an architectural or engineering stamp. You are responsible for obtaining all necessary local permits and engineering reviews.
• License: Purchase grants a Single-Use License to build one structure. Resale or distribution of these files is strictly prohibited.
• Refunds: Due to the nature of digital products, no refunds or exchanges are accepted.

PRIME FRAME PLANS - Modern Living, Smart Design.
