Black A-Frame Cabin Plans | 23x29 Modern Airbnb House | PDF Only

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️
This package is designed for inspiration, preliminary planning, and visualizing your dream cabin.
Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your builder? You can find the complete PRO package by selecting that variation in our shop!

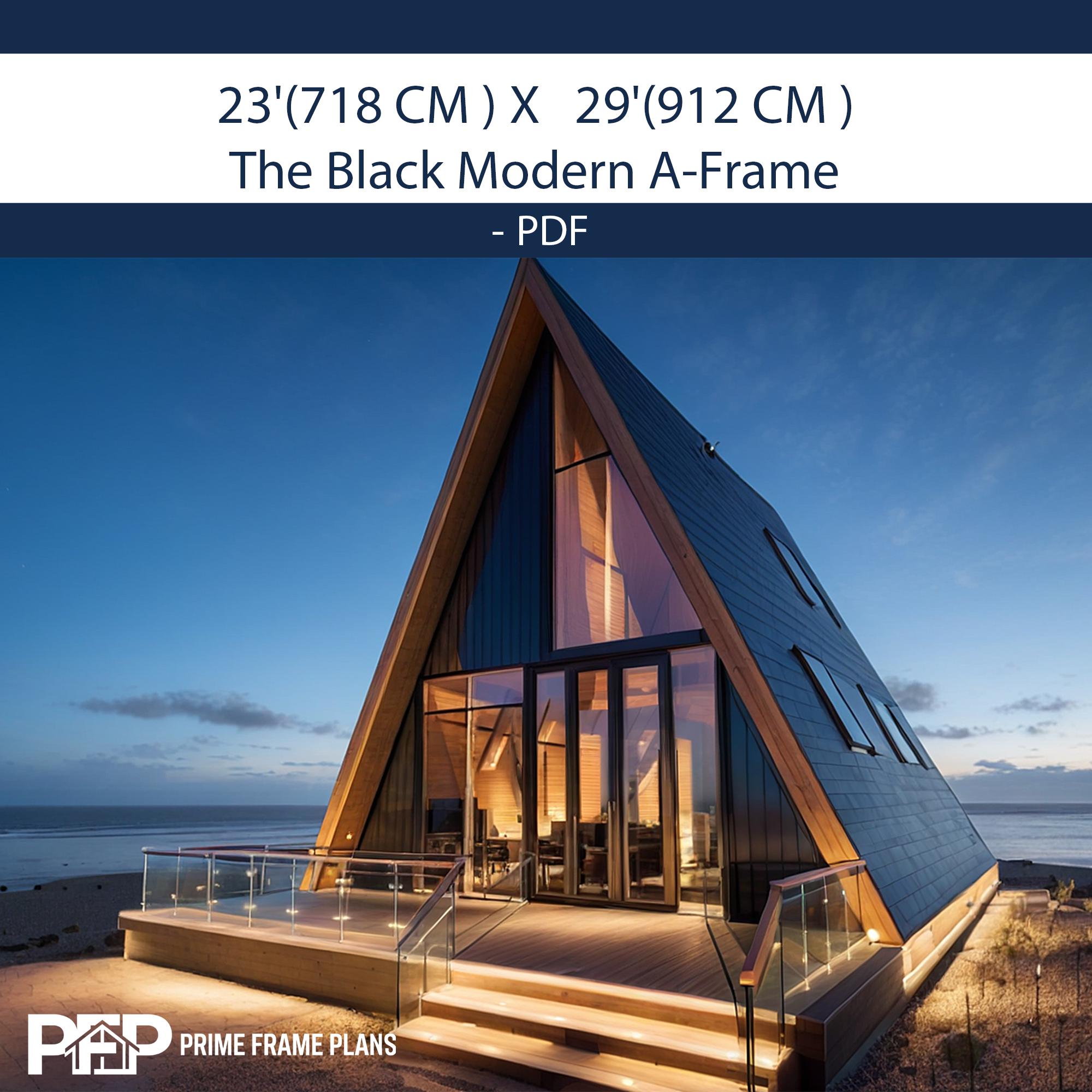

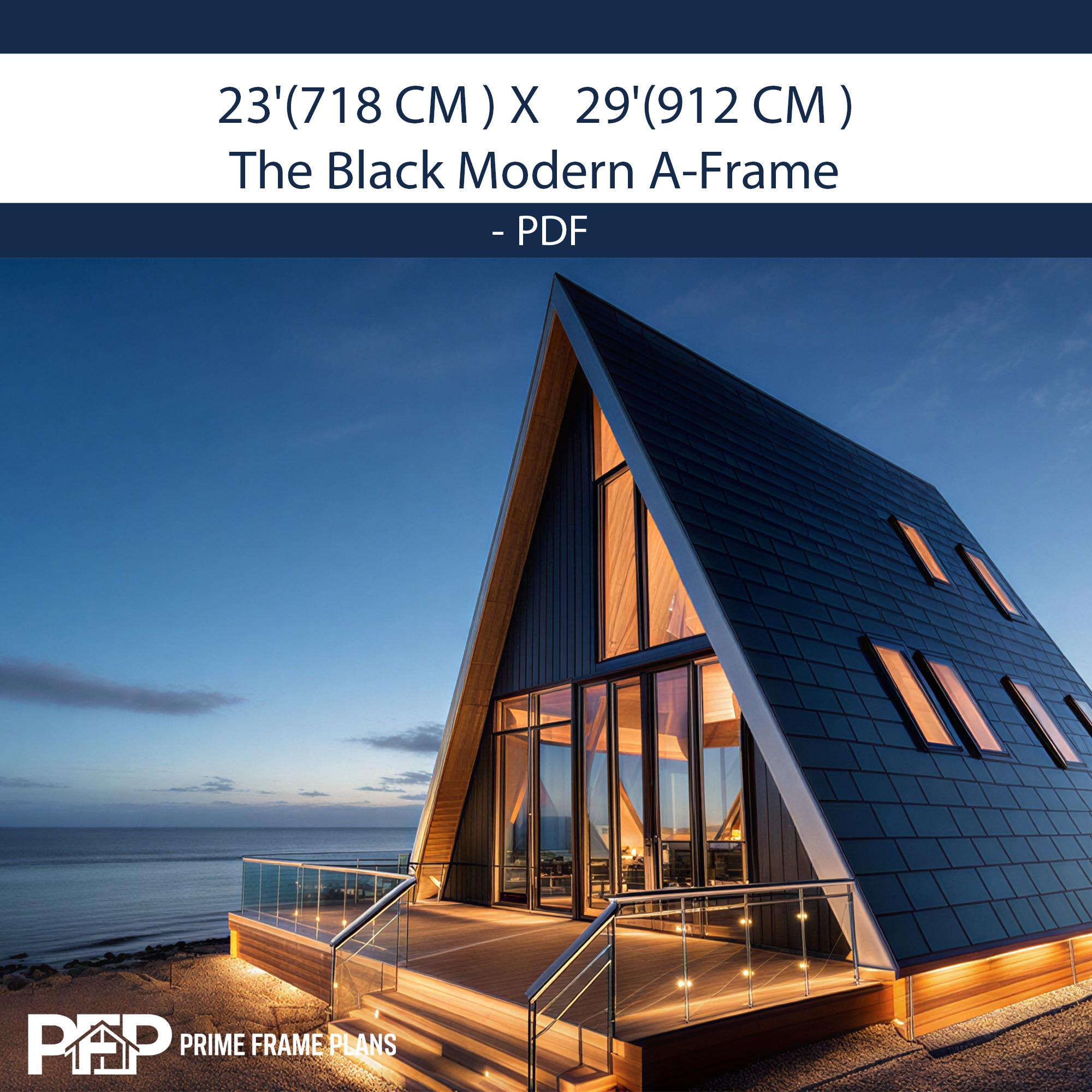

PRIME FRAME PLANS presents: The Black Modern A-Frame. The Black Modern A-Frame is a striking architectural cabin designed for contemporary living in harmony with nature. Featuring a bold dark exterior and an expansive glass gable facade, this design maximizes natural light and scenic views. Perfect as a vacation getaway or a stylish tiny home, it seamlessly blends Nordic minimalism with functional elegance.

The structure utilizes a standard concrete slab foundation, providing a durable, cost-effective, and highly stable base that is incredibly easy for local contractors to execute.

*** DUAL DIMENSIONS INCLUDED:** This plan set is designed for global use. The architectural dimensions utilize both standard Imperial (Feet & Inches) and Metric (Centimeters) measurements.

IMPORTANT: These plans are for conceptual design and planning purposes only, not for direct construction. Prior to construction, these plans must be reviewed and stamped by a locally licensed Structural Engineer and building official to ensure compliance with local building codes.

******* DESIGN SUMMARY *******
• Overall Dimensions: 23' x 29' (718 cm x 912 cm)
• Bedrooms: 1 (Upper loft level featuring a private bedroom retreat with venting skylights and a dedicated workspace)
• Total Bathrooms: 1 Full Bath (Located on the ground floor)
• Key Rooms:

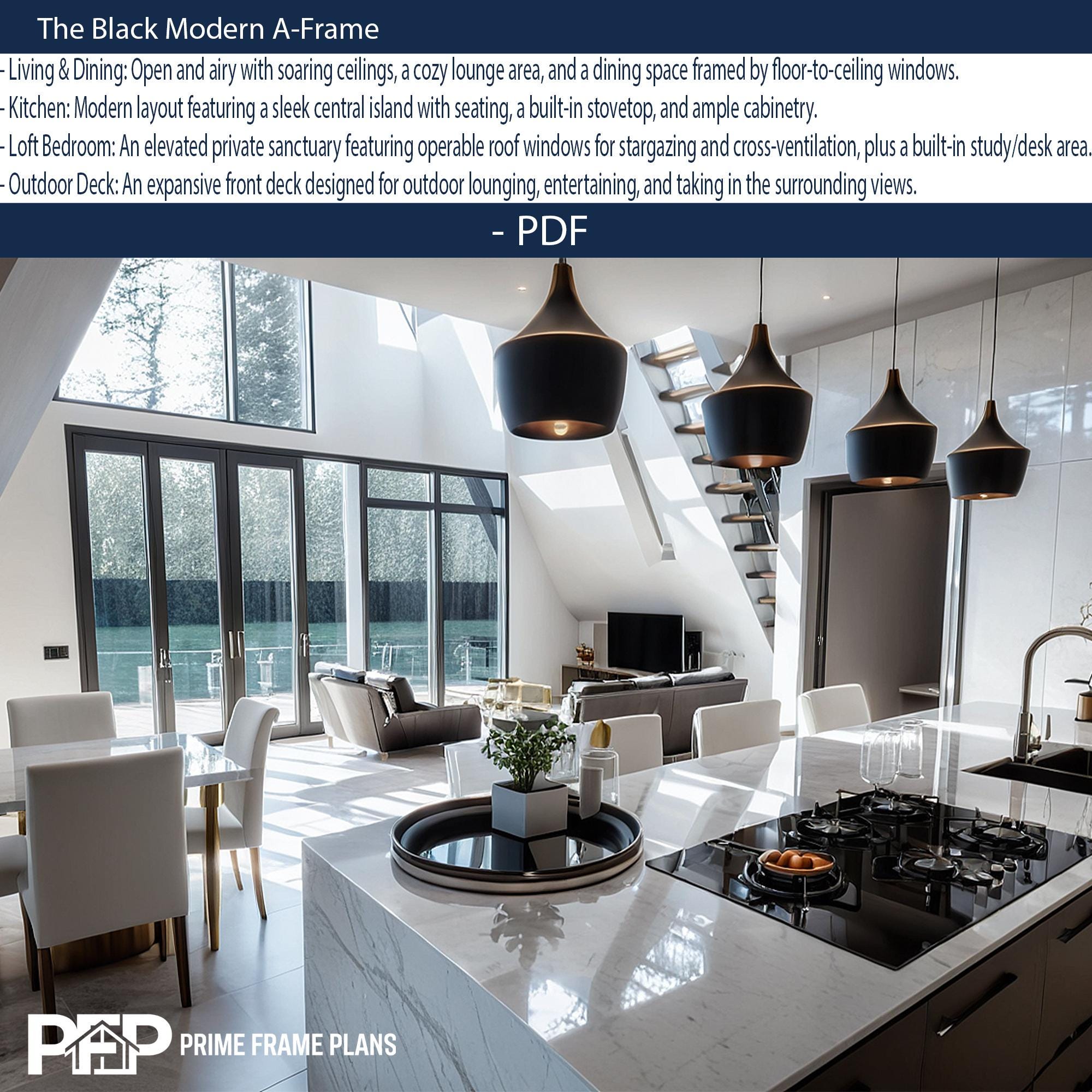

Living & Dining: Open and airy with soaring ceilings, a cozy lounge area, and a dining space framed by floor-to-ceiling windows.

Kitchen: Modern layout featuring a sleek central island with seating, a built-in stovetop, and ample cabinetry.

Outdoor: An expansive front deck designed for outdoor lounging, entertaining, and taking in the surrounding views.
• Foundation: Concrete Slab.
• Roof Style: Steep-pitched A-Frame sloped roof (approx. 26/12 pitch).

******* WHAT IS INCLUDED IN THIS PDF SET? *******
This download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1).

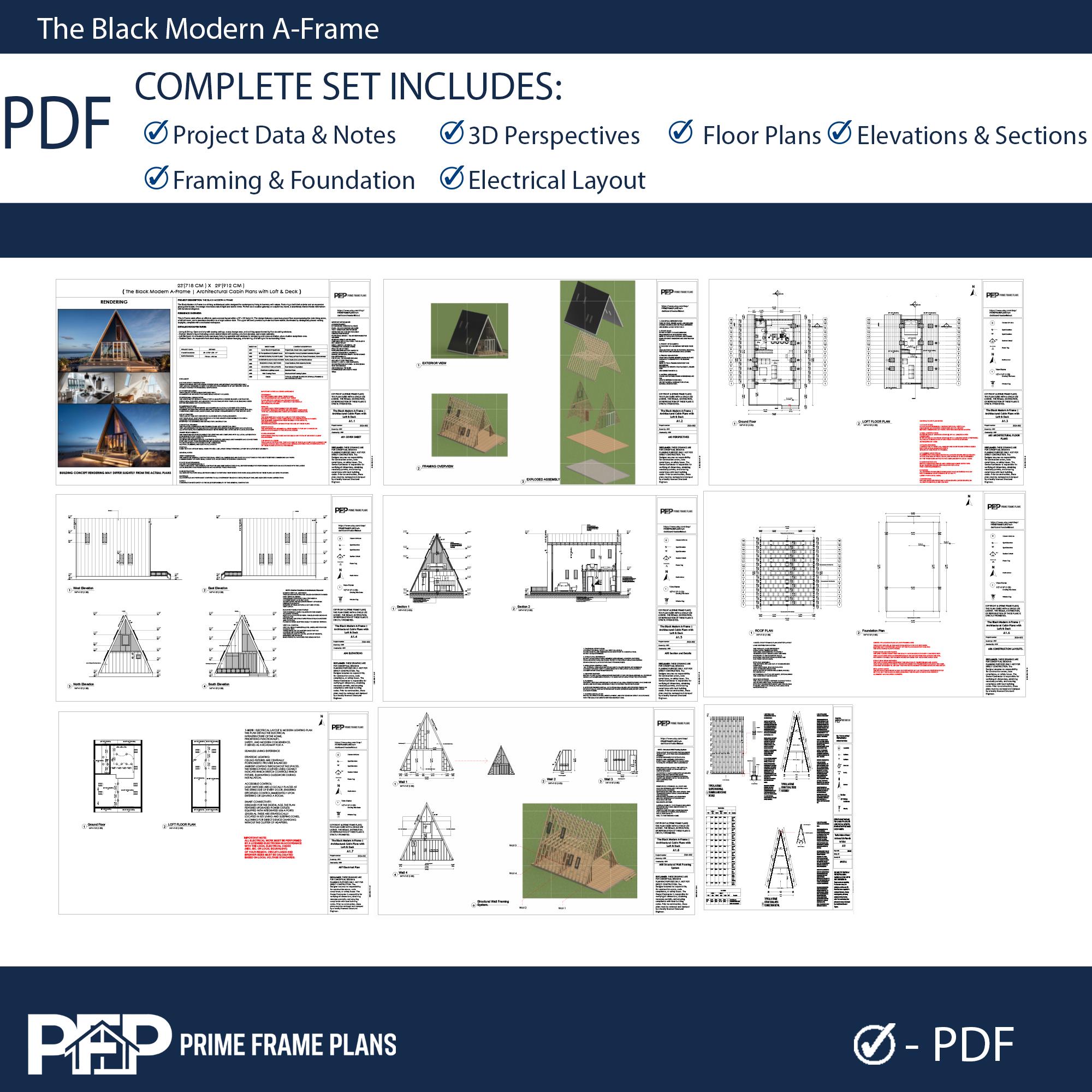

COMPLETE PDF PLAN SET (9 SHEETS):
• A01 - Cover Sheet & Project Data: Project Data, Sheet Index, Legal Disclaimers.

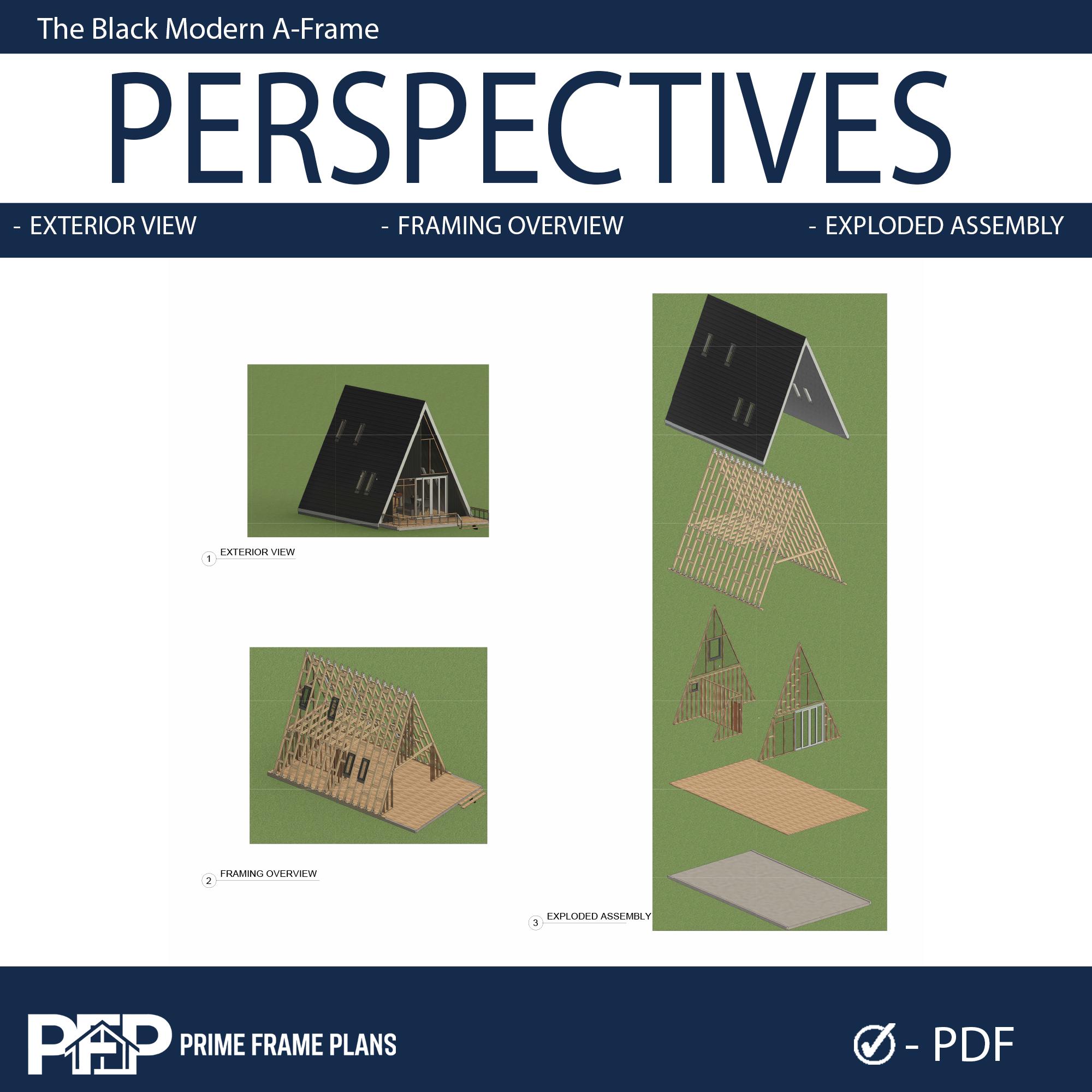

• A02 - 3D Perspectives & Exploded Views: 3D Perspective Views, Exploded Assembly Diagram.

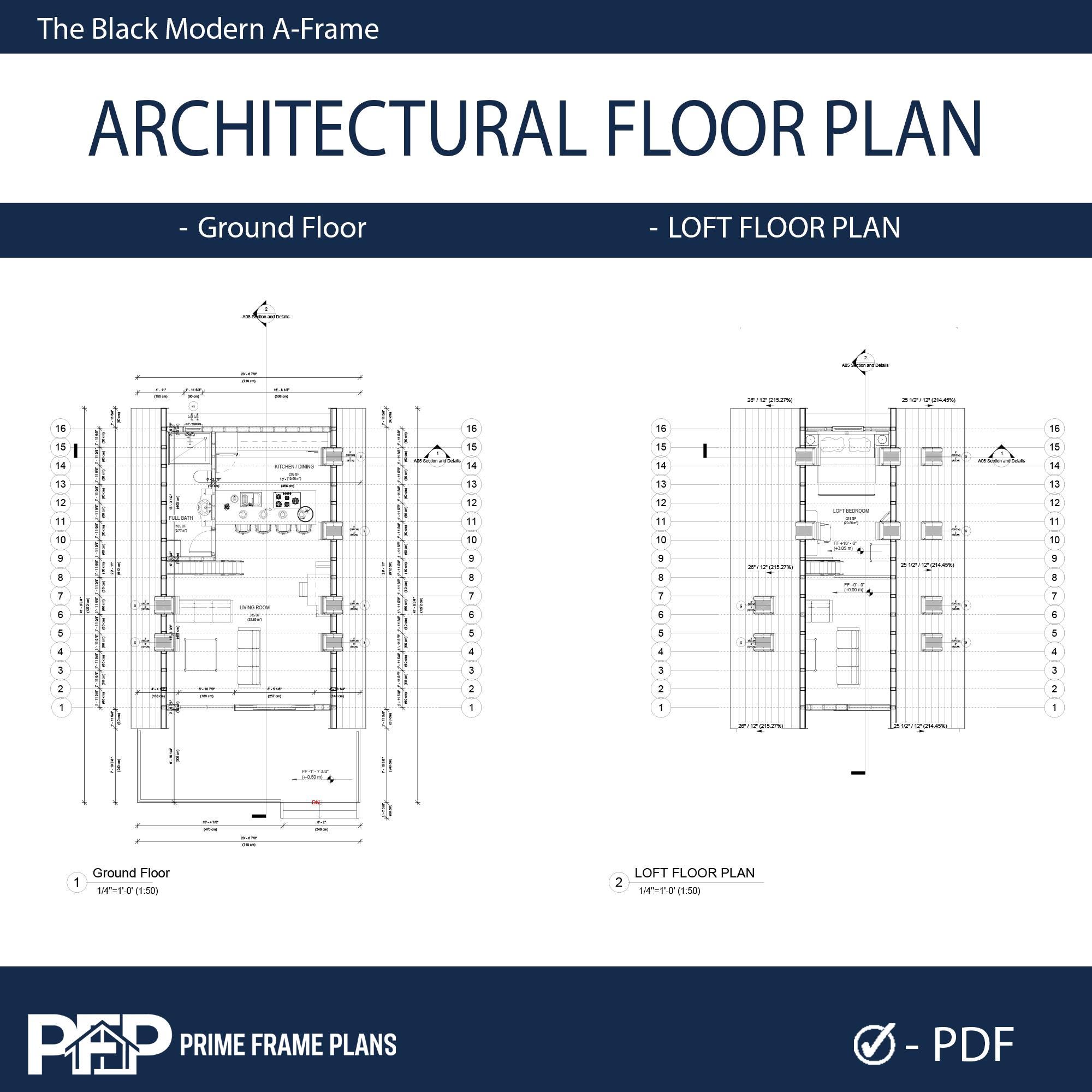

• A03 - Architectural Floor Plans: Floor Plan, Loft Floor Plan, Room Dimensions, General Notes.

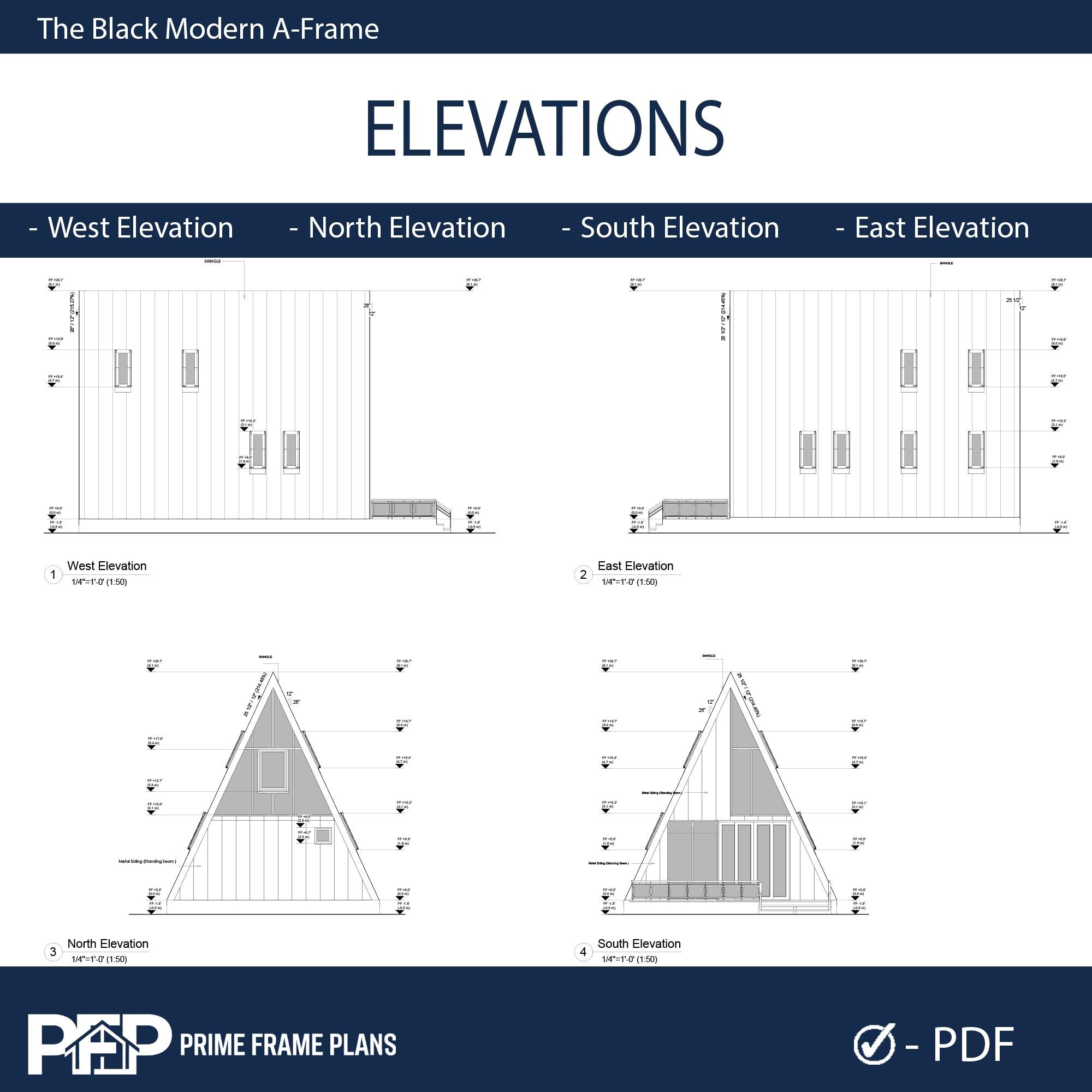

• A04 - Exterior Building Elevations: North, South, East, and West Elevations.

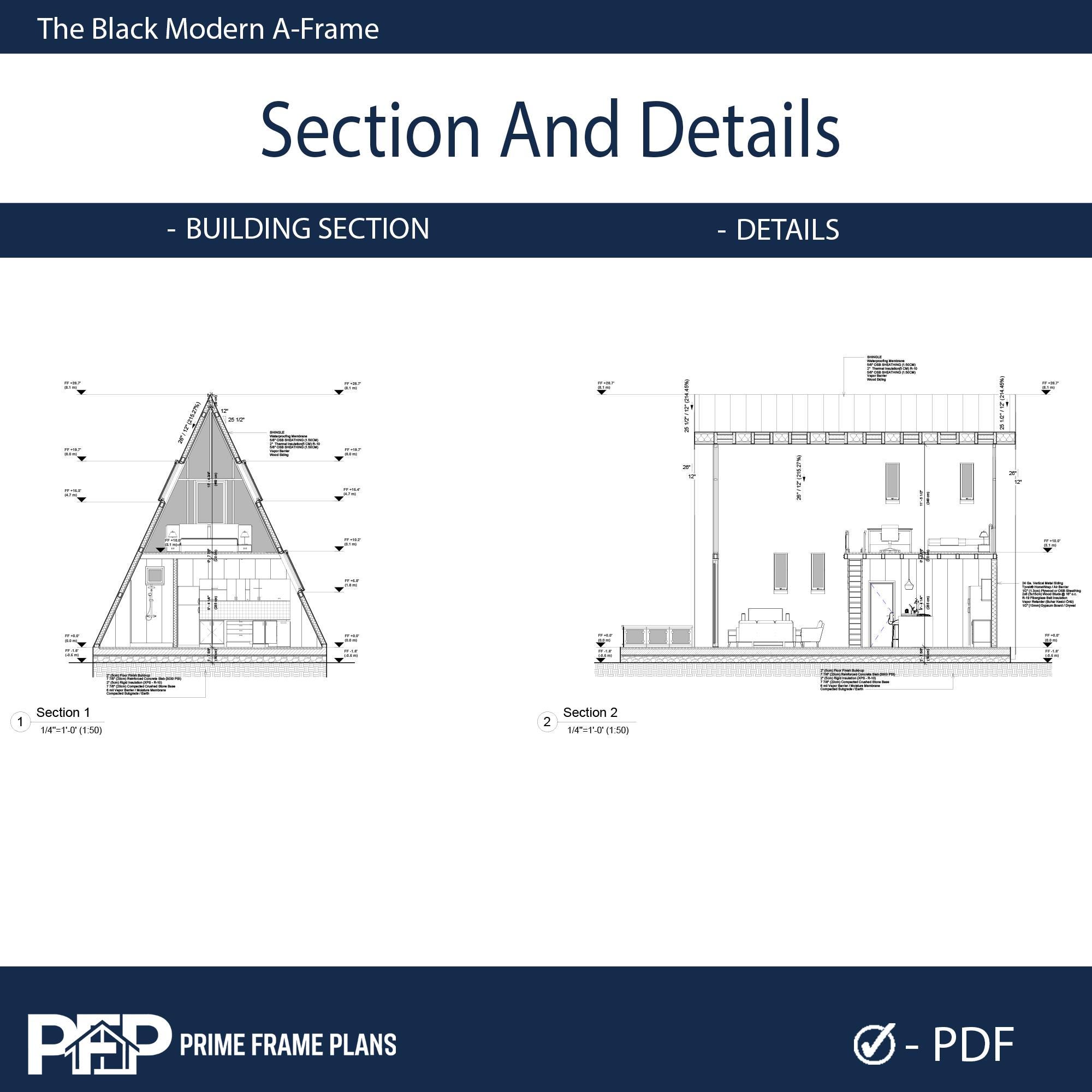

• A05 - Building & Wall Sections: Cross Sections, Wall Assembly Details.

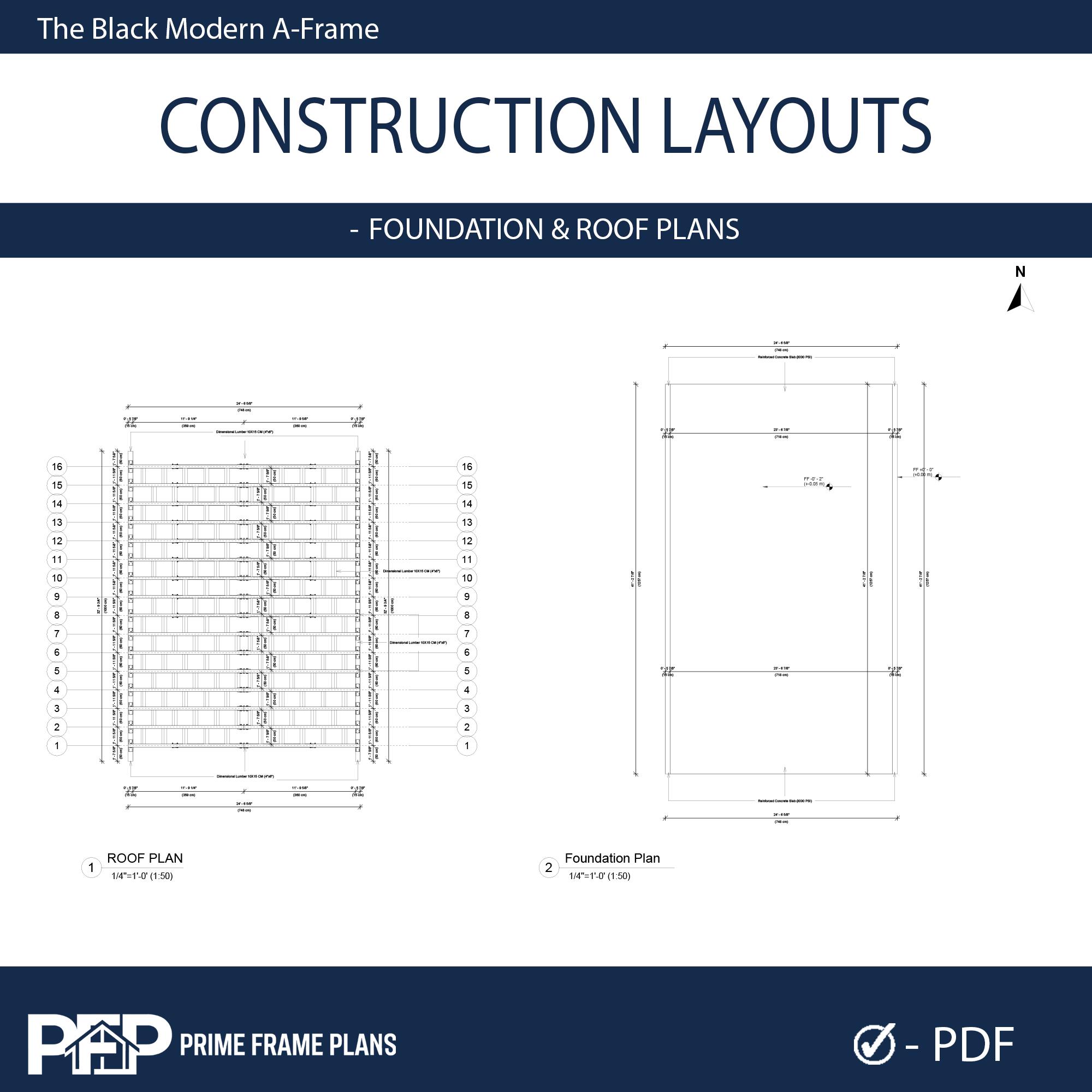

• A06 - Construction Layouts: Roof Details & Foundation layout.

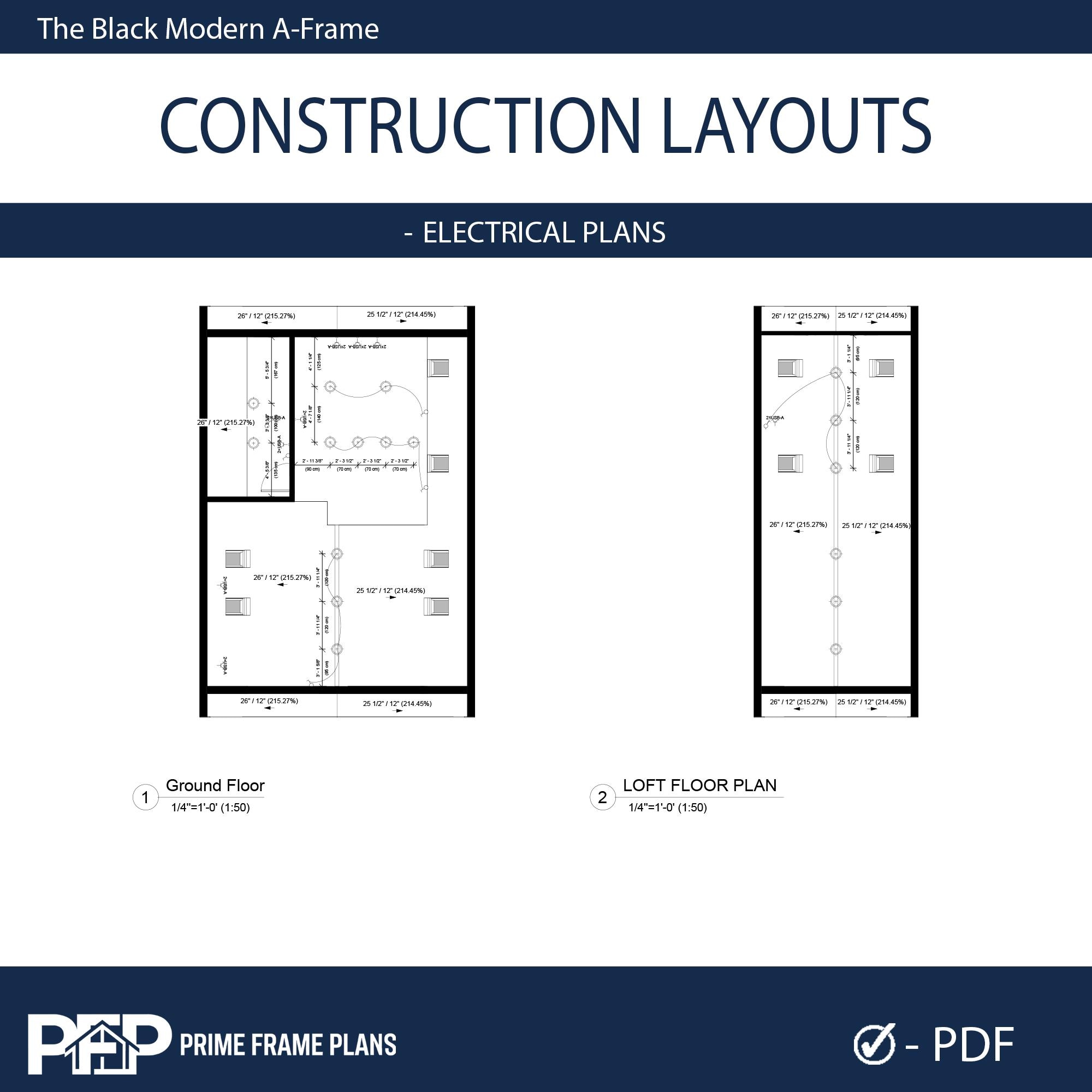

• A07 - Electrical & Lighting Layout: Electrical Plans.

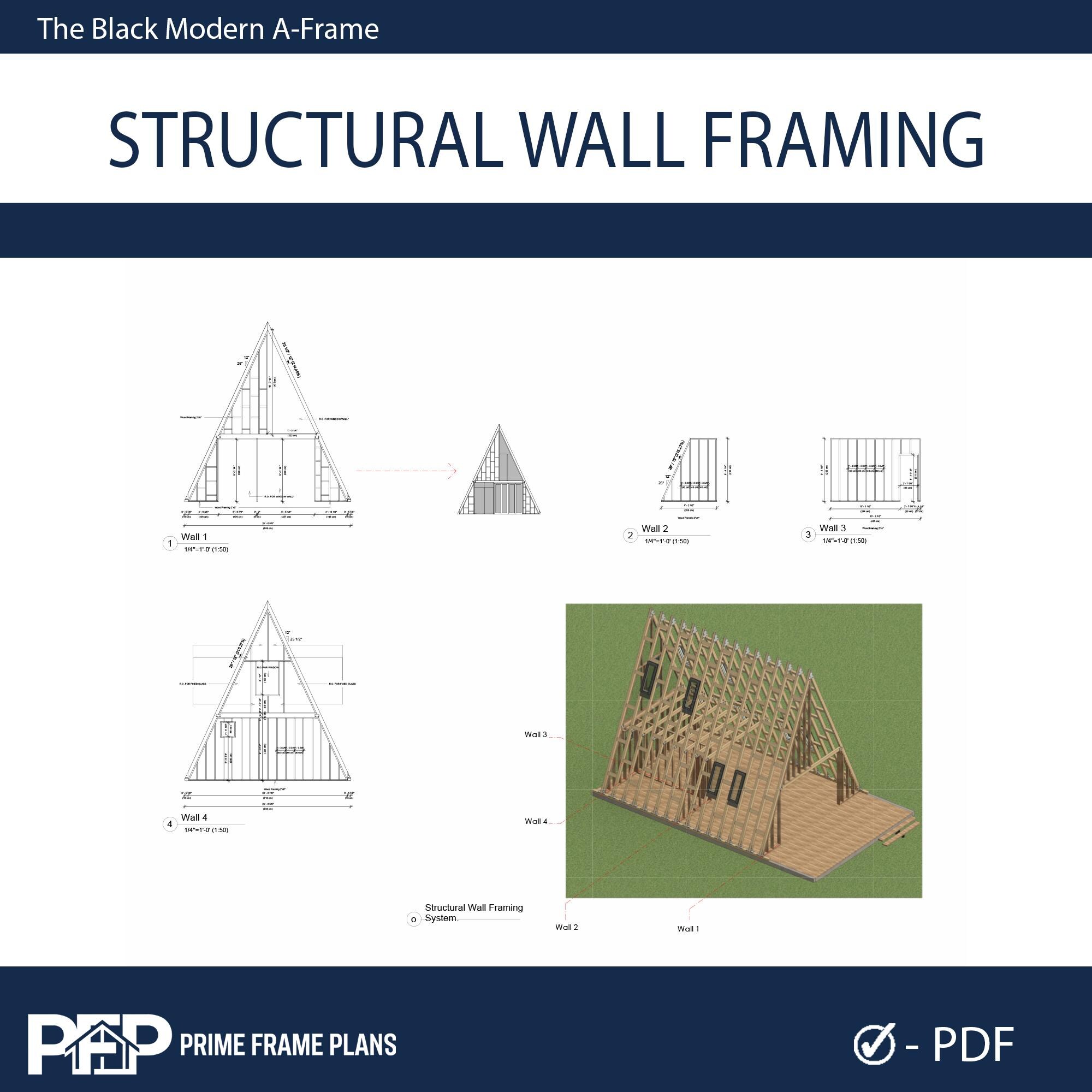

• A08 - Wall Framing Plans: Structural Wall Framing System.

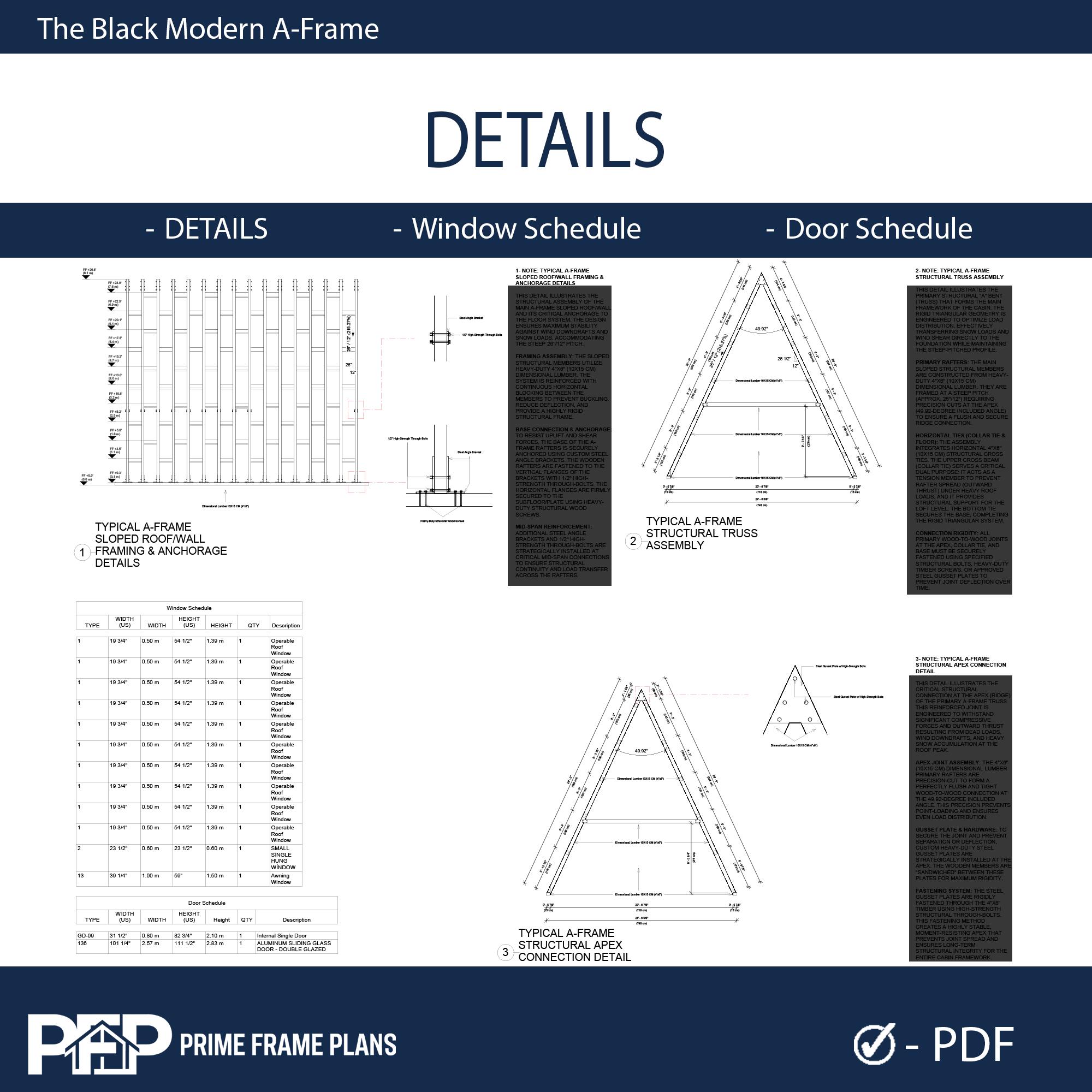

• A09 - Details: Typical A-Frame Sloped Roof Wall Framing & Anchorage Details.

******* PLEASE READ BEFORE PURCHASING *******
• Format: Digital Download (PDF ONLY). No physical product will be shipped.
• NO CAD / NO MATERIAL LIST: This specific listing does not include editable DWG files or material estimates. (Please select the PRO Full Set variation if your builder requires these).
• License: Single-use license to build one (1) structure. Resale, distribution, or reproduction of these plans is strictly prohibited.
• Refunds: Due to the nature of digital products, no refunds are accepted.

PRIME FRAME PLANS - Smart Design, Less Waste.
