Modern A-Frame Cabin Plans | 22x44 Airbnb Loft House | PDF Only

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️
This package is designed for inspiration, preliminary planning, and visualizing your dream cabin.
Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your builder? You can find the complete PRO package by selecting that variation in our shop!

PRIME FRAME PLANS presents: The Apex A-Frame Cabin. A professional architectural masterpiece combining high-volume cathedral ceilings with modern structural precision. This design features a stunning floor-to-ceiling glass facade, a cozy loft bedroom overlooking the open-concept living area, and a large outdoor deck. Perfect for a premium forest retreat, a high-yield Airbnb investment, or a personal nature sanctuary.

*** DUAL DIMENSIONS INCLUDED:** This plan set is designed for global use. All floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements on the same page for easy reference.

IMPORTANT: These plans are for conceptual design purposes. They MUST be reviewed and approved by a locally licensed structural engineer and your building department before construction begins.

*** DESIGN SUMMARY ***
• Building Dimensions: 22' - 0 1/2" x 44' - 1 7/8" (672 cm x 1346 cm)
• Total Area: 758 Sq. Ft. (70 m²)
• Stories: 2 Levels (Ground Floor + Loft)
• Foundation: Concrete Pier Foundation (Conceptual)
• Roof: Classic Gable A-Frame / Standing Seam Metal (12/12 Pitch)

*** WHAT IS INCLUDED IN THIS PDF SET? ***
This download includes high-resolution PDF sheets (Ready to Print on 24"x36" / A1).

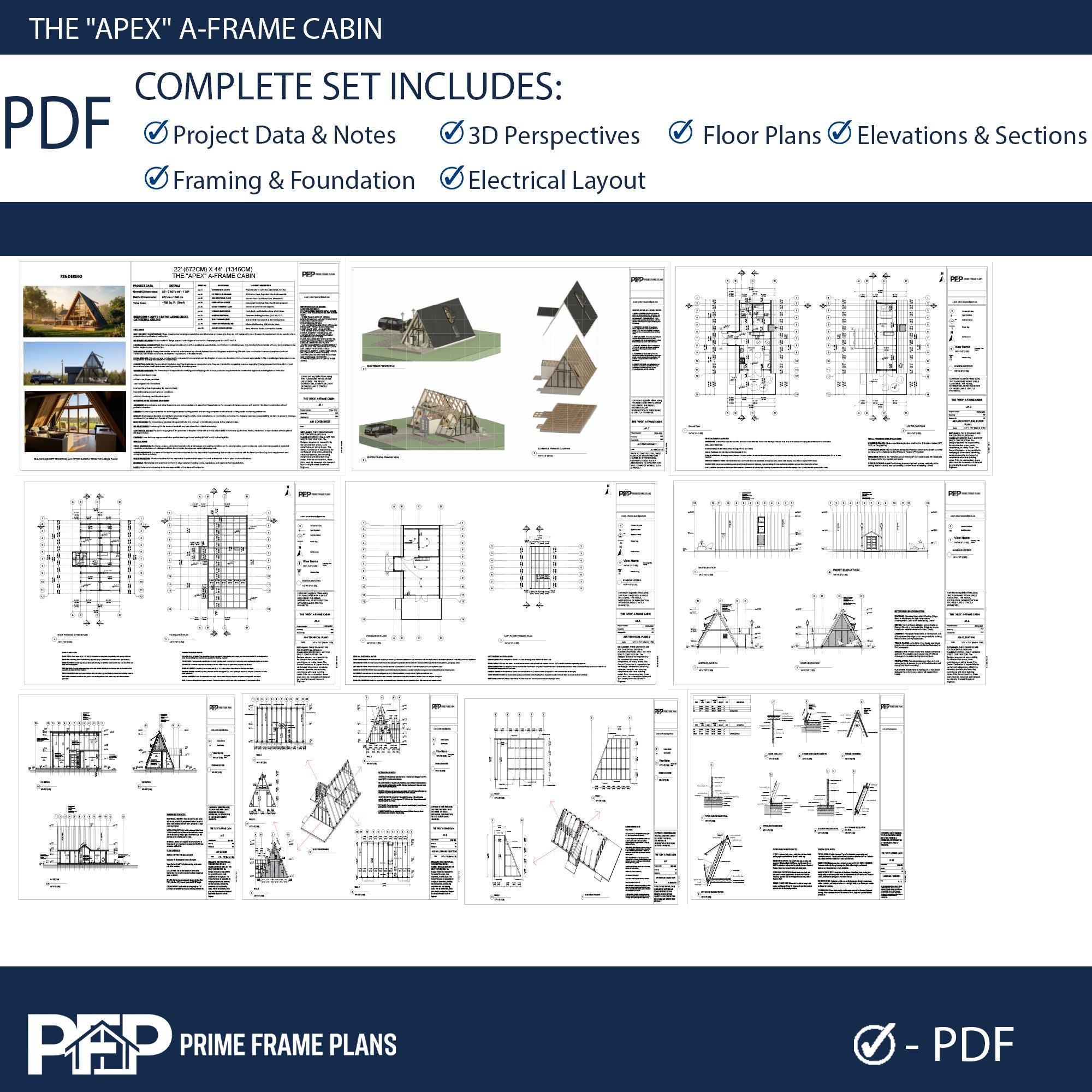

COMPLETE PDF PLAN SET (10 SHEETS):
• A1.1 - Cover Sheet & Data: Render, sheet index, and technical project data.

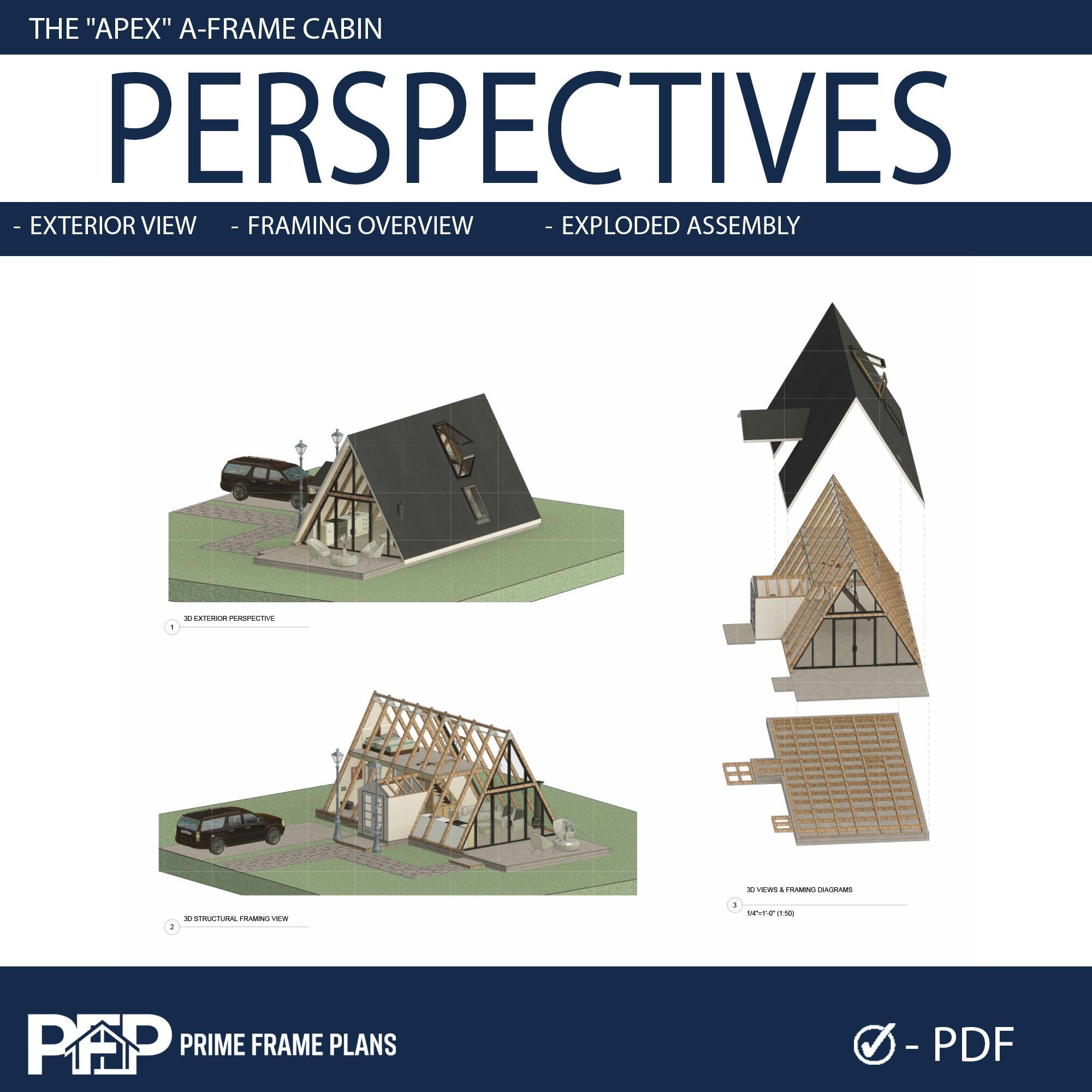

• A1.2 - 3D Views & Diagrams: 3D exterior perspectives and exploded structural assembly.

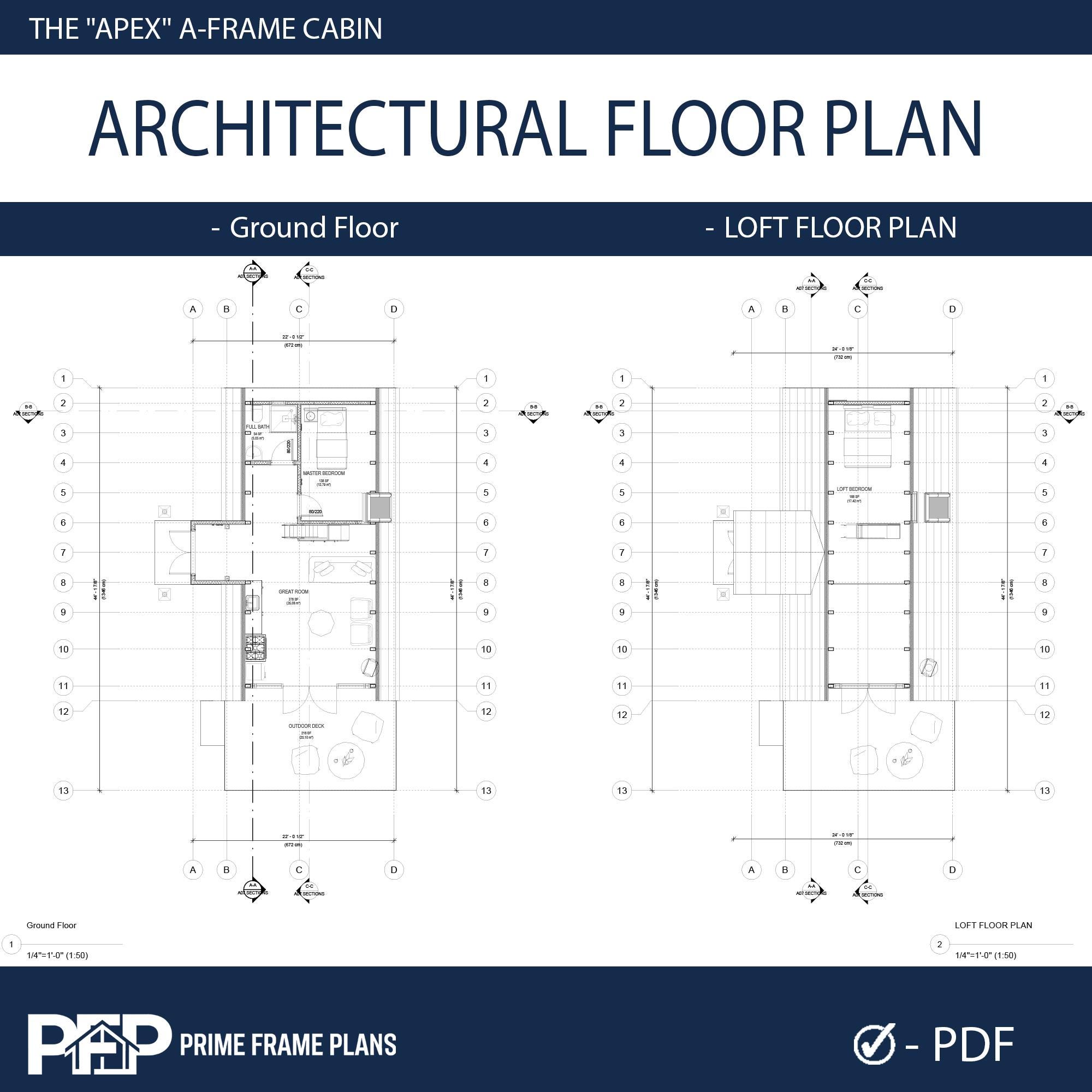

• A1.3 - Architectural Floor Plans: Detailed Ground and Loft floor layouts with dimensions.

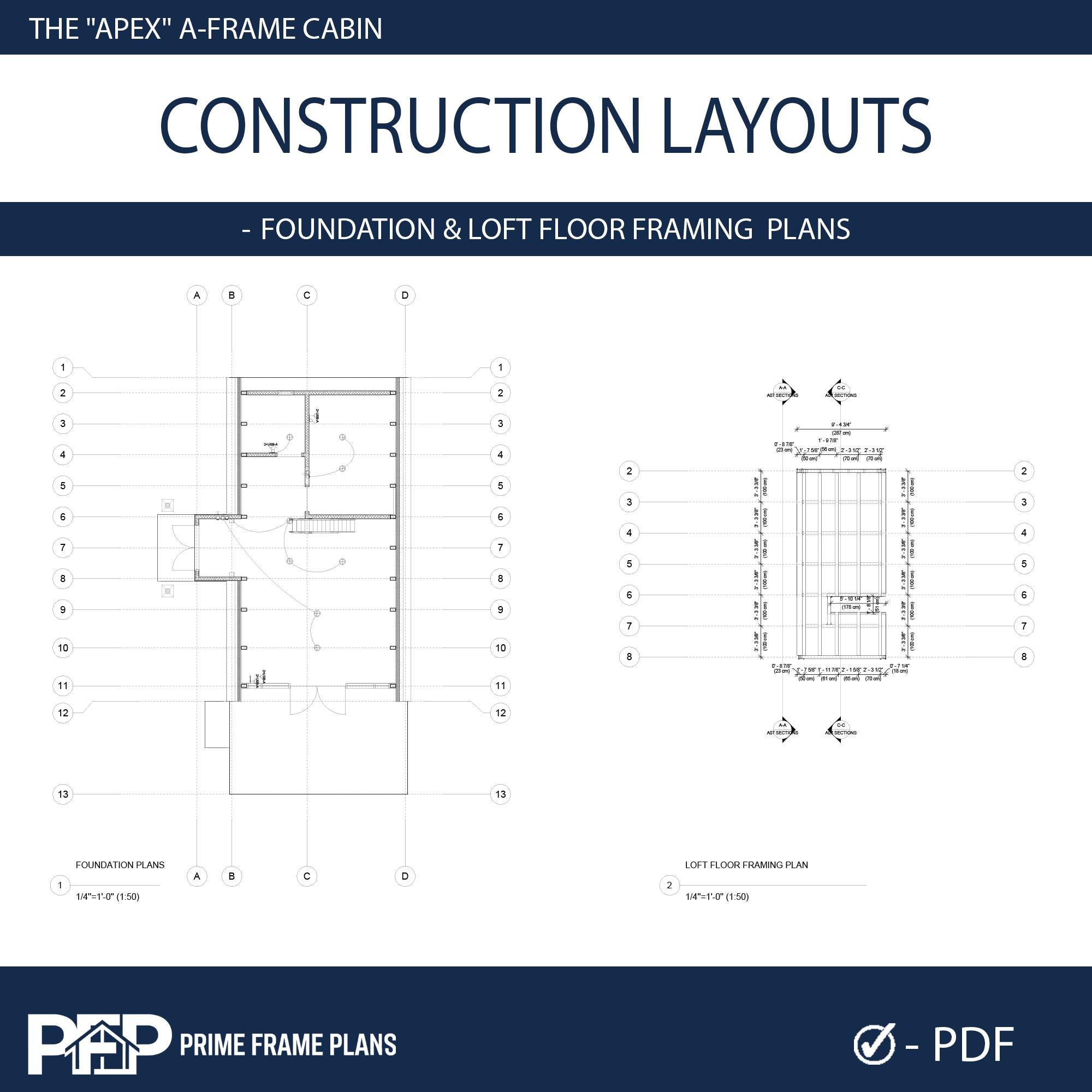

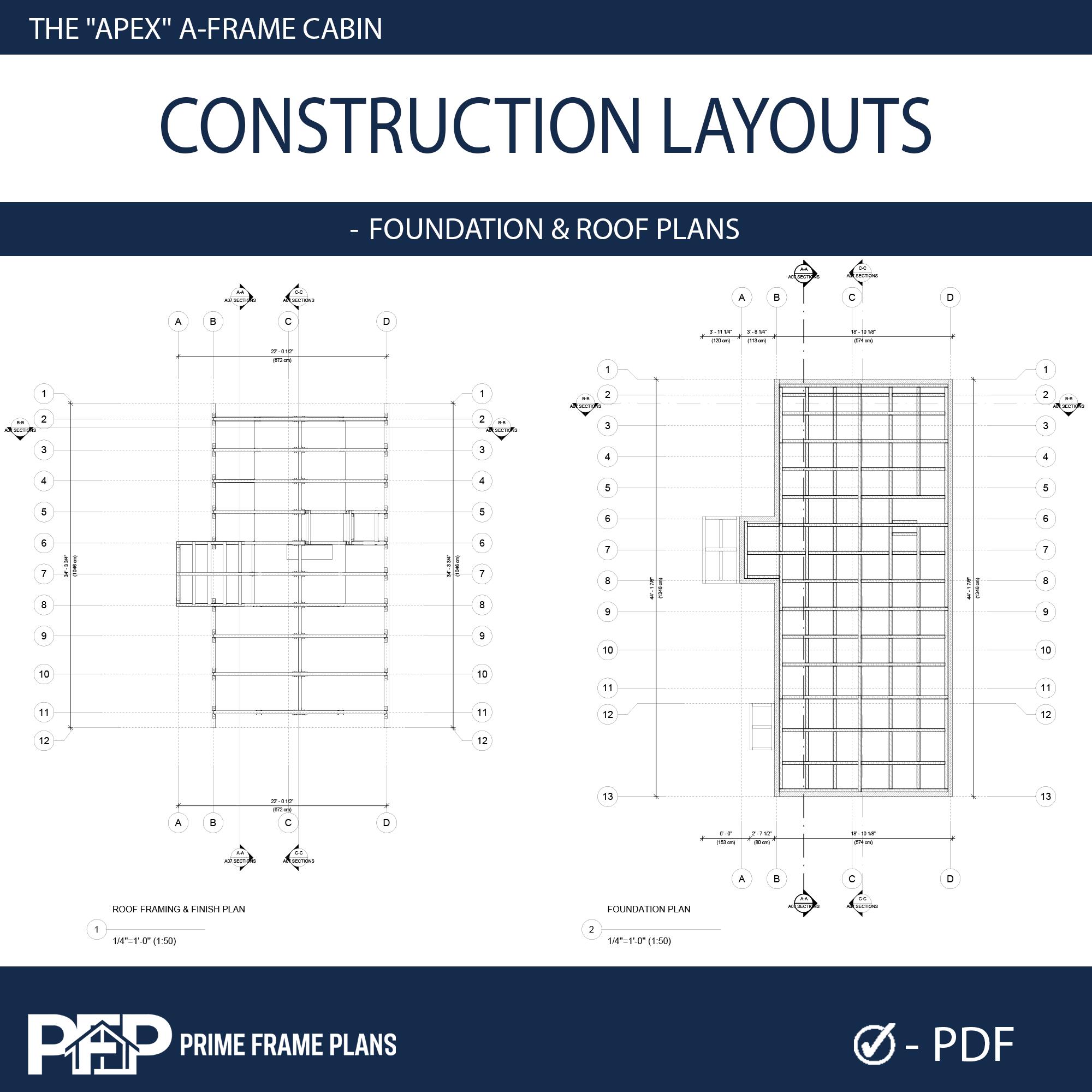

• A1.4 - Foundation & Roof Plans: Concrete pier foundation plan and Roof Framing/Finish layout.
• A1.5 - Floor Framing & Electrical: Loft floor framing and General Electrical Notes.

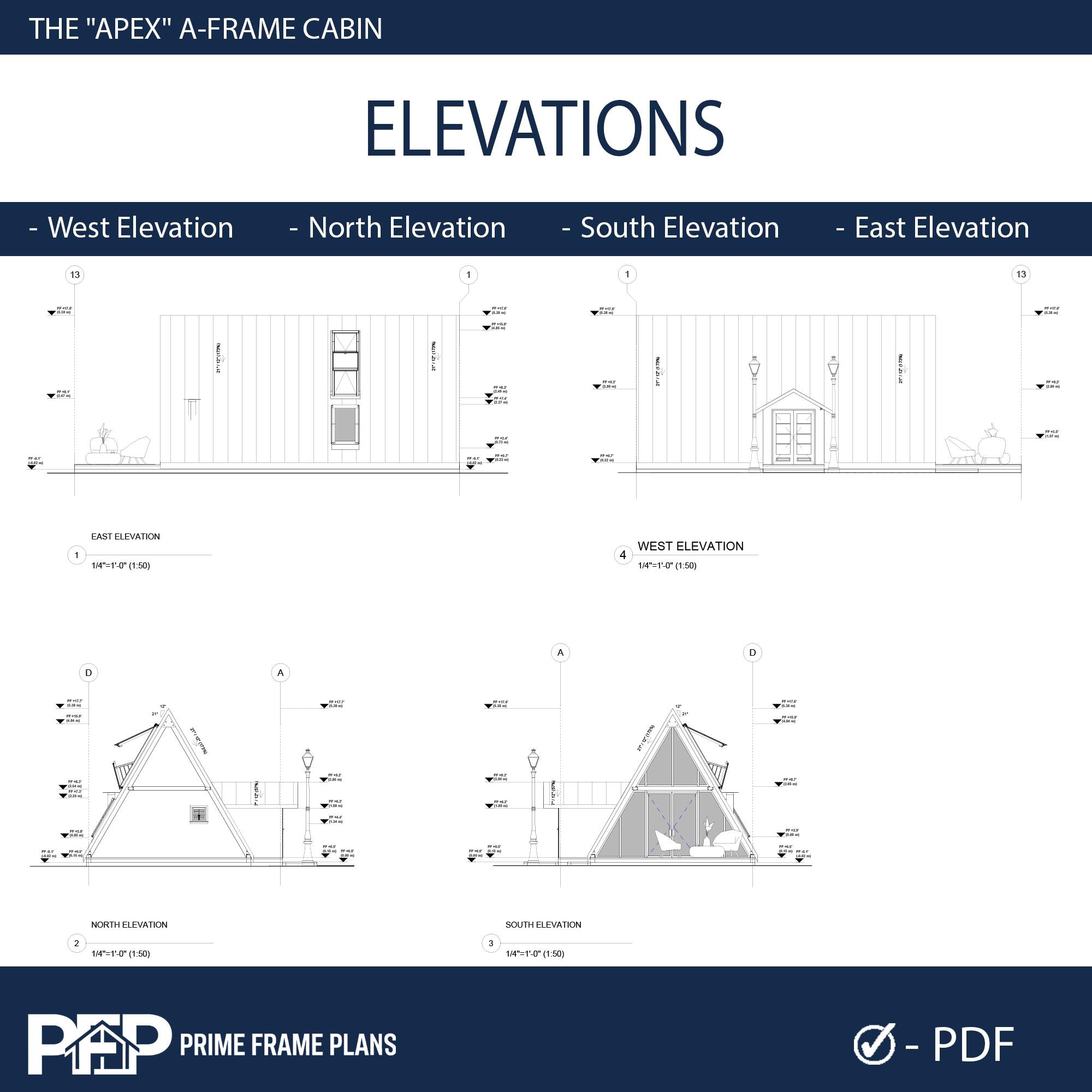

• A1.6 - Exterior Elevations: North, South, East, and West views with material finishes.

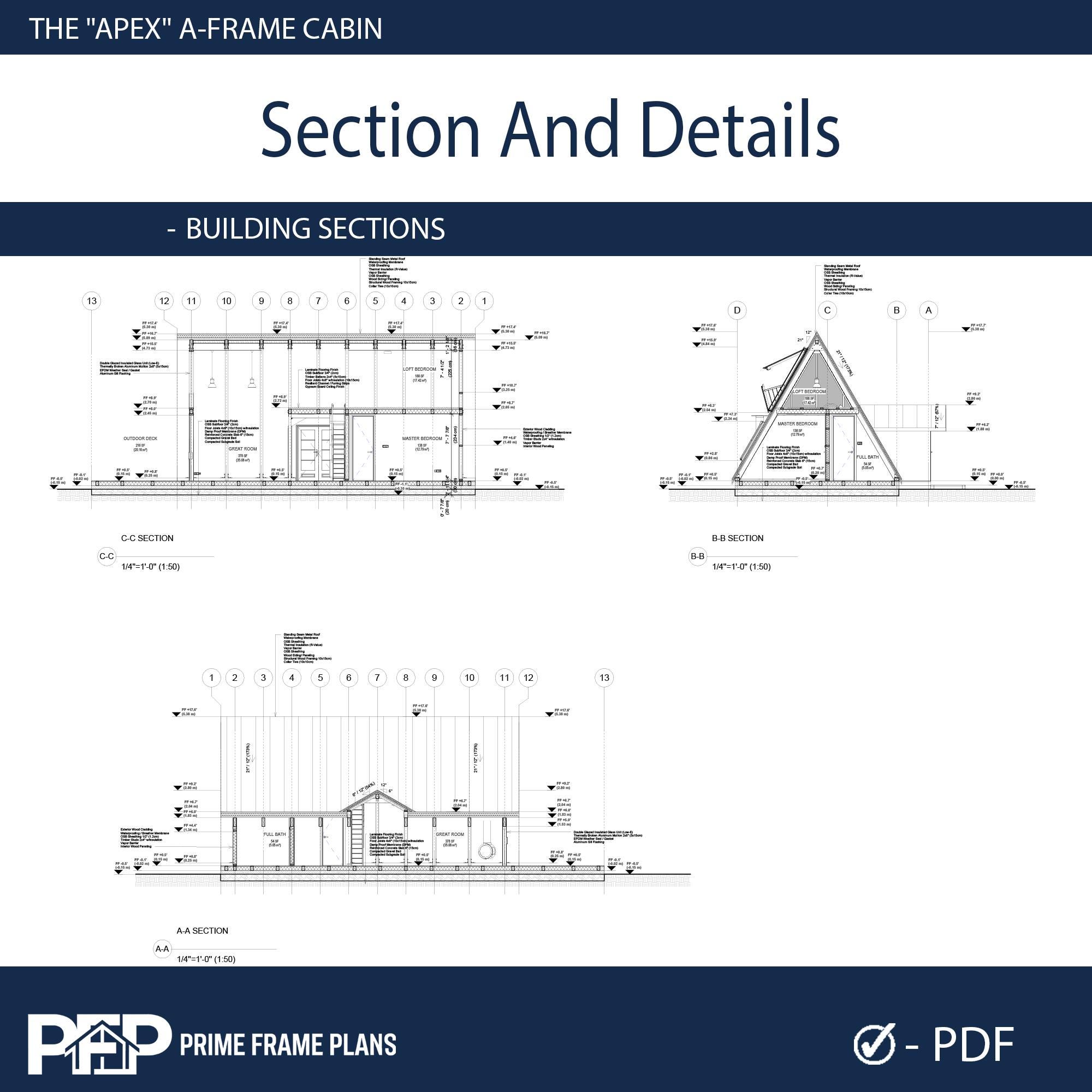

• A1.7 - Building Sections: Transverse sections (A-A, B-B, C-C) with vertical heights.

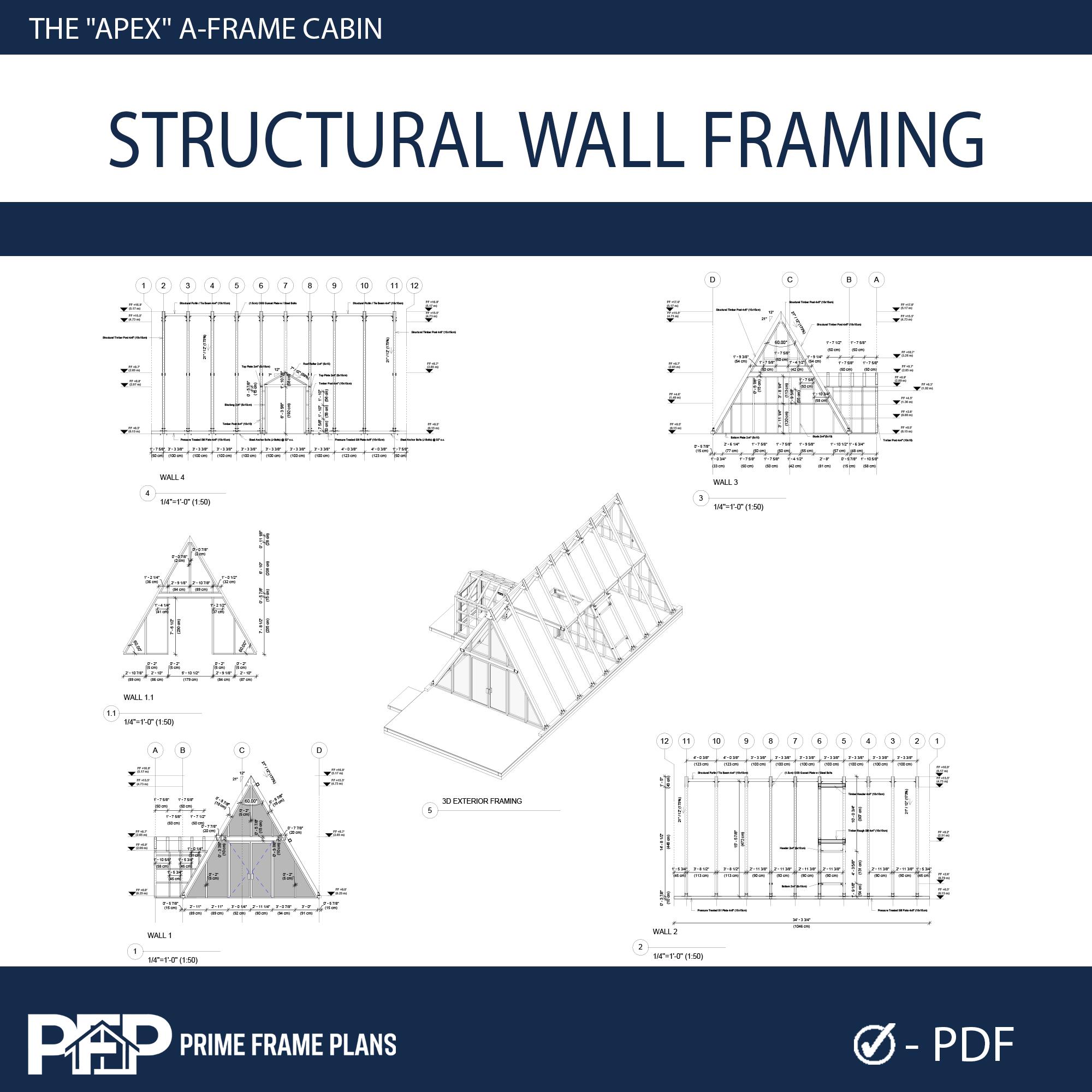

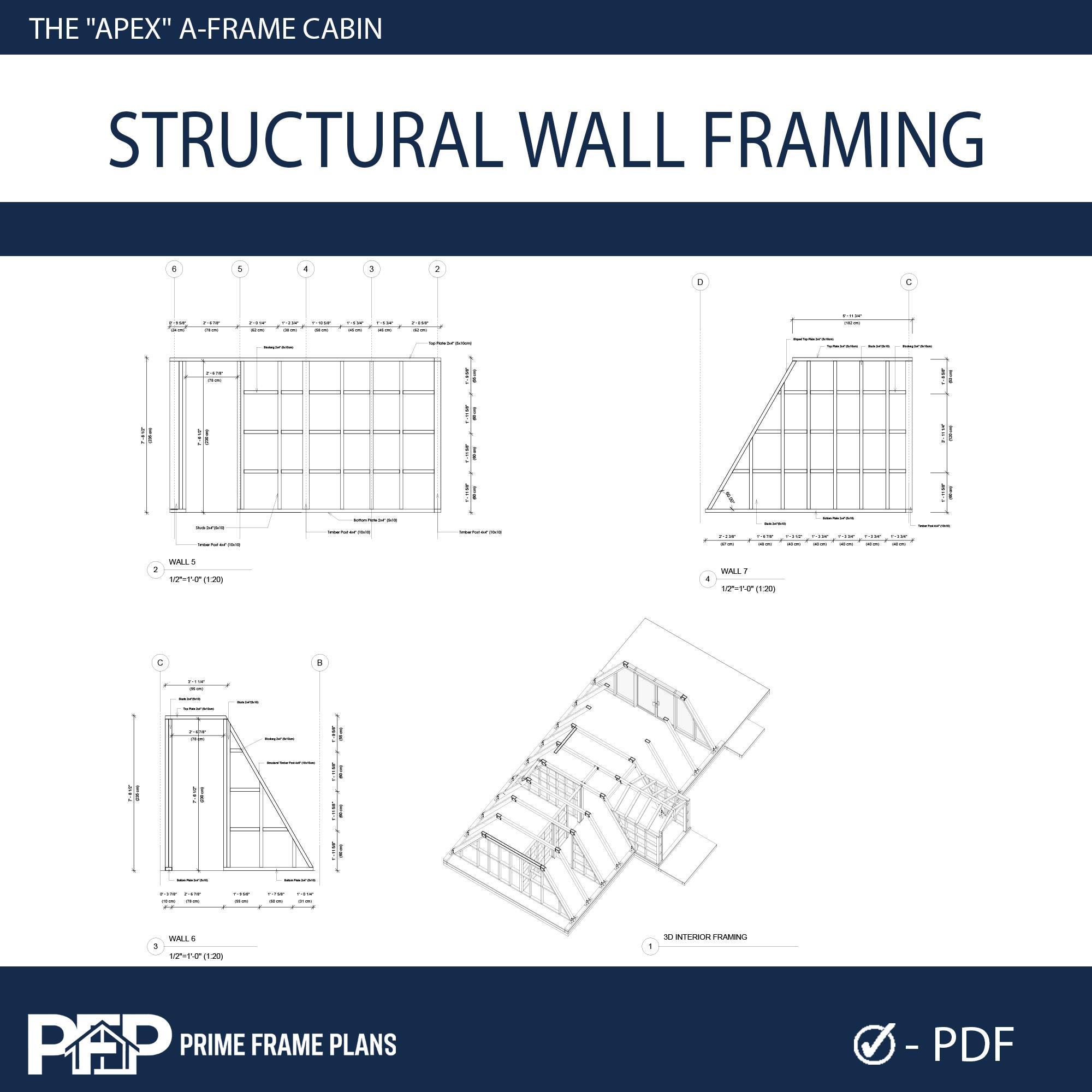

• A1.8 - Wall Framing (EXT): Exterior wall stud layouts and 3D framing diagrams.
• A1.9 - Partition Framing (INT): Interior wall framing details and 3D interior views.

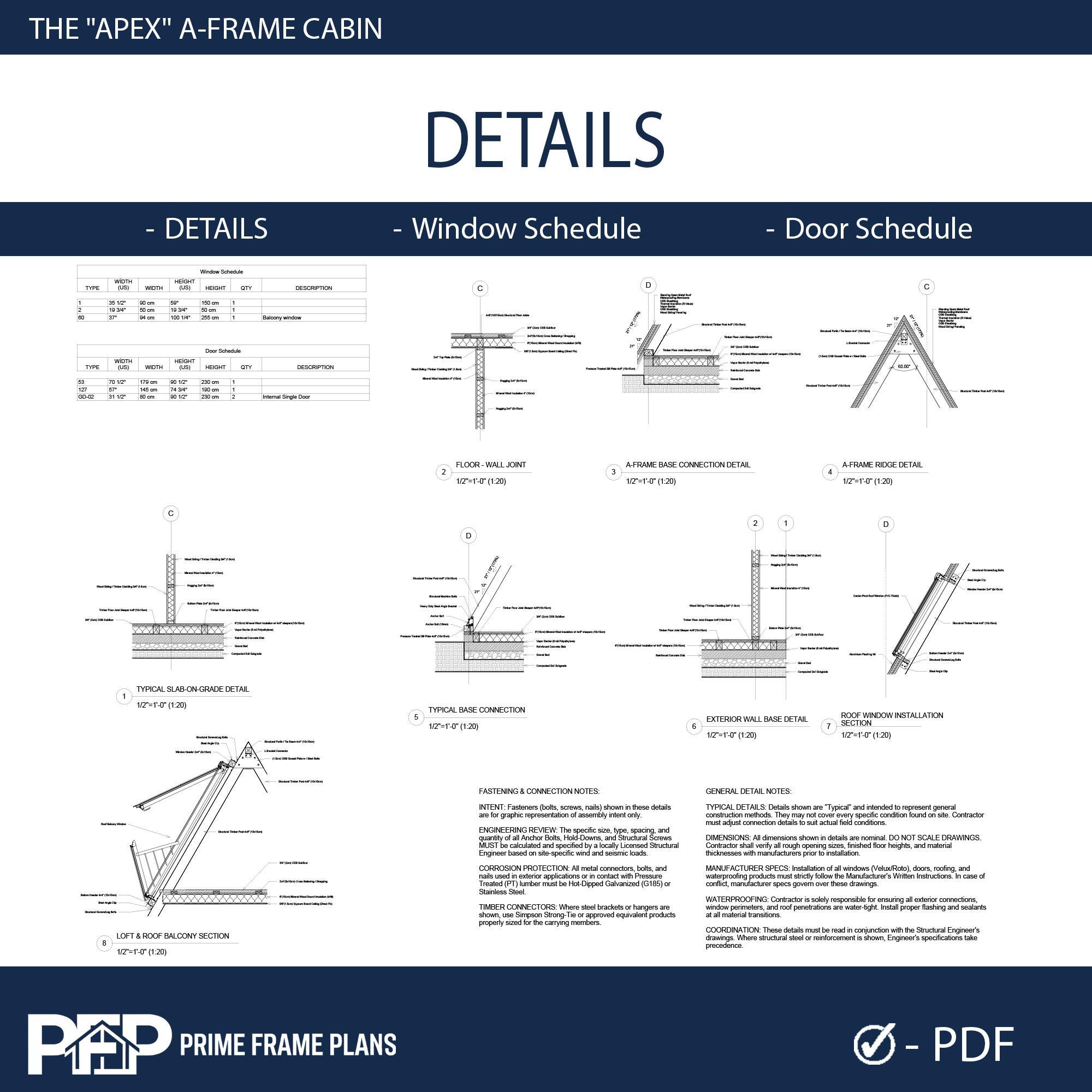

• A1.10 - Details & Schedules: Window/Door schedules and critical base/roof connections.

*** PLEASE READ BEFORE PURCHASING ***
• Format: Digital Download (PDF ONLY). No physical product will be shipped.
• NO CAD / NO MATERIAL LIST: This specific listing does not include editable DWG files or material estimates. (Please select the PRO Full Set variation if your builder requires these).
• Engineering: This plan set does NOT include an architectural or engineering stamp.
• License: Single-Use License to build one (1) structure. Resale, distribution, or reproduction is strictly prohibited.
• Refunds: Due to the nature of digital products, no refunds are accepted.

PRIME FRAME PLANS - Modern Living, Smart Design.
