Modern A-Frame Cabin Plans | 22x40 Loft Design (PDF)

⚠️ PLEASE NOTE: THIS IS THE "PDF CONCEPT SET" ONLY ⚠️ This package is designed for inspiration, preliminary planning, and visualizing your dream cabin. Looking for the PRO FULL SET with editable CAD (.DWG) files and a Material List for your contractor? You can find the complete PRO package in our Etsy shop!
Build your dream getaway with "THE ALPINE PEAK CABIN" architectural plans! This listing is for a digital PDF ONLY plan set for a stunning Modern A-Frame Cabin measuring 22' x 40'. Whether you are looking to build a profitable Airbnb rental, a vacation home, or an off-grid retreat, this design combines iconic style with cost-effective engineering.
***PROJECT SPECIFICATIONS: • Name: The Alpine Peak Cabin • Dimensions: 22' x 40' (approx. 6.9m x 12.2m) • Layout: 1 Bedroom + Spacious Sleeping Loft • Foundation: Raised Pier Foundation (Ideal for uneven terrain & flood protection) • Ceiling: Vaulted / Cathedral Ceiling with Panoramic Glass Facade • Units: Plans include both Imperial (Feet/Inches) and Metric (Meters/CM) dimensions.

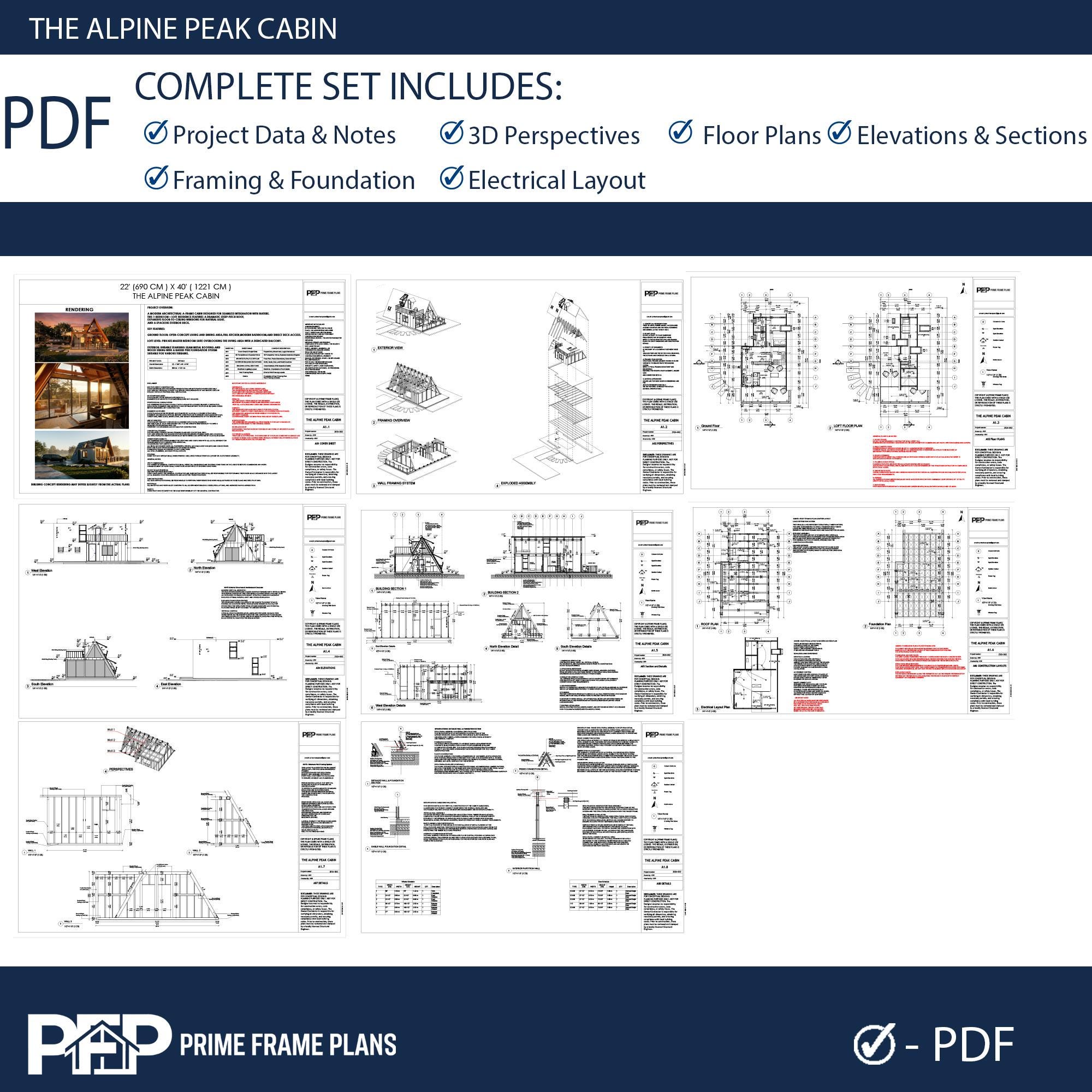

*** WHAT IS INCLUDED IN THIS PDF SET? You will receive high-resolution digital PDF files immediately after purchase:

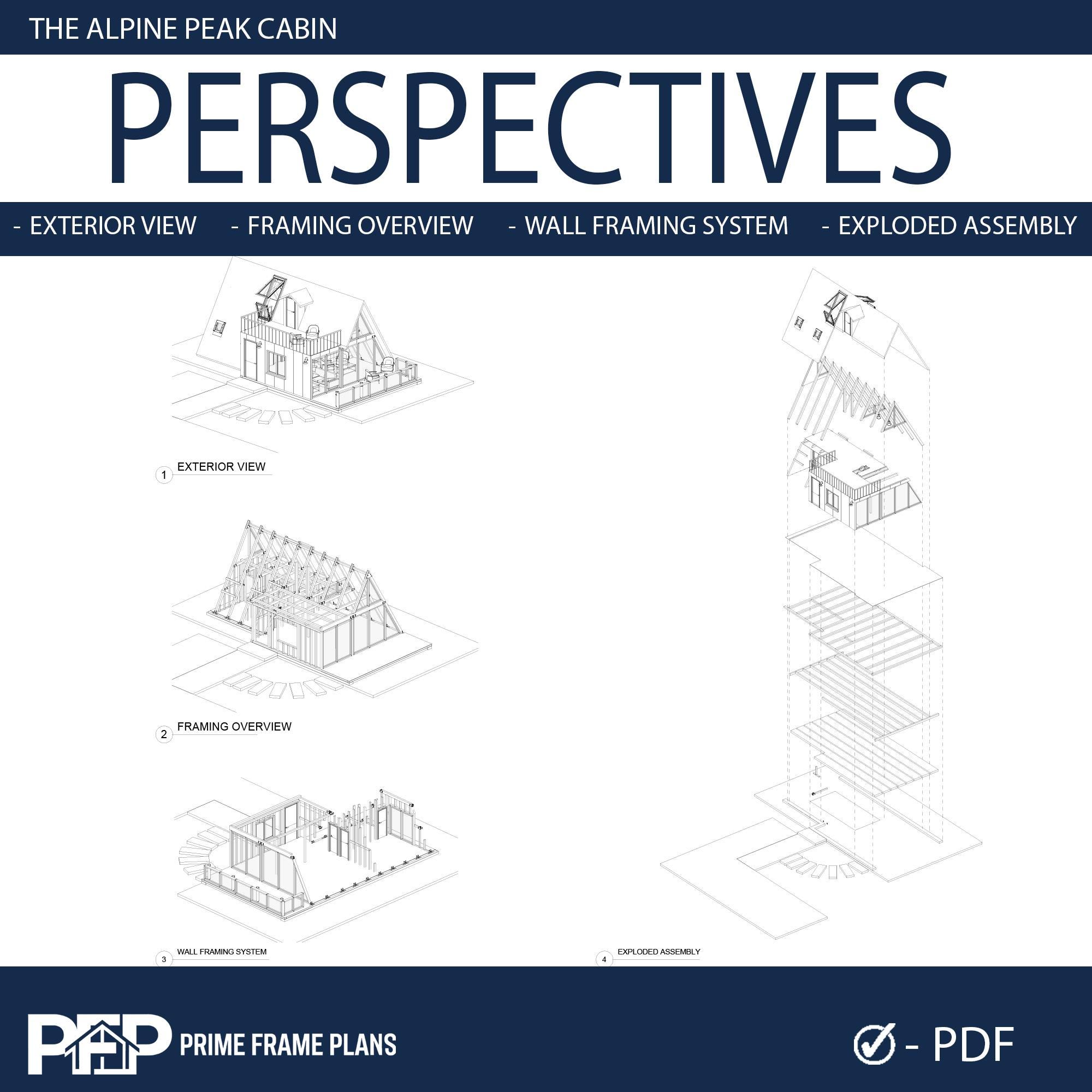

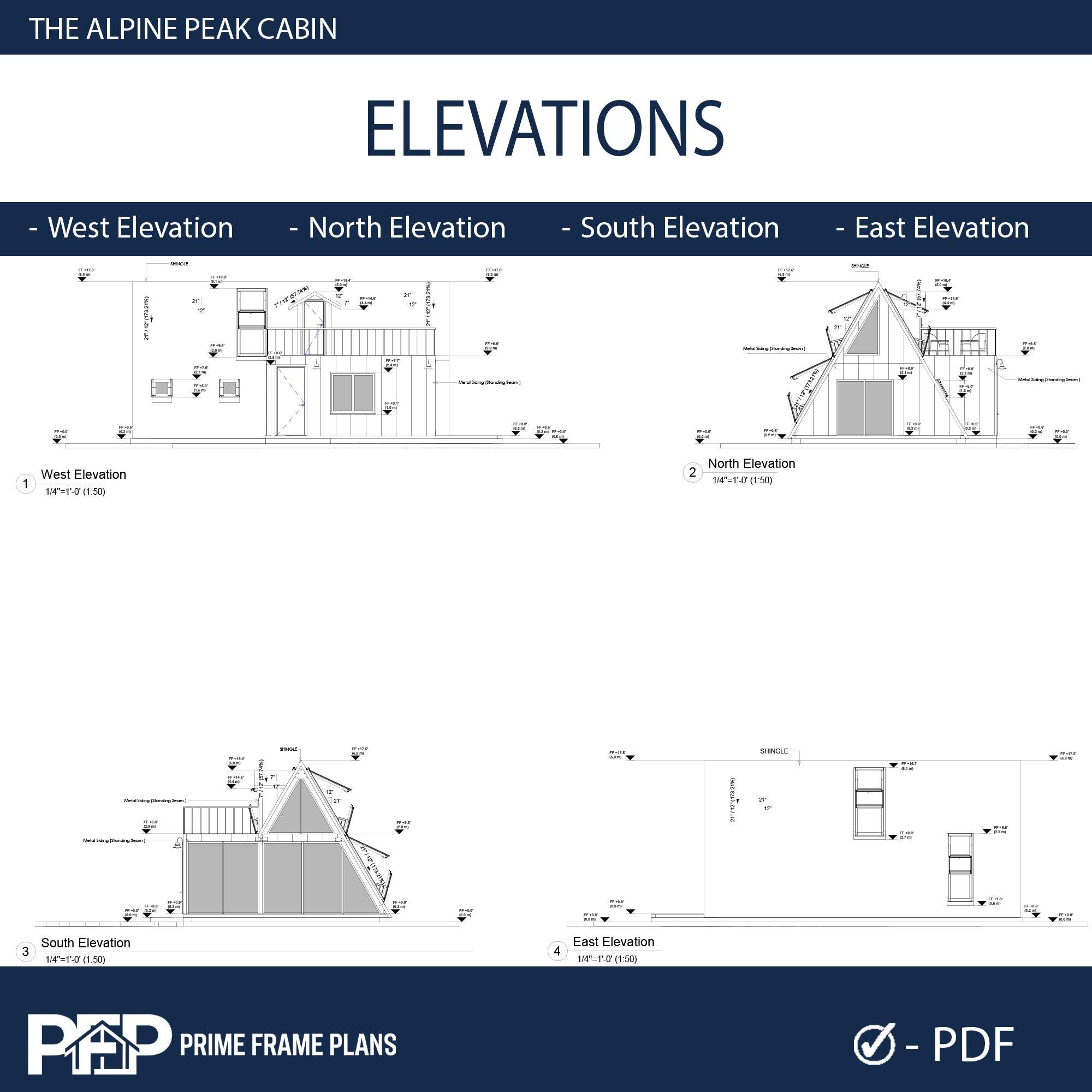

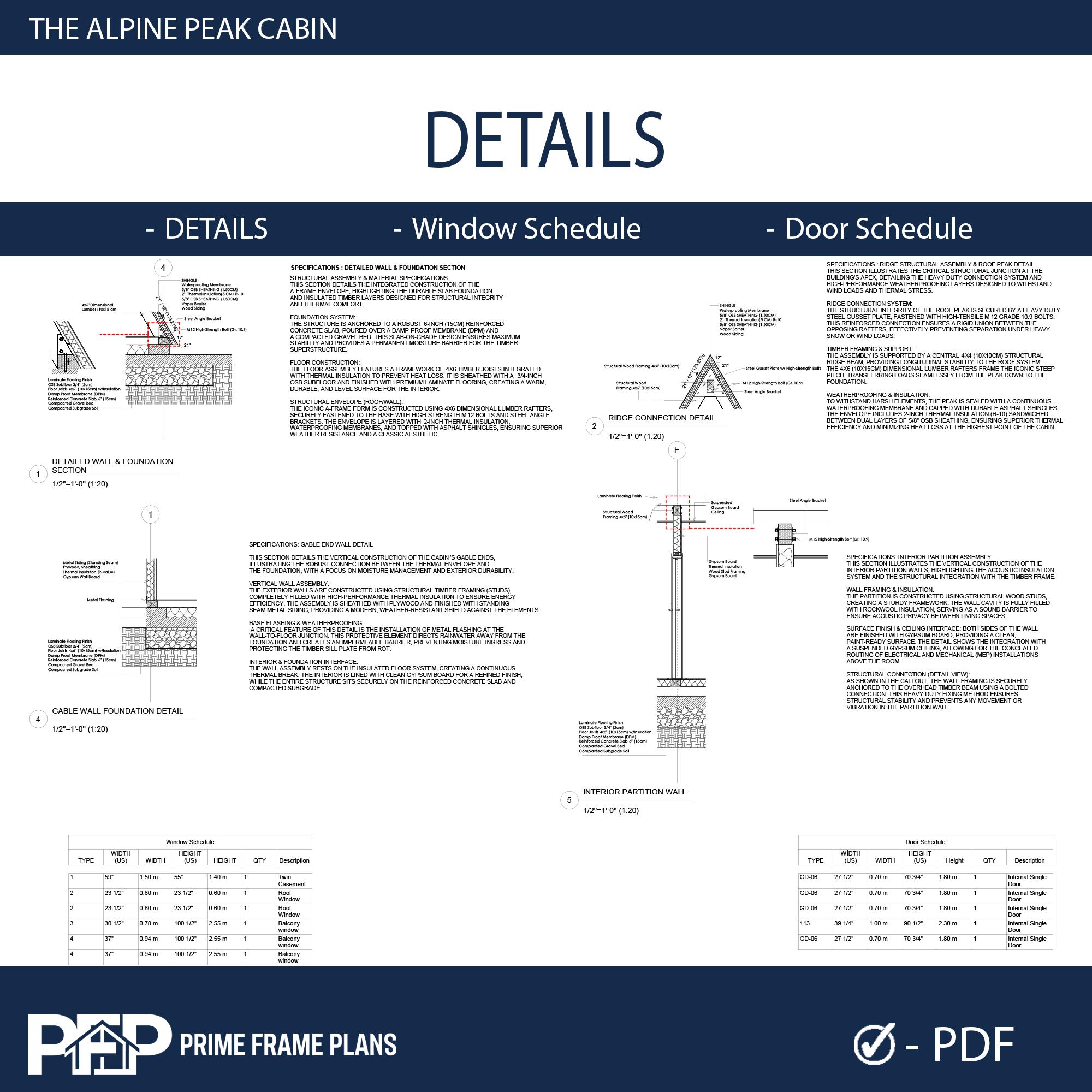

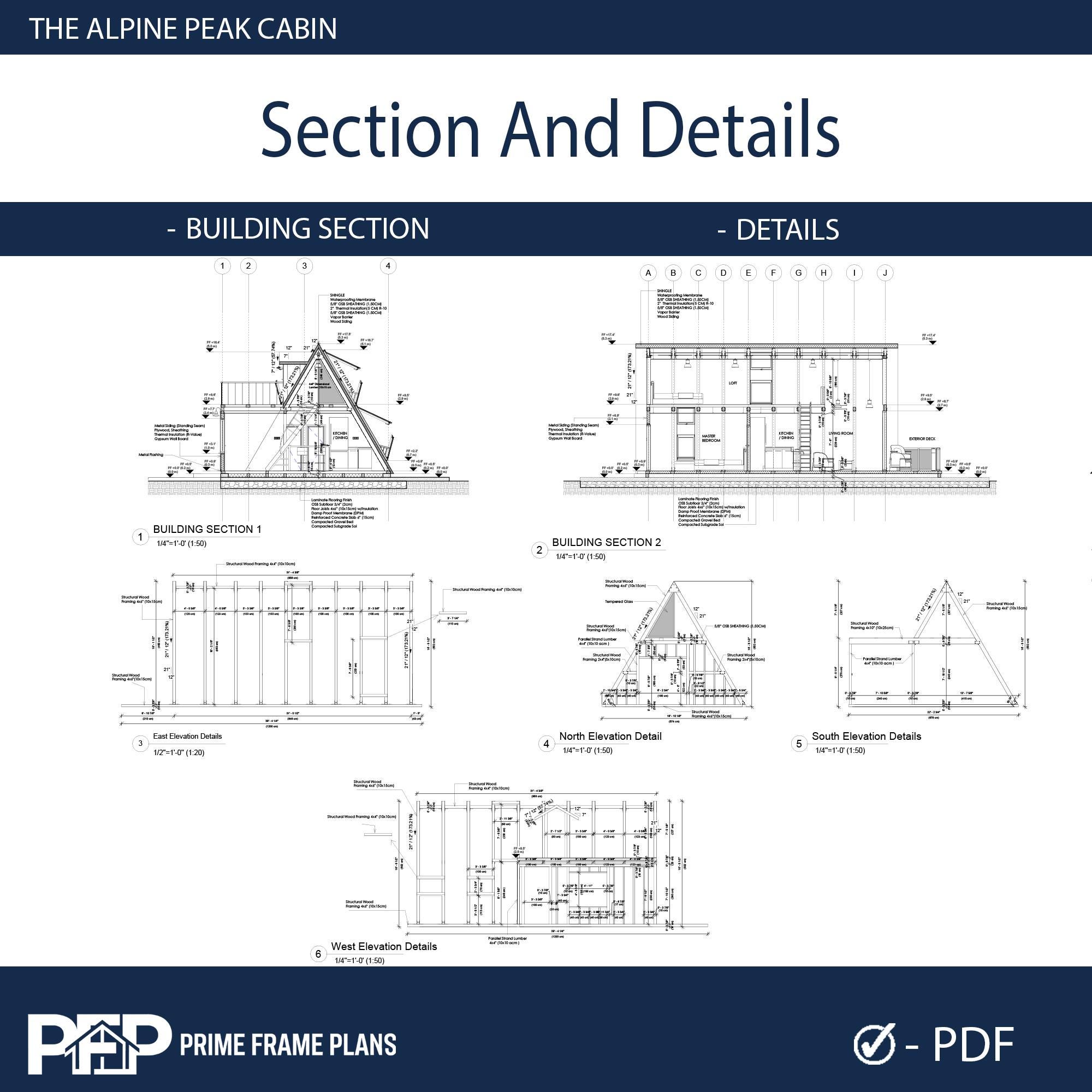

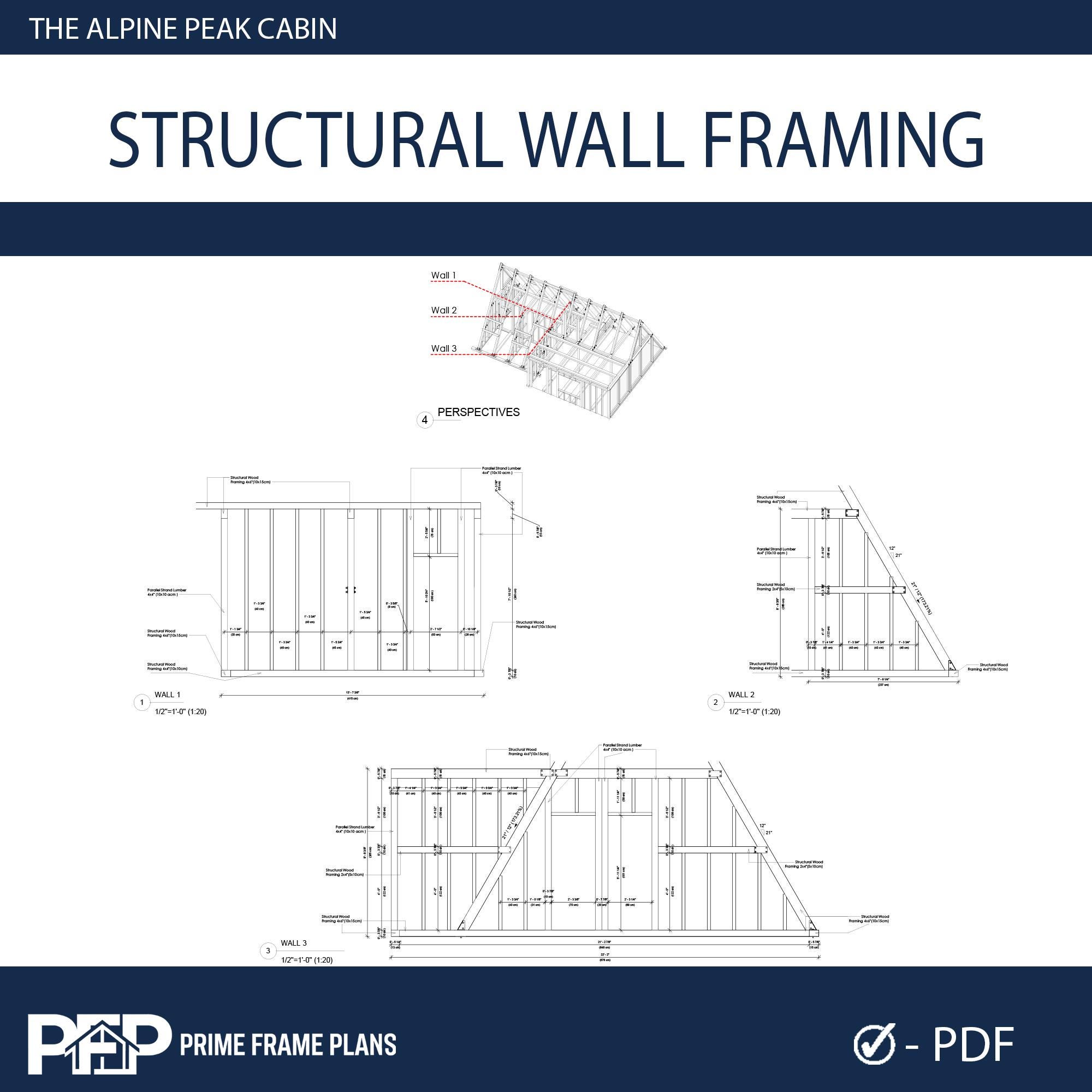

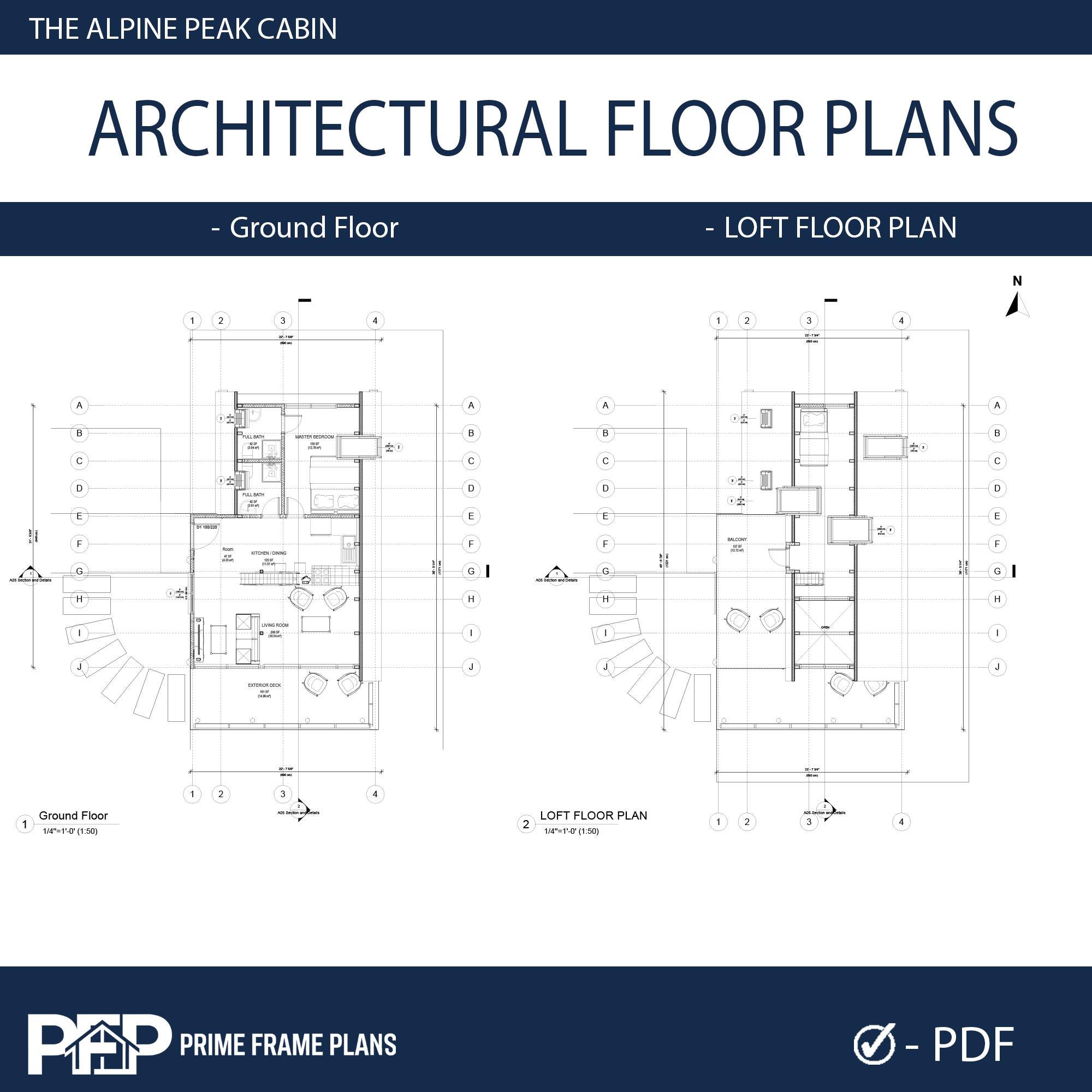

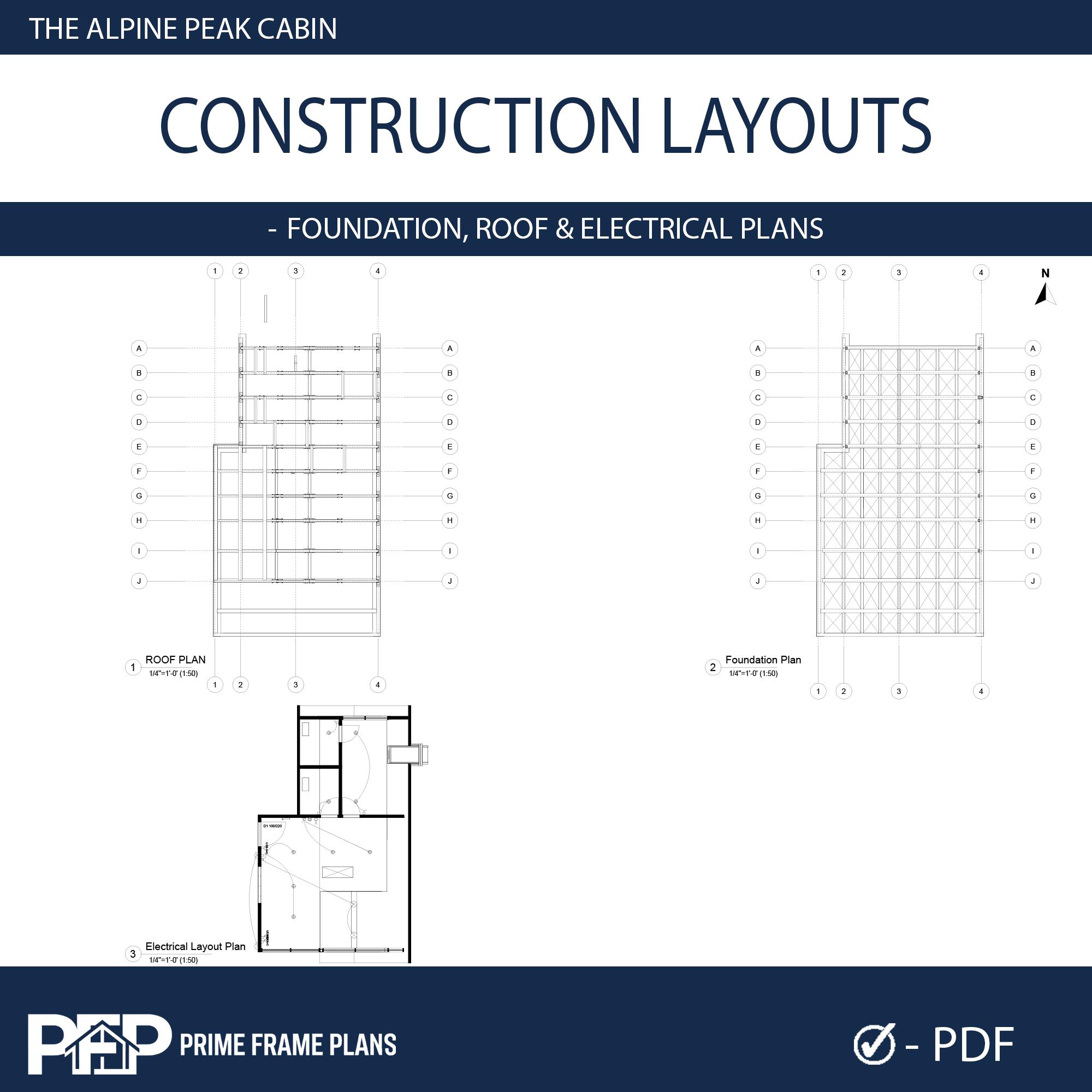

ARCHITECTURAL PDF SET (Print-Ready on 24"x36" / A1): • A01: Cover Sheet, Project Data & 3D Renderings • A02: 3D Perspectives & Exploded Structural Views • A03: Architectural Floor Plans (Ground & Loft) with Dimensions • A04: Exterior Elevations (North, South, East, West) • A05: Building Sections & Wall Assembly Details • A06: Construction Layouts & Foundation Plan • A07: Wall Framing Plans (Stud Layouts) • A08: Detailed Sections (Foundation to Roof connections) • Bonus: Electrical & Lighting Layout Plan included!
*** IMPORTANT NOTES: • Format: Digital Download (PDF ONLY). No physical product will be shipped. • NO CAD / NO MATERIAL LIST: This specific listing does not include DWG files or material estimates. (Please visit our shop profile for the PRO Full Set if your builder requires these). • Engineering: This plan set is for conceptual design purposes only. It does NOT include an architectural or engineering stamp. You are responsible for obtaining all necessary local permits and ensuring compliance with all local building codes. • License: Purchase grants a Single-Use License to build one structure. Resale, distribution, or reproduction of these plans is strictly prohibited.
*** Questions? Feel free to message our architectural team!
