PRIME FRAME PLANS presents: The Onyx Ridge Barndo. This is not just a home; it's a statement. The Onyx Ridge is a high-end modern barndominium defined by its striking exterior, grand truss system, and a magnificent floor-to-ceiling glass façade. Whether you are searching for stylish small house plans, versatile ADU plans, or breathtaking modern cabin plans, this comprehensive architectural plan delivers.
Designed for maximum functionality and luxury, this small home plan packs incredible features into a smart footprint, including a Mudroom, an open-to-below Loft Lounge, and a spectacular Great Room in addition to the 3 bedrooms. This digital download provides everything you need to start planning your dream build.
*** DUAL DIMENSIONS INCLUDED: This plan set is designed for global use. All cabin floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements on the same page for easy reference.
IMPORTANT: These modern house plans are for conceptual design purposes. They MUST be reviewed and stamped by a locally licensed structural engineer and your building official before construction to ensure compliance with local codes and site conditions.
******* DESIGN SUMMARY *******
Overall Dimensions: 40' - 0" x 30' - 0" (1219 cm x 1144 cm)
Total Area: 1,098 Sq. Ft. (101.97 m²)
Bedrooms: 3 Bedrooms
Bathrooms: 2 Baths
Key Rooms: Great Room, Kitchen, Mudroom, and Loft Lounge
Foundation: Pier and Footing Foundation (with Wood Floor System)
Roof Style: Modern Gable Roof with Standing Seam Metal or Asphalt Shingles

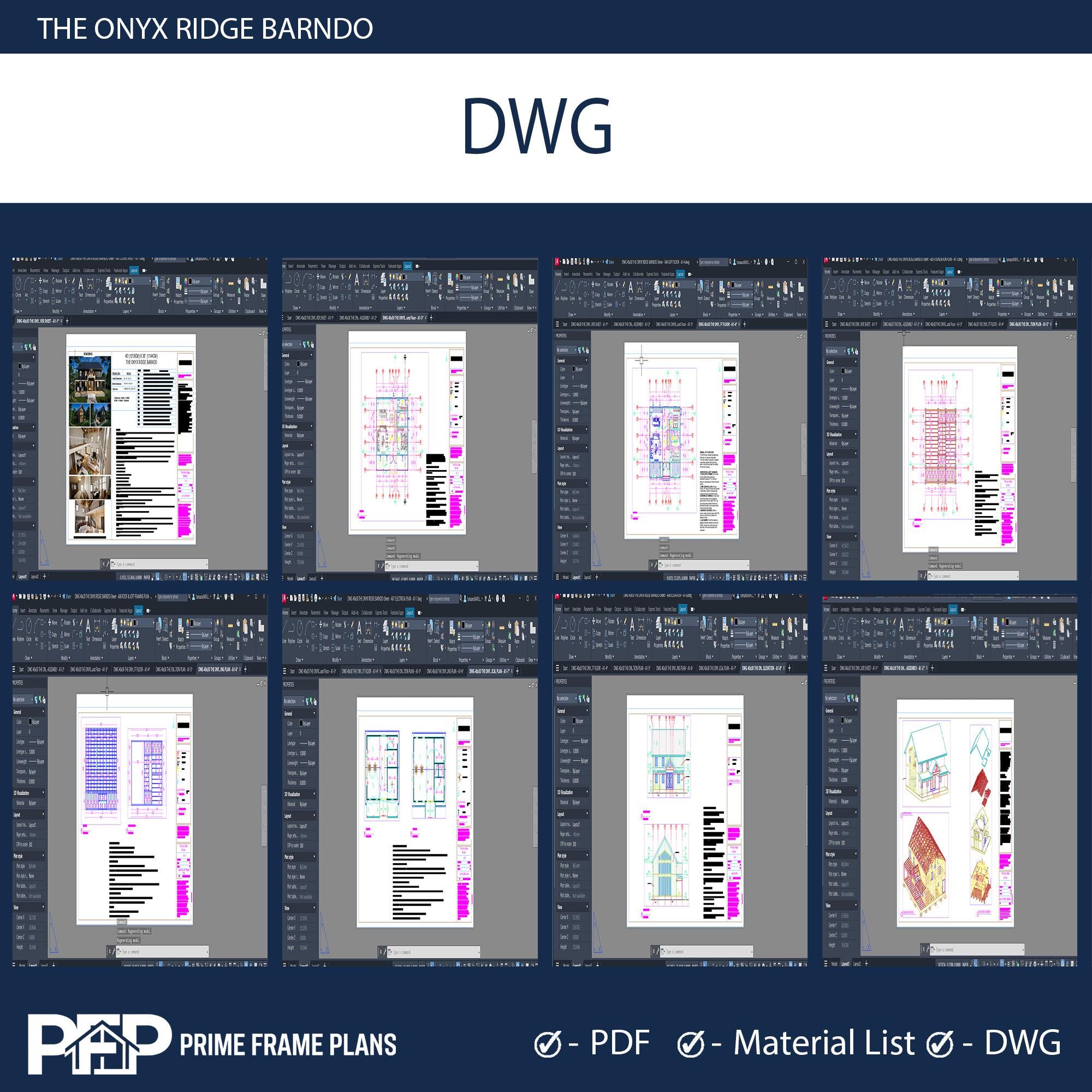

******* WHAT IS INCLUDED IN THIS PACKAGE? ******* This digital download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1), the editable source file (DWG), and a comprehensive material list.

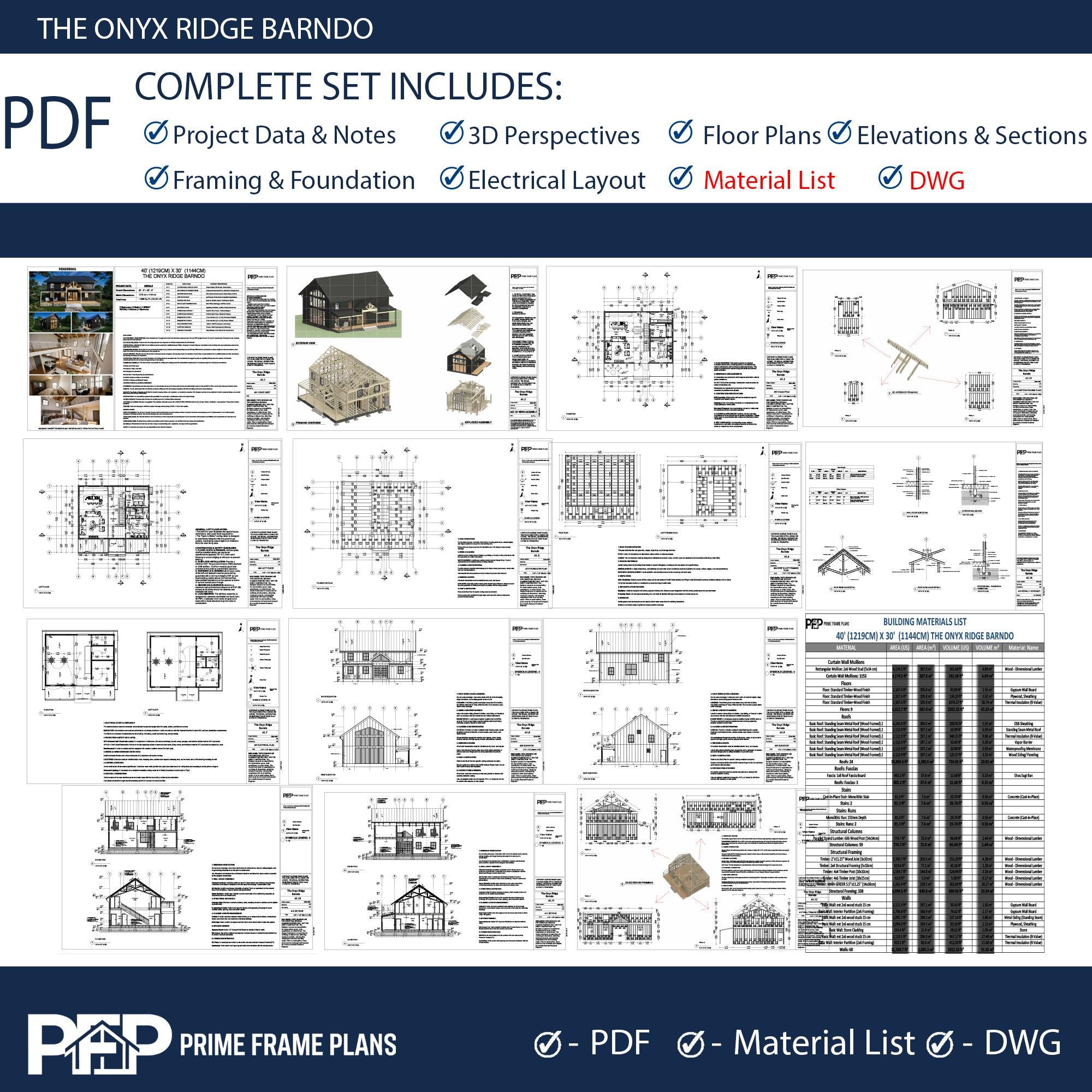

COMPLETE PDF PLAN SET (14 SHEETS):
A1.1 - COVER SHEET & PROJECT DATA: Project Data, 3D Render, Sheet index

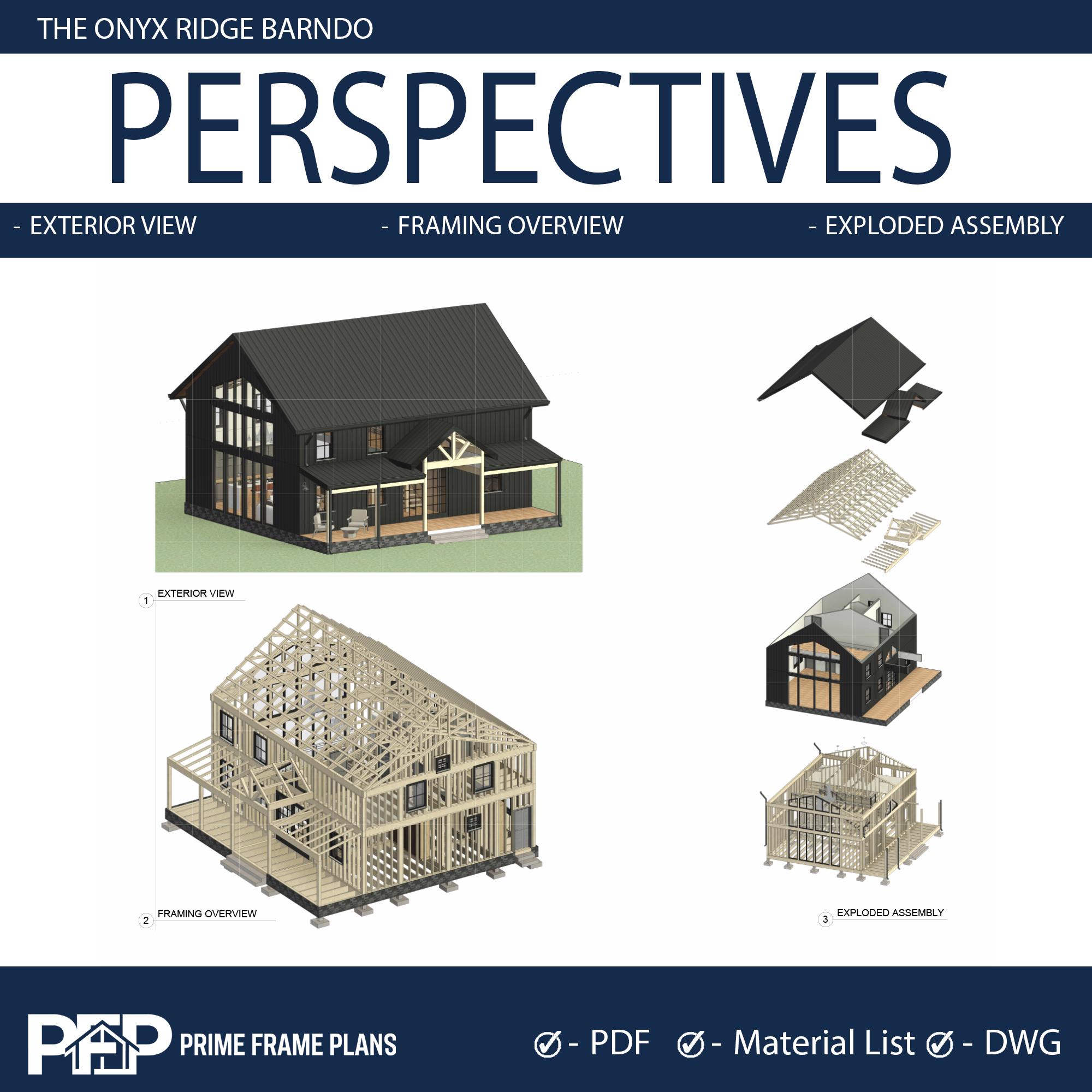

A1.2 - 3D EXTERIOR & FRAMING VIEWS: Exploded Structural View, Isometric Perspectives

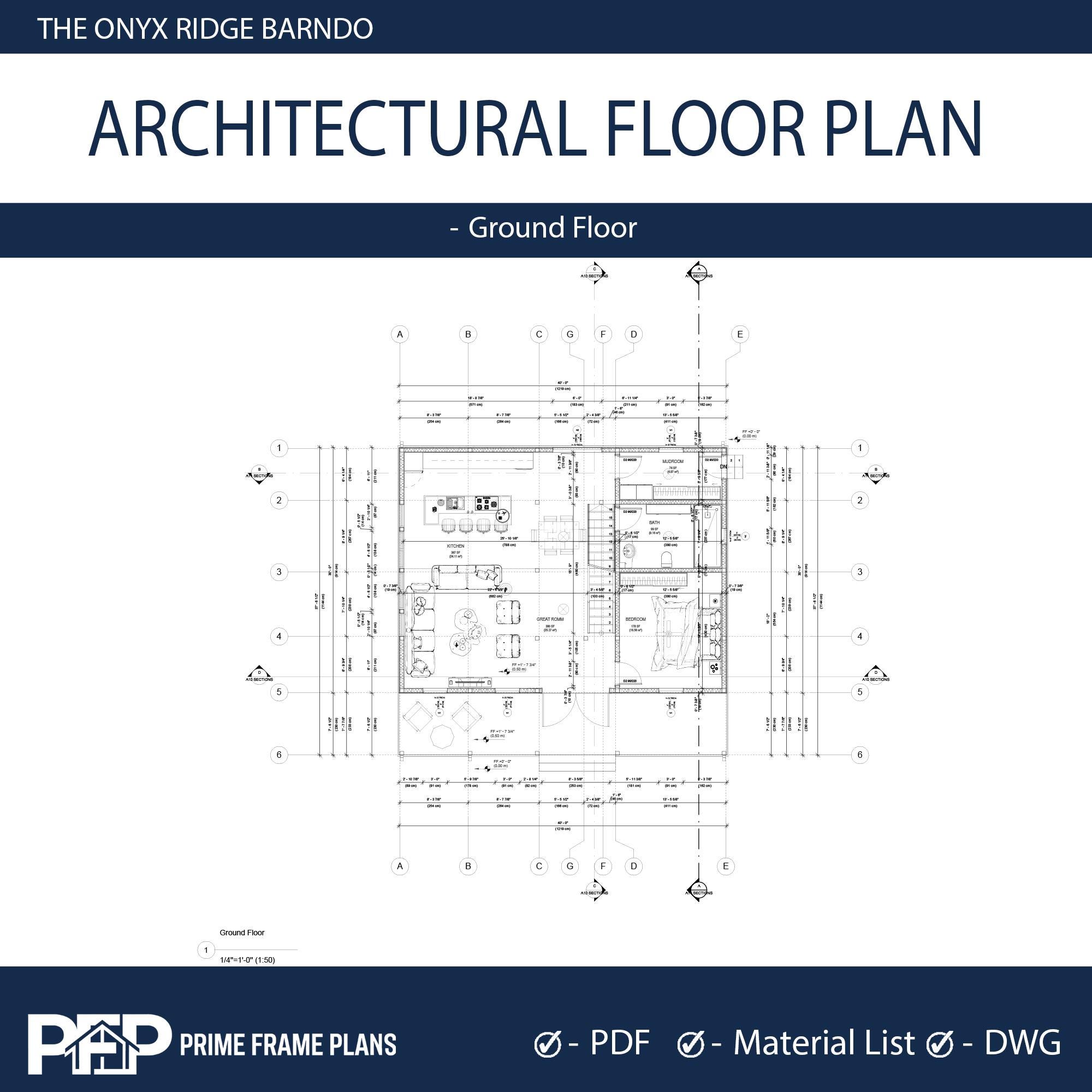

A1.3 - GROUND FLOOR PLAN: Fully Dimensioned Layout, Room Sizes & Notes

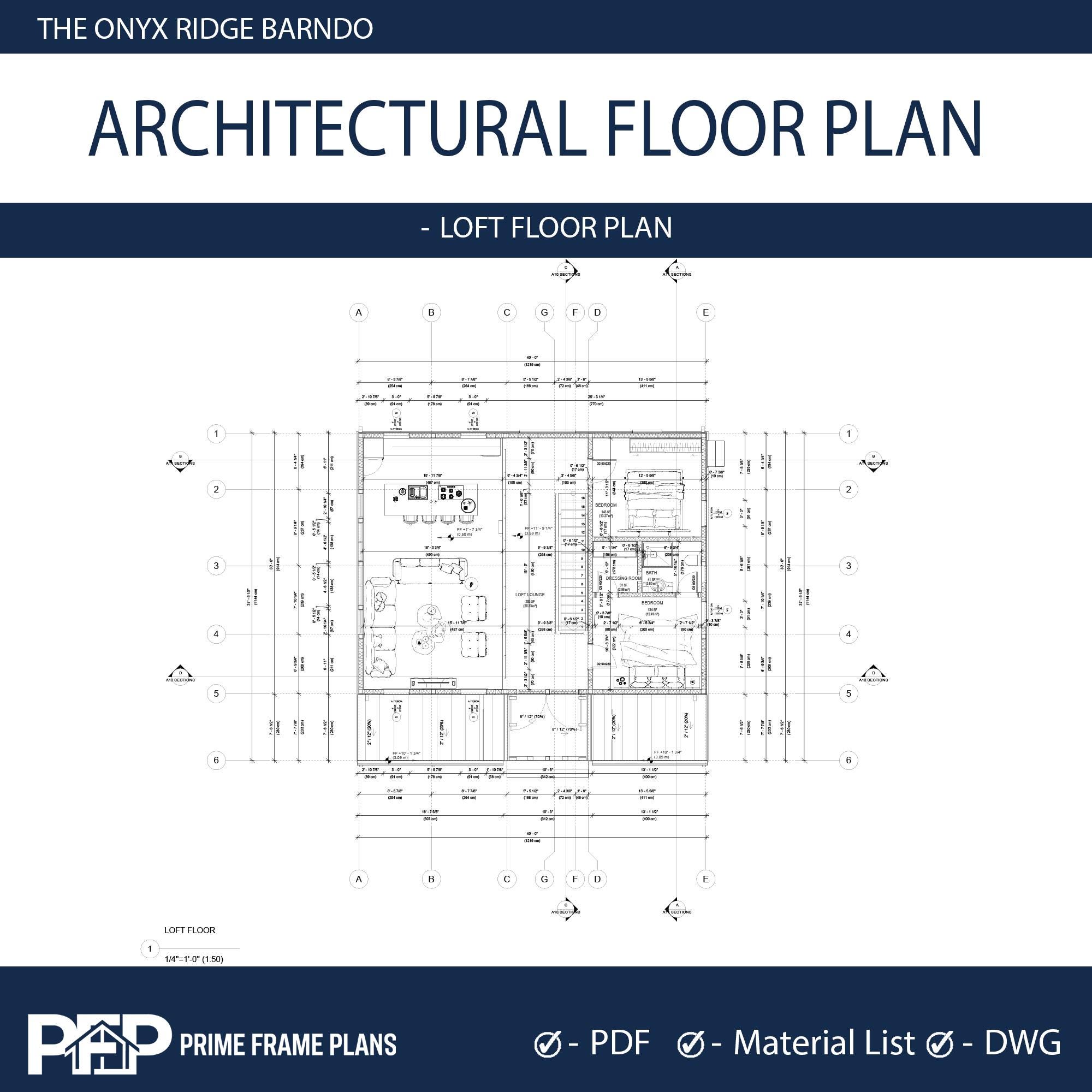

A1.4 - LOFT FLOOR PLAN: Loft Layout, Dimensions, & Spatial Organization

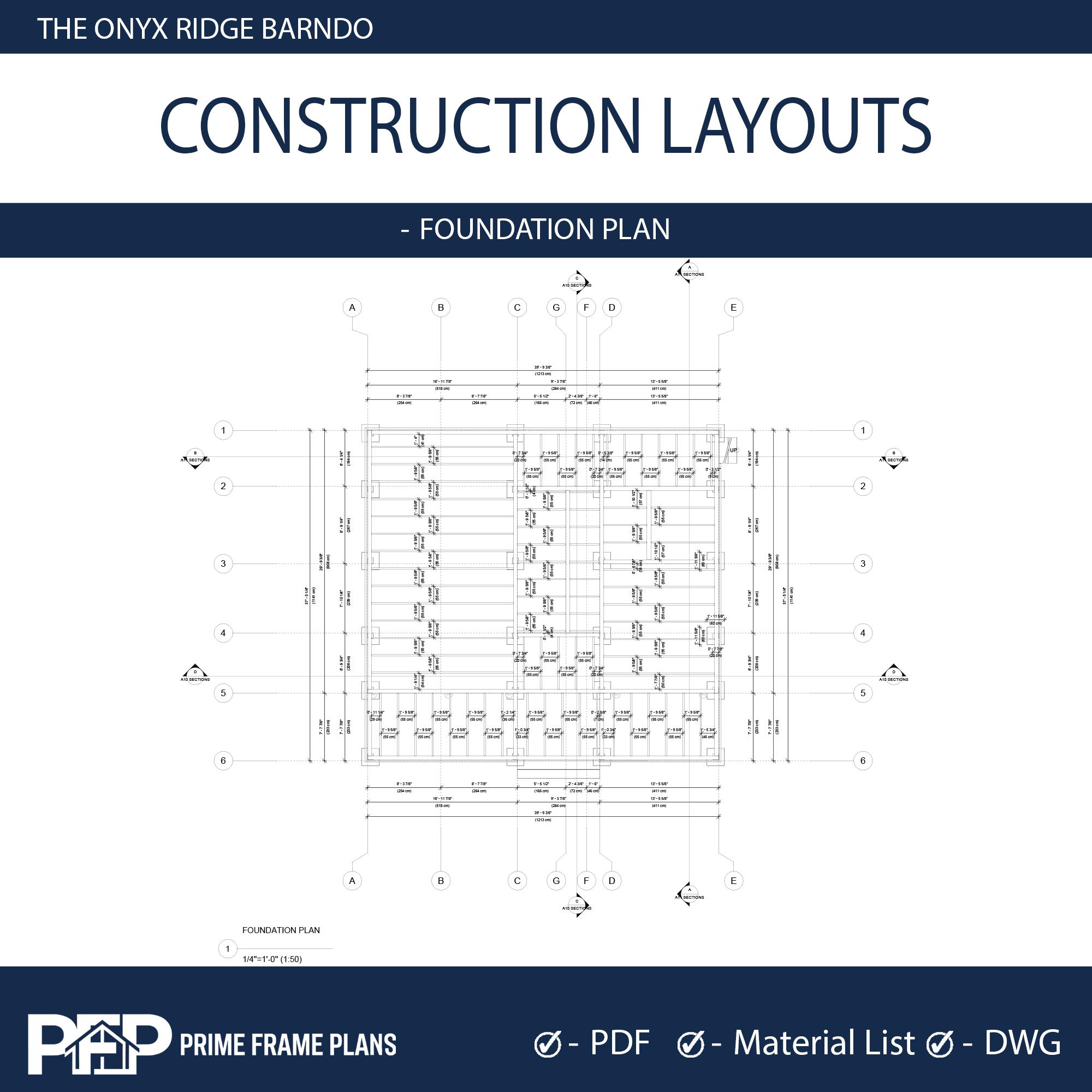

A1.5 - FOUNDATION PLAN: Pier & Footing Layout, Foundation Details

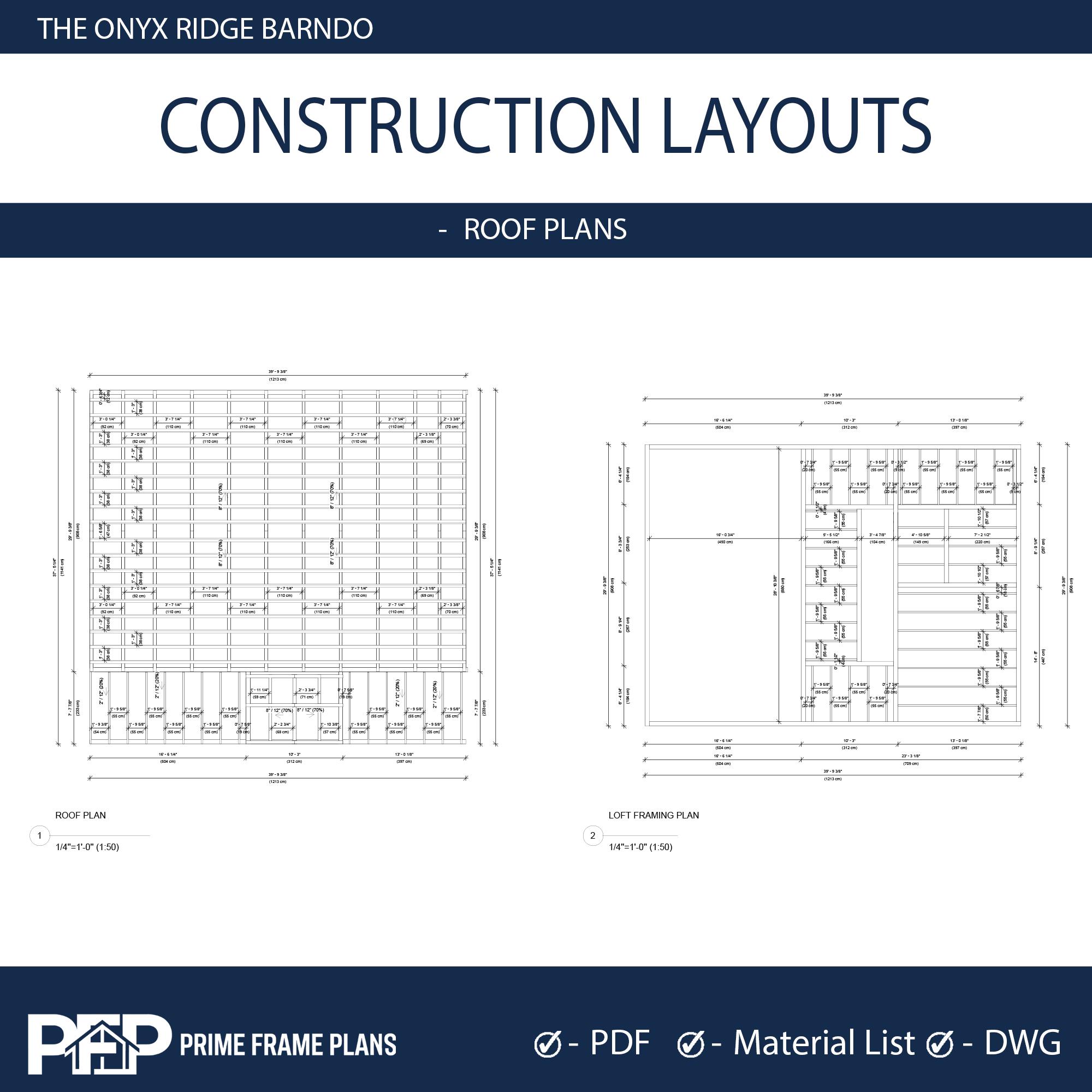

A1.6 - ROOF & LOFT FRAMING PLAN: Roof Pitch, Drainage, Loft Floor Joists

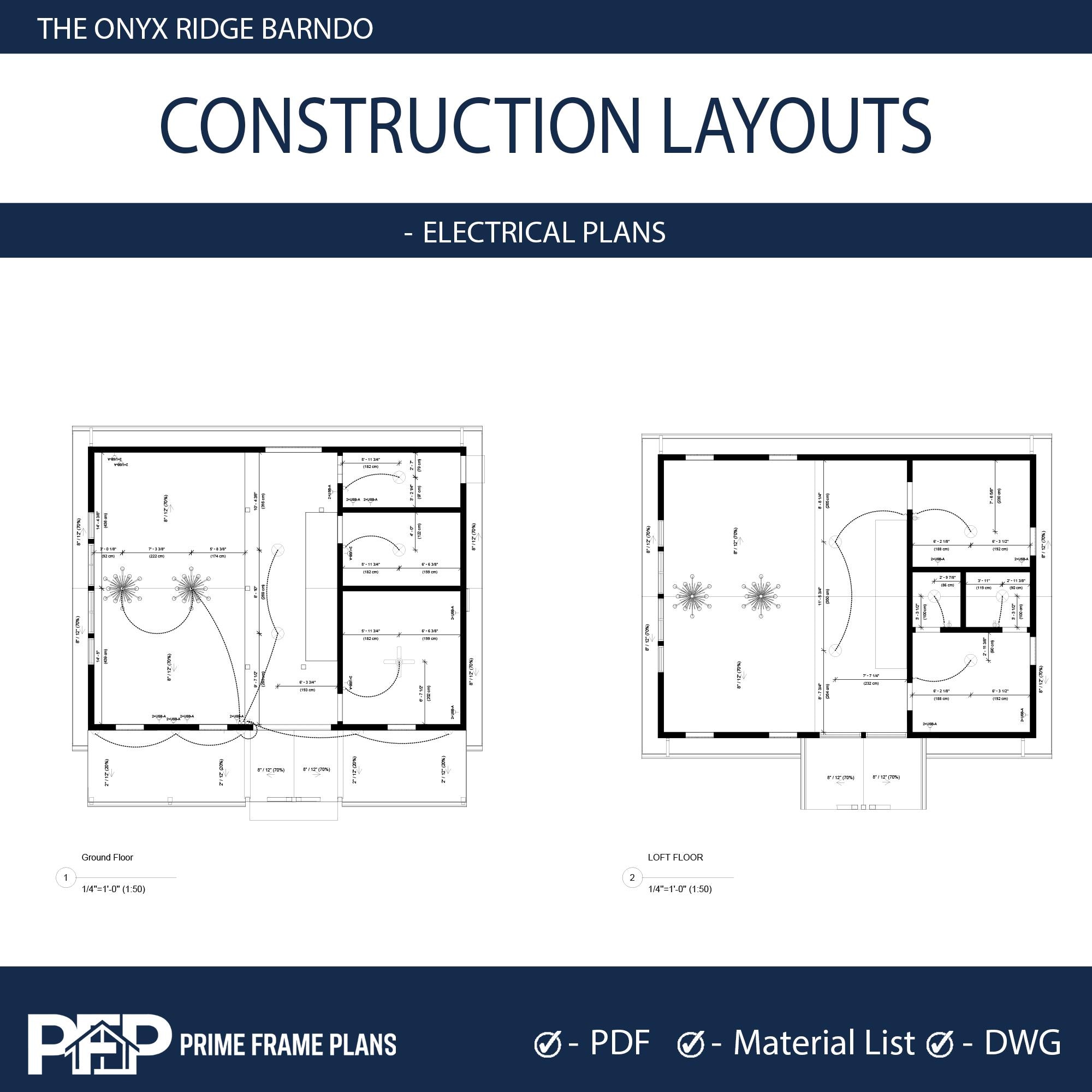

A1.7 - ELECTRICAL PLAN: Lighting, Switches, Outlets

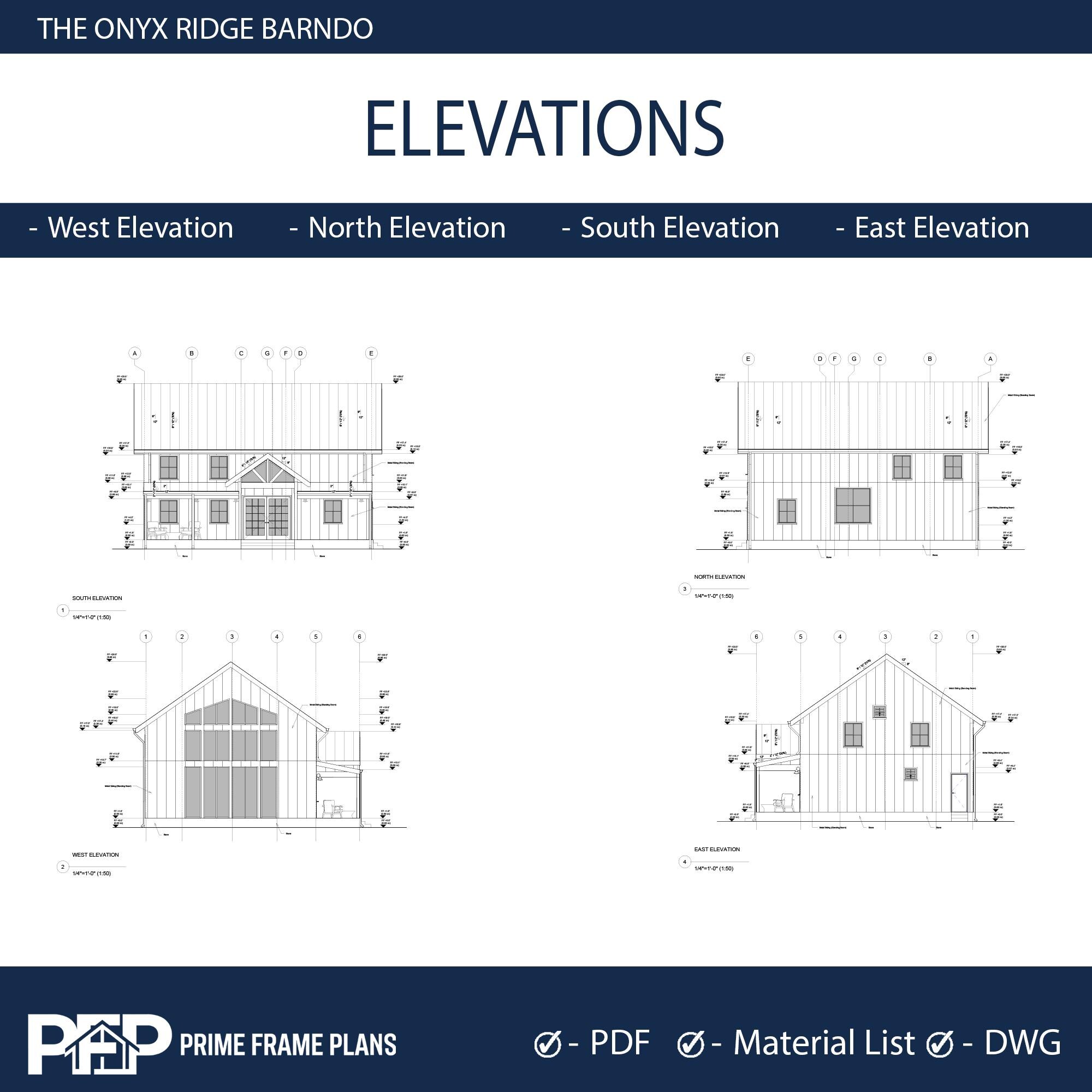

A1.8 - EXTERIOR ELEVATIONS 1: South & West Views, Vertical Heights
A1.9 - EXTERIOR ELEVATIONS 2: North & East Views, Material Callouts

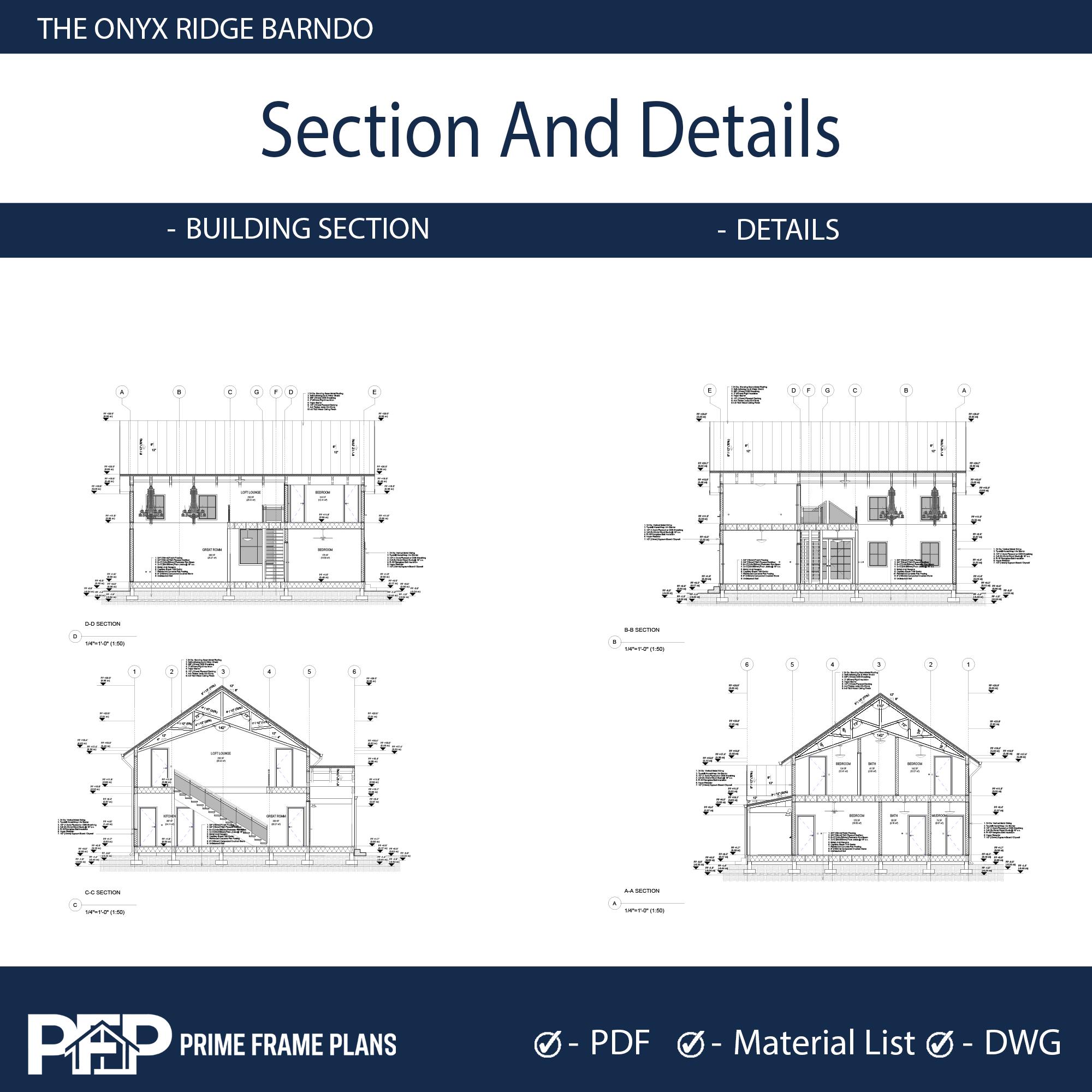

A1.10 - BUILDING SECTIONS 1: Cross Sections (C-C, D-D), Structural Heights
A1.11 - BUILDING SECTIONS 2: Cross Sections (A-A, B-B), Interior Details

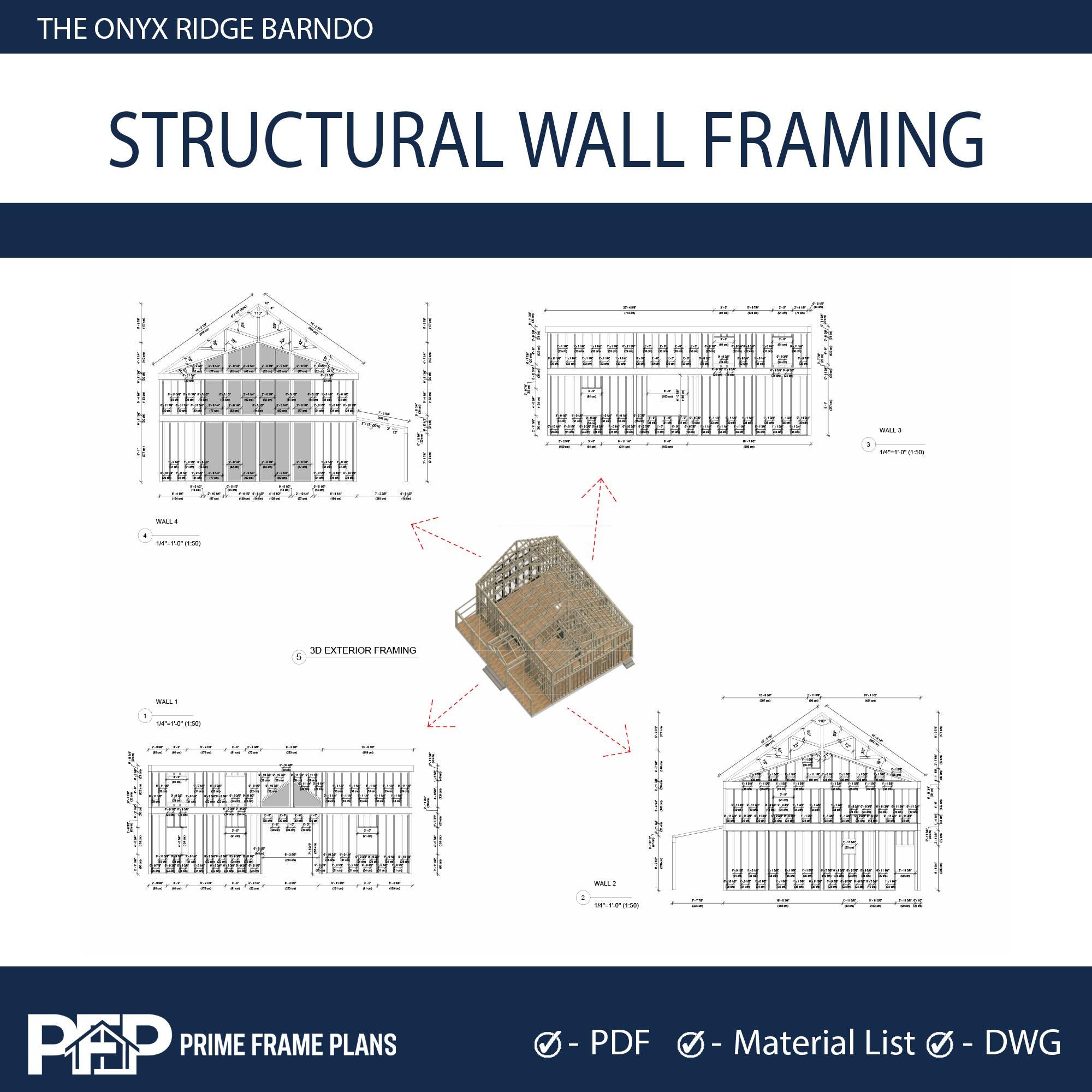

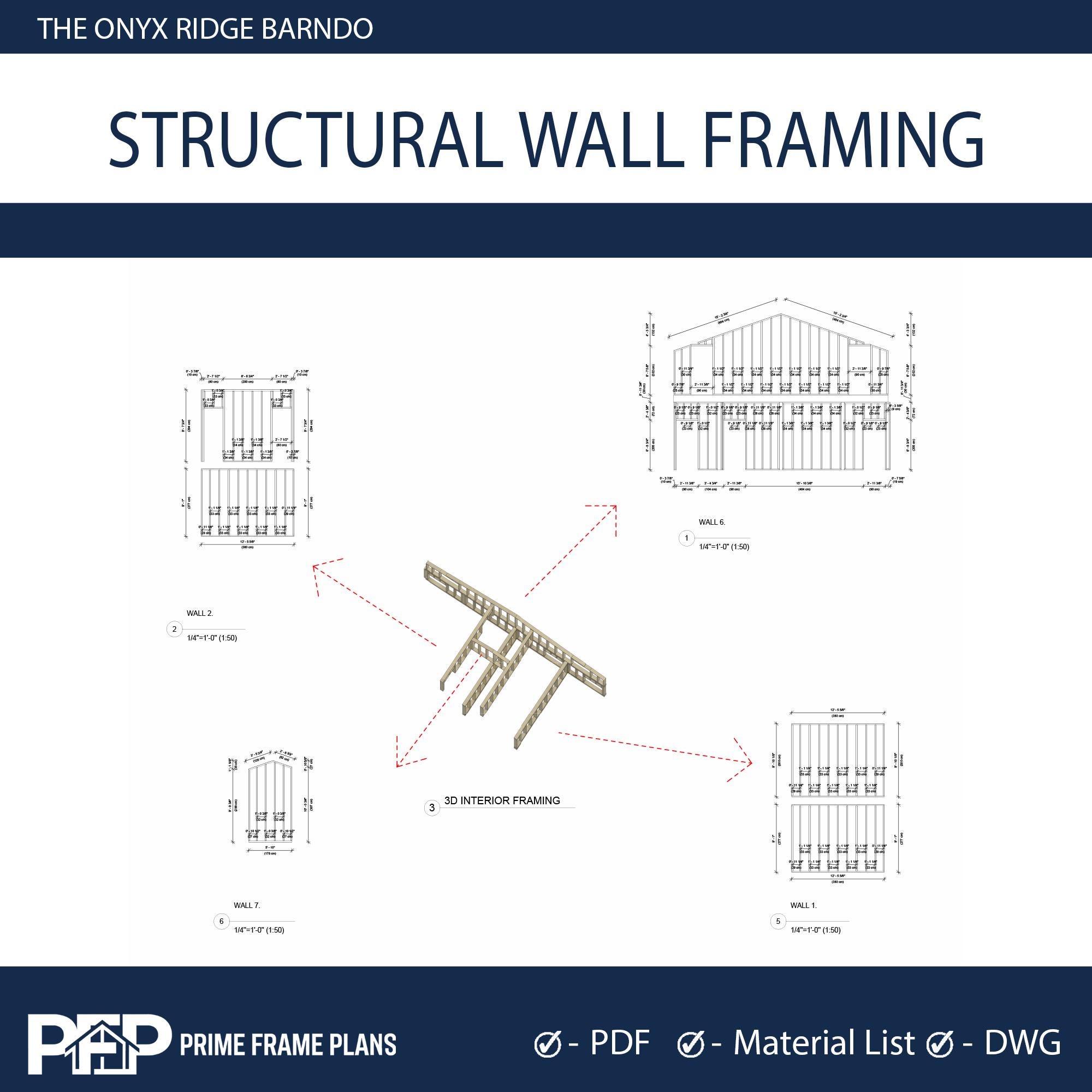

A1.12 - WALL FRAMING PLANS: Exterior Wall Stud Layouts & Bracing
A1.13 - PARTITION FRAMING: Interior Wall Stud Layouts & Blocking

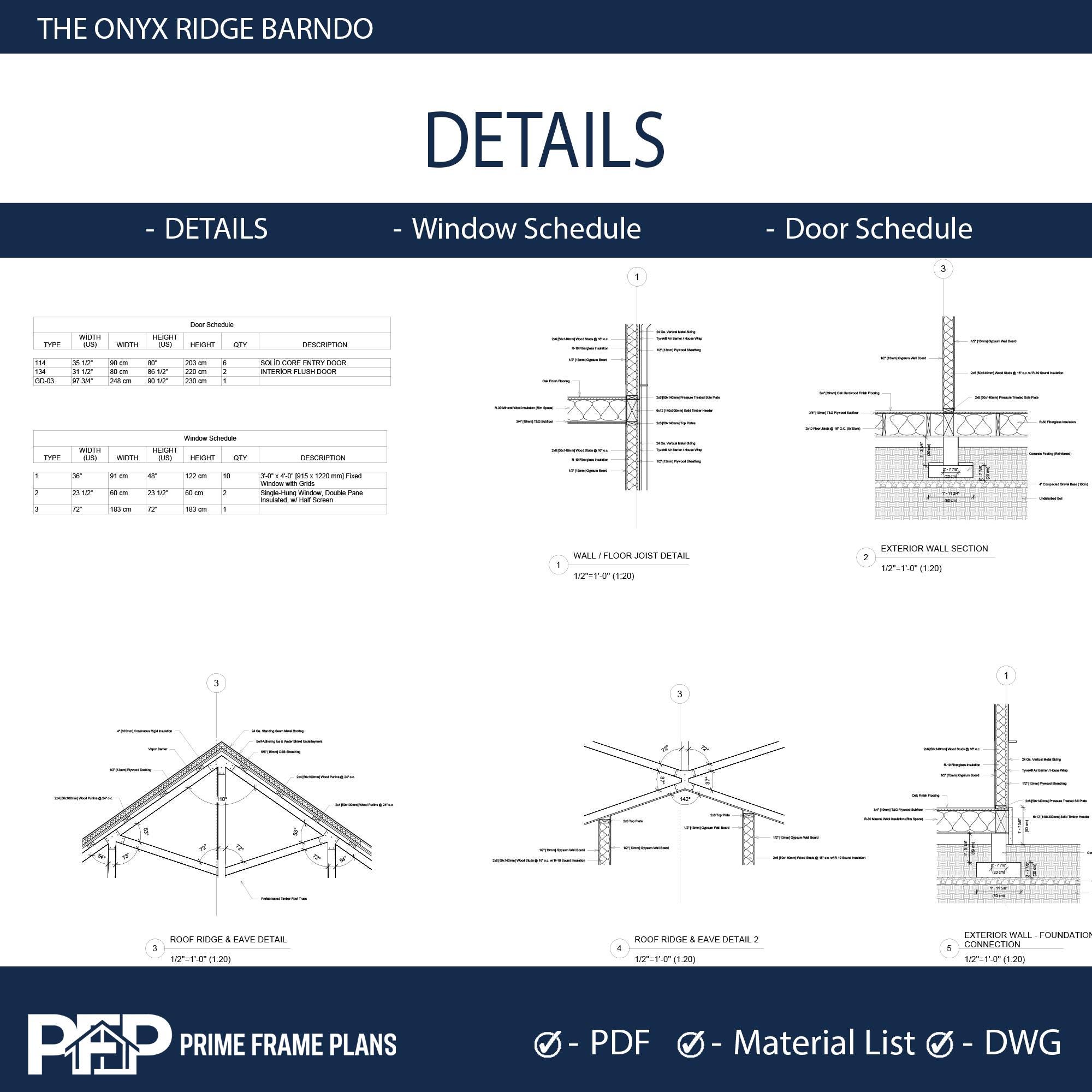

A1.14 - DETAILS & SCHEDULES: Door/Window List, Structural Connections
BONUS CONTENT: Building Materials List: Estimated list of materials for construction planning.
******* PERFECT FOR ******* Barndominium Plans, Small House Plans, ADU Plans, Small Cabin Plans, Tiny House Plans (for those wanting a spacious, luxury upgrade!), Tiny Cabin Plans, and Tiny Home Plans.
******* PLEASE READ BEFORE PURCHASING *******
Format: Digital Download (PDF + DWG + Material List). No physical product is shipped.
License: Single-Use License to build one (1) structure. Resale is strictly prohibited.
Refunds: Due to the nature of digital products, no refunds are accepted.
PRIME FRAME PLANS - Modern Living, Smart Design.
