59' x 40' THE BLACK DIAMOND Barndominium Plans | 4 Bedroom Luxury Barn House | 1,774 Sq Ft PDF + CAD Blueprints
PRIME FRAME PLANS presents: The Black Diamond. This is not just a home; it's a statement. The Black Diamond is a high-end modern barndominium defined by its striking black board-and-batten exterior, massive cathedral ceilings, and a floor-to-ceiling glass façade. Designed for maximum functionality and luxury, this plan packs incredible features into a smart footprint, including a Mudroom, Pantry, Home Office, and a versatile Flex Room in addition to the bedrooms.
*** DUAL DIMENSIONS INCLUDED: This plan set is designed for global use. All floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements on the same page for easy reference.
IMPORTANT: These plans are for conceptual design purposes. They MUST be reviewed and stamped by a locally licensed structural engineer and your building official before construction to ensure compliance with local codes and site conditions.
***** DESIGN SUMMARY ***** Overall Dimensions: 59' - 0 1/8" x 40' - 2 1/2" (1799 cm x 1226 cm)
Total Living Area: 1,774 Sq. Ft. (165 m²)
Bedrooms: 4 Total (Featuring Master Suite + Guest Rooms)
Bathrooms: 4 Full Baths
Key Rooms:
Great Room: Open Concept with Cathedral Ceiling
Kitchen: Gourmet Kitchen with Island & Pantry
Home Office: Dedicated workspace
Flex Room: Versatile room for Gym/Hobby/Extra Bed
Mudroom: Entryway organization space
Loft Lounge: Upper level sitting area overlooking the Great Room
Foundation: Slab-on-Grade (Concrete Slab)
Roof Style: Modern Gable Roof with Standing Seam Metal

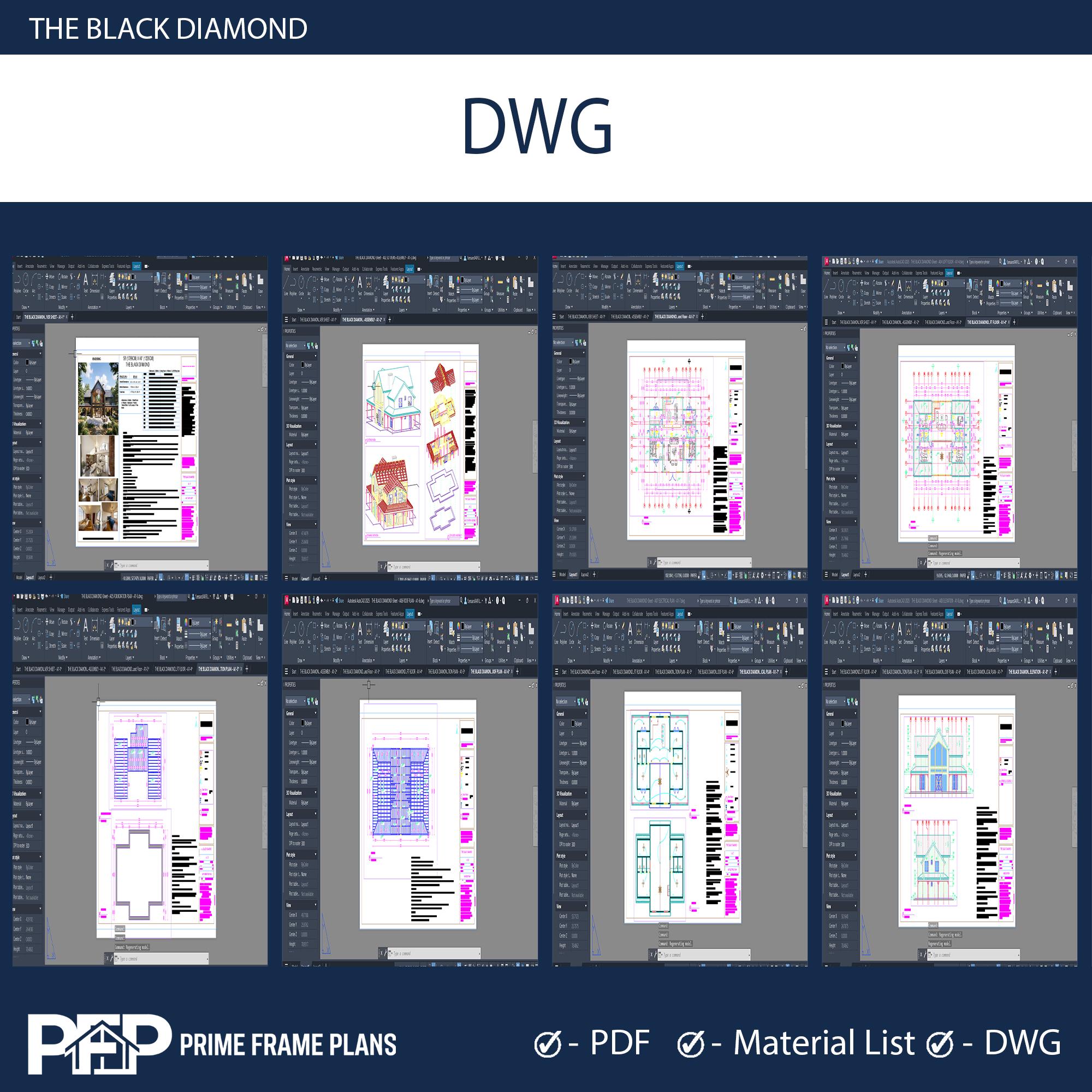

***** WHAT IS INCLUDED IN THIS PACKAGE? ***** This download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1), the editable source file (DWG), and a comprehensive material list.

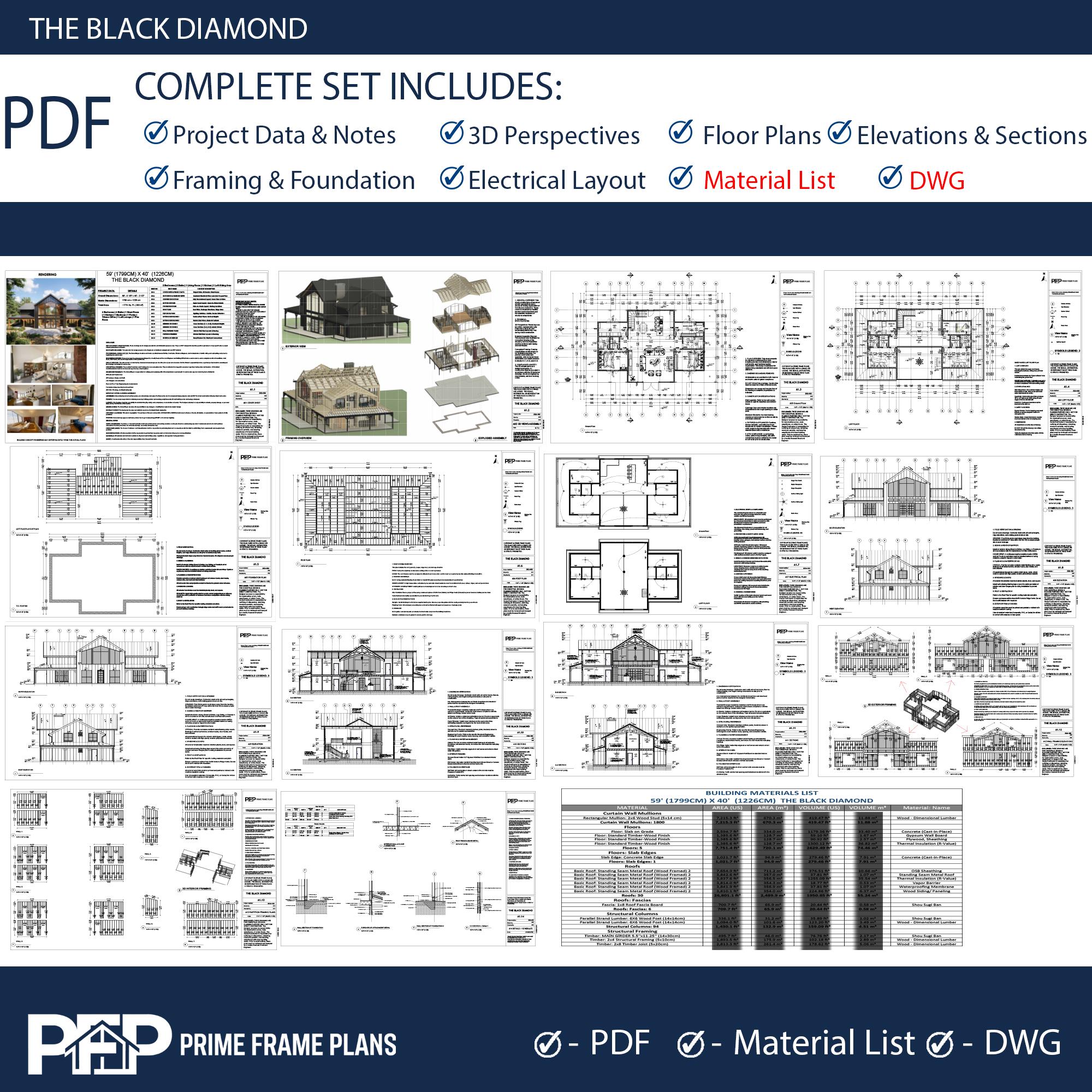

COMPLETE PDF PLAN SET (14 SHEETS):
A1.1 - COVER SHEET & PROJECT DATA: Project Data, 3D Render, Sheet Index.

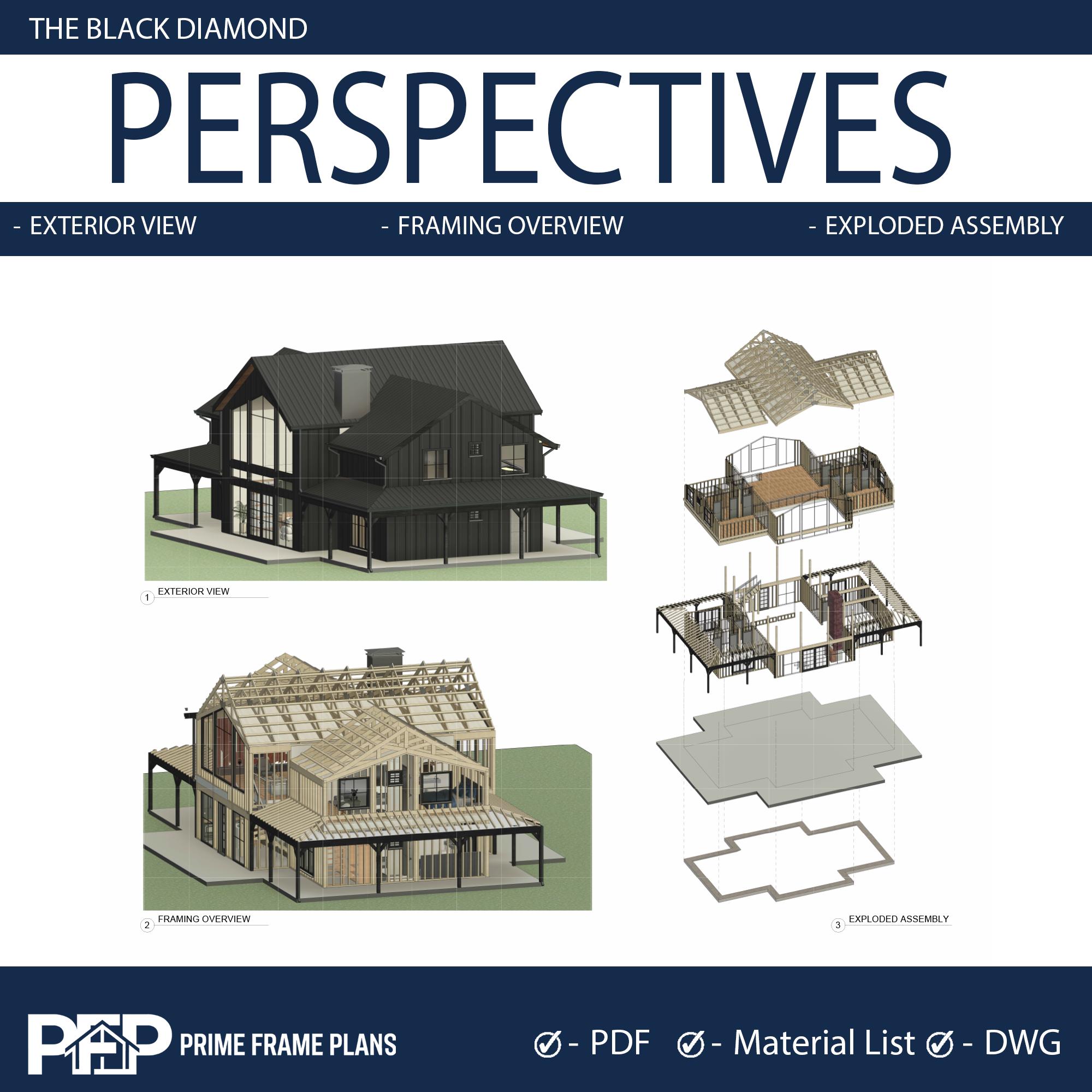

A1.2 - 3D EXTERIOR & FRAMING VIEWS: Exploded Structural View, Isometric Perspectives.

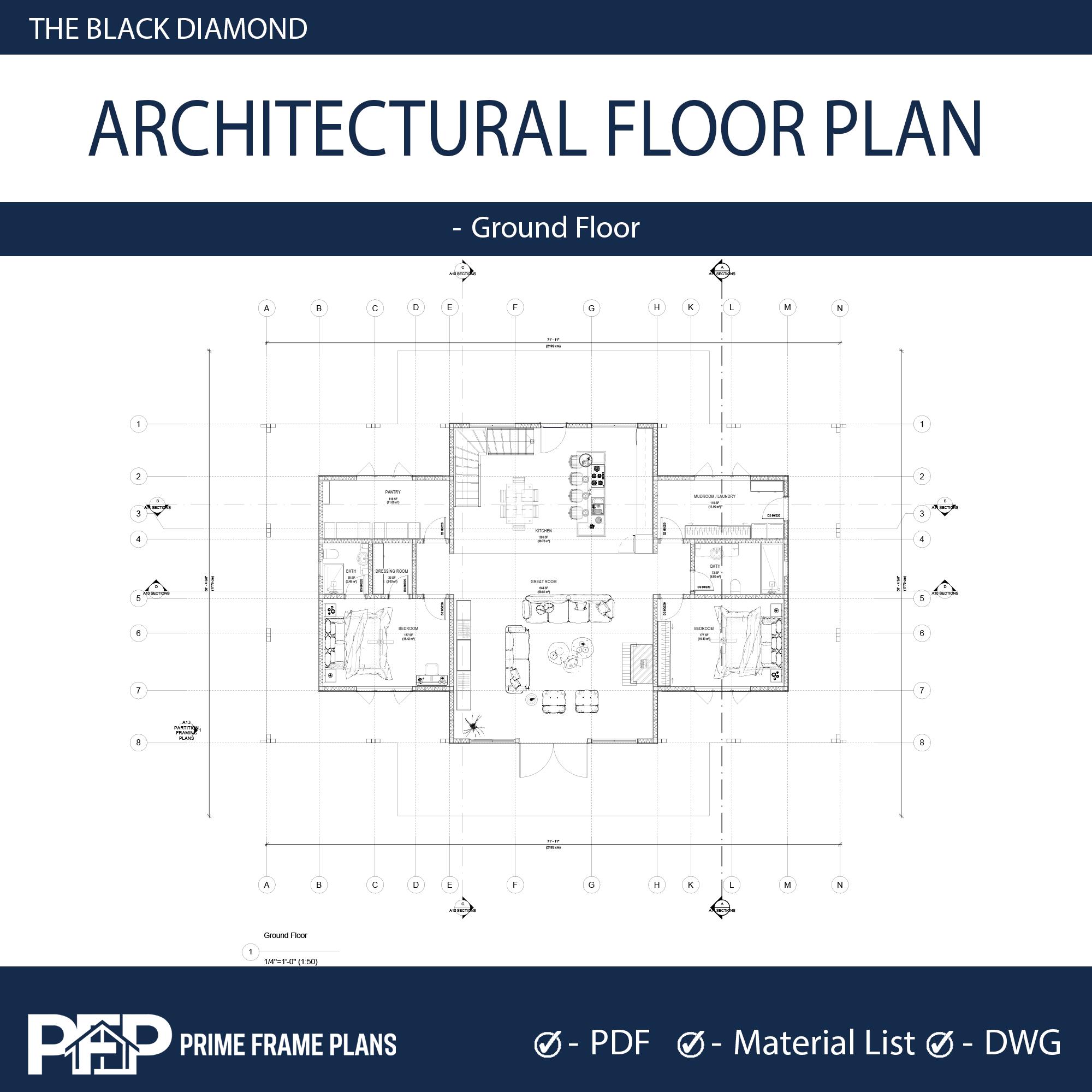

A1.3 - GROUND FLOOR PLAN: Fully Dimensioned Layout, Room Sizes & Notes.

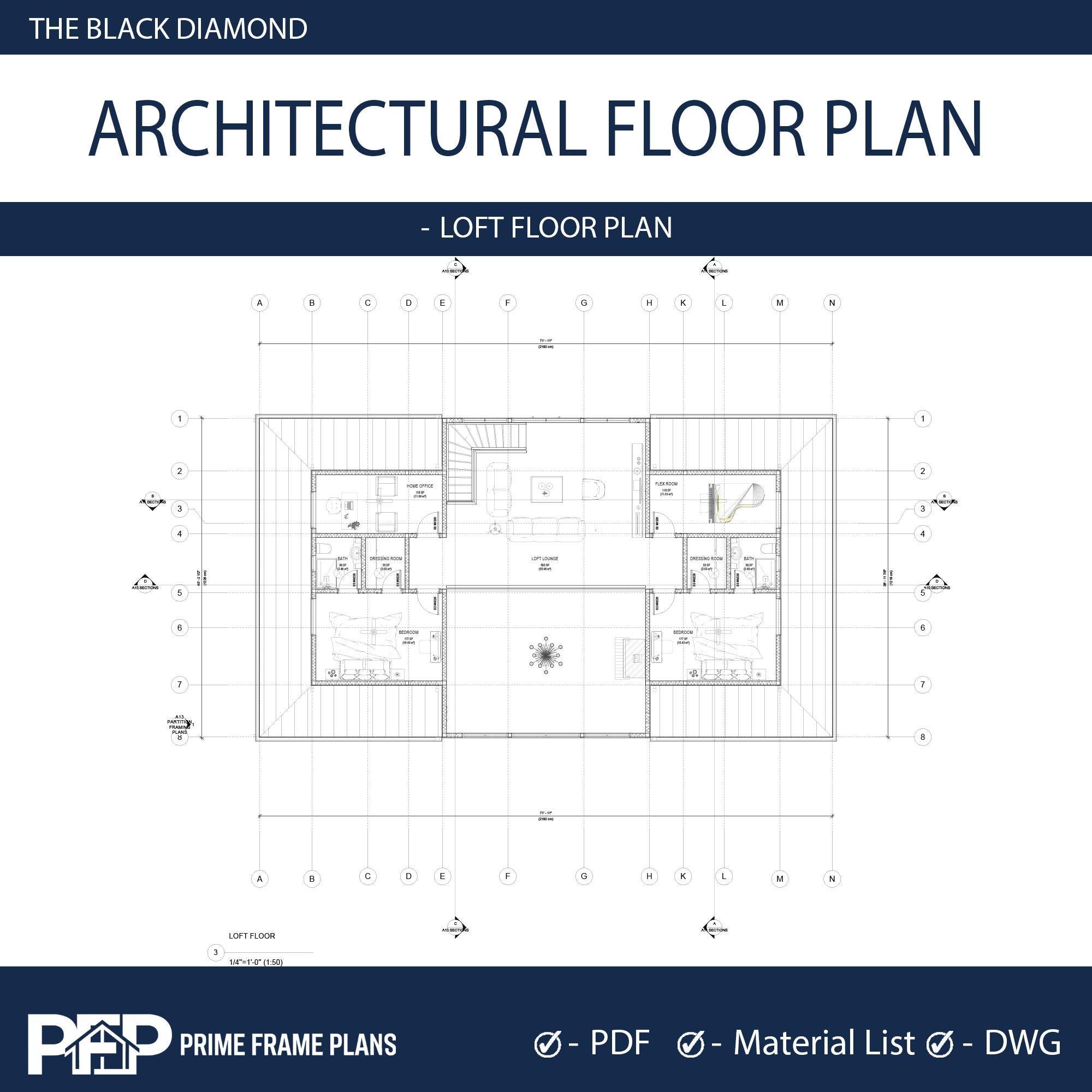

A1.4 - LOFT FLOOR PLAN: Upper Level Layout, Open-to-Below Details.
A1.5 - FOUNDATION PLAN: Slab-on-Grade Layout, Footing Locations.

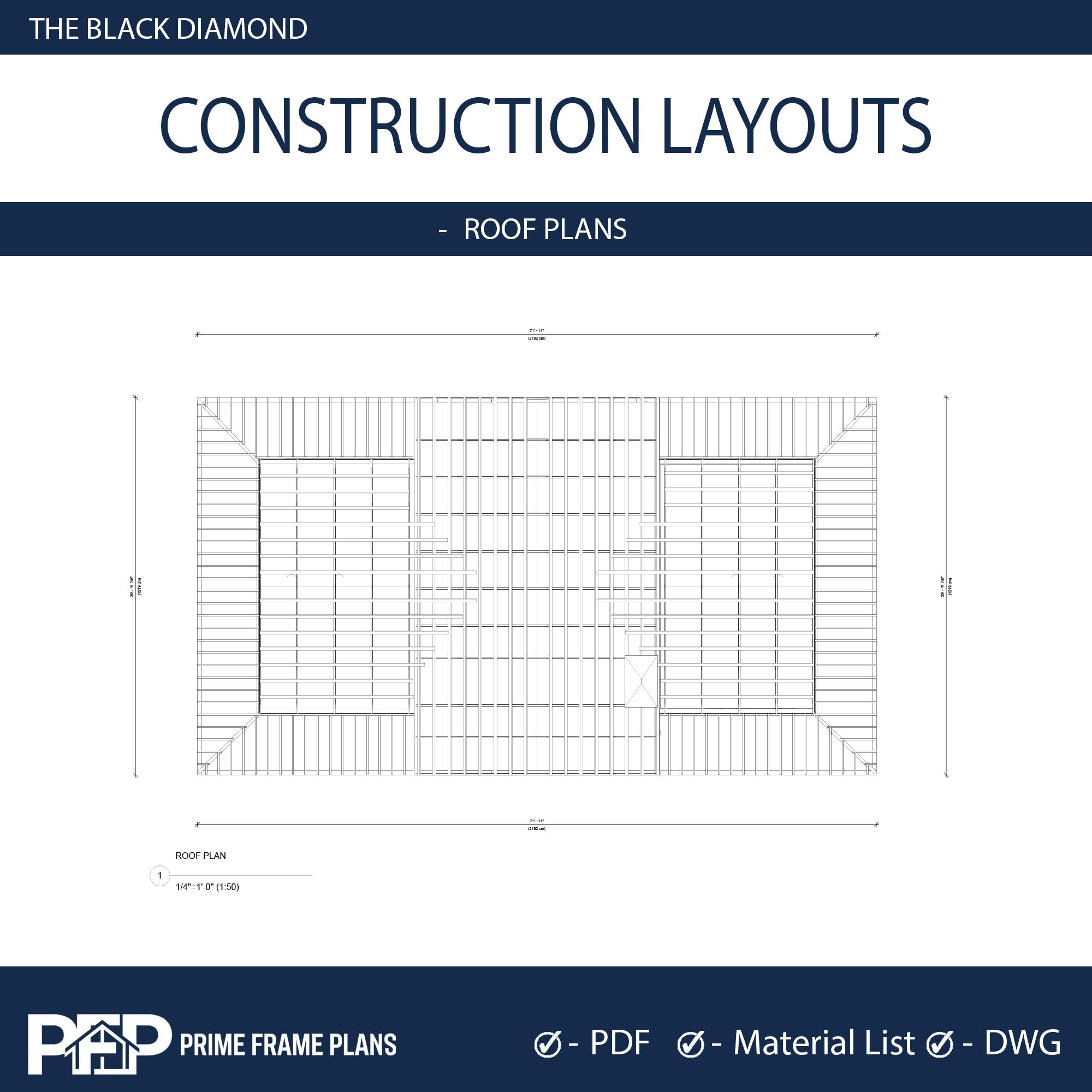

A1.6 - ROOF PLAN: Roof Pitch, Drainage Directions, Ridge Lines.

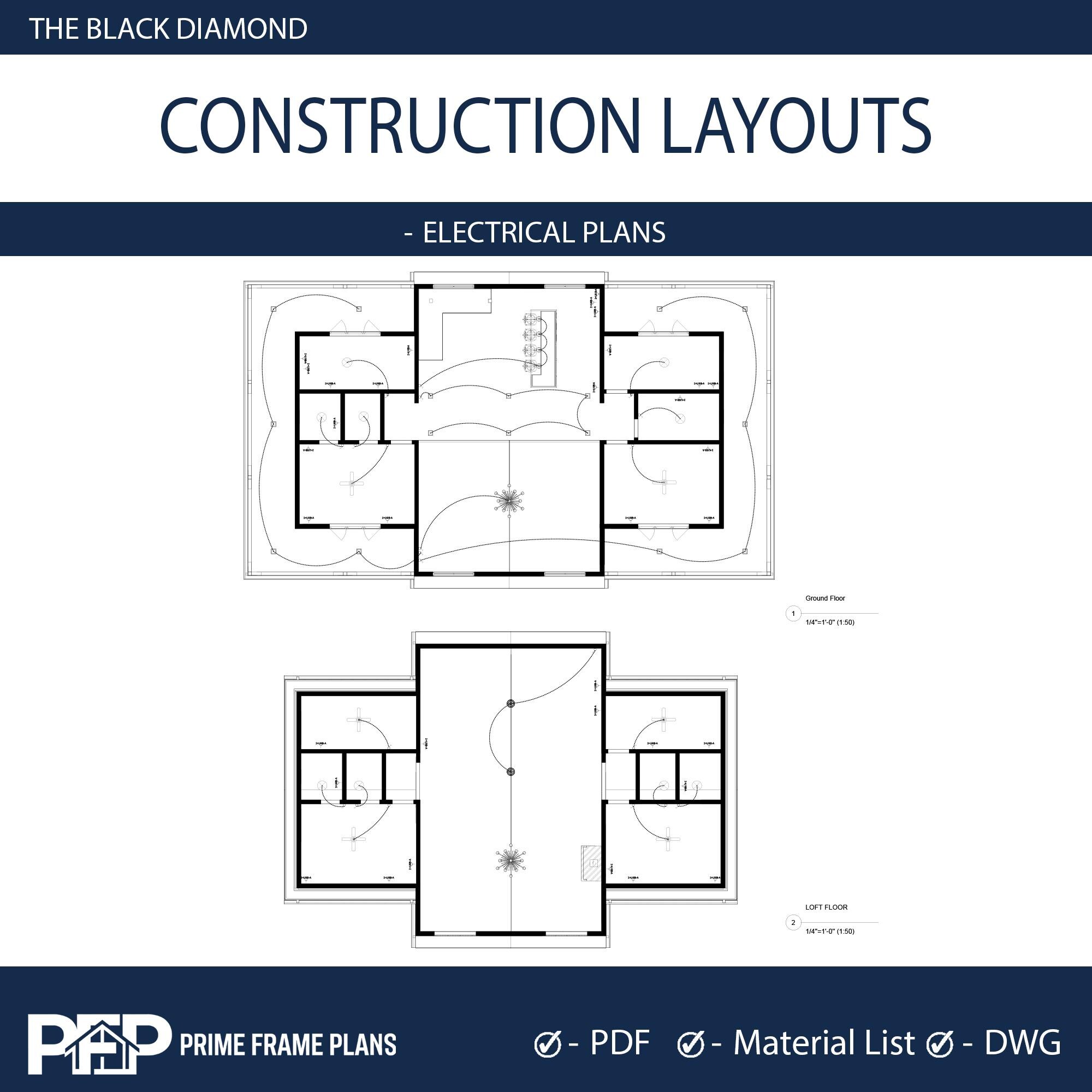

A1.7 - ELECTRICAL PLAN: Lighting, Switches, Outlets, Smoke Detectors.

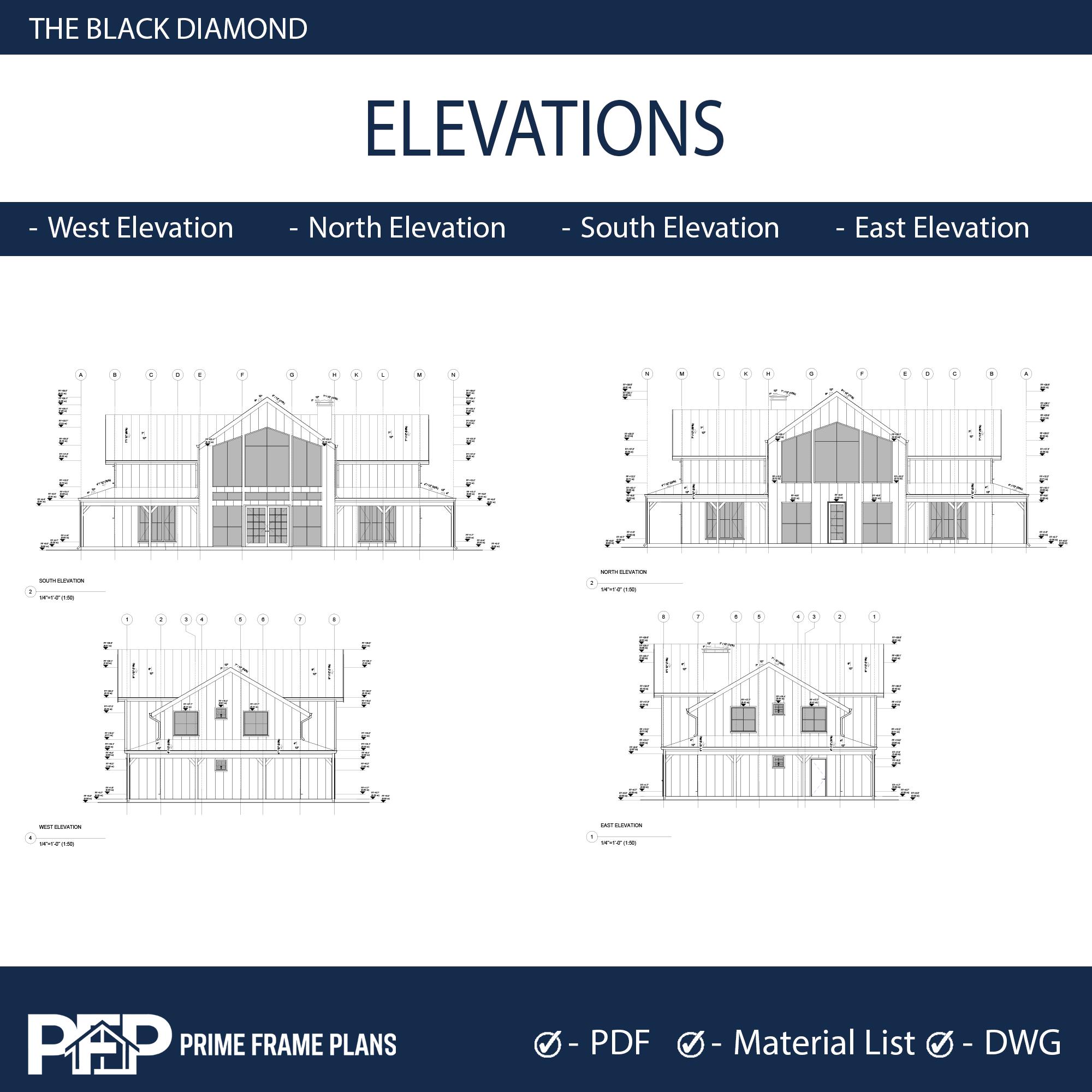

A1.8 - EXTERIOR ELEVATIONS 1: South & West Views, Vertical Heights.
A1.9 - EXTERIOR ELEVATIONS 2: North & East Views, Material Callouts.

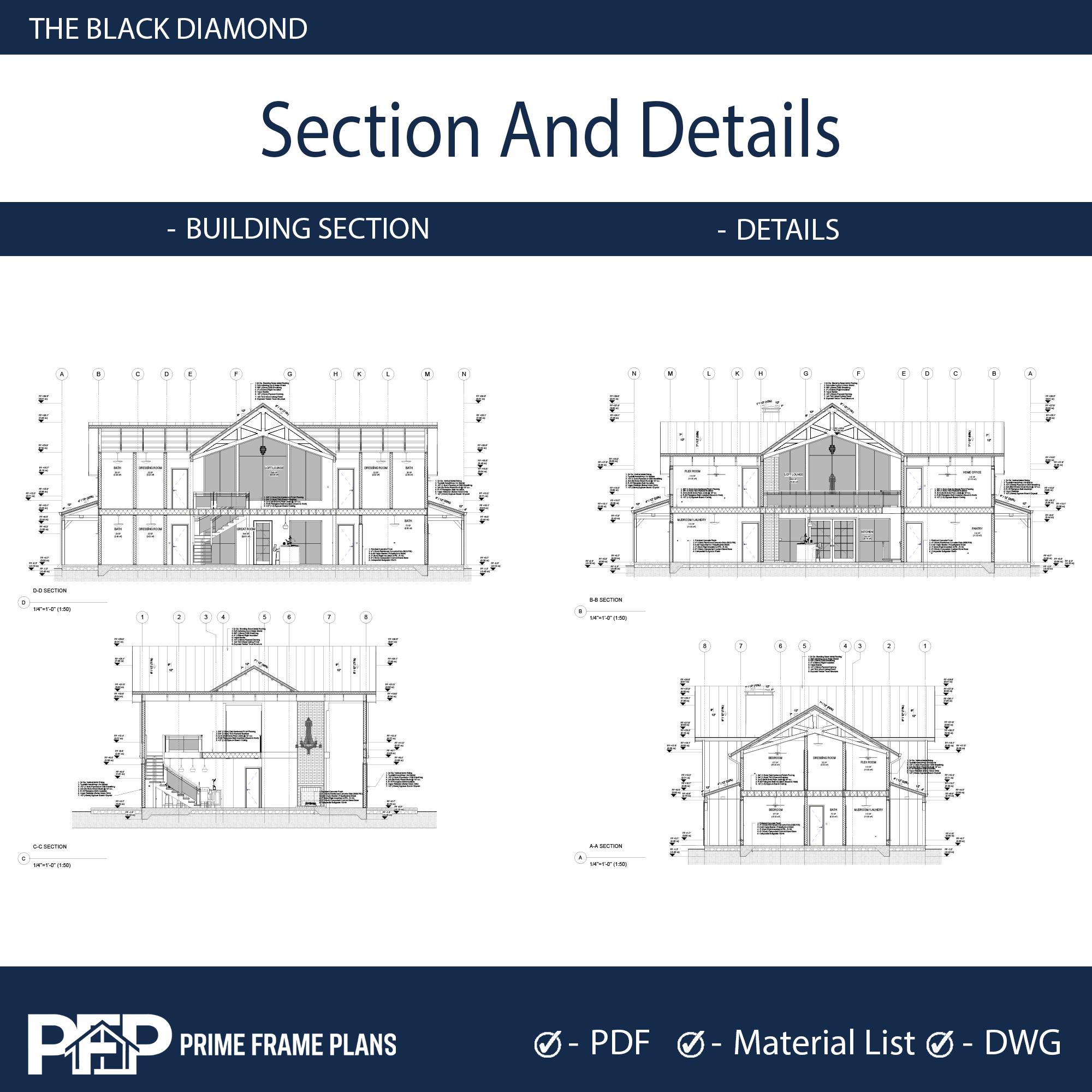

A1.10 - BUILDING SECTIONS 1: Cross Sections (C-C, D-D), Structural Heights.
A1.11 - BUILDING SECTIONS 2: Cross Sections (A-A, B-B), Interior Details.

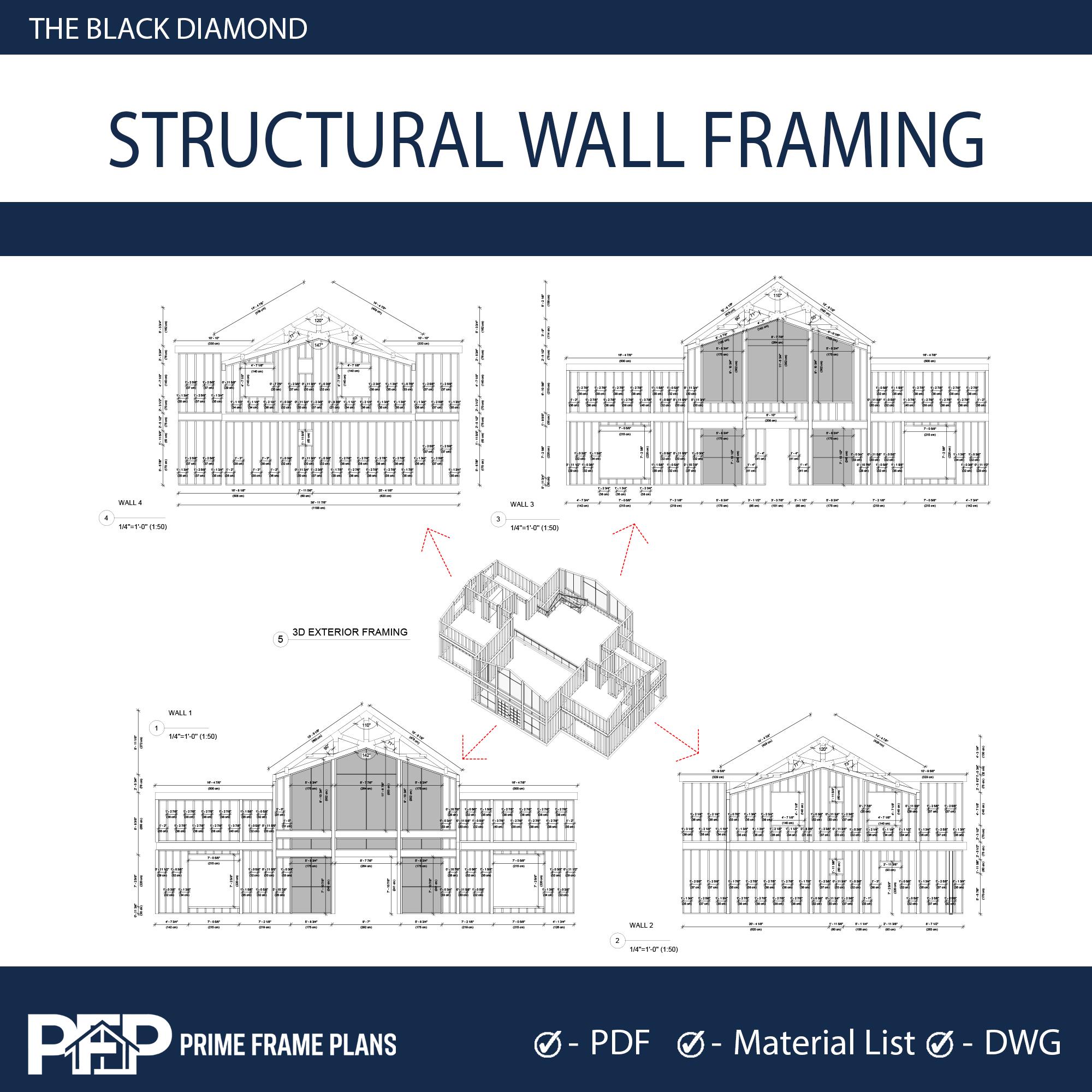

A1.12 - WALL FRAMING PLANS: Exterior Wall Stud Layouts & Bracing.

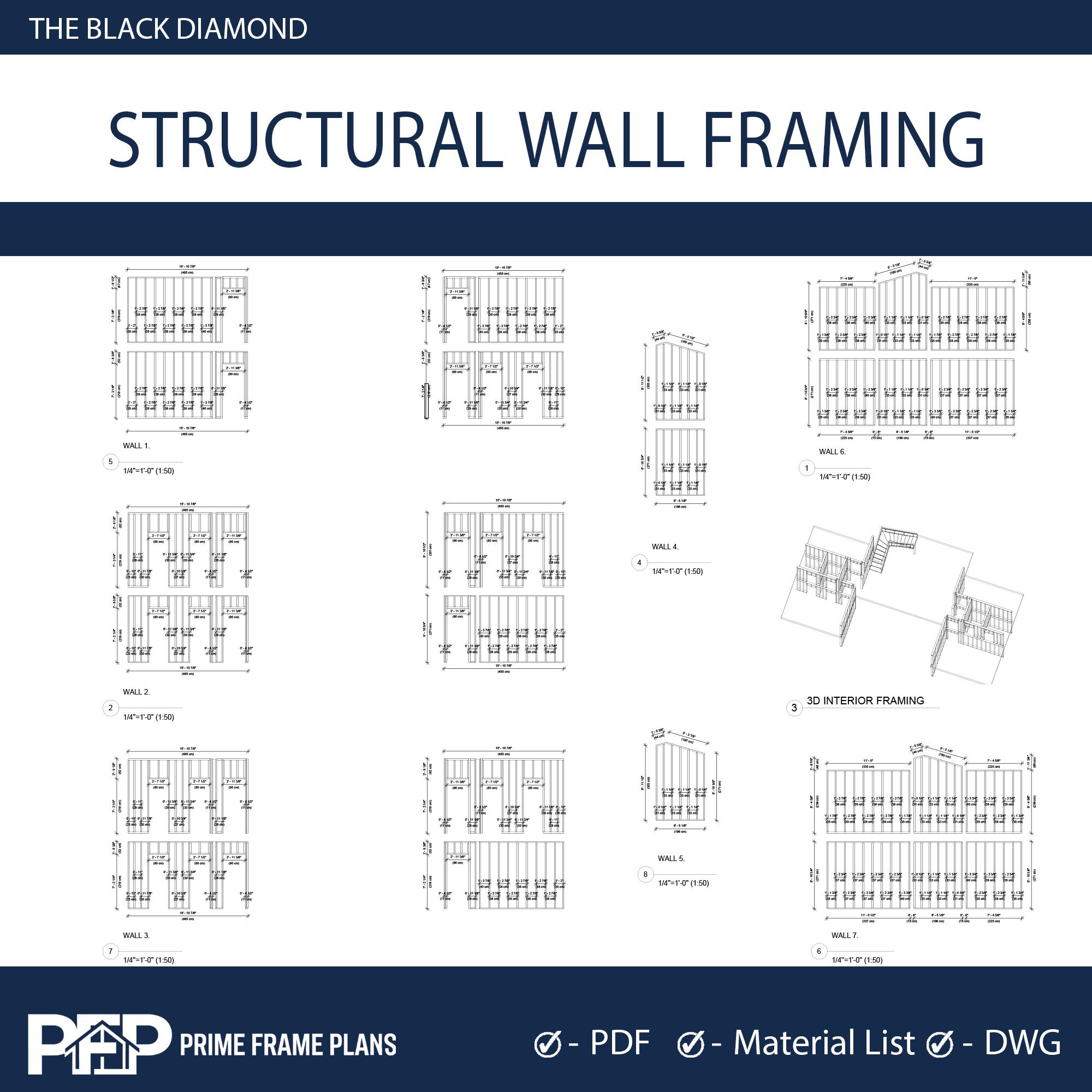

A1.13 - PARTITION FRAMING: Interior Wall Stud Layouts & Blocking.

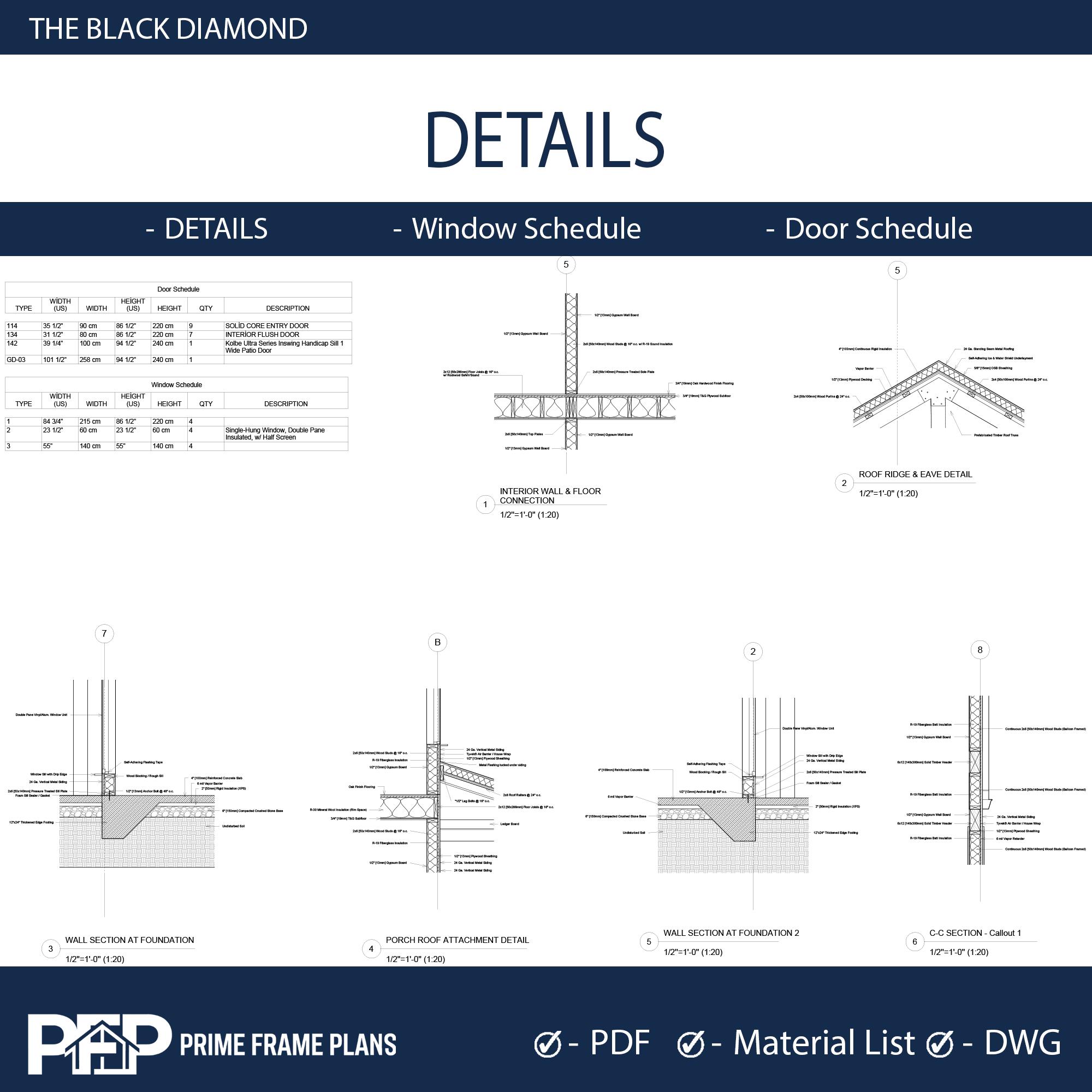

A1.14 - DETAILS & SCHEDULES: Door/Window List, Structural Connections.
BONUS CONTENT: Building Materials List: Estimated list of materials for construction planning.
***** PLEASE READ BEFORE PURCHASING ***** Format: Digital Download (PDF + DWG + Material List). No physical product is shipped.
License: Single-Use License to build one (1) structure. Resale is prohibited.
Refunds: Due to the nature of digital products, no refunds are accepted.
PRIME FRAME PLANS - Modern Living, Smart Design.
