Modern Black Cottage Plans | 2 Bedroom, Zero-Waste Design (PDF + CAD)
$211.47 $399.00
-
DetailsPRIME FRAME PLANS presents: The Blackwood Retreat. SAVE MONEY ON CONSTRUCTION. This project is precision-engineered with a "Zero-Waste" philosophy. The dimensions are specifically adjusted to match standard lumber sizes, minimizing material waste and significantly reducing your building costs.
The Blackwood Retreat is a stunning modern cottage defined by its bold black exterior and warm timber-frame front porch. It is not just beautiful; it is smart. The structure sits on Isolated Footings (Pier Foundation), making it ideal for uneven terrain or cost-effective building. Perfect for a guest house, a luxury Airbnb rental, or a budget-friendly primary residence.
*** DUAL DIMENSIONS INCLUDED:
This plan set is designed for global use. All floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements on the same page for easy reference.
IMPORTANT: These plans are for conceptual design purposes. They MUST be reviewed and stamped by a locally licensed structural engineer and your building official before construction.
******* DESIGN SUMMARY *******
Overall Dimensions: 32' - 0" x 37' - 2 1/4" (975 cm x 1133 cm)
Total Living Area: ~865 Sq. Ft. (80.39 m²)
Construction Efficiency: Optimized for standard lumber sizes (Minimal Waste).
Bedrooms: 2 Total
Bathrooms: 1 Full Bath
Key Rooms:
Great Room: Open Concept with Cathedral Ceiling
Kitchen: Modern Kitchen with Island
Front Porch: Expansive covered timber-frame porch
Foundation: Isolated Concrete Footings (Pier Foundation) - Timber columns sit directly on piers.
Roof Style: Modern Gable Roof
******* WHAT IS INCLUDED IN THIS PACKAGE? *******
This download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1), the editable source file (DWG), and a comprehensive material list.

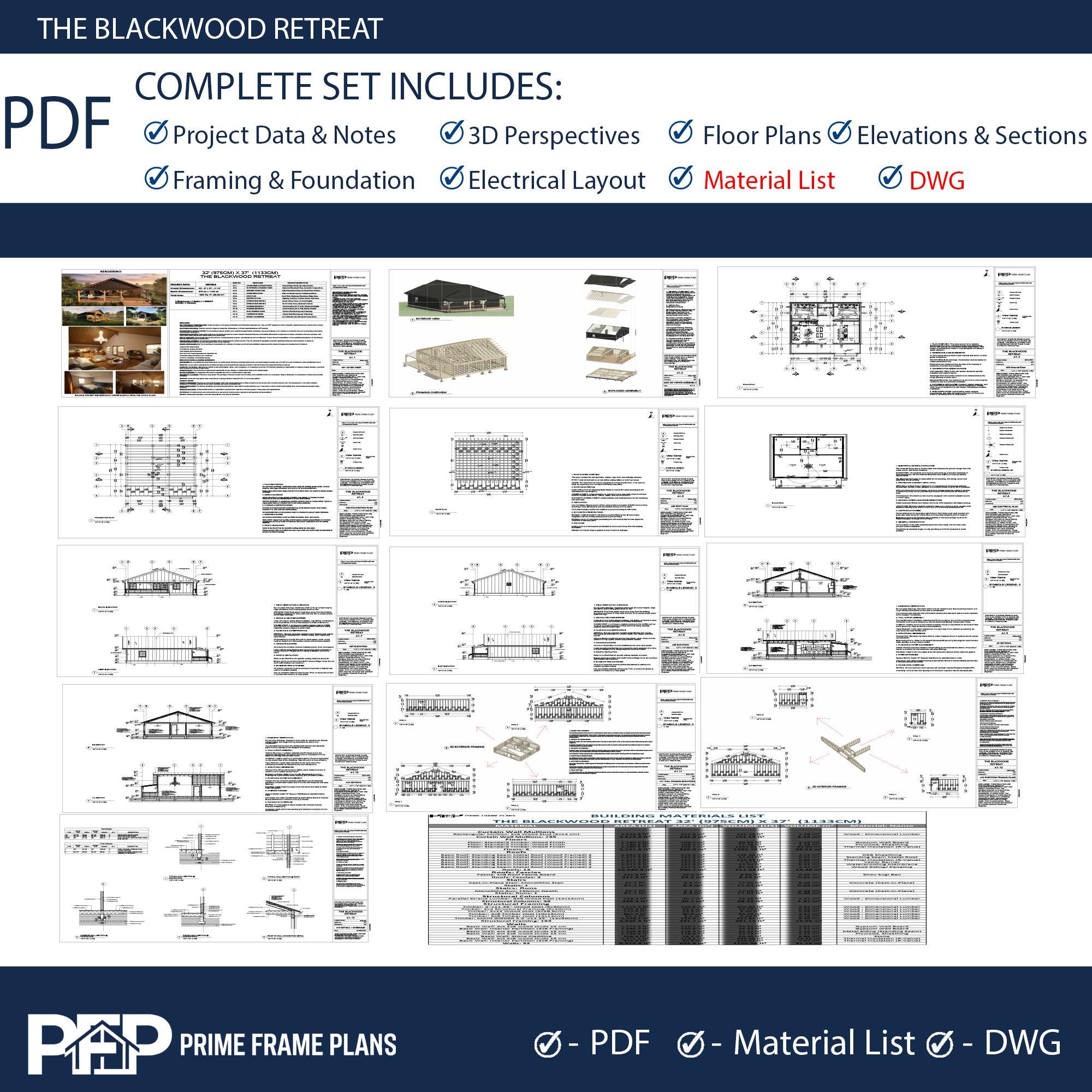

COMPLETE PDF PLAN SET (13 SHEETS):
A1.1 - COVER SHEET & PROJECT DATA: Project Data, 3D Render, Sheet Index.

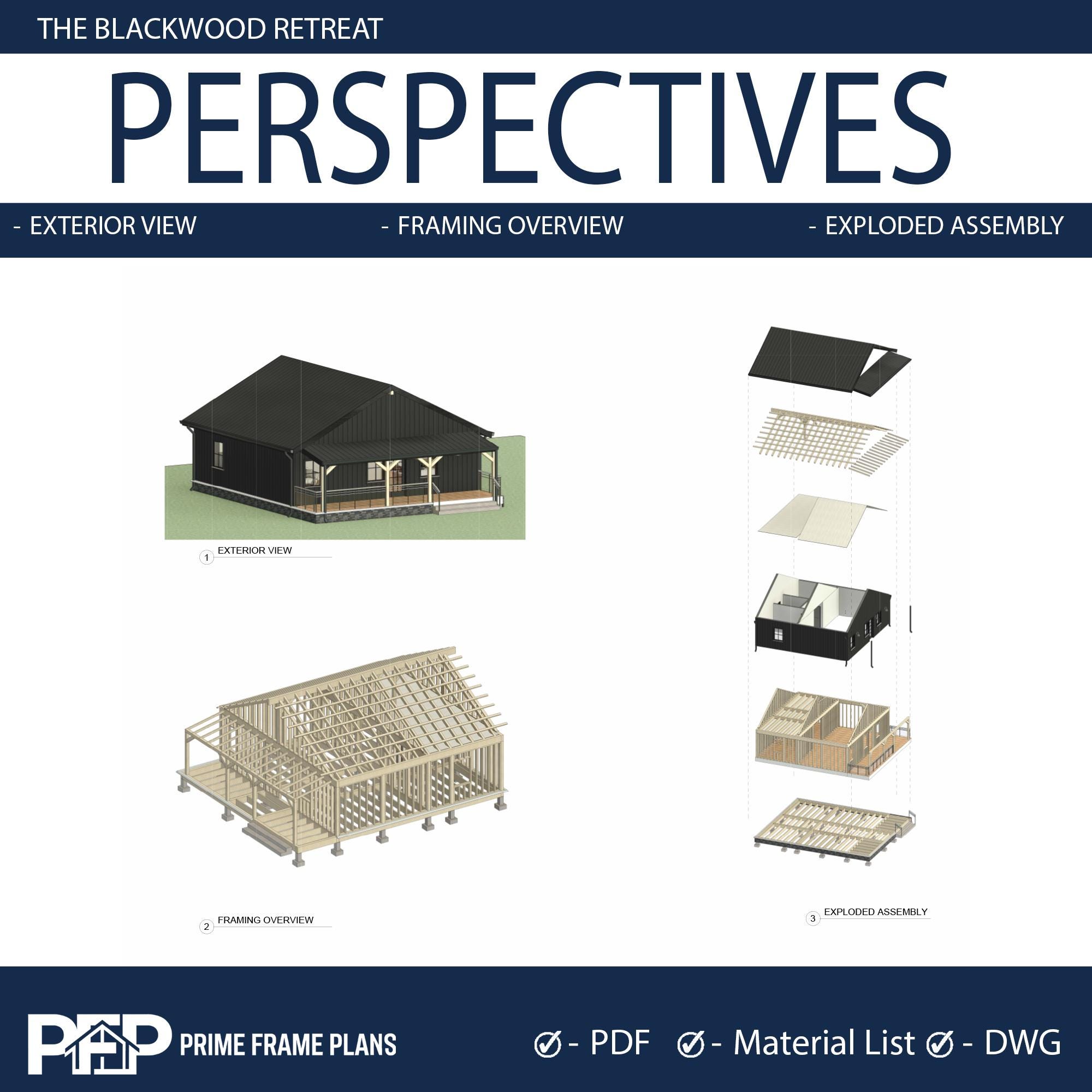

A1.2 - 3D EXTERIOR & FRAMING VIEWS: Exploded Structural View, Isometric Perspectives.

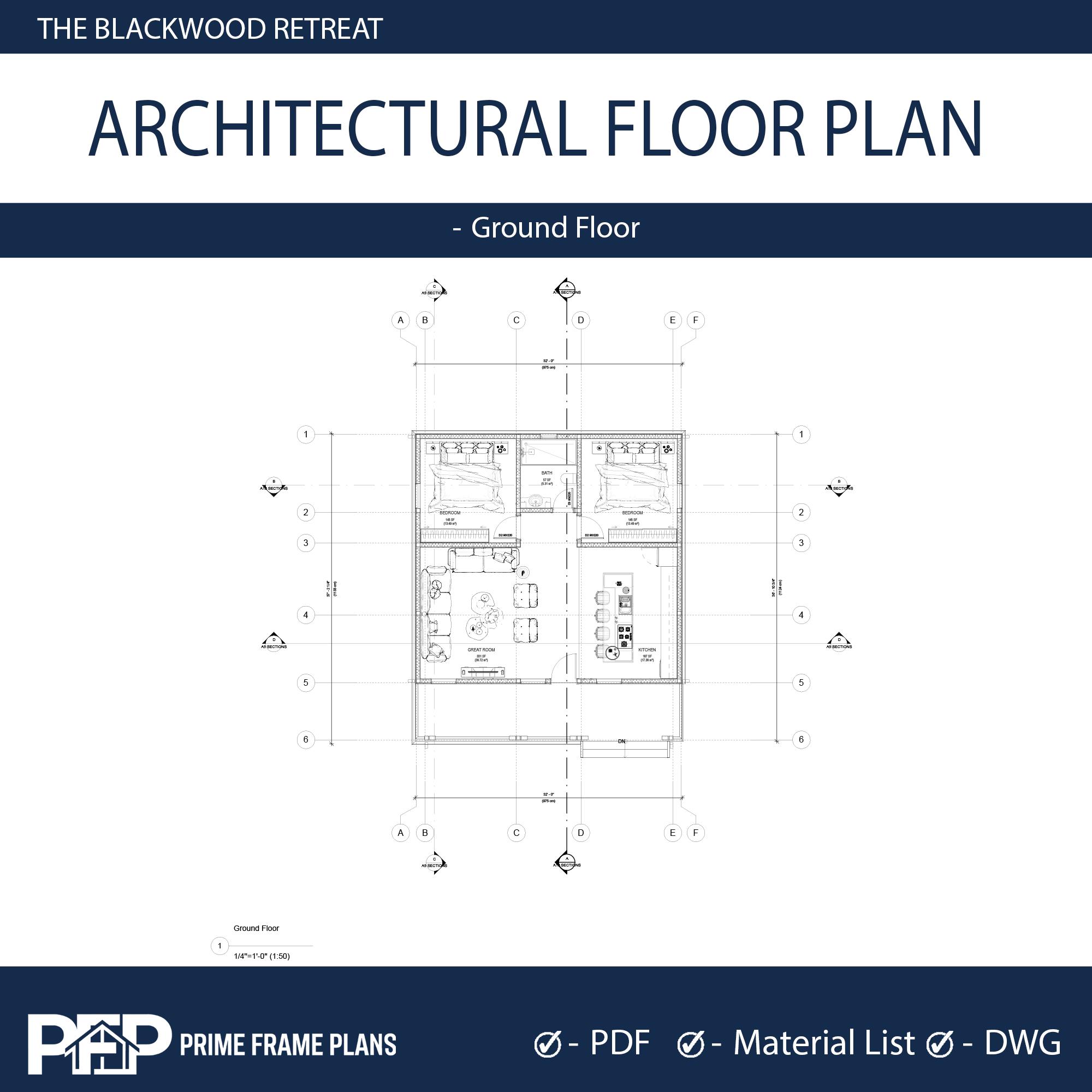

A1.3 - GROUND FLOOR PLAN: Fully Dimensioned Layout, Room Sizes & Notes.

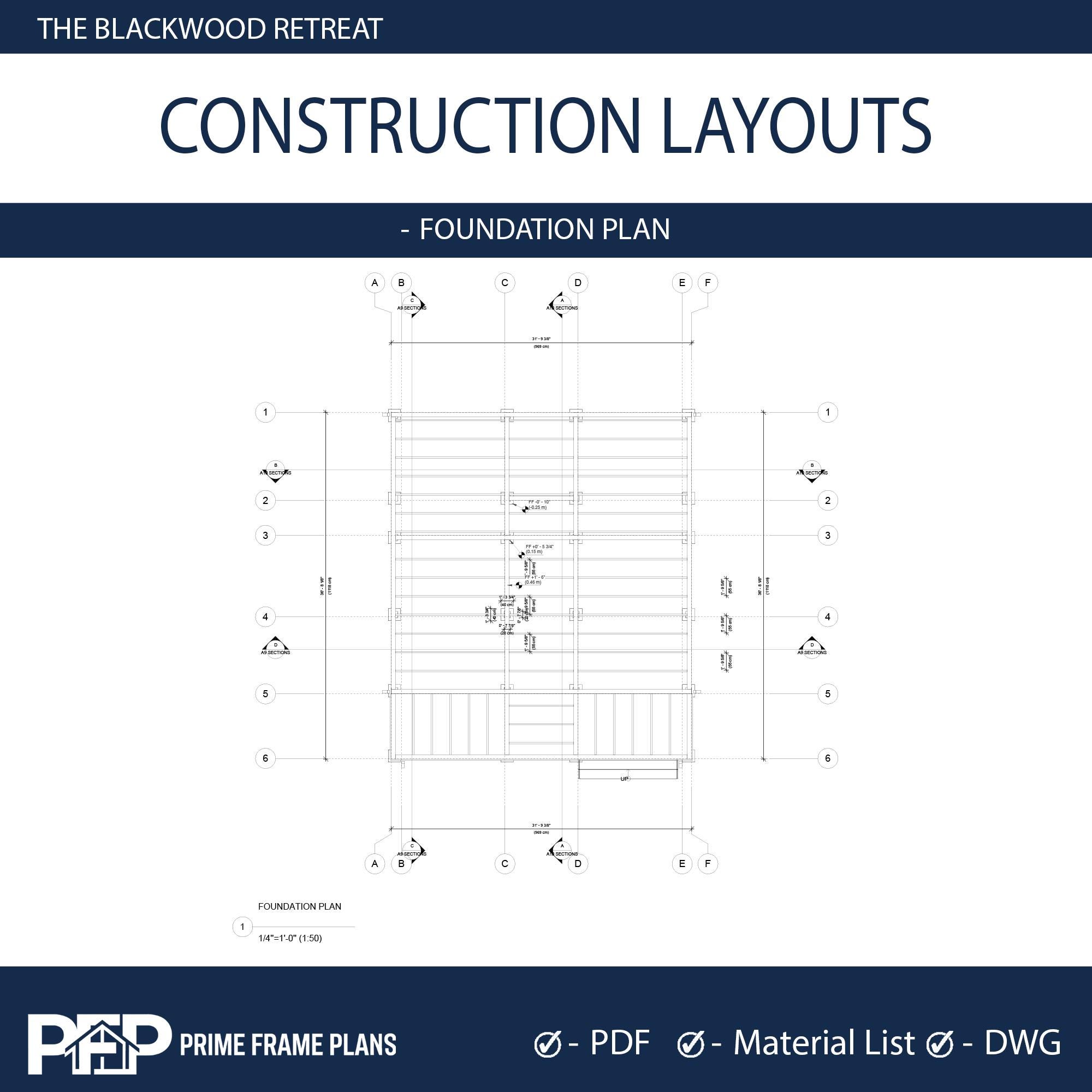

A1.4 - FOUNDATION PLAN: Isolated Footing Layout (Pier Locations).

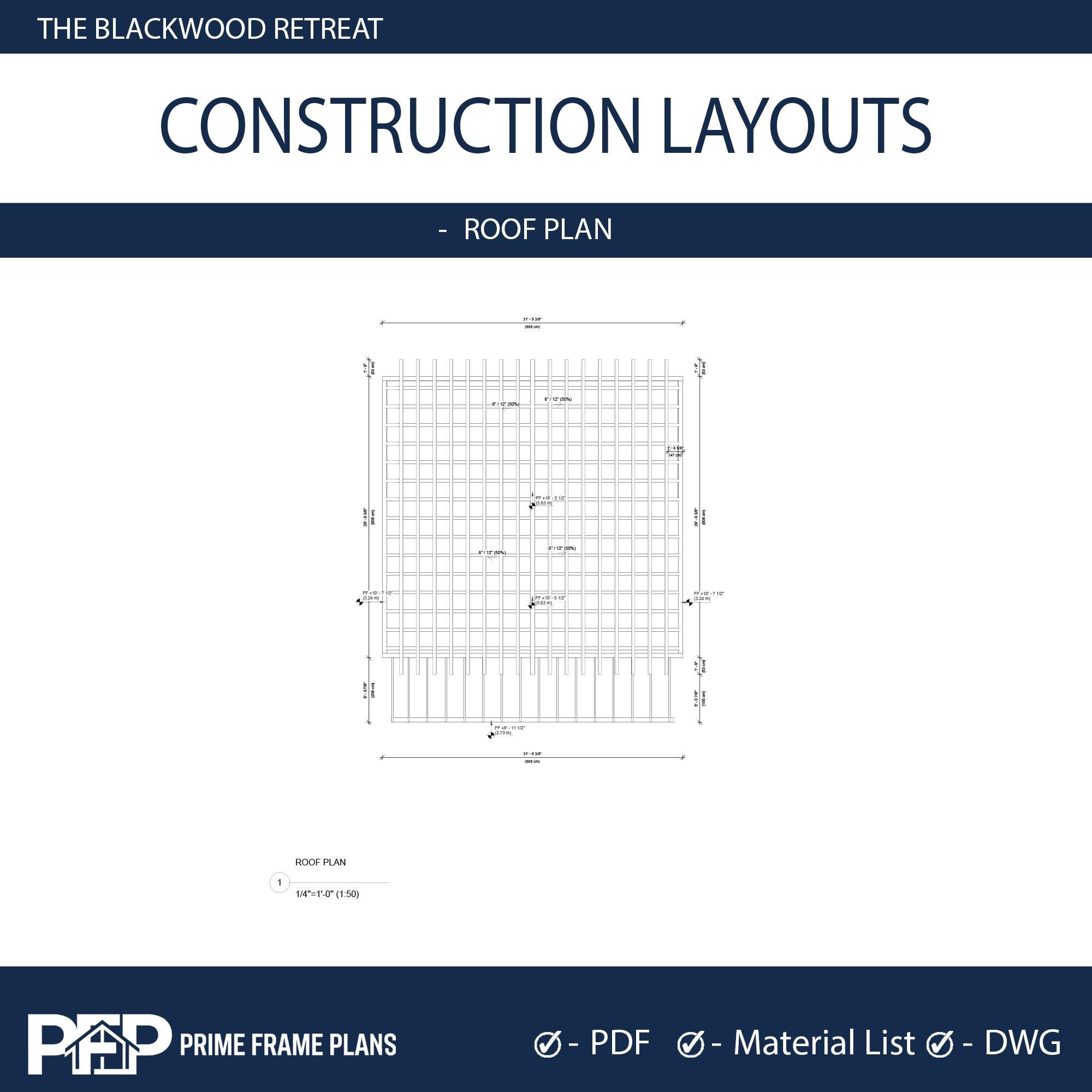

A1.5 - ROOF PLAN: Roof Pitch, Drainage Directions, Ridge Lines.

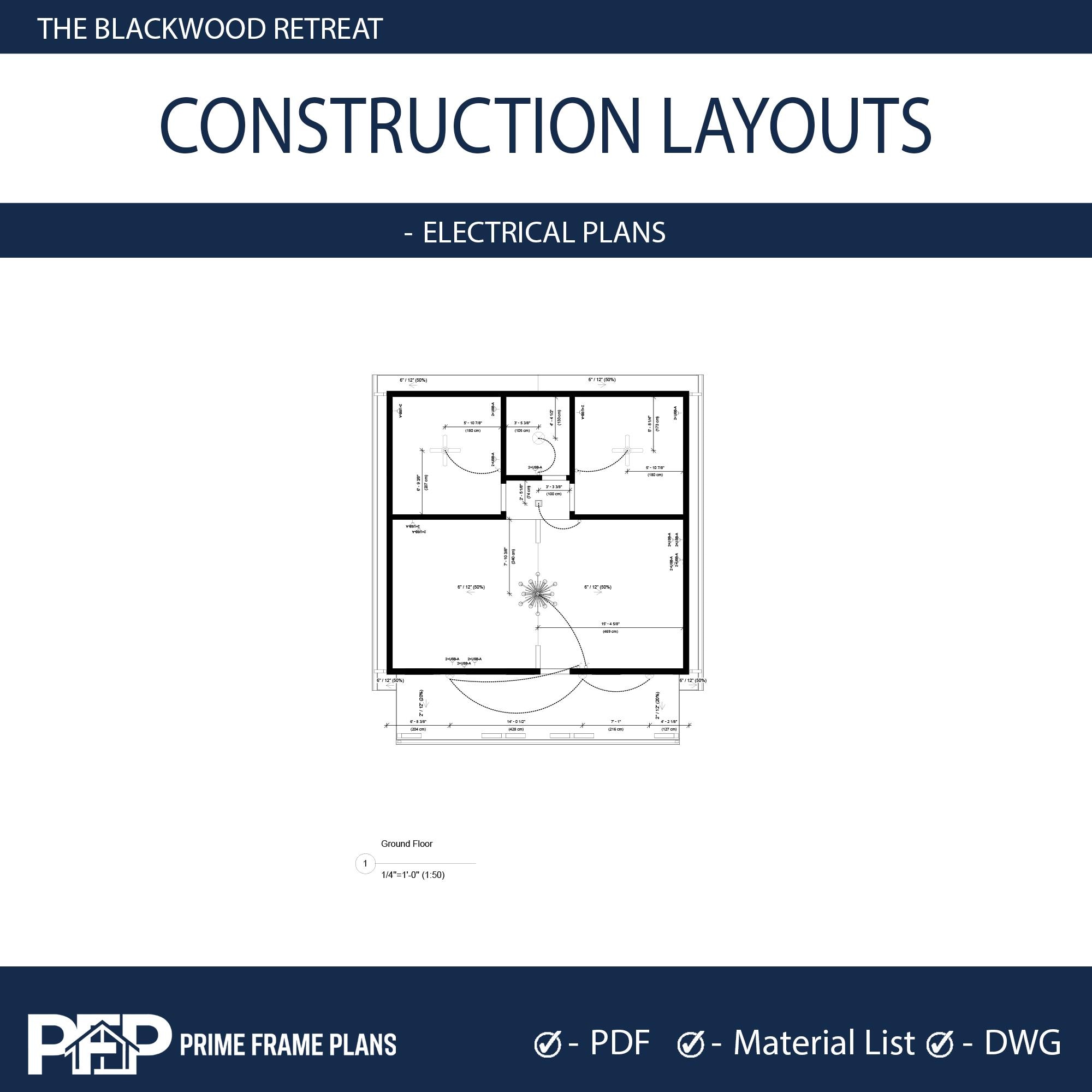

A1.6 - ELECTRICAL PLAN: Lighting, Switches, Outlets (Basic Layout).

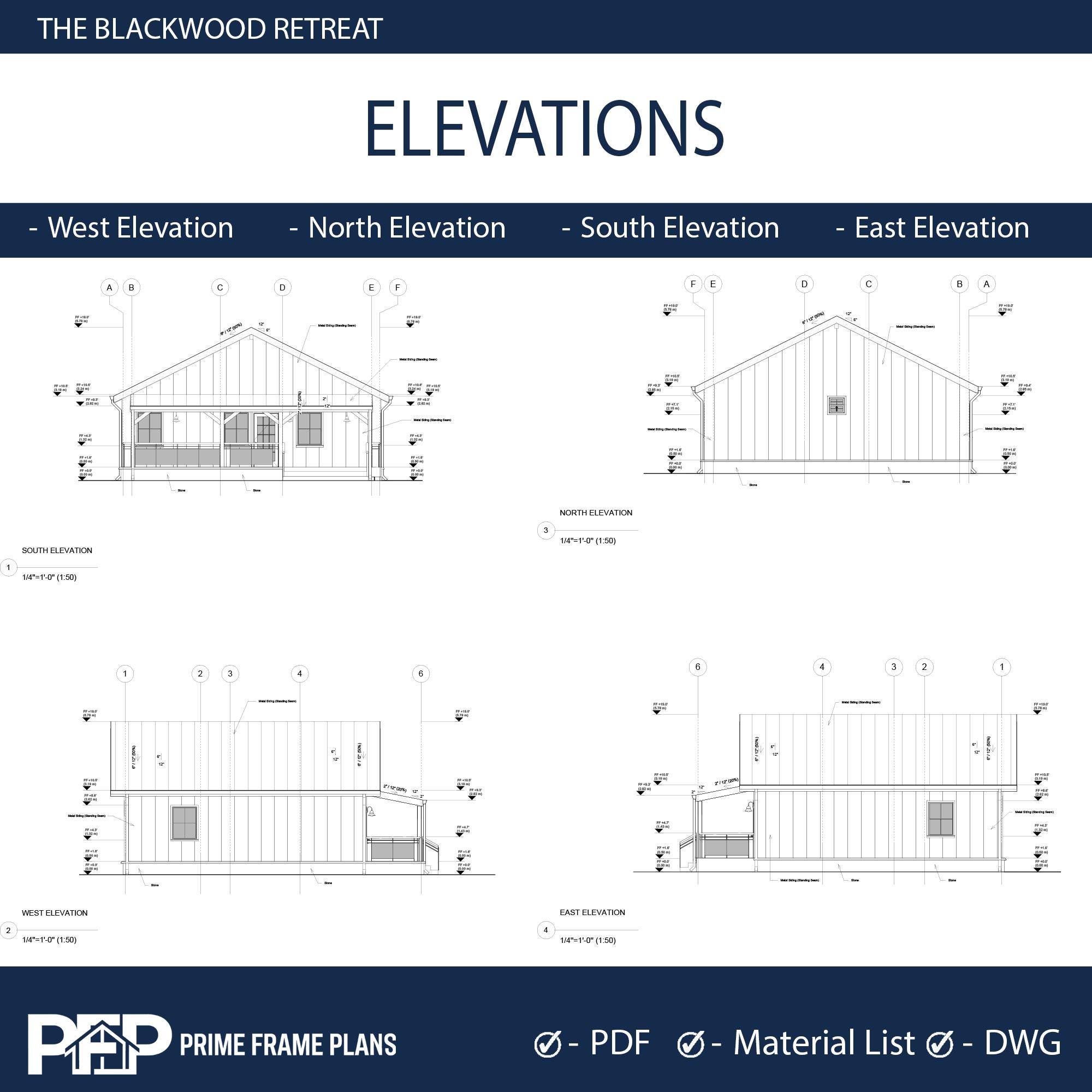

A1.7 - EXTERIOR ELEVATIONS 1: South & West Views, Vertical Heights.
A1.8 - EXTERIOR ELEVATIONS 2: North & East Views, Material Callouts.

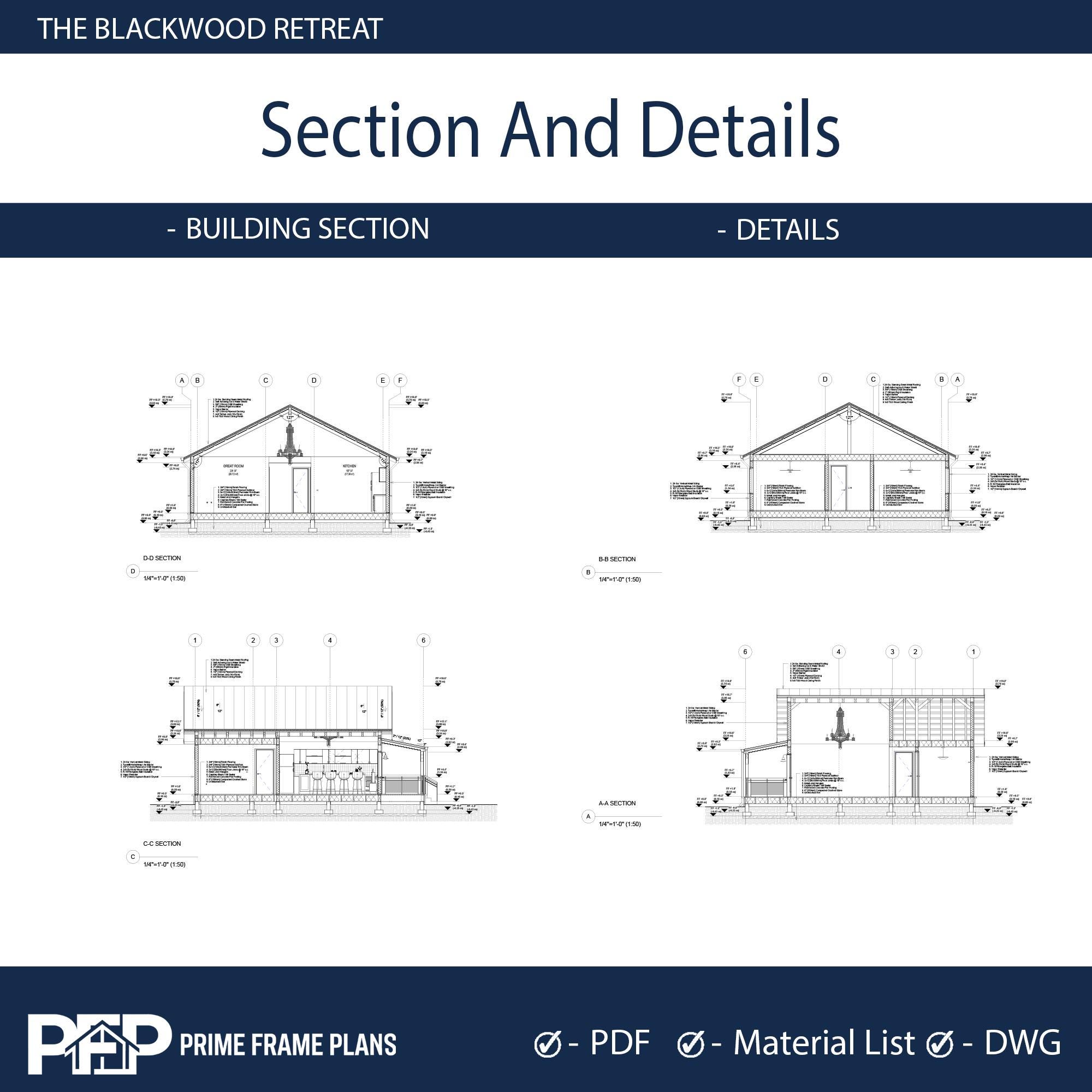

A1.9 - BİLDING SECTIONS 1: Cross Sections (C-C, D-D), Structural Heights.
A1.10 - BUILDING SECTIONS 2: Cross Sections (A-A, B-B), Interior Details.

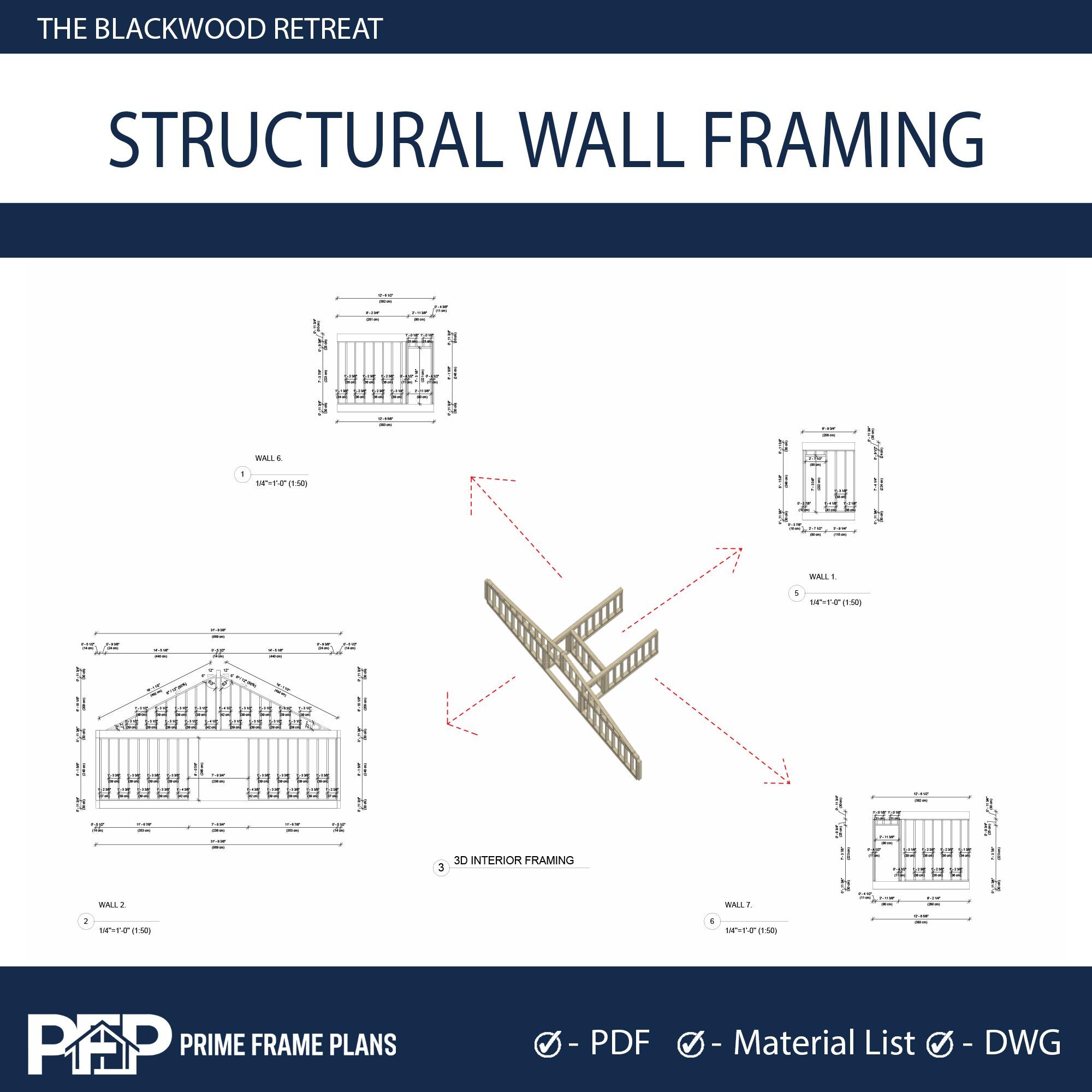

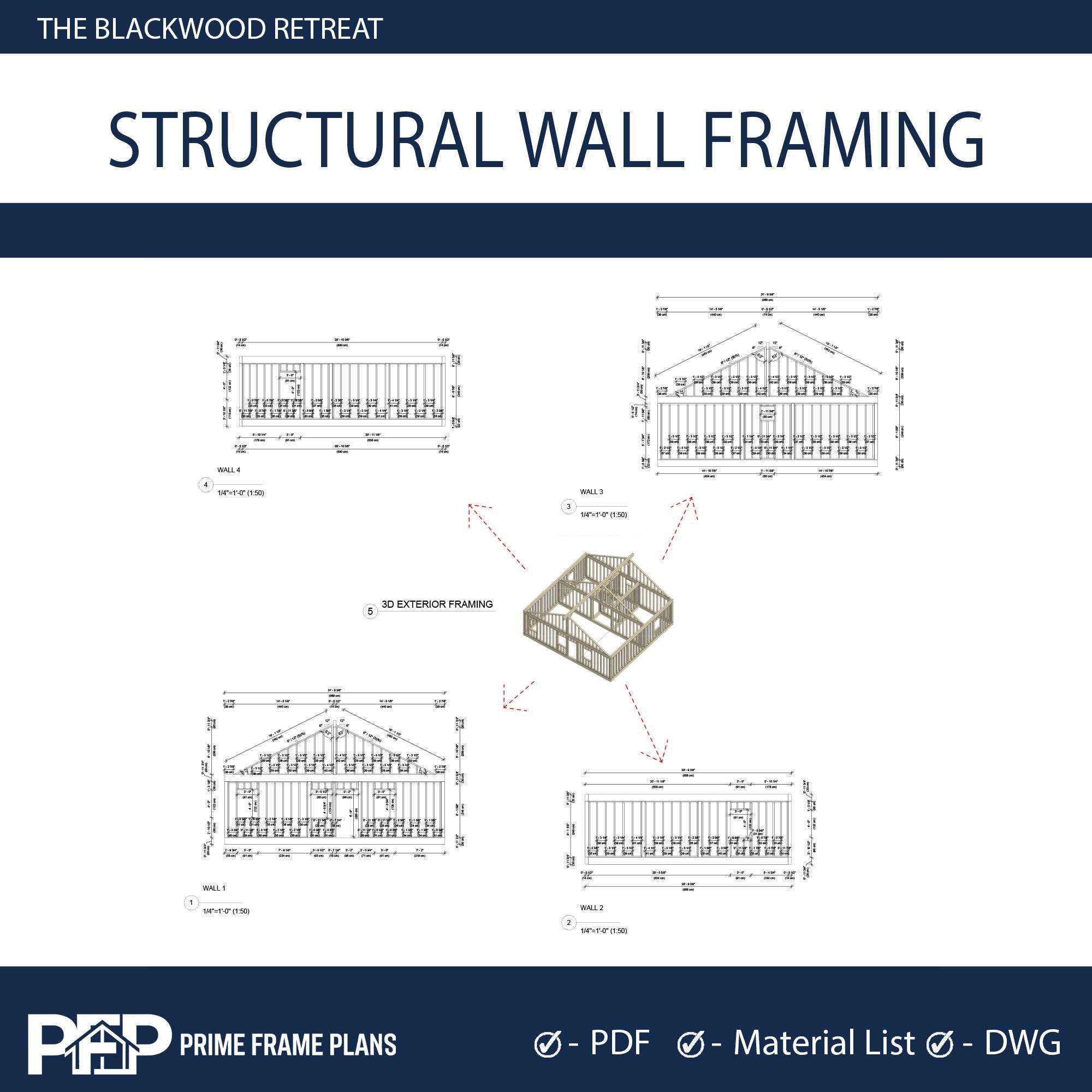

A1.11 - WALL FRAMING PLANS: Exterior Wall Stud Layouts & Bracing.
A1.12 - PARTITION FRAMING: Interior Wall Stud Layouts & Blocking.

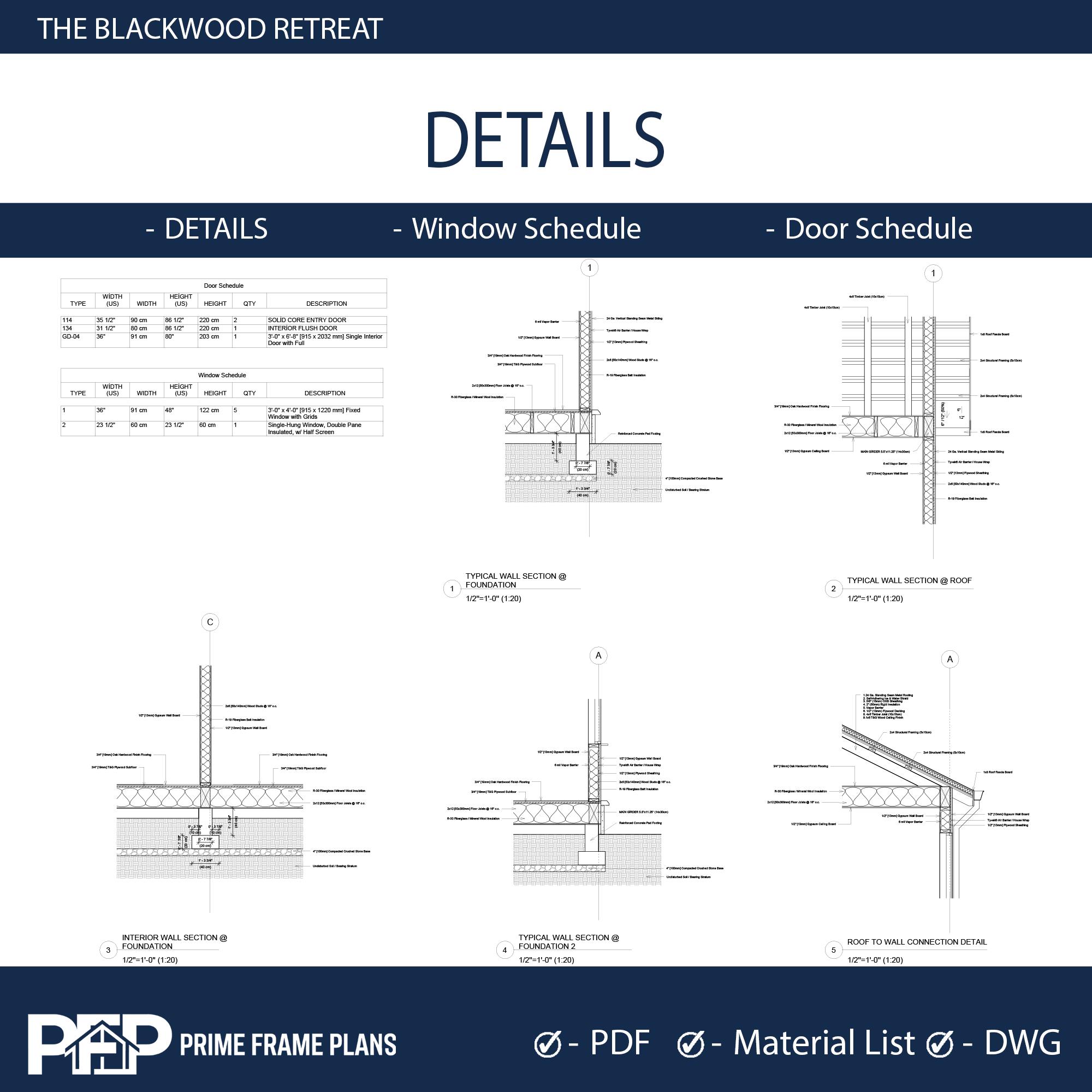

A1.13 - DETAILS & SCHEDULES: Door/Window List, Structural Connections.
BONUS CONTENT:
Building Materials List: Estimated list of materials for construction planning.
******* PLEASE READ BEFORE PURCHASING *******
Format: Digital Download (PDF + DWG + Material List). No physical product is shipped.
License: Single-Use License to build one (1) structure. Resale is prohibited.
Refunds: Due to the nature of digital products, no refunds are accepted.
PRIME FRAME PLANS - Smart Design, Less Waste. -
Shipping & Policies
Digital downloads
Your files will be available to download once payment is confirmed.
Frequently Asked Questions
Do you offer Custom Designs or Modifications?
YES! We specialize in designing custom Barndominiums, A-Frames, and Cabins from scratch. If you have a specific vision, message us for a quote.

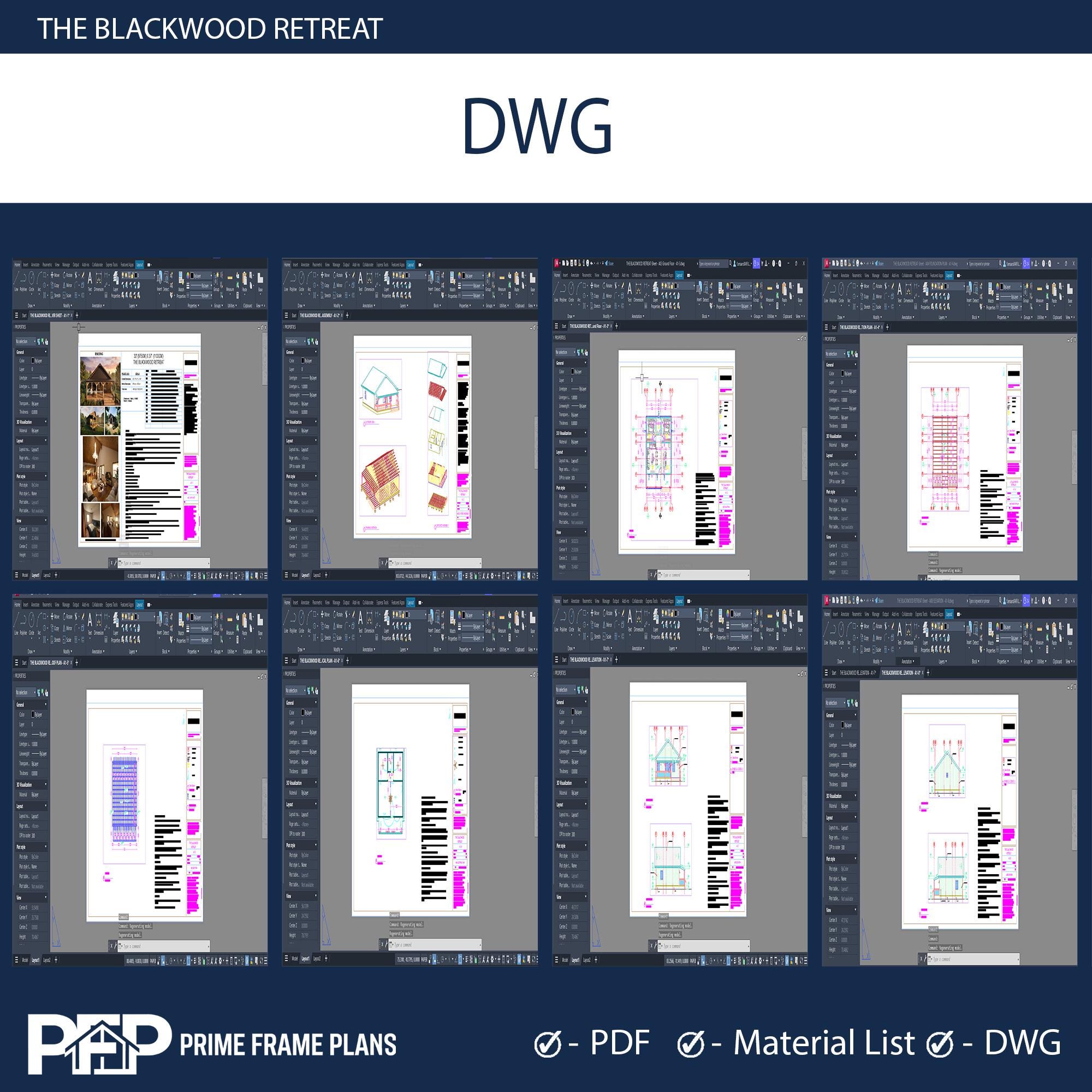

Modifications: We can also modify our existing plans to fit your needs. Alternatively, since we provide the Editable AutoCAD (DWG) file for FREE, you can have your local architect make changes easily.What is included in the download package?
You receive a complete Builder's Set (PDF + CAD):
Foundation Plan & Detailed Floor Plans
Roof Plan & 4 Exterior Elevations
Building Sections & Details
Framing Schematics (Wall & Roof Skeleton)
Electrical Layouts (Lights/Switches)
Window & Door Schedules
Bill of Materials (BOM) for budgeting.Are the plans in Imperial or Metric units?
BOTH! We design for a global audience. Every single architectural sheet features Dual Dimensions side-by-side (Feet-Inches & Meters-Centimeters). Whether you are building in the US, Europe, Canada, or Australia, you can use these plans without conversion.
Do the plans include an Engineering Stamp?
No. Because building codes, snow loads, and wind requirements vary by every city and county, no online plan can carry a universal stamp. You must have the plans reviewed by a local engineer to comply with your specific regional codes. The included CAD file makes this process easy and affordable.
How much will it cost to build this house?
Construction costs vary significantly by location, material quality, and labor rates. We cannot give an exact price. However, we provide a Bill of Materials (BOM) derived from our Revit model. You can give this list to local builders to get accurate price quotes before you start construction.
Will I receive a physical paper copy?
No, this is an Instant Digital Download. You will receive high-resolution PDF and DWG files immediately after purchase via email. You save money and time on shipping! You can print as many copies as you need at your local print shop.
What paper size should I use for printing?
Our plans are formatted for ARCH D (24" x 36") or standard A1 paper sizes. This large format ensures all text, dimensions, and details are clearly readable for your contractor. You can print them at staples, FedEx Office, or any local blueprint shop.
Special and personalized orders
Due to the digital nature of the files, all sales are final and non-refundable once downloaded. However, if you have any technical issues with the files or need assistance, please message us immediately. We are here to help and ensure you are satisfied!
Can I build multiple houses with one plan?
Your purchase grants a Single-Use License to construct one home. The designs are copyrighted by Prime Frame Plans. If you are a developer or builder intending to build multiple units, please contact us to purchase a commercial license.
Why do you include the CAD (DWG) file?
Most sellers charge extra for this, but we include it for FREE. The CAD file allows you, your architect, or engineer to easily edit the plans (move walls, change layout) without having to redraw everything from scratch. It gives you total freedom.
