Details39' x 45' THE "VERTICA" MODERN CABIN | COMPLETE PDF + CAD (DWG) + MATERIAL LIST 1,780 Sq. Ft. (165 m²) Modern Elevated Living with 2 Bedrooms & Wrap-Around Deck
PRIME FRAME PLANS presents: The Vertica Modern Cabin. A modern, elevated retreat designed for both aesthetics and durability. Featuring a sleek vertical siding exterior and a pier-and-beam foundation, this cabin is engineered to adapt to various terrains while offering a refined living experience. The open-concept floor plan maximizes natural light, creating a seamless connection between the interior and the spacious wrap-around deck. Perfect for a permanent residence or a high-end vacation home.
*** DUAL DIMENSIONS INCLUDED: This plan set is designed for global use. All floor plans and elevations utilize both Imperial (Feet & Inches) and Metric (Centimeters) measurements on the same page for easy reference.
IMPORTANT: These plans are for conceptual design purposes. They MUST be reviewed and stamped by a locally licensed structural engineer and your building official before construction to ensure compliance with local codes and site conditions.
*** DESIGN SUMMARY Overall Dimensions: 39' - 6 3/4" x 44' - 11 5/8" (1206 cm x 1371 cm)
Total Footprint Area: Approx. 1,780 Sq. Ft. (165 m²)
Stories: 1
Bedrooms: 2 Spacious Bedrooms
Bathrooms: 1 Full Bathroom
Foundation: Elevated Pier & Beam (Crawlspace)
Roof Style: Gable with Asphalt Shingles or Metal Finish
*** WHAT IS INCLUDED IN THIS PACKAGE? This download includes high-resolution PDF sheets (Ready to print on 24"x36" / A1), the editable source file (DWG), and a comprehensive material list. Both Imperial and Metric units are provided.

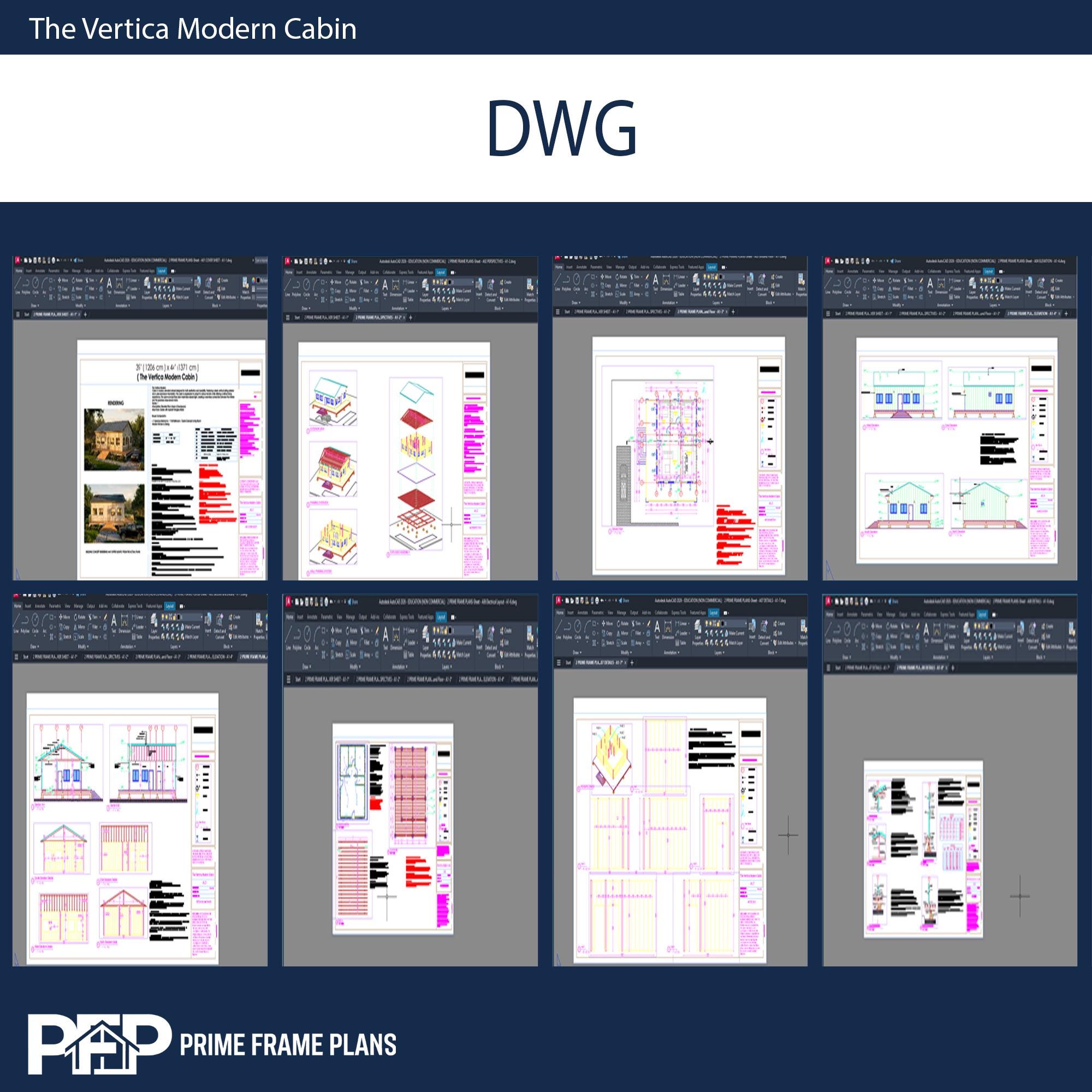

EDITABLE CAD (DWG) FILE: Full source file for professional modification and code adaptation.

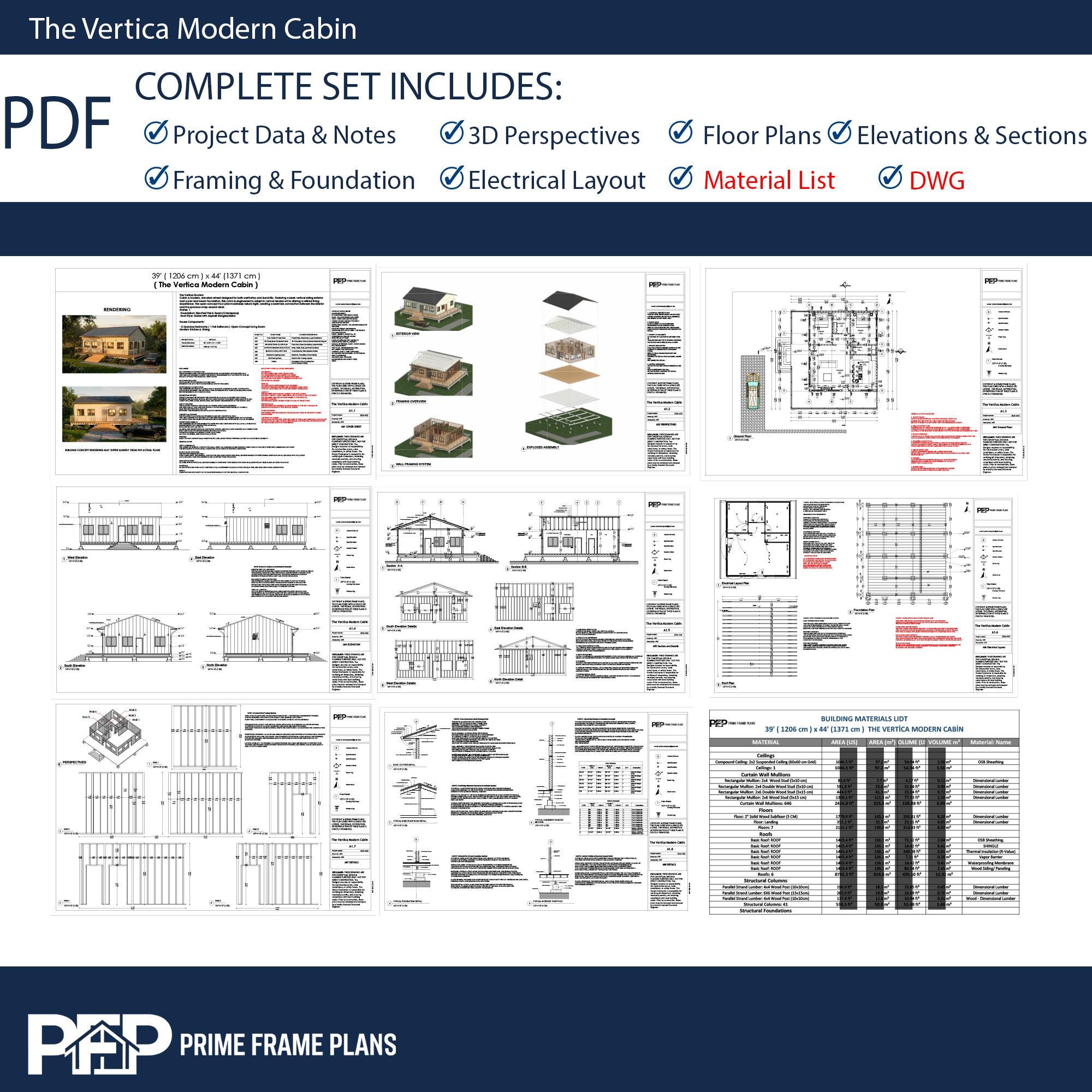

COMPLETE PDF PLAN SET (8 SHEETS):
A01 - Cover Sheet & Project Data: Project Data, Sheet Index, and Legal Disclaimers.

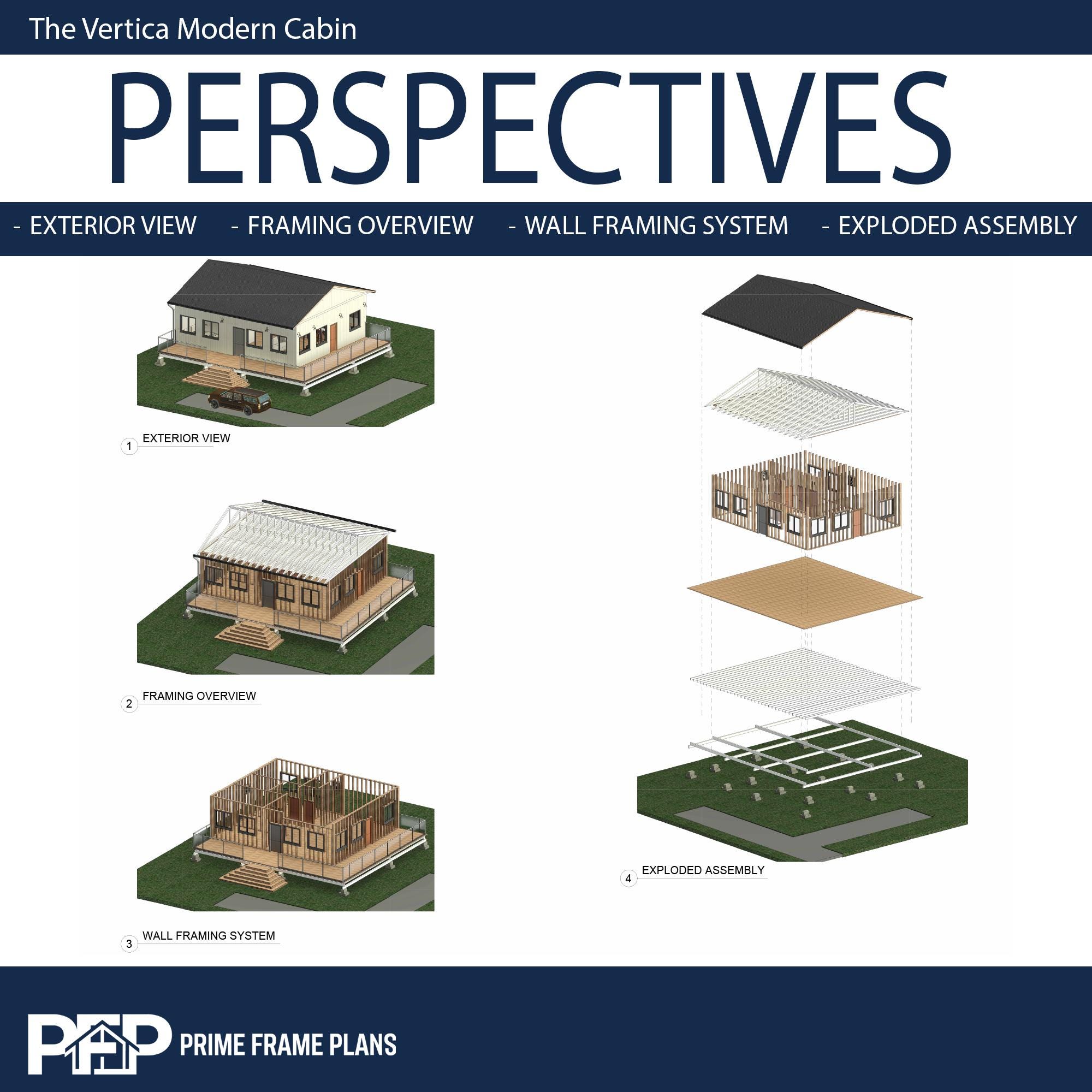

A02 - 3D Perspectives & Exploded Views: 3D Perspective Views and Exploded Assembly Diagram.

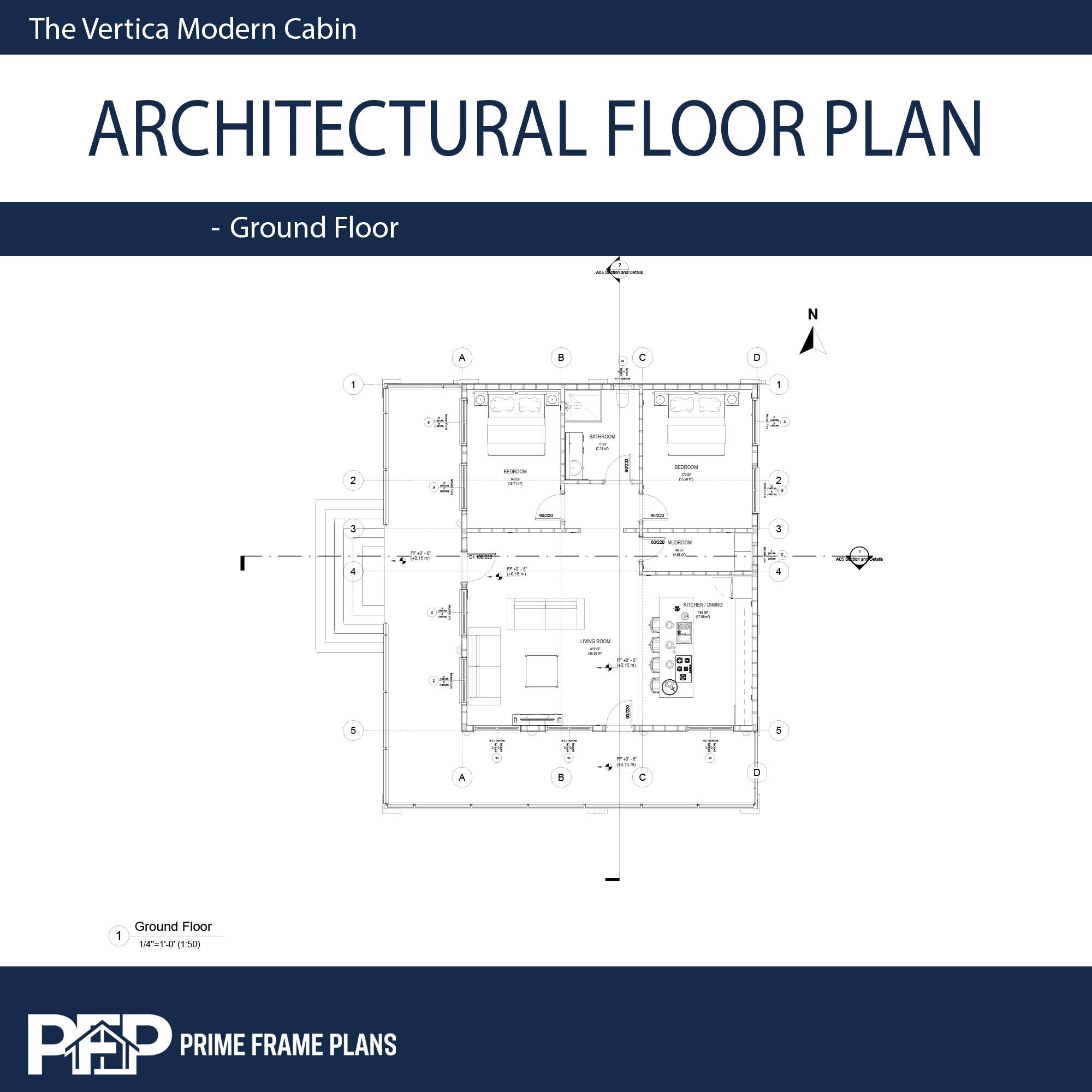

A03 - Architectural Floor Plan: Detailed Floor Plan, Room Dimensions (Feet & Metric), and General Notes.

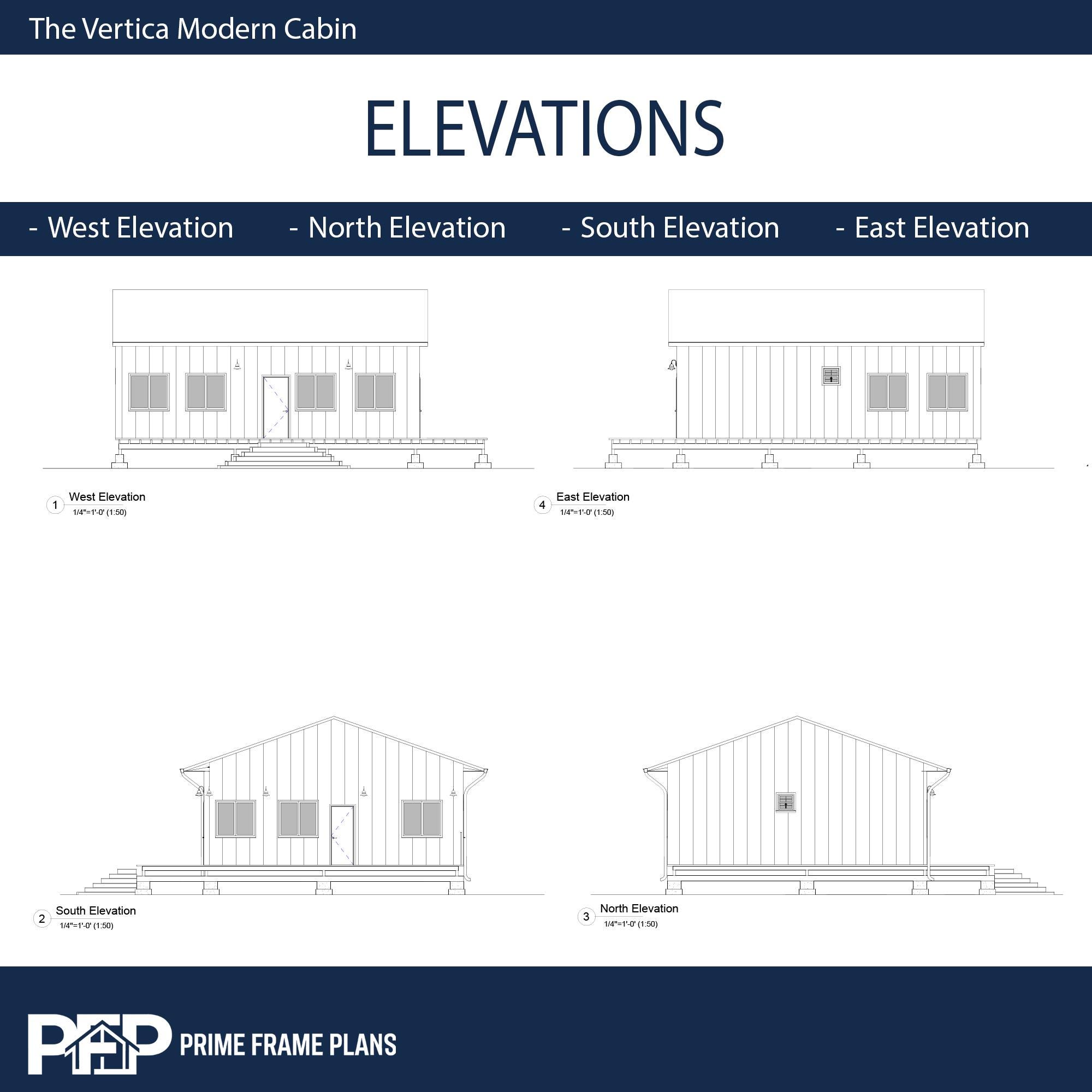

A04 - Exterior Building Elevations: North, South, East, and West Elevations with dual dimensions.

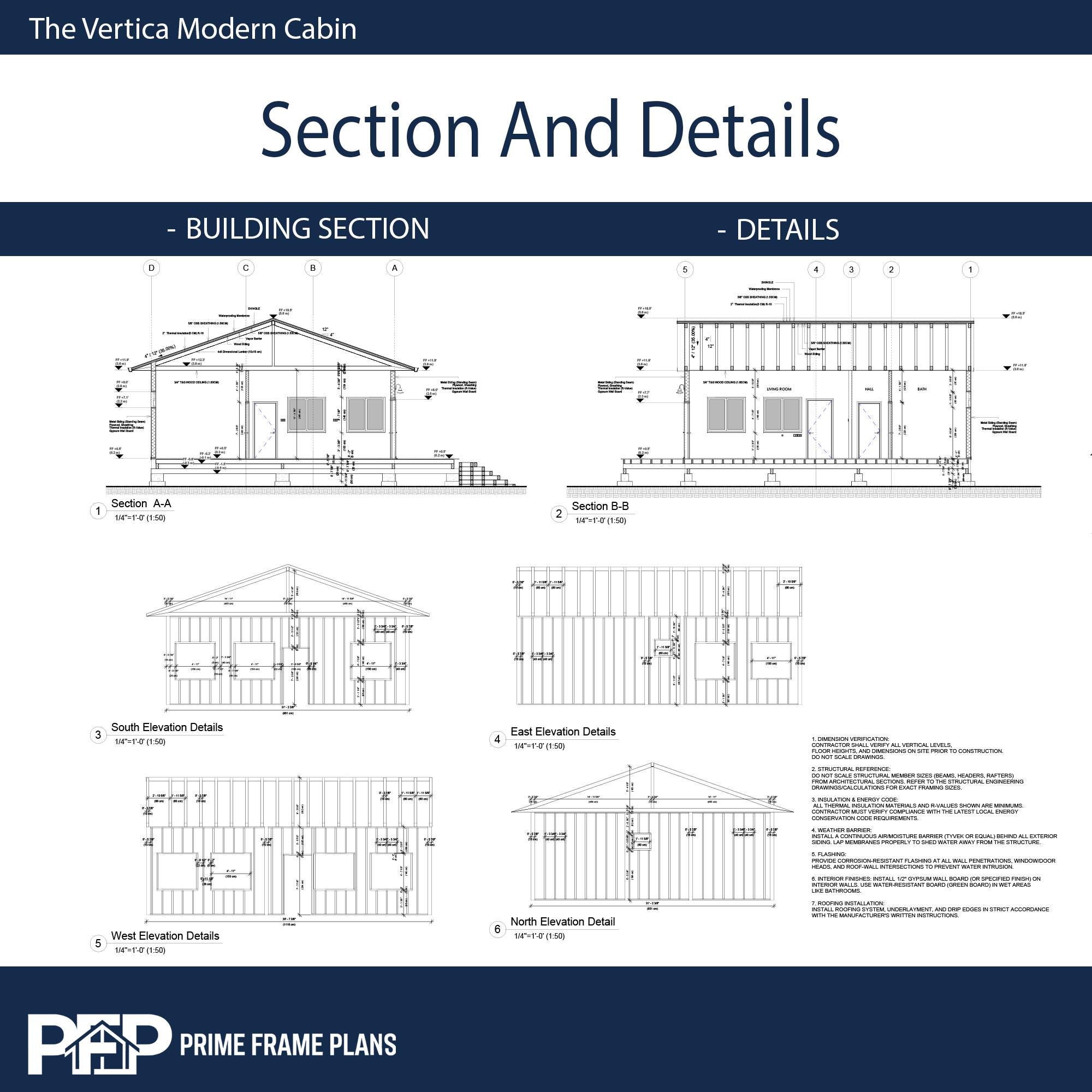

A05 - Building & Wall Sections: Cross Sections and Wall Assembly Details.

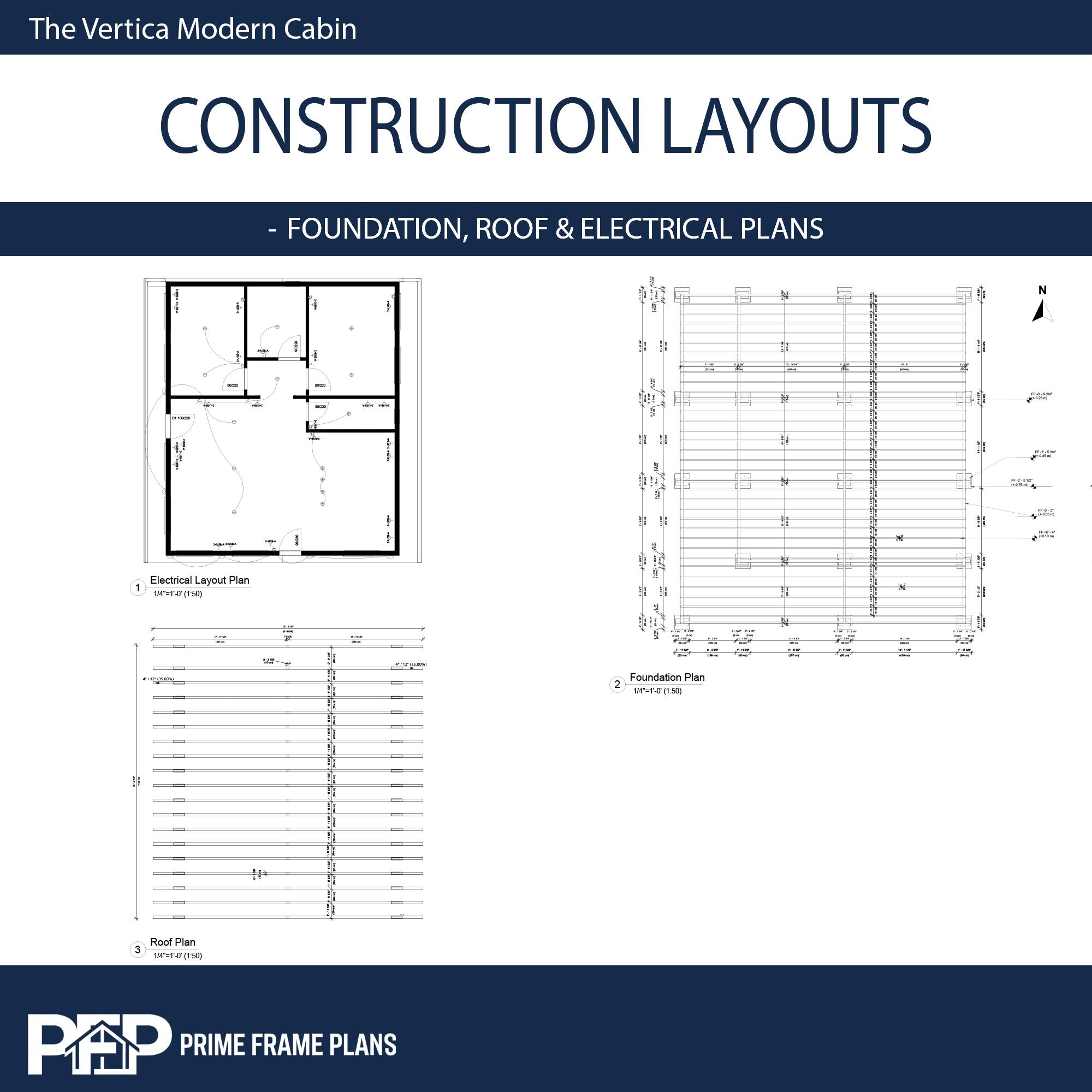

A06 - Electrical & Lighting Layout: Electrical Layout, Foundation Plan, and Roof Plan.

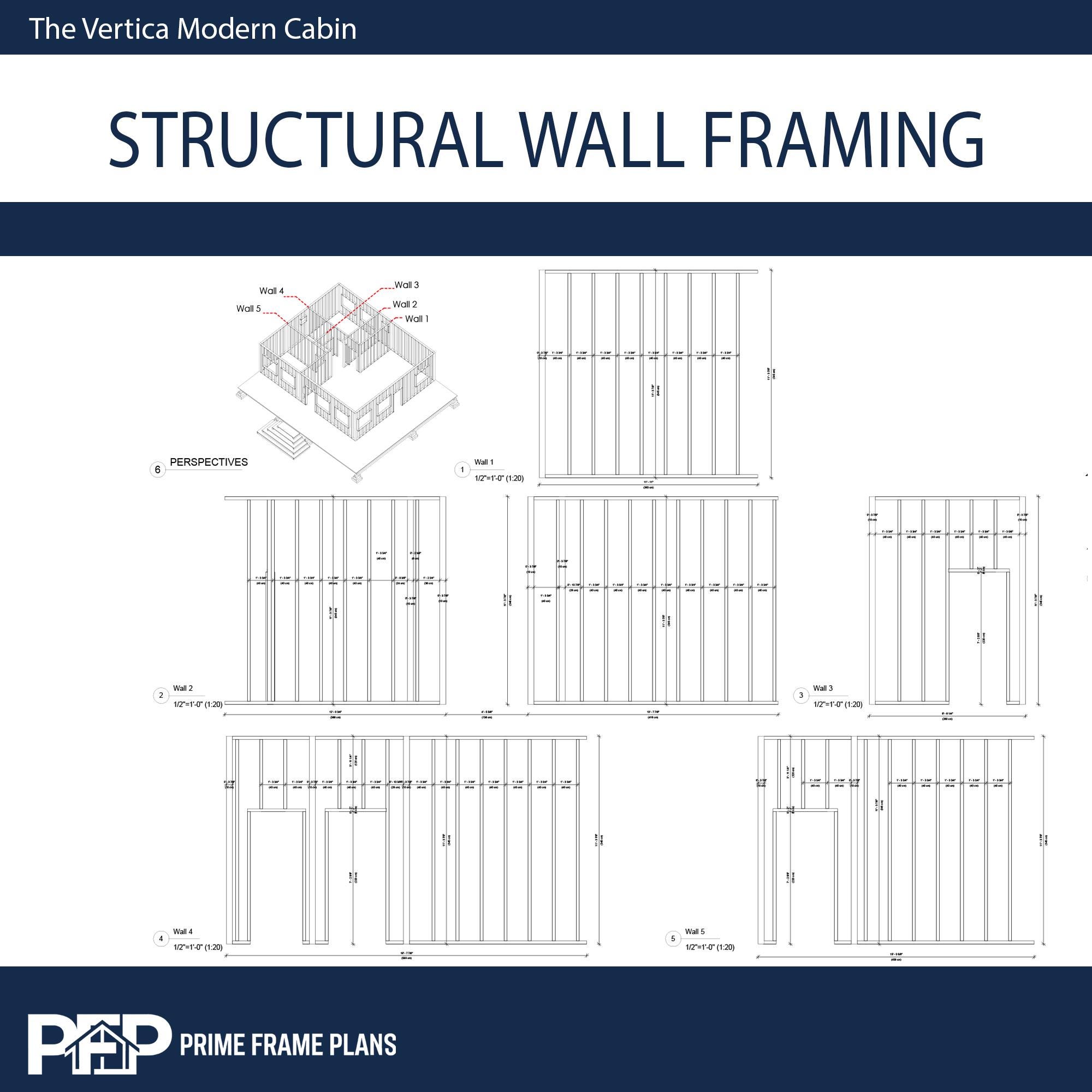

A07 - Wall Framing Plan: Exterior Wall Framing Layouts.

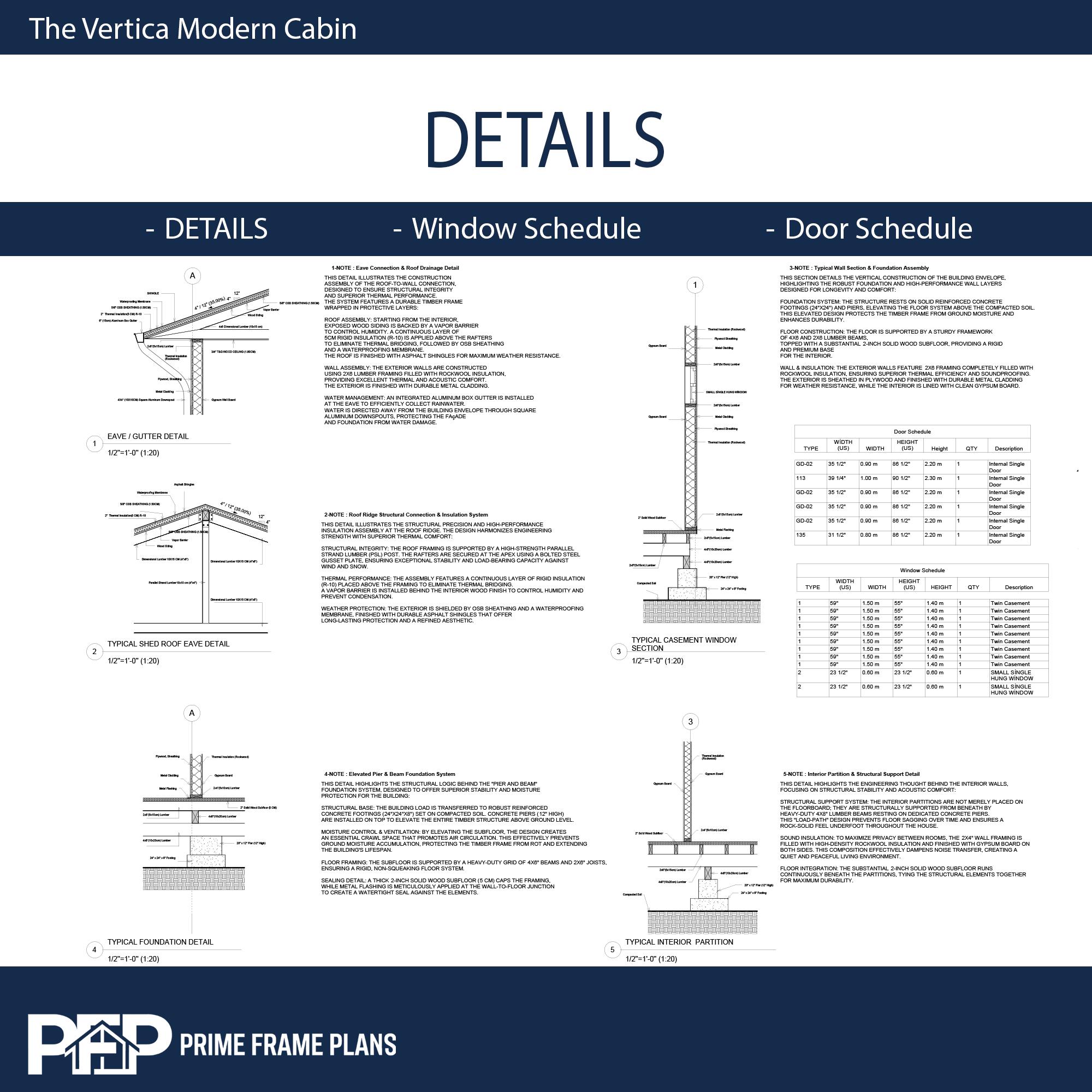

A08 - Details: Foundation & Floor Framing Plan, Roof Framing & Details.
BONUS CONTENT: Building Materials List: Estimated list of materials for construction planning.
*** PLEASE READ BEFORE PURCHASING Format: Digital Download (PDF + DWG + Material List). No physical product is shipped.
Units: Imperial (Feet/Inches) & Metric (Meters/CM) included.
Engineering: This plan set does NOT include an architectural or engineering stamp.
License: Single-Use License to build one (1) structure. Resale, distribution, or reproduction is strictly prohibited.
Refunds: Due to the nature of digital products, no refunds are accepted.
PRIME FRAME PLANS - Modern Living, Smart Design. -
Shipping & Policies
Digital downloads
Your files will be available to download once payment is confirmed.
Frequently Asked Questions
Do you offer Custom Designs or Modifications?
YES! We specialize in designing custom Barndominiums, A-Frames, and Cabins from scratch. If you have a specific vision, message us for a quote.
Modifications: We can also modify our existing plans to fit your needs. Alternatively, since we provide the Editable AutoCAD (DWG) file for FREE, you can have your local architect make changes easily.What is included in the download package?
You receive a complete Builder's Set (PDF + CAD):
Foundation Plan & Detailed Floor Plans
Roof Plan & 4 Exterior Elevations
Building Sections & Details
Framing Schematics (Wall & Roof Skeleton)
Electrical Layouts (Lights/Switches)
Window & Door Schedules
Bill of Materials (BOM) for budgeting.Are the plans in Imperial or Metric units?
BOTH! We design for a global audience. Every single architectural sheet features Dual Dimensions side-by-side (Feet-Inches & Meters-Centimeters). Whether you are building in the US, Europe, Canada, or Australia, you can use these plans without conversion.
Do the plans include an Engineering Stamp?
No. Because building codes, snow loads, and wind requirements vary by every city and county, no online plan can carry a universal stamp. You must have the plans reviewed by a local engineer to comply with your specific regional codes. The included CAD file makes this process easy and affordable.
How much will it cost to build this house?
Construction costs vary significantly by location, material quality, and labor rates. We cannot give an exact price. However, we provide a Bill of Materials (BOM) derived from our Revit model. You can give this list to local builders to get accurate price quotes before you start construction.
Will I receive a physical paper copy?
No, this is an Instant Digital Download. You will receive high-resolution PDF and DWG files immediately after purchase via email. You save money and time on shipping! You can print as many copies as you need at your local print shop.
What paper size should I use for printing?
Our plans are formatted for ARCH D (24" x 36") or standard A1 paper sizes. This large format ensures all text, dimensions, and details are clearly readable for your contractor. You can print them at staples, FedEx Office, or any local blueprint shop.
Special and personalized orders
Due to the digital nature of the files, all sales are final and non-refundable once downloaded. However, if you have any technical issues with the files or need assistance, please message us immediately. We are here to help and ensure you are satisfied!
Can I build multiple houses with one plan?
Your purchase grants a Single-Use License to construct one home. The designs are copyrighted by Prime Frame Plans. If you are a developer or builder intending to build multiple units, please contact us to purchase a commercial license.
Why do you include the CAD (DWG) file?
Most sellers charge extra for this, but we include it for FREE. The CAD file allows you, your architect, or engineer to easily edit the plans (move walls, change layout) without having to redraw everything from scratch. It gives you total freedom.
